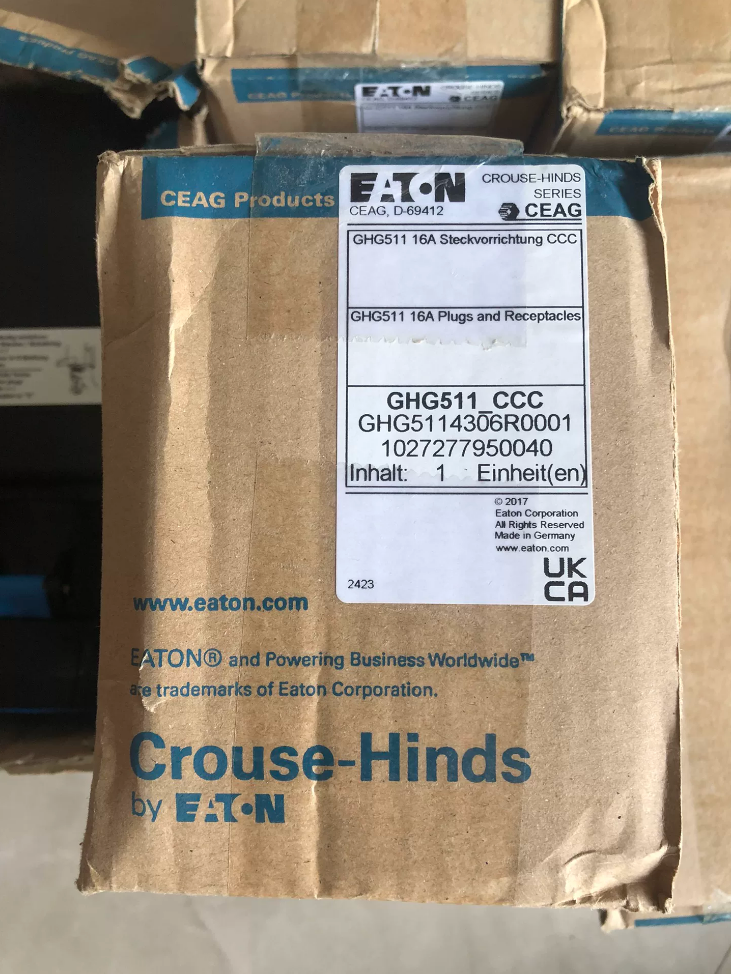

Eaton CEAG GHG5114306R0001 Industrial Socket

Product: Explosion-proof Wall-mounted Industrial Socket (Ex Wall-mount Receptacle). German CEAG (Eaton’s explosion-proof brand), GHG511 Series, CEE-type industrial socket for hazardous areas

Core Technical Parameters

Item	Specification
Model	GHG5114306R0001
Rated Current	16A
Rated Voltage	200‑250V AC (230V, 6h, blue colour‑code)
Poles	3P (L‑N‑PE)
Ingress Protection	IP66 (maintained when plug is fully inserted)
Housing Material	Glass‑fibre‑reinforced polyester, black housing with blue socket insert
Terminal	Screw‑type terminals for 1.5‑4.0 mm² conductors
Cable Entry	1×M25 explosion‑proof cable gland, 1×M25 blanking plug
Operating Temperature	-20℃ ~ +40℃
Weight	Approx. 1048 g
Explosion‑proof Certification	ATEX: II2G Ex ed IIC T6; II2D T60℃; Suitable for Zone 1/2 gas hazardous areas, Zone 21/22 dust hazardous areas
Applicable Standards	IEC 60309‑2, IEC 60079 series

Model Decoding

GHG511: CEAG explosion-proof plug-and-socket series

4: Wall-mount receptacle

3: 3-pole

06: 6-hour phase position (230V blue code)

R0001: Version / order suffix

Typical Application Scenarios

Chemical plants, oil & gas facilities, pharmaceutical plants, mines, flour/grain dust workshops, offshore platforms. Used as power interfaces for on-site maintenance and mobile equipment in Zone 1/2 gas hazardous areas and Zone 21/22 dust hazardous areas.

Mating Plug

Matching series plug: GHG5113306R0001 (16A, 3-pole, 6h explosion-proof plug)

Reference Equivalent Replacement Models

GHG5114306R0002: Same electrical specifications, different cable-entry configuration, differs only in order suffix.

Procurement & Customs Information

Customs Tariff Code: 85366990 (Electrical sockets). Made in Germany. Typical import lead-time: 30-40 working days. Limited local stock in China; second-hand units are widely circulated.

Notice: Ordinary non-explosion-proof plugs must NOT be used with this unit. Replacement spare parts shall maintain identical explosion-proof rating. Ordinary IP66 industrial sockets cannot serve as direct substitutes.

Eaton CEAG GHG5114306R0001 Datasheet Key Extract

Surface-mount wall-mounted explosion-proof receptacle with integrated load-break switch. Permits make-and-break under 16A load. Never energise the socket without a plug fully inserted.

Full Technical Specifications

Item	Specification
Order No.	GHG5114306R0001
Series	GHG511 (CEAG hazardous‑area plug‑and‑socket system)
Ratings	16A, 200‑250V AC, 6h phase position, blue 2P+E (3‑pole L‑N‑PE)
Explosion‑proof Certificates	ATEX II2G Ex ed IIC T6; II2D T60℃; IECEx certified; Zone 1/2 gas, Zone 21/22 dust
Ingress Protection	IP66 (plug fully inserted). Do not energise without plug fitted.
Housing	Black glass‑fibre‑reinforced polyester; chemical‑resistant, impact‑resistant
Wiring	Screw terminals, conductor cross‑section 1.5‑4.0 mm²
Cable Entry	1×M25 Ex‑gland, 1×M25 blanking plug; dual‑entry reconfiguration feasible
Ambient Temperature	-20℃ ~ +40℃
Standards	IEC60309‑2, IEC60079 series, EN60947‑3
Mating Plug	GHG5113306R0001 (16A, 3‑pole, 6h explosion‑proof plug)
Weight	Approx. 1.05 kg

Installation & Operational Key Points (Manual Highlights)

Integrated load-break switch: Built-in switching mechanism allows 16A load-breaking operations. Ordinary non-Ex plugs are strictly prohibited.
Mounting: Surface wall-mount via four fixing screws. Outdoor installation permitted; avoid heavily corrosive atmospheres.
Cabling: Must deploy certified explosion-proof cable glands matching M25 cable-entry size. Unused M25 openings must be sealed with original-equipment blanking plugs.
Maintenance: Periodically inspect seals and housing for cracks. Explosion-proof mating surfaces must not be ground or dented. Replace complete unit upon damage; no unauthorised modification allowed.
Earthing: PE terminal shall be reliably earthed; earthing resistance shall comply with GB3836 requirements for explosion-proof equipment.
Spare-parts policy: Damaged sealing gaskets or cable glands must be genuine CEAG OEM spares. General-purpose gaskets do not satisfy Ex ed explosion-proof requirements.

Suffix Explanation

GHG5114306R0001: Single M25 cable-entry version

GHG5114306R0002: Dual M25 cable-entry version. Identical electrical performance; only cable-entry layout differs, direct mechanical interchangeability guaranteed.

Alternative Sourcing List

OEM Imported Direct Replacement

GHG5114306R0002: Eaton original, dual-M25 entry, functionally equivalent, more commonly-ordered part number.

Caution: GHG512 series is rated 32A; different current rating, not a drop-in replacement.

Domestic Chinese Equivalent Alternatives (Zone 1/2, Zone 21/22, Ex ed IIC T6, 16A 230V 3-pole, IEC60309-2 compliant)

⚠️ For project deployment, verify explosion-proof certificates, 6-hour phase position marking and IP66 rating. Many domestic units lack integrated load-break switches and shall only be disconnected under no-load conditions.

Huarong BLJ85-16/220-3 Explosion-proof Industrial Socket (Ex ed IIC T6, 16A, 3-pole, wall-mounted)
Xianghua BCZ8050-16/3 Explosion-proof & anti-corrosion plug-socket assembly, GRP housing, suitable for Zone 1/2 hazardous areas

Critical Reminder: Original imported CEAG GHG511 features integrated load-break switch. Most conventional domestic explosion-proof sockets have no load-break capability and support only no-load mating/unmating. Confirm load-break requirement before selection.

Procurement & Second-hand Unit Inspection Checklist
