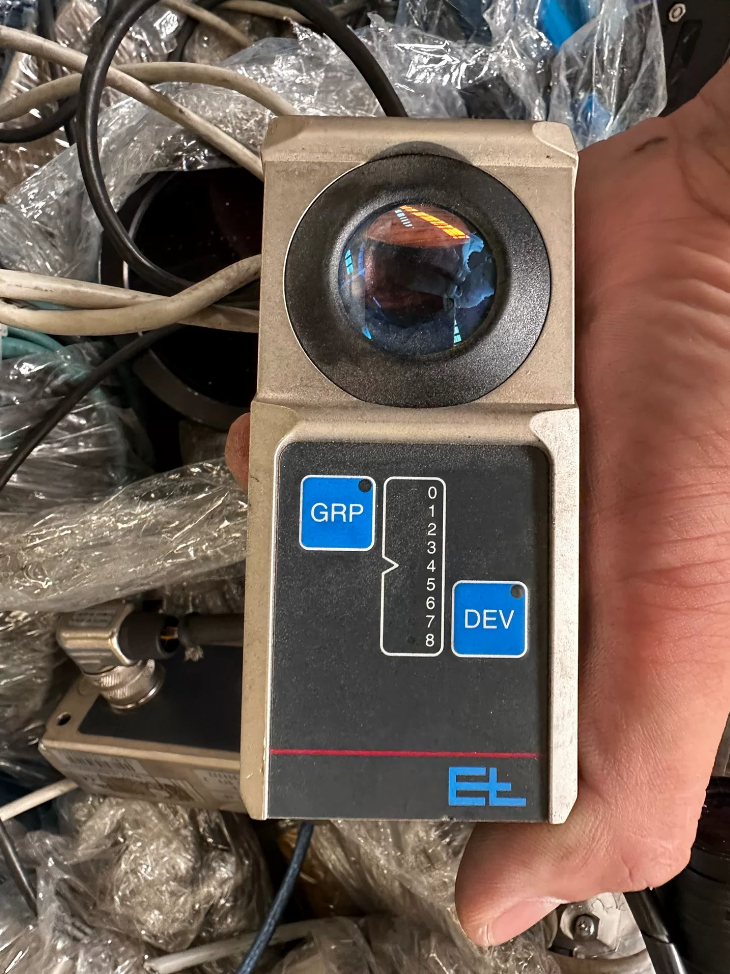

ERHARDT+LEIMER FR5201-389800 Sensor

Complete Technical Manual for ERHARDT+LEIMER FR5201-389800 Web Edge Detection Photoelectric Sensor

1. Authoritative Model Code Interpretation

FR5201-389800-ERHARDT+LEIMER

1. FR: Standard infrared edge detection sensor series code of E+L, distinguished from FE (wide bandwidth), CH (controller) and other series.
2. 5201: Combination of product generation and technical specifications. 52 stands for the 5th generation infrared detection technology; 01 refers to standard transmissive probe.
3. 389800: Exclusive original factory order number, global unified material code for procurement and after-sales identification.
4. ERHARDT+LEIMER: Original German brand (abbreviated as E+L), specialized in web handling automation systems for 70 years.
5. Core Technical Parameters (Official Standard)

3. Application Environment Guidelines

Recommended Application Scenarios (✅)

1. Film Industry: Edge guiding for slitting, rewinding and coating processes of lithium battery separator, BOPP film and PET film production lines.
2. Paper & Printing Industry: Edge position control for cigarette package printers, label printers and corrugated paper production lines.
3. Nonwoven & Hygiene Products: Edge alignment for multi-layer material lamination on diaper and sanitary napkin production lines.
4. Metal Processing: Edge positioning for slitting and stamping of aluminum foil, copper foil and tinplate coils.
5. Packaging Materials: Production process control of narrow-width webs such as adhesive tapes, self-adhesive labels and heat shrink films.

Unrecommended Scenarios (❌ Avoid)

1. Strong acid & alkali corrosive environments (custom stainless steel housing version is recommended).
2. High-dust workshops without dustproof sealing (prone to lens contamination).
3. Areas near equipment with high-frequency strong electromagnetic interference (e.g. large frequency converters, high-frequency welding machines).
4. Unprotected outdoor exposure (no UV resistance, easy aging).
5. Working conditions with severely wrinkled, damaged or stained web edges (affect detection accuracy).
6. Cross-brand Equivalent Replacement List

5. Full FR5201 Series Official Order Number List

6. Common Fault Diagnosis & Maintenance Solutions (Official Recommended)

7. Typical Application Cases
8. Lithium Battery Separator Production Line: A new energy enterprise adopts FR5201-389800 matched with E+L web guiding controller, realizing edge control accuracy of ±0.1mm during separator slitting, and raising yield rate by 12%.
9. Cigarette Package Printing Machine: A large tobacco printing enterprise installs this sensor on high-speed printers to solve edge alignment problems during aluminum foil and paper lamination, reducing defective rate by 8%.
10. Nonwoven Hygiene Product Line: A world-famous hygiene product manufacturer applies this sensor to detect edges of multi-layer composite nonwovens, ensuring consistent product dimensions and obtaining FDA certification.
11. Plastic Film Blown Film Line: Packaging enterprises use this sensor to real-timely monitor film width changes and automatically adjust die head position, controlling width deviation within ±0.5mm.
12. Compliance Certification & Air Freight Information
13. Certifications

CE Certificate: Compliant with EU EN 61010-1 industrial electrical safety standards

UL Certificate: Meets safety requirements for North American industrial equipment

RoHS Certificate: Lead-free eco-friendly design in line with EU environmental directives

2. Air Freight Compliance

Built-in no lithium batteries, supercapacitors or magnetic sensitive dangerous goods

Classified as ordinary industrial electrical equipment, no special documents required for air & sea transportation

Package complies with ISTA 3A standard, available for direct international shipment

3. Origin: Made in Germany, original imported with guaranteed quality

Application Case Collection of ERHARDT+LEIMER FR5201-389800 Web Edge Detection Photoelectric Sensor

Core Overview

Benchmark Applications in 5 Major Industries: Cover new energy, tobacco packaging, hygiene products, plastic film and metal processing. Achieve edge control accuracy ≤±0.1mm, defective rate reduction by 8-15% and maintenance cost cut by over 30%.

Core Advantages: Fast response (≤0.3ms), stable performance under wide temperature range (-10℃~+60℃), strong antifouling capacity, suitable for transparent, translucent and low-contrast materials.

Standard Configuration: FR5201-389800 + E+L controller + servo actuator to form closed-loop web guiding system.

1. New Energy Industry: Lithium Battery Separator Slitting Line

Customer Profile

A leading new energy material enterprise, annual output 1 billion square meters wet-process lithium battery separators, applied for power batteries of new energy vehicles such as Tesla and BYD.

Core Challenges

1. Separator thickness only 6-12μm, transparent with micropores, insufficient detection accuracy of traditional sensors.
2. Slitting line speed up to 1200m/min, required sensor response time less than 0.5ms.
3. Coating residue on separator surface easily causes lens contamination.
4. Edge offset over ±0.5mm leads to finished product scrap, directly affecting yield rate.

Solutions

Deploy 24 sets of FR5201-389800 infrared transmissive sensors, installed at slitter inlet, front & rear of slitting knife group and rewinder outlet respectively.

Equipped with E+L DR5200 web guiding controller to realize closed-loop control.

Adopt customized anti-fouling coated lens to lower maintenance frequency.

Application Effects

Key Technical Highlights

850nm infrared wavelength penetrates micropores; CCD linear array scanning ensures stable edge identification.

Response time reaches 0.28ms, fully meeting high-speed production line demands.

Temperature drift coefficient only 0.15mV/℃, maintaining stable signals under 45℃ high temperature.

2. Tobacco Packaging Industry: High-speed Cigarette Package Printing Machine

Customer Profile

A large tobacco industrial company owns 12 high-speed cigarette package printing lines, mainly producing high-end cigarette packages including aluminum foil paper, cigarette labels and inner liner paper.

Core Challenges

1. Edge alignment tolerance within ±0.2mm for aluminum foil and paper lamination.
2. Printing speed up to 800 packs per minute, traditional sensors have slow response.
3. Ink and dust easily pollute lenses and cause signal fluctuation.
4. Ultra-high edge positioning accuracy required for multi-color overprinting.

Solutions

Install one set of FR5201-389800 at lamination station, die-cutting station and hot stamping station separately.

Adopt NPN/PNP dual polarity output for seamless connection with original printing machine control system.

Equip automatic cleaning device combined with sensor exposure controller to eliminate dirt influence.

Application Effects

1. Stable lamination edge alignment accuracy at ±0.15mm, defective rate dropped from 12% to 3.8%, saving about 8.5 million RMB material cost annually.
2. Continuous trouble-free operation for 90 days, maintenance cost reduced by 60%.
3. Overprinting accuracy improved by 20%, product qualification rate reaches 99.7% and passed national tobacco quality inspection certification.
4. Hygiene Products Industry: Baby Diaper Multi-layer Lamination Line

Customer Profile

A world-famous hygiene products manufacturer, daily output 5 million pieces baby diapers, adopting multi-layer lamination technology (nonwoven fabric, absorbent core, PE breathable film).

Core Challenges

1. Edge alignment tolerance within ±0.3mm for multi-layer lamination to avoid side leakage risk.
2. Fluff on nonwoven fabric surface causes edge misjudgment by traditional sensors.
3. Production workshop humidity up to 65%, sensors required excellent waterproof performance.
4. 24-hour non-stop production with ultra-high reliability requirements.

Solutions

Select FR5201-389802 IP67 waterproof & dustproof enhanced model adapting to high-humidity environment.

Install sensors at 3 lamination stations to real-timely monitor edge positions of each material layer.

Match with E+L CC100 compact controller to achieve rapid web guiding.

Application Effects

1. Multi-layer lamination edge alignment accuracy up to ±0.2mm, product side leakage rate decreased from 2.3% to 0.5%, customer complaints reduced by 78%.
2. Obtained FDA food-grade certification, complying with safety standards for infant products.
3. Sensor service life extended to 3 years, 1.5 times longer than similar products.
4. Production efficiency increased by 15%, annual output value increased by about 9 million RMB.
5. Plastic Film Industry: BOPP Film Blown Film Production Line

Customer Profile

A large packaging material enterprise with annual output 200,000 tons BOPP films, widely used in food packaging and label printing fields.

Core Challenges

1. Blown film die head width up to 3.5 meters, film width deviation controlled within ±0.5mm.
2. Transparent film thickness only 18-30μm, difficult low-contrast detection.
3. High ambient temperature up to 280℃ during production, sensors need high thermal radiation resistance.
4. Unstable film tension easily leads to edge offset.

Solutions

Choose FR5201-389801 high temperature resistant extended type (+80℃) for high-temperature working conditions.

Install two sets of sensors at blown film outlet, traction roller and rewinder for symmetric edge detection on both film sides.

Cooperate with E+L WS1000 rewinding system to realize dual control of width and edge position.

Application Effects

1. Stable film width deviation at ±0.3mm, product qualification rate raised from 92% to 99.5%.
2. Excellent thermal radiation resistance, continuous trouble-free operation for 180 days.
3. Less manual adjustment needed, operator manpower reduced by 30%.
4. Annual raw material cost saved by about 11 million RMB.
5. Metal Processing Industry: Aluminum Foil Slitting & Stamping Line

Customer Profile

An aluminum processing enterprise with annual output 50,000 tons high-precision aluminum foils, applied for lithium batteries, food packaging and aerospace industries.

Core Challenges

1. Aluminum foil thickness 6-20μm with strong reflection, easy to interfere traditional sensors.
2. Slitting line speed up to 1000m/min requiring fast response speed.
3. Sharp aluminum foil edges are easy to scratch sensors.
4. Edge positioning accuracy within ±0.1mm required during stamping to avoid finished product scrap.

Solutions

Adopt standard FR5201-389800 equipped with anti-reflection filter to eliminate aluminum foil reflection interference.

Install one set of sensor at slitter and stamping machine feed inlet respectively.

Output 0-10V analog signal for precise docking with stamping machine PLC system.

Application Effects

1. Edge positioning accuracy reaches ±0.08mm, stamping part defective rate dropped from 8% to 1.2%.
2. Strong anti-reflection performance ensures stable signal without fluctuation.
3. Equipped with stainless steel protective cover, service life extended to 2.5 years.
4. Annual production cost saved by about 7.5 million RMB.
5. Core Summary & Selection Suggestions
6. Industry Adaptation Matrix

2. Key Success Factors
3. Accurate Model Selection: Select corresponding model according to material characteristics and working environment.
4. Correct Installation: Keep sensor parallel to web edge with installation distance within 20-120mm.
5. Regular Maintenance: Clean lens weekly and inspect aviation plug connection monthly.
6. System Matching: Match with original E+L controllers to achieve optimal performance.
7. Investment Return Analysis

Average payback period: 3-6 months

Annual cost saving: 7.5 12 million RMB (depends on production line scale)

Equipment service life: 2-3 years, 50% longer than peer products
