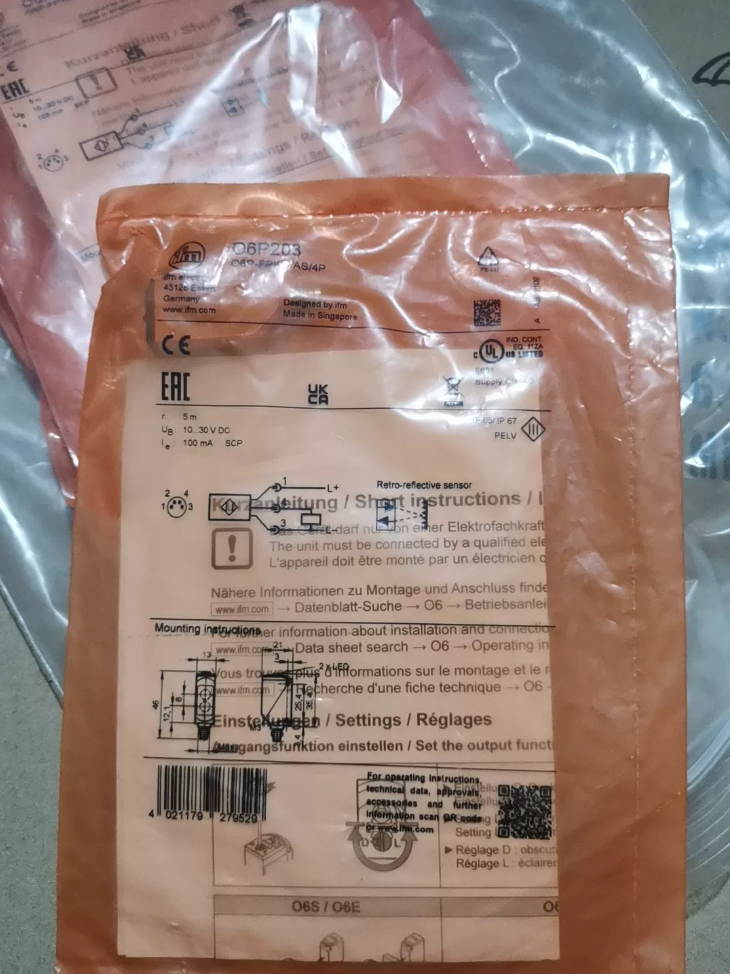

IFM O6P203 Retro-reflective Photoelectric Sensor

1. Model Code Definition

2. Main Technical Specifications

3. Cross-brand Compatibility List

4. Full O6P Series Model List

5. Common Troubleshooting & Maintenance Guide

5.1 No Output Signal

Causes: Power failure, wrong wiring, blocked light path, component damage

Solutions:

1. Check 10-30VDC power supply and correct positive/negative wiring
2. Confirm tight M8 connection, no wire breakage or short circuit
3. Clean, reposition or replace dirty/damaged reflector plate
4. Keep sensor lens clean without obstruction

5.2 Unstable Signal

Causes: Improper sensitivity, electromagnetic interference, vibration, temperature fluctuation

Solutions:

1. Adjust potentiometer sensitivity for stable detection
2. Avoid interference from other photoelectric sensors or strong light sources
3. Fasten mounting bracket to reduce vibration
4. Ensure working temperature within -25°C ~ +60°C

5.3 False Triggering

Causes: Background reflection, incorrect reflector angle, wrong light-on/dark-on mode

Solutions:

1. Adjust reflector angle to avoid stray background reflection
2. Adopt original IFM reflector plate
3. Match output mode with actual application demand
4. Install light shield to reduce ambient light interference

5.4 Abnormal Indicator Lights

Power light off: Check power supply and wiring

Action light off: Inspect light path and sensitivity setting

Flashing indicator: Overload or short circuit, check output circuit

6. Application Fields & Typical Cases

Applicable Scenarios

1. Packaging machinery: Carton, plastic bag and label presence detection & counting
2. Conveyor system: Object position detection, diverting control, material shortage alarm
3. Automatic assembly line: Parts positioning, assembly confirmation, error-proof detection
4. Logistics & warehousing: Pallet detection, cargo height detection, stacker positioning
5. Food & beverage industry: Package inspection, bottle counting, cap detection (non-direct food contact)

Non-recommended Scenarios

1. Direct food contact or high sanitary requirement occasions: Choose IFM O6 WetLine food-grade sensors
2. Severe electromagnetic interference areas near welding equipment (extra shielding required)
3. Ambient temperature over +60°C or below -25°C
4. Heavy dust & high humidity long-term working conditions (beyond long-term service limit despite IP67)

Typical Application Cases

Case 1: Auto Parts Production Line

Application: Engine block position detection on conveyor line

Solution: Install O6P203 on both sides with reflector plate for in-place confirmation

Effect: Accurate counting & positioning, improve production efficiency

Case 2: E-commerce Logistics Sorting System

Application: Parcel existence and flow direction detection

Solution: Mount O6P203 at sorting chute to detect passing parcels

Effect: Realize automatic sorting, lower error rate and improve sorting efficiency

7. Air Freight Compliance & Certifications

Air Transport Classification

Non-restricted general cargo, no built-in lithium battery, compliant with IATA DGR 67th Edition

Transport Requirements

1. Use qualified packaging to prevent mechanical damage
2. No UN number, MSDS or air transport appraisal report required
3. Shockproof packaging is recommended to avoid precision deviation caused by vibration

Certification Details

8. Selection & Installation Rules

Three Core Selection Points for O6 Series

1. Sensing type: P=Retro-reflective, E=Through-beam, T=Diffuse-reflective
2. Output type: 200/202/203/204/205=PNP; 201=NPN
3. Sensing range: 200/201/202/203/205=5m; 204=10m

Installation & Commissioning Tips

1. Max distance between sensor and reflector ≤5m, angle deviation less than 5°
2. Tune sensitivity to just stably detect target objects
3. Switch light-on/dark-on mode via rotary switch as required

Daily Maintenance

1. Regularly clean sensor lens and reflector plate (monthly recommended)
2. Check loose M8 connector periodically
3. Avoid direct exposure to strong sunlight and intense light

Full Guide of Alternative Brands & Models for IFM O6P203

1. Core Matching Parameters for Replacement

Perfect replacement must meet below specs:

Sensing Type: Retro-reflective (match reflector plate)

Output: PNP, NO/NC switchable

Sensing Range: 50mm~5m

Connection: M8×1 4-pin

Light Source: Visible red LED

Protection Grade: IP65 / IP67

Size: Compact rectangular approx. 46×13×21mm

Power Supply: 10-30V DC with reverse polarity protection

2. Mainstream Brand Replacement Models

3. Scene-based Recommended Replacements
4. General Automation (Cost Priority)

First choice: OMRON E3Z-R61; Alternative: Schneider XUM2APCNL2

2. Harsh Environment (High Temp / Humidity / Vibration)

First choice: P+F ML100 series; Alternative: Schneider XUM2APANL2

3. Long-distance Detection (>5m)

First choice: SICK GL6L-P4211; Alternative: OMRON E3Z-R81

4. Strong Ambient Light Interference

First choice: Leuze PRK28/4P-200-M8.P1; Alternative: P+F ML100 series

5. High-speed & High-precision Detection

First choice: Siemens 3RG6013-3AG00; Alternative: KEYENCE PZ-V32P

4. Replacement Notes

Parameter Check List

Confirm retro-reflective sensing mode

Confirm PNP output with NO/NC switching function

Sensing range covers 50mm~5m

M8 4-pin interface consistent with original wiring

IP65/IP67 protection grade meets site demand

External dimension matches installation space

Installation Tips

1. Use standard reflector plate ≥50×50mm
2. Keep angle deviation between sensor and reflector below 5°
3. Adjust sensitivity moderately to avoid false detection
4. Select correct light-on / dark-on mode

Compatibility Instructions

Most replacement models support direct plug-and-play without wiring modification; individual brands need dedicated reflector plates; adjust installation distance if sensing range differs greatly.

5. Summary Table Sorted by Sensing Distance

6. Selection Summary
7. Match core electrical & mechanical parameters first
8. Select model according to on-site environment and interference level
9. Balance procurement cost and market supply stability
10. Brand features recap:

OMRON = cost-effective & stable supply

Schneider = high protection grade for harsh sites

Siemens = ultra-fast response for high-speed lines

Pepperl+Fuchs = vibration-resistant industrial grade

SICK = long-range & high-precision performance

Leuze = professional polarized anti-light interference design
