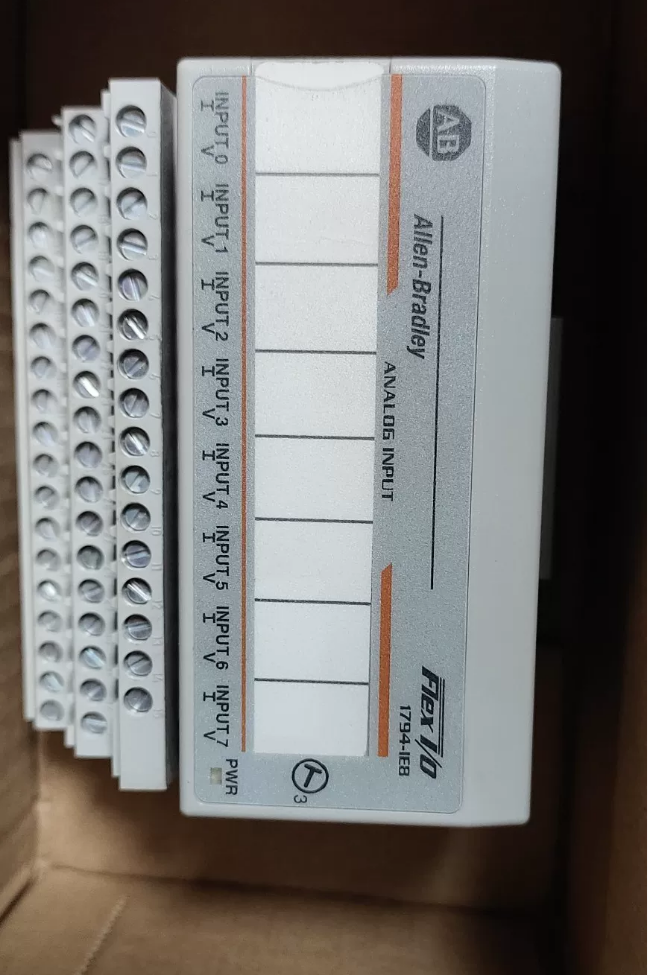

Rockwell Allen-Bradley 1794-IE8B Distributed Analog Input Module

This is a FLEX I/O distributed analog input module. 1794-IE8B = 1794-IE8 Series B. “B” denotes hardware series revision instead of part number suffix; it is commonly referred to as 1794-IE8B in the industry.

✅ Basic Information

Model: 1794-IE8 (Series B, commonly called 1794-IE8B)

Brand: Rockwell Allen-Bradley

Type: 8-channel single-ended non-isolated analog input module

System: FLEX I/O distributed I/O, used with 1794 adapters (1794-AENT, 1794-ASB, etc.)

Matching Terminal Base: 1794-TB3 / TB3G terminal base (must be ordered separately)

Lifecycle: Active product, available for new purchase and repair, not discontinued

📋 Core Technical Specifications

🧩 Application Scenarios

FLEX I/O remote distributed analog acquisition: transmitters for pressure, temperature, level, flow with 4-20mA signal, 0-10V valve feedback. Widely used as remote I/O station for ControlLogix systems.

Note: No galvanic isolation between channels. Large ground potential difference among multiple sensors will cause common-mode interference. External signal isolator is required.

🔌 LED Indicator Definition

Solid green: Module healthy, communication OK

Solid red: Module fault / configuration mismatch (electronic key error)

Flashing red: Communication loss with FLEX adapter

Off: No 24VDC power supply or hardware damage

⚠️ Common Troubleshooting Points

1. Verify correct base model, no bent bus pins; module must fully engage and lock into base latches
2. Confirm 24VDC supply voltage within 19.2~31.2V range
3. Studio5000 configuration: Exact Match electronic key recommended; each channel range must match field sensor
4. Signal fluctuation: Check grounding. For single-ended input, add isolator if ground offset exists
5. No reading: Inspect terminal wiring, distinguish current/voltage terminals; current loop must form closed circuit

📌 Alternative / Related Series Reference

Same family: 1794-IE8K (conformal coated version), 1794-IE8XT (wide-temperature XT version)

Domestic alternative: Distributed analog input module (must match remote bus protocol)

📦 HS Code Reference (International Trade)

85371011 (Programmable controller I/O module, subject to customs broker final confirmation)

1794-IE8A (Series A) vs 1794-IE8B (Series B)

Base part number remains 1794-IE8. A/B stand for hardware series revision, not separate part numbers. Appearance, base, wiring, range, resolution and accuracy are fully interchangeable for physical installation. Differences lie in power-up behavior before configuration, data word structure and explosion-proof certification.

1. Key Differences (Official Manual Highlights)

1. Common Features (Field Replacement Highlights)
2. Channels: 8-channel single-ended non-isolated analog input, ranges 4~20mA, 0~20mA, 0~10V, ±10V
3. Resolution, conversion speed, accuracy, 24VDC supply and operating temperature range are identical
4. Compatible terminal bases: 1794-TB3 / TB3G, identical wiring diagram
5. Bus: FLEX I/O Flexbus, compatible with all FLEX adapters such as 1794-AENT, ASB

III. Engineering Replacement Considerations

1. A → B Replacement

Physical plug-and-play installation. Existing A-series configuration can be retained (B module supports A compatibility mode), or switch to B configuration to enable power-up status bit.

✅ Recommendation: Keep original configuration, no program modification required for direct replacement.

2. B → A Replacement

Physically installable. However, A module returns false 4mA/2V readings when powered up without configuration. Take precautions for interlock to prevent equipment false action during commissioning or restart.

3. Electronic Key: If `Exact Match` strict matching is set in Studio5000, A and B revision mismatch triggers configuration fault. Switch to `Compatible Module` compatibility mode.
4. Selection Recommendation

New projects and hazardous areas: Prefer 1794-IE8B for safe zero signal on power-up

Spare parts for legacy system: B can replace failed A module. If system is sensitive to analog signal transient at startup, implement power-up delay masking logic in PLC program.

Rockwell Allen-Bradley 1794-IE8B (1794-IE8 Series B) Detailed Technical Specifications

FLEX I/O 8-channel single-ended non-isolated analog input module

1. Basic Information

Model: 1794-IE8 Series B (Commonly called 1794-IE8B)

Brand: Rockwell Automation Allen-Bradley

Type: Analog Input AI, 8 single-ended inputs

Bus: FLEXBUS (FLEX I/O backplane local bus)

Matching Terminal Base: 1794-TB3 / 1794-TB3G (must be purchased separately)

Supported Adapters: 1794-AENT, 1794-ASB, 1794-ADN and other FLEX I/O adapters

Supported Software: RSLogix5000 / Studio5000

Origin: Singapore; Standard Warranty: 1 year

Explosion-proof Certification: IECEx / ATEX Ex ec IIC T4 Gc (Zone2) (Exclusive for B series, not available for A series)

1. Channel Electrical Specifications

III. Power Supply Specifications

1. Environmental & Mechanical Specifications

1. LED Status Indicators

Solid green: Module healthy, communication / configuration OK

Solid red: Hardware fault / electronic key mismatch, configuration error

Flashing red: FLEXBUS communication interrupted, lost connection with adapter

Off: Loss of 24V supply or backplane power

1. Data Structure (B-Series Exclusive)
2. Input data area: 16-bit raw analog count values for 8 channels
3. Power-Up status bit (new for B series): Bit is set once module power-up completes. PLC program can read it to mask signals during startup and prevent interlock false action
4. Configuration word: Individual channel range selection, supports OFF range to force zero signal when unconfigured

VII. Critical Limitations (Engineering Focus)

1. No channel isolation: Single-ended input. External signal isolator is mandatory when large ground potential difference exists among field sensors, otherwise drift and signal jitter will occur
2. Current input: Internal 250Ω sampling resistor inside module; transmitter loop must form closed circuit
3. Electronic Key: Studio5000 configuration, Exact Match for strict revision check. A/B revision mismatch triggers fault under strict mode; switch to Compatible Module for replacement

VIII. Related Derivative Models

1794-IE8K: Conformal coated version

1794-IE8XT: Wide temperature XT version, operating temperature -40~70℃

1794-IE8A: Legacy A version, no Zone2 explosion-proof rating, no zero signal on power-up, no Power-Up bit

1. HS Code Reference (Customs Declaration)

85371011, Programmable Controller I/O Module (final confirmation required from customs broker)

Rockwell 1794-IE8B Installation Method (FLEX I/O)

Separated structure: Terminal base (1794-TB3 / TB3G) mounts on DIN rail first, then plug 1794-IE8B module onto base. Module body cannot be fastened directly onto rail.

1. Mounting Carrier
2. Rail Specification: Standard 35×7.5mm EN50022 DIN rail (AB part 199-DR1). Horizontal mounting inside cabinet preferred. Add rail stop 1492-EA35 for anti-vibration if vertically mounted
3. Alternative: Panel Screw Mount: Base has mounting holes for direct screw fastening on cabinet backplate (not recommended for high vibration applications)
4. Matching Base: Must use 1794-TB3 / 1794-TB3G. TB3G is spring-cage tool-free terminal. Base integrates Flexbus internal bus connector for daisy-chaining adjacent adapters/bases
5. Complete Installation Procedure (Official Standard Process)

⚠️ Critical Safety Rule: Base removal is prohibited under power; module hot-swap is electrically allowed but not recommended for frequent field operation

Step1: Mount Terminal Base onto DIN Rail

1. Hook upper latch of base onto DIN rail, press down base until latch clicks and locks
2. Daisy-chain multiple bases/adapters: Fully retract Flexbus connector inside base first, push base tightly against left adapter/base, then push Flexbus connector leftward and insert into adjacent unit to complete FLEXBUS backplane connection
3. Set base model key switch: Position 3 for 1794-IE8 (small rotary switch on base side; wrong setting leads to module identification failure)
4. Install end stops on both rail ends to prevent base sliding

Step2: Install 1794-IE8B Electronic Module

1. Inspect bottom gold fingers of module for bending or damage
2. Align upper module guide rib with base guide slot, align vertically to base
3. Press module down evenly until both side latches of base automatically lock (audible click), module fits flush against base

Do not apply excessive force, risk bending 16-pin bottom bus pins

Step3: Terminal Wiring

1. Row C terminals of base: 24VDC power; Row B: 24V common and channel ground; Row A: 8-channel analog signal inputs
2. Shielded twisted pair recommended for analog signal cable, shield single-point grounded; current signal loop must be closed
3. Close terminal protective cover after wiring completion

Step4: Pre-Power-up Inspection

1. Base key switch set to 3
2. All Flexbus connectors fully engaged, no gaps between bases
3. Module latches fully locked
4. 24V supply voltage: 19.2~31.2VDC
5. Verify signal cable free of short circuit and misconnection

III. Installation Environment & Layout Requirements

1. Mounting location: IP20 inside control cabinet, keep away from strong interference and heat sources such as VFDs, contactors and transformers
2. Heat dissipation: Reserve ventilation gap above and below module; operating temperature range 0~55℃
3. Grounding: Use galvanized steel DIN rail with reliable protective earth connection; aluminum rail not recommended for poor grounding performance
4. Vibration application: Horizontal mounting optimal; rail locking components required for vertical installation
5. Removal Procedure
6. Disconnect field 24V signal circuit (recommended)
7. Press both side release latches of base, lift 1794-IE8B module upward for removal (base remains on DIN rail)
8. To remove base: Retract Flexbus connector first, pry bottom DIN latch with flat screwdriver then lift base upward
9. Common Installation Errors
10. Base key switch not set to 3 → Module faults on power-up, cannot be recognized by configuration
11. Flexbus connector not pushed out or incomplete engagement → FLEXBUS communication loss, module red flashing
12. Module not fully seated, latches unlocked → Intermittent communication under vibration
13. Gaps between bases, floating bus connector → Unstable communication
14. High power cables and signal cables routed in same trunk → Analog signal drift and fluctuation
15. Installation Quick Notes

Base fixed on DIN rail + module plugged onto base (split structure)

Key switch setting: 3

Flexbus daisy chain: Retract connector first, butt units tightly then extend connector

Module: Align guide slot, press evenly until side latches lock

Never remove base while powered (interrupts FLEXBUS backplane bus)
