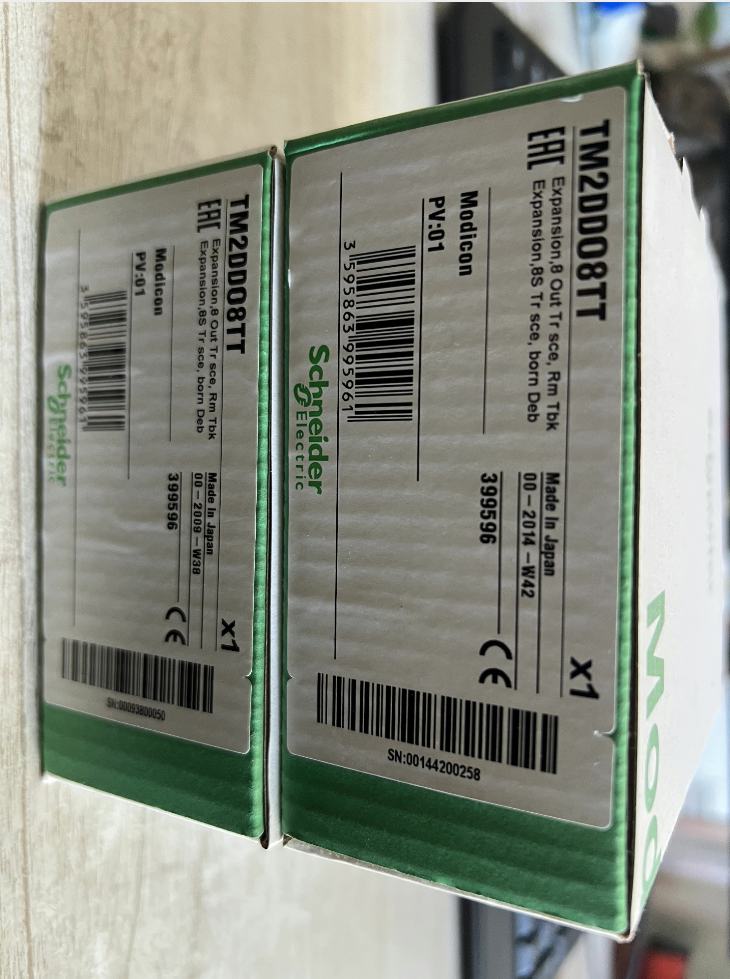

Schneider TM2DDO8TT Output Module

Modicon TM2 Discrete Output Expansion Module, for M238 / M241 PLC, End of Life

Full designation: TM2DDO8TT, 8-point 24VDC Source (PNP) transistor output module, removable screw terminal block

1. Model Code Definition

TM2: TM2 series expansion I/O (Compatible with M218 / M238 / M241)

D: Digital

DO: Digital Output

8: 8 channels

T: Transistor

T: Source output (PNP); UT = Sink output (NPN)

2. Key Electrical Specifications

3. Compatibility & End-of-Life Information
4. Compatible CPU: Modicon M218 / M238 / M241 PLC (TM2 local expansion); Not applicable for M221/M251
5. EOL Status: Officially discontinued by Schneider on 27 Sep 2024. No new original units available, only stock / second-hand modules on market.
6. Recommended Replacement: TM3DQ8T (TM3 series, 8-point Source transistor output, compatible with M221/M241/M251)

⚠️ Note: TM2 and TM3 bus hardware are not interchangeable. Direct replacement requires PLC backplane / expansion architecture modification.

4. Same Series Selection Reference

TM2DDO8TT: 8DO, PNP Source, 0.5A, screw terminal (EOL)

TM2DDO8UT: 8DO, NPN Sink, 0.3A, screw terminal (EOL)

5. Application & Wiring Notes
6. PNP Source Output: Output terminal provides +24V; negative side of load connects to 0V. Suitable for solenoid valves, indicator lights, load connected to 0V.
7. For inductive loads (solenoid valves), freewheeling diode is recommended to protect transistors.
8. TM2 expansion modules must be installed at the end of local expansion bus, cannot be placed before TM3 expansion modules.
9. Onboard LED channel status indicators for commissioning and troubleshooting.
10. Fault Troubleshooting (Second-hand Module Inspection)
11. Power on and check module power LED and bus communication LED.
12. Test each output channel sequentially: When PLC output = ON, measure 24V at terminal; voltage drops when OFF.
13. Short-circuit protection test: Short output to 0V, channel should cut off output automatically; output recovers once short circuit removed.
14. Measure off-state leakage current to judge transistor aging.
15. Inspect removable terminals for burn marks and deformed copper contacts.
16. HS Code Reference

8537101100 (Programmable Controller I/O Expansion Module)

Replacement Options for TM2DDO8TT (8-point 24VDC PNP Source, TM2 Bus)

Original module: TM2DDO8TT, TM2 bus, only for M218/M238/M241, EOL; TM2 bus and TM3 bus hardware cannot be swapped directly. 3 categories for selection:

Case 1: Keep existing M218/M238/M241 CPU, only replace expansion module

TM3 modules cannot be used. Although M241 supports both TM2+TM3 bus, TM2 modules must be installed after TM3 modules. Mixed installation is not recommended for long-term engineering use. If you need direct plug-in on TM2 expansion bus: only surplus / used TM2DDO8TT available. Schneider has no new equivalent module on TM2 bus.

Alternative spare within same EOL series: No other TM2 8-point Source DO. Only TM2DDO8UT (NPN Sink) available, cannot directly swap, opposite output logic.

Case 2: Full PLC Upgrade (Recommended for new project / major overhaul, official replacement: TM3 series)

✅ TM3DQ8T [Top Recommendation]

Spec: 8-point 24VDC PNP Source transistor, 0.5A per channel, removable screw terminal

Compare with TM2DDO8TT: Same channel count, output type and per-channel current; Bus type is TM3, not TM2

Compatible CPU: M221 / M241 / M251 / M262

Modification effort:

1. Original M241: TM3 expansion bus supported, but IO address must be reconfigured in EcoStruxure Machine Expert, IO mapping modification required in program.
2. Original M218/M238: Does not support TM3 modules, CPU must be upgraded to M241/M251 together.

Other TM3 Alternatives (Same TM3 Bus)

1. TM3DQ8TG: 8-point PNP Source, spring terminal, electrical parameters same as TM3DQ8T, only wiring terminal difference
2. TM3DQ16T: 16-point PNP Source, 0.5A; spare IO channels, suitable for projects with IO reservation

Case3: Distributed Remote IO Replacement (Keep original CPU, no local bus modification, ideal for legacy retrofit)

Advantys OTB remote IO, communicate via Modbus RTU to original PLC, independent IO station, does not occupy TM2 local expansion port

1. OTB1C08T: 8-point 24V PNP Source transistor output, Modbus RTU, screw terminal

Pros: No modification to original local expansion bus, only add Modbus read/write logic, independent installation inside cabinet. Suitable for limited cabinet space, no change to existing expansion chain.

Cons: Modbus communication program required, response speed slightly slower than local expansion module.

Case4: Domestic Compatible Replacement (Cost-saving option, Modbus Remote IO)

Domestic Modbus RTU remote 8-channel PNP transistor output modules (Inovance, Xinje, Lansen etc.), functionally equivalent, connect to M218/M238/M241 via Modbus. For projects with tight budget.

Selection Comparison Table

⚠️ Critical Retrofit Notes

1. TM2 bus and TM3 bus have different hardware connectors, cannot hot-swap directly. When mixing TM2+TM3 on M241, TM2 modules must be placed after TM3 modules; long-term mixed configuration is not recommended in engineering.
2. TM2DDO8TT is PNP Source. Never select NPN Sink model (TM3DQ8U / TM2DDO8UT), opposite output logic, load will not operate after wiring.
3. TM3DQ8T has different common terminal and pin assignment from TM2DDO8TT, field secondary wiring cannot reuse the original terminal plug directly; rewiring required.

Schneider TM3DQ8T (Common miswriting: TM3DO8T)

Modicon TM3 discrete expansion output module, 8-point 24VDC PNP Source transistor output, removable screw terminal, official recommended replacement for TM2DDO8TT

1. Model Code Definition

TM3: TM3 series local expansion I/O module

DQ: Discrete Output

8: 8 channels

T: Transistor PNP Source output (Screw terminal)

TM3DQ8TG = identical electrical parameters, spring cage terminal version

2. Core Electrical Specifications

3. Mechanical & Environmental Specifications

4. PLC Compatibility

Works with Modicon M221 / M241 / M251 / M262

❗ M218, M238 do NOT support TM3 modules, cannot extend TM3DQ8T directly.

5. Comparison vs Original TM2DDO8TT (Key)

6. Wiring Notes
7. PNP Source: Output terminal provides +24V, load other end connects to 0V; suitable for solenoid valves and indicator lamps.
8. 8 channels share one common power terminal, external +24V connects to common terminal.
9. For inductive loads (solenoid valves), freewheeling diode must be paralleled to absorb back EMF and protect transistors.
10. Module 5V bus power supplied by PLC backplane; 24V power for output circuit must be external.
11. Fault Detection (Bench Test)
12. Power on: Check module bus LED and channel LED status.
13. Activate each point sequentially: 24V measured at terminal when ON; voltage drops at OFF state.
14. Short-circuit test: Short output to 0V, module triggers protection, output restores automatically after short removed.
15. Measure off-state leakage current to evaluate transistor aging.
16. HS Code Reference

8537101100 (PLC discrete I/O expansion module)

9. Alternatives within TM3 family

TM3DQ8TG: Same specs, spring cage terminal

TM3DQ8U: 8-point NPN Sink output, opposite logic, do not select by mistake
