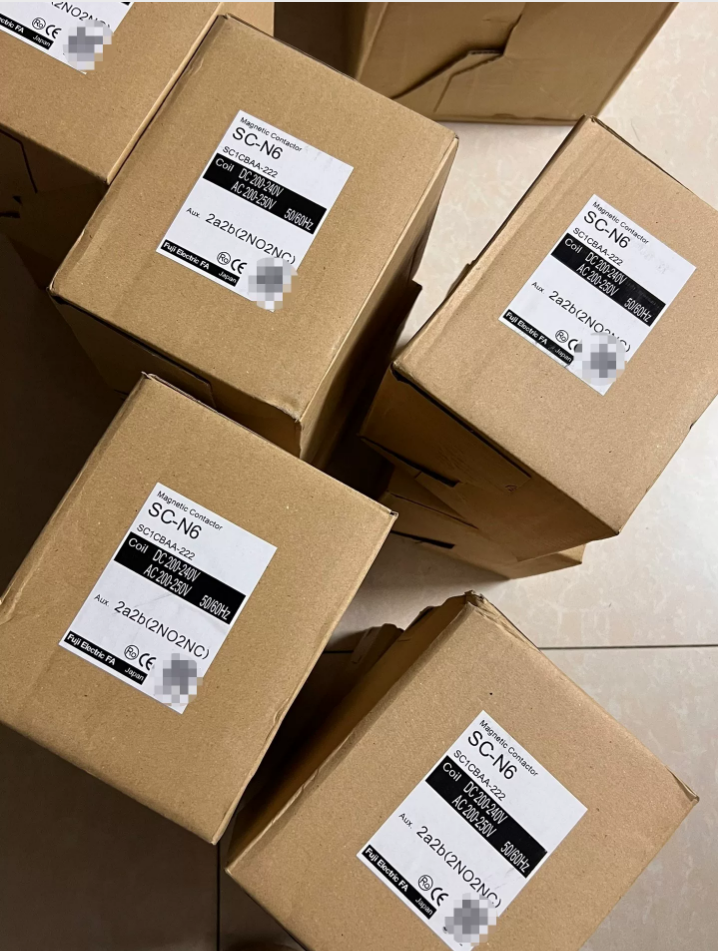

Fuji SC-N6-DC24-AC220V Magnetic Contactor

2. Parametrii tehnici de bază

2.1 Main Contact Specifications

Polonii: 3 stâlpi (3P)

Curent nominal:

JIS AC-3 200–240V: 125O

Thermal current (Ith): 150O

Motor control capacity:

200–240V: 30kW

380–440V: 55kW

Tensiune nominală: Up to 600V AC

2.2 Auxiliary Contact Specifications

Configurație standard: 2NU + 2NC (2 deschis în mod normal + 2 în mod normal închis)

Tip de contact: Bifurcated type for improved contact reliability

Minimum applicable circuit: 5V, 3mA

2.3 Coil and Operating Characteristics

Technical feature: SUPER MAGNET electronically controlled coil with built-in IC

Principiul de funcționare: AC input, DC operation. Sealed current is controlled by a switching circuit after closing, greatly reducing power consumption

Voltage adaptability: Gamă largă de tensiune, no chattering, preventing contact welding or coil burnout

Control voltage: Compatible input from DC24V to AC220V

Rezistenta mecanica: 5 milioane de operațiuni

Rezistenta electrica: 1 milioane de operațiuni (AC-3)

Frecvența de funcționare: Max. 1200 operațiuni/oră

3. Advantages of SUPER MAGNET Technology
4. Dual power compatibility: Supports both AC and DC power input without coil replacement
5. Energy efficiency: Significantly lower power consumption after closing, more cost-effective than conventional coils
6. Improved reliability: Eliminates chattering common in AC coils, reducing contact wear and welding risks
7. Gamă largă de tensiune: Adapts to various power supply environments and enhances application flexibility
8. Scenarii de aplicare

Control of three-phase asynchronous motors (AC-3 load)

Power distribution and control in industrial automation systems

Control circuits for equipment requiring frequent starting and stopping

Sites with unstable power voltage or multiple power types

Control applications requiring low power consumption and high reliability

5. Installation and Selection Guidelines
6. Mounting method: 35mm montare standard pe șină DIN (IEC compliant)
7. Selection notes:

Ensure control circuit voltage is within DC24V to AC220V

Select appropriate rated current based on load type (AC-3 / AC-1)

Verify auxiliary contact quantity meets control requirements; expandable via optional modules

3. Maintenance tips: Regularly inspect contact conditions of main and auxiliary contacts to ensure proper heat dissipation

Fuji SC-N6-DC24-AC220V is a high-performance magnetic contactor in Fuji Electric’s SC series. It features advanced SUPER MAGNET technology and supports wide voltage control input from DC24V to AC220V. It is suitable for three-phase motor control up to 125A / 30kW (240V) or 55kW (440V). Its dual power compatibility, low power consumption, and high reliability make it an ideal choice in industrial automation.

Comparison of Fuji SC-N Series Contactors and Cross-Brand Selection Reference

1. Key Parameter Comparison Table for Fuji SC-N Series Models

Key Differences

1. SUPER MAGNET technology: Equipped only on SC-N6 and above, enabling AC/DC dual compatibility, wide voltage, low power consumption, and chattering-free operation
2. Rated current and capacity: Increase stepwise with frame size
3. Endurance: SC-N3 has longer mechanical life (10 de milioane de ori) due to no electronic control, but same electrical life as SC-N6
4. Coil characteristics: SC-N6/N12/N16 use electronically controlled coils with wide voltage input; SC-N3 uses fixed-voltage coils
5. Alternative Models for SC-N6 from Major Brands

2.1 Schneider Alternative Models

Recomandat: LC1D115M7C (AC220V coil) + LADN22 (2NO+2NC aux), fully matches SC-N6 performance and contacts

2.2 Siemens Alternative Models

Recomandat: 3RT2036-1AG20 + 3RH6122-1AP00, matches current, capacitate, and 2NO+2NC configuration

2.3 Mitsubishi Alternative Models

Alternative models: S-N125 / S-K125

Key parameters: 3P, 125O (AC-3), 30kW(240V)/55kW(440V), 2NO+2NC aux

Diferenţă: Fixed-voltage coil only; no wide voltage DC24V–AC220V support

3. Notes on Cross-Brand Replacement
4. Wide voltage compatibility: SC-N6’s SUPER MAGNET is unique; most Schneider/Siemens equivalents use fixed-voltage coils. Select coil voltage according to actual power supply
5. Auxiliary contact configuration: SC-N6 includes 2NO+2NC standard; most competitors supply 1NO+1NC, requiring additional modules
6. Dimensiuni de montaj: Dimensions vary by brand; verify installation space before replacement
7. Operating frequency and endurance: SC-N6 mechanical endurance 5 million, electric 1 million (AC-3); replacements should meet or exceed these values
8. Control circuit design: If system uses SC-N6’s dual AC/DC feature, ensure new contactor coil matches control power
9. Concluzie

The Fuji SC-N6-DC24-AC220V offers unique advantages in industrial automation thanks to SUPER MAGNET technology: wide voltage compatibility, low power consumption, și fiabilitate ridicată. Pentru înlocuirea între mărci, Schneider LC1D115 series or Siemens 3RT2036 series with auxiliary modules are recommended to match electrical performance and functions.

Complete Model List and Core Parameters of Fuji (Fuji) Contactoare

1. Core Series Overview

Fuji contactors are identified primarily by SC. Main series include SC-N (NEO SC), SC-E, SC-NEXT, SC-0, FJ/SL, covering a full range from 9A to 800A, classified by frame size and technical features.

2. Complete Model List of Main Series

2.1 SC-N Series (NEO SC, Classic High-Performance Series)

Caracteristici: SUPER MAGNET electronically controlled coil, AC/DC dual compatibility, wide voltage, high reliability, electrical endurance up to 1 million operations for selected models.

2.2 SC-E Series (Economic General-Purpose Series)

Caracteristici: Simple structure, rentabil, suitable for general industrial control, some support direct wiring.

2.3 SC-NEXT Series (New Generation Upgraded Series)

Caracteristici: Global certifications (IEC/UL/CSA), design compact, high durability, new 11–18A ratings.

2.4 SC-0 Serie (Elevator-Specific / Compact Series)

Caracteristici: Designed for elevator control, AC/DC compatible, dimensiune compactă, high reliability.

2.5 Other Series

FJ Series: Economic low-to-medium current, 6–12A frame, compact and lightweight, electrical endurance 800,000 operațiuni

SL Series: Silent type, noise reduced by 10–15dB, AC/DC compatible, built-in surge absorption

Vacuum Contactors (VMC): HN46 series for high-voltage special applications, de ex. HN46AP / HN46AJ

3. Quick Model Naming Rules
4. Prefix: SC = magnetic contactor, SW = magnetic starter, SK = legacy series
5. Middle code:

N series: N1–N16 = frame size; higher number = larger capacity

E series: E02–E6 = capacity rating

NEXT: new generation

3. Sufix:

/DC24-AC220V: wide-voltage coil (standard on SC-N6/N12/N16)

/G: DC coil type (SC-0 serie)

/CCC: China CCC certified

Contacte auxiliare: a = NO, b = NC, de ex. 2a2b = 2NO+2NC

4. Highlighted Models (Including SC-N6)

5. Key Selection Tips
6. Tensiunea bobinei: Confirm control power supply; mainstream models like SC-N6 support DC24V~AC220V wide voltage
7. Contact configuration: SC-N series include 2NO+2NC standard; most alternatives require add-on modules
8. Load type: Significant current difference between AC-3 (motor) and AC-1 (resistive); select accordingly
9. Endurance requirement: Below SC-N3: 2 million electrical operations; SC-N6 and above: 1 million; choose high-endurance models for high-frequency use
