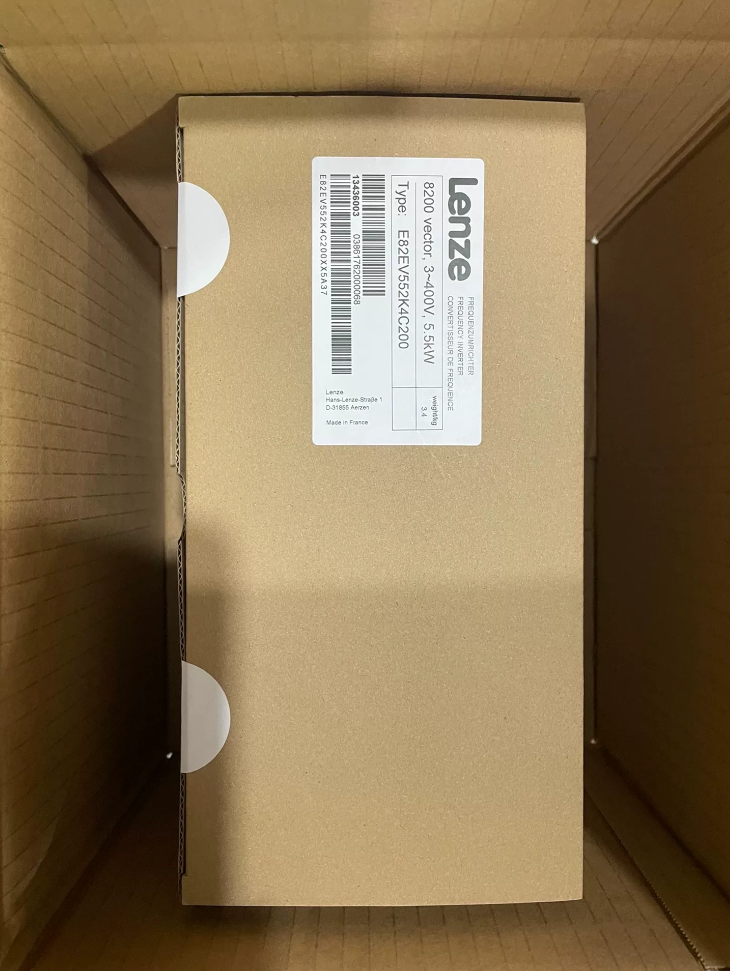

Invertor Lenze E82EV552K4C

E82EV552K4C is a 5.5kW three-phase inverter of Lenze 8200 Seria vectorială. Acceptă intrare 380-480VAC, oferă ieșire de 13 A cu grad de protecție IP20. Comandă vectorială încorporată și tranzistor de frână, potrivit pentru aplicații industriale generale de reglare a vitezei.

1. Definiția codului modelului

Număr de ordine: E82EV552K4C (Model standard); E82EV552K4C200 (Extended Version)

2. Specificatii tehnice principale

3. Full E82EV Series Model List

3-phase 400V Series (Suffix K4C)

3-phase 230V Series (Suffix K2C)

Modele extinse (Sufix 200)

All standard models support 200 sufix, de ex. E82EV552K4C200

Enhanced C1-class EMC filter

Extended working temperature: -10℃ ~ +60℃

24-month warranty period

4. Comparație între mărci de înlocuire

5. Defecte comune & Soluții

6. Conformitatea transportului aerian & Certificari

Evaluarea transportului aerian

Baterie cu litiu: Built-in electrolytic capacitor, fara baterie cu litiu, UN38.3 test exempted

Clasificare: Ordinary electrical equipment, mărfuri nepericuloase

Ambalare: Anti-static package, fixed firmly against collision

Documente: Factură comercială, Lista de ambalare, CE certificate

Lista de certificare

Shipment Instructions

1. Disconnect all external connections before delivery
2. Fix inside rigid container with cushion materials
3. Avoid inversion and violent vibration
4. Atașați copii ale documentelor de certificare
5. Cazuri de aplicare & Adaptarea industriei

Aplicații tipice

Transport material: Speed control for belt and chain conveyors, peste 30% economisirea energiei

Ventilator & Pompa de apa: Constant pressure/flow PID control for central air conditioning and cooling towers

Mașini-unelte: Spindle drive, stepless speed regulation and fast start-stop

Mașini de ambalare: Food and printing equipment, precise synchronous operation

Agitator Equipment: Chemical reactor stirring for variable viscosity materials

Adaptarea industriei

Practical Case

An auto parts factory adopts E82EV552K4C for stamping line conveyor:

Speed control accuracy improved to ±0.1m/min

Consumul de energie redus cu 28%, annual power saving about 120,000 RMB

Equipment failure rate decreased by 40%, costul de întreținere redus cu 35%

8. Ghid de selecție

Reguli rapide

1. Cod de putere: 55= 5,5 kW, 75= 7,5 kW, 11= 11 kW
2. Voltage Identification: K4=400V, K2=230V
3. Size Identification: 2=100mm width, 3=140mm width
4. Funcția de bază: EV=Vector control, K=EMC filter, C=Standard control
5. Cerințe de mediu de aplicație

Condiții potrivite

Installed inside industrial automation control cabinets

Temperatura mediului ambiant: -10℃ ~ +40℃, uscat, dust-free and non-corrosive air

Rețea electrică stabilă cu fluctuație de tensiune ≤±10%

Scenarios requiring precise speed and torque adjustment

Condiții nepotrivite

Outdoor or humid locations (insufficient IP20 protection)

Heavy dust and corrosive gas environment

Severe grid fluctuation over ±15% without stabilizer

Heavy load frequent forward/reverse operation without brake resistor

Installation Precautions for Lenze E82EV552K4C

1. Cabinet Installation Space
2. Vertical wall mounting only; horizontal, side or upside-down installation forbidden
3. Reserve ≥100mm vertical clearance, ≥30mm lateral clearance for heat dissipation
4. Minimum 50mm spacing between multiple inverters to avoid heat interference
5. Keep away from heat sources, air outlets and direct sunlight
6. Limite de mediu

Temperatura de functionare: -10℃ ~ +55℃, derate load above 40℃

No condensation, praf, corrosive or flammable gas

Keep distance from high-power electromagnetic devices, contactors and motors

Derate operation when altitude exceeds 1000m

3. Specificații de cablare

Cablajul circuitului principal

1. Do not reverse incoming L1/L2/L3 and outgoing U/V/W terminals
2. Separate power cables and control cables with ≥20cm gap, no same conduit laying
3. Reliable earthing, rezistență de împământare ≤4Ω, ground wire diameter no less than half of phase wire
4. Fasten terminals with proper torque to prevent loose connection and overheating

Cablajul circuitului de control

1. Use shielded twisted pair for analog and communication cables, împământare de ecranare cu un singur capăt
2. Avoid routing signal cables close to power lines
3. Prevent polarity reversal of external 24V power supply
4. Disiparea căldurii & Ventilare
5. Keep cabinet door ventilated, clean filter screen regularly
6. Equip cooling fan for smooth air circulation
7. Avoid direct sunlight on the device
8. EMC & Anti-interference Protection
9. Built-in EMC filter works only with complete grounding
10. Motor cable length recommended ≤50m; install output reactor for long cables
11. Do not coil or twist input and output wires
12. Freewheel diodes parallel connected to peripheral relays and solenoid valves
13. Brake Accessory Installation

Built-in brake transistor matched with external brake resistor

1. Use 75Ω/500W resistor, mount in well-ventilated area
2. Short resistor wiring, firm connection and thermal isolation protection
3. Inspecție pre-putere
4. Confirm 3-phase 380-480V input without phase loss
5. Check no inter-phase or earth short circuit, correct and tight wiring
6. Pass motor insulation test; perform no-load trial run first
7. Mechanical Fixation
8. Tighten four mounting screws evenly to avoid shake
9. Flat mounting surface to prevent housing deformation
10. Reglementări de siguranță
11. Wait 5 minutes after power off for DC bus discharge before disassembly
12. Do not open cover or touch terminals during operation
13. Forbid short-circuit protection terminals or disable fault protection functions
