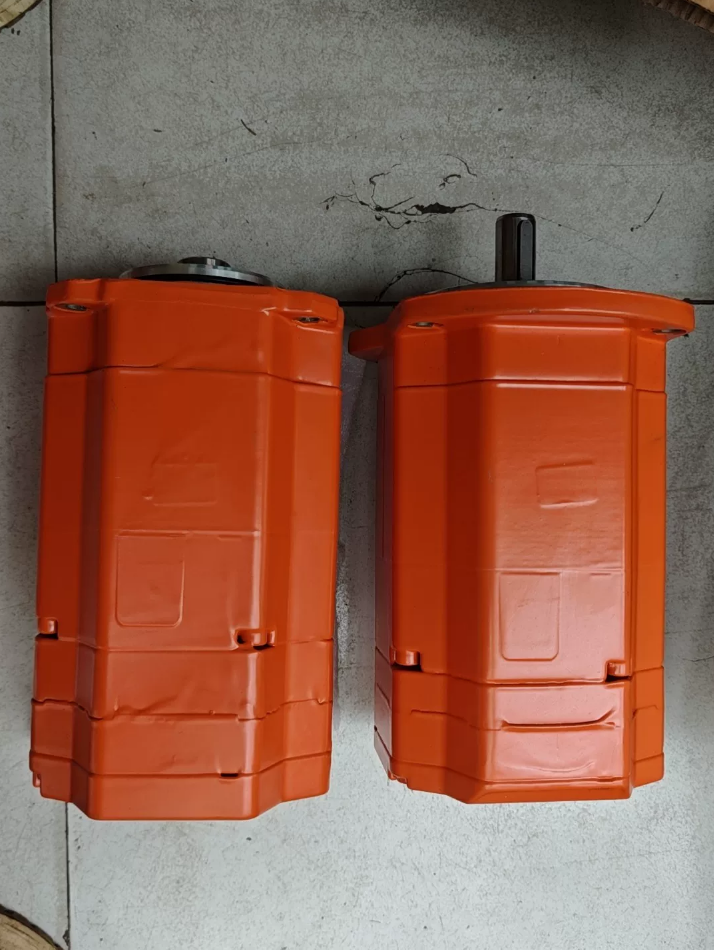

Серводвигатель Siemens 1FK6083-6AZ21-9ZZ9-Z-S01

1FK6083-6AZ21-9ZZ9-Z-S01 is a heavy-duty servo motor from the Siemens SIMOTICS 1FK6 series, specially designed for ABB IRB industrial robots (mainly for Axis 2 and Axis 3). It features high power density, high dynamic response, and is equipped with a resolver feedback system.

2. Основные технические характеристики

3. Особенности продукта & Преимущества
4. Robot-optimized design: Customized for Axis 2–3 of ABB IRB series robots, perfectly matched to robot dynamics
5. High power density: 3.2 kW power and 10 Nm torque in a compact package
6. High dynamic response: Fast acceleration and deceleration for complex robot trajectories
7. Resolver system: Сильная защита от помех, ideal for harsh industrial electromagnetic environments
8. Forced-air cooling: Ensures stable operation under continuous high load and extends service life
9. High protection: IP65 rating for dust and moisture resistance
10. Reliable and durable: Heavy-duty construction withstands high inertia loads and shocks from high-speed robot motion
11. Приложения
12. ABB IRB industrial robots: Mainly for Axis 2 and Axis 3 of IRB 6400/6600 ряд, responsible for lifting and extending the robot arm
13. High-precision motion control: Industrial automation requiring high torque and high dynamics
14. Heavy-load handling: Robots with 100–200 kg payload capacity
15. Continuous production: Automotive manufacturing, machining, and other long-running industrial scenarios
16. Суровые условия: Welding, spraying, and other special industrial conditions
17. Comparison with Similar Series Models

6. Альтернативы & Совместимость

6.1 Siemens Same-Series Alternatives

6.2 Cross-Brand Alternatives (Robot-Specific)

6.3 Drive Compatibility

Primary compatibility: ABB robot-specific drive systems

Also usable with: SINAMICS S120 drive system (custom interface adaptation required)

7. Важные примечания
8. Specialized design: This motor is exclusively for ABB robots, not a general-purpose industrial servo. Mounting interfaces and electrical parameters are customized for robots.
9. Encoder matching: Must use the specified resolver (V23401-T2109-C302), otherwise robot system faults will occur.
10. Cooling system: Forced-air cooling; ensure unobstructed airflow during installation to avoid overtemperature protection.
11. Spare part procurement: Recommended through official ABB channels to ensure full compatibility. Spare part No.: 3HAB5760-1/06.
12. Интервал технического обслуживания: For robot applications, full maintenance is recommended every 5000 часы, including bearing inspection and encoder calibration.
13. Main Model List of 1FK6083 Series

Рекомендации по выбору

1. Robot applications: For servicing ABB IRB 6400/6600 роботы, prioritize 1FK6083-6AZ21-9ZZ9-Z-S01 original parts or ABB 3HAB5760-1 replacements.
2. Industrial applications: Use standard 1FK6083 versions (например, 1FK6083-6AF71-1EH0) for better compatibility and availability.
3. Upgrade projects: Consider the new-generation 1FK7 series for ~30% performance improvement and lower maintenance cost.
4. Spare parts management: Keep at least one spare for robot systems to avoid production downtime due to motor failure.

Complete Siemens Servo Motor Series Model List & Classification

1. Overview of Core Siemens Servo Motor Series

Siemens servo motors are mainly divided into four categories:

SIMOTICS S (synchronous servos for high-precision motion),

SIMOTICS M (main drives for high power),

SIMOTICS L (linear motors for high-speed linear motion),

and Special Application Series (например, robot-specific motors).

Диапазон мощности: 0.05 kW up to 200 kW+, compatible with SINAMICS V90/S210/S120 drives.

2. SIMOTICS S Synchronous Servo Motors (Основная серия)

2.1 1FL6 Series (for V90, Экономика)

Позиция: Entry-level servo with SINAMICS V90 for cost-effective automation.

Model Coding Example: 1FL6044-1AF61-0AA1

1FL6: Идентификатор серии

044: Shaft height 40 мм, length code 4

1AF: 400В, standard inertia, incremental encoder

61: Версия

0АА1: No brake, IP65

2.2 1FK2 Series (for S210, Компактный)

Позиция: Compact servo with SINAMICS S210 for high-precision positioning in limited space.

Ключевые особенности: OCC interface, M17 rotatable connector, 22-bit single-turn + 12-bit multi-turn absolute encoder, IP64, 3× overload.

2.3 1FK7 Series (High-Performance Universal)

Позиция: All-round servo for SINAMICS S120/S210.

Model Coding Example: 1FK7042-2AF71-1PA0

1FK7: Идентификатор серии

042: Рамка 40 мм, length code 2

2AF: 600В Вашингтоне, 3000 об/мин

71: Версия

1PA0: Resolver, DRIVE-CLiQ, no brake

2.4 1FT6 / 1FT7 Series (Classic High Performance)

Позиция: Traditional high-end servos for machine tools.

Ключевые особенности: 4× overload, multiple encoder options, forced/natural cooling.

3. SIMOTICS M Main Drive Motors (High Power)

3.1 1PH8 Series (Asynchronous / Synchronous Main Drives)

Позиция: Machine tool spindles, main drives for large production lines.

Власть: 3.7–215 kW.

3.2 1PH7 Series (Heavy-Duty Asynchronous Servos)

Позиция: High-power drives for metallurgy, изготовление бумаги.

4. SIMOTICS L Linear Motor Series

Позиция: High-speed linear motion, direct drive, micron-level accuracy.

5. Special Application Series

5.1 1FK6 Series (Robot-Specific)

Позиция: Designed for ABB IRB robots, Axis 2–3.

Функции: Resolver, IP65, forced air, robot flange & shaft.

5.2 1FG1 Series (Servo Geared Motors)

Позиция: Servo motor with integrated gearbox.

6. General Model Coding Explanation

Using 1FK7042-2AF71-1PA0 as example:

7. Drive System Matching Guide

8. Selection Advice
9. By power:

0.05–7.0 kW: 1FL6 (V90) or 1FK7 Compact

7.0–20 kW: 1FK7 HD/HI or 1FT7

20 kW+: 1PH8

2. By dynamics:

Высокоскоростной: 1FK7 HD / 1FT7

High torque low speed: 1FK7 HI / 1PH8

Экономика: 1FL6

3. By encoder:

High precision: Absolute encoder (1MA0, 1EH0)

High robustness: Resolver (1PA0)

Экономически эффективный: Incremental (1SA0)

4. By environment:

Harsh environment: IP65 (суффикс 01/11)

Vertical axis: С тормозом (суффикс 10/11)

Siemens offers a full lineup from entry-level to high-end industrial servos. Selection should balance power, крутящий момент, скорость, dynamics, encoder type, and drive compatibility for optimal performance and cost.

For detailed parameters, refer to Siemens official documentation or use the SIZER tool.
