Schneider RXM4ABF7 Auxiliary Relay

Segment	Code	Meaning
RXM	RXM	Basic identifier for Schneider Zelio series plug-in miniature auxiliary relays
4	4	Contact quantity: 4 change-over contacts (4 C/O / 4PDT), fits 14-pin socket base
AB	AB	Functional features: with lockable test button + mechanical indicator window; 1F7 = without LED, 2F7 = with LED
x	1-2	LED status: 1 = No LED, 2 = With LED indicator
F7	F7	Coil voltage: 120V AC, 50/60Hz

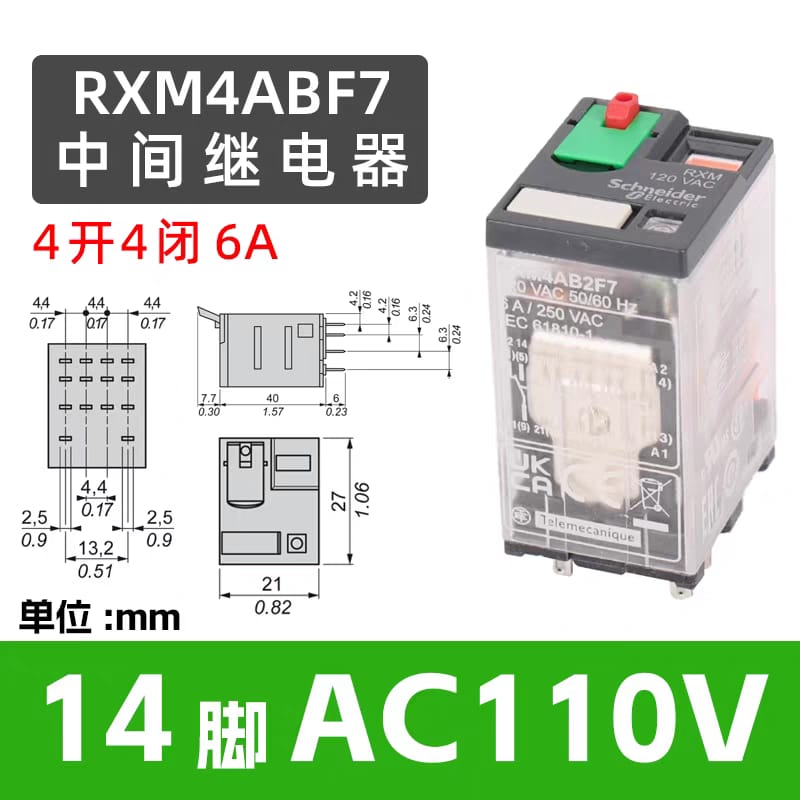

Note: RXM4ABF7 provided by user is an incomplete model. The full models are RXM4AB1F7 (without LED) and RXM4AB2F7 (with LED).

Basic Specifications

Parameter	Value	Remarks
Product Series	Harmony Zelio RXM	Industrial-grade plug-in miniature relay
Contact Configuration	4 C/O (4 sets of change-over contacts, 4 NO + 4 NC)	14-pin Faston flat terminals
Rated Load Current	6A @ 250V AC / 6A @ 28V DC	Compliant with IEC standard
UL Rated Current	8A @ 30V DC / 6A @ 277V AC	North American standard
Max Switching Voltage	250V AC/DC	IEC standard
Max Switching Capacity	1500VA (AC) / 168W (DC)	Under rated working condition
Min Switching Capacity	170mW (10mA @ 17V)	Suitable for low-level signal circuits
Coil Voltage	120V AC, 50/60Hz	Corresponding to F7 code
Coil Power Consumption	Approx. 1020mW	Typical value
Mechanical Service Life	≥10⁷ operations	No-load operation
Electrical Service Life	≥10⁵ operations	Under rated load
Operating Frequency	≤18000 times/hour (no-load), ≤1200 times/hour (on-load)	–
Dimension (W×H×D)	21mm × 27mm × 35mm	Compact size, save cabinet space
Mounting Type	Plug-in type, compatible with RXMZE series sockets	e.g. RXMZE2S114M (14-pin)
Contact Material	Silver-nickel alloy (AgNi) with gold-plated flash layer	Improve conductivity and durability
Operating Temperature	-40°C ~ +55°C	Wide temperature range for industrial environments
Certifications	CE, CSA, UL, EN/IEC, RoHS	Meet international safety standards

Brand	Model	Matching Level	Difference Description
Omron	MY4N-GS AC120V	★★★★★	4PDT, 6A, with LED, 14-pin, direct replacement
Siemens	3RT2017-1BB41	★★★★☆	4PDT, 6A, with LED, verify pin compatibility
ABB	CR-M4SS AC120V	★★★★☆	4PDT, 6A, with test button, slight size difference
Phoenix Contact	REL-MR-120AC/21HC/4	★★★★☆	4PDT, 6A, with LED, same socket mounting way
Weidmüller	DRM570730LT	★★★★☆	4PDT, 6A, with LED, 120V AC coil

AC Coil (F7=120V AC, B7=24V AC, P7=230V AC)

DC Coil (BD=24V DC, JD=12V DC, MD=220V DC)

5.1 Contact Faults (Most Common)

Fault Phenomenon	Cause	Solutions
Contact Welding	Overload, electric arc discharge, contact wear	1. Check overload current
		2. Install RC snubber circuit to suppress arc
		3. Replace relay for severe damage
Poor Contact Conductivity	Contact oxidation, dust contamination, contact deformation	1. Clean contacts with dedicated cleaner
		2. Check contact pressure
		3. Replace burnt relay
Increased Contact Resistance	Thickened oxide layer on contact surface	1. Polish contact surface gently with fine sandpaper
		2. Match load properly

5.2 Coil Faults

Fault Phenomenon	Cause	Solutions
Burnt Coil	Overvoltage, long-term energization, high ambient temperature	1. Stabilize power supply voltage
		2. Optimize control circuit to avoid continuous power-on
		3. Improve heat dissipation
Coil No Response	Coil open circuit, wrong wiring, power failure	1. Measure coil resistance with multimeter (normal: hundreds of ohms)
		2. Check wiring connection
		3. Confirm power supply status
Coil Buzzing Noise	Uneven armature surface, damaged core short-circuit ring	1. Clean and flatten armature and iron core
		2. Replace faulty relay

5.3 Mechanical Faults

Fault Phenomenon	Cause	Solutions
Slow Action / Failure to Reset	Dust & oil intrusion, spring deformation, vibration displacement	1. Clean internal components
		2. Adjust spring tension
		3. Fasten installation to reduce vibration
Invalid Test Button	Button mechanical jamming, internal spring damage	1. Clean button mechanism
		2. Replace relay if unreparable

Applicable Fields

Industrial Automation: PLC signal amplification, motor control circuit, inverter start-stop control
Building Automation: HVAC damper & valve control, water pump logic control, lighting control
Power System: Switchgear secondary circuit, protection signal switching, instrument signal isolation
Food & Beverage: Production line interlock control, safety door signal feedback, temperature control circuit
Automotive Industry: Welding workshop equipment control, robot signal relay, production line safety circuit

Typical Application Cases

Case 1: Blast Furnace Hydraulic Station Control in Steel Plant

Application: Drive hydraulic solenoid valves to control furnace top equipment

Model: RXM4AB2BD (24V DC, with LED)

Effect: Quick fault diagnosis via lockable test button, reduce downtime by 40%

Case 2: HVAC System for Commercial Buildings

Application: Control fan coil electric valves and fresh air damper actuators

Model: RXM4AB2F7 (120V AC, with LED)

Effect: Compact structure saves cabinet space; LED indicator facilitates quick status inspection

Case 3: Packaging Machinery Production Line

Application: Signal isolation and amplification between PLC and actuators (cylinders, motors)

Model: RXM4AB1P7 (230V AC, without LED)

Effect: Offline circuit testing available without shutdown, improve production efficiency

Selection & Installation Guidelines
Model Selection: Select by contact quantity (2/3/4 C/O), coil voltage (AC/DC), LED indicator and test button demand
Socket Matching: RXM4AB series must adopt 14-pin sockets such as RXMZE2S114M to ensure correct pin alignment
Load Matching: Do not exceed rated voltage and current; install RC snubber circuit for inductive loads
Installation Environment: Avoid high temperature, humid and dusty places, ensure good ventilation
Wiring Specification: Wire strictly according to contact numbers to prevent short circuit
