ماركة: Datalogic (Italy) | Official Part No.: 954201020

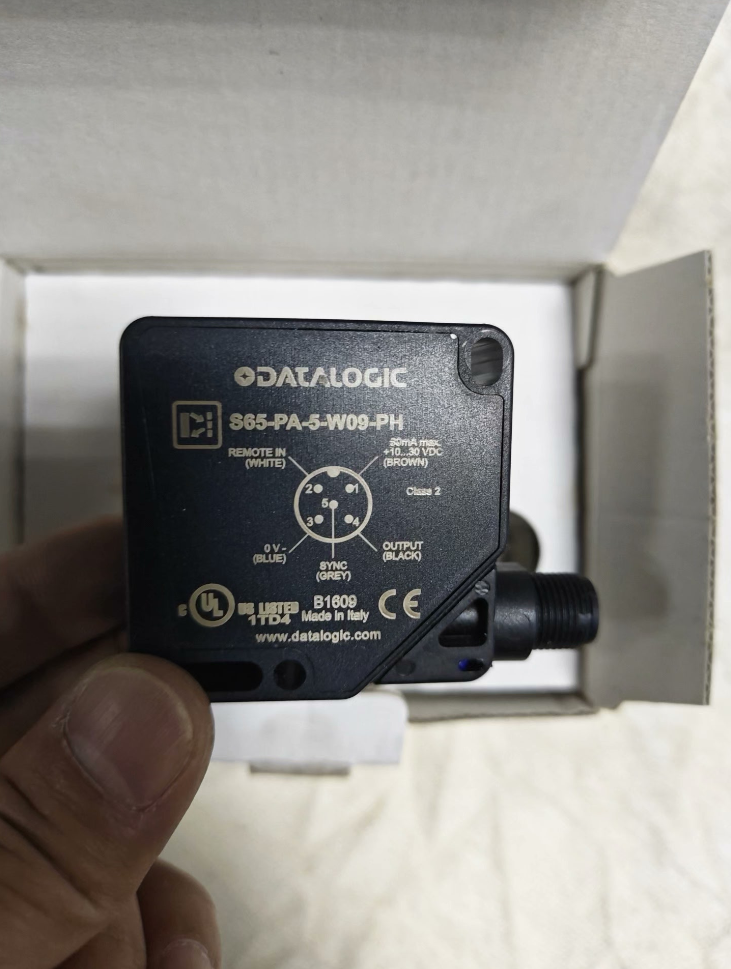

The S65-PA-5-W09-PH is an industrial contrast (color mark) جهاز استشعار كهروضوئي of Datalogic S65-W Series. It features a compact standard 50×50 mm square housing and a broad-spectrum white LED emitter, which accurately detects brightness differences between colored/grayscale labels and substrates.
Equipped with a 4-digit LED display and 3-button teach-in system, it allows parameter configuration and signal strength visualization without external devices. Built-in RS485 serial interface supports remote configuration and data transmission. With a maximum switching frequency of 30 kHz and response time of 16 ميكروس, it is ideal for high-speed automated production lines. The IP67 ingress protection rating ensures reliable operation in harsh industrial environments.
انهيار رمز النموذج
| مقطع الكود | وصف |
| S65 | سلسلة المنتجات: Universal platform for 50×50 mm square industrial photoelectric sensors, covering color mark detection, color recognition, laser ranging and other detection types |
| السلطة الفلسطينية | Housing & Optical Layout: P = ABS plastic housing; A = 90° radial light emission design |
| 5 | الواجهة الكهربائية: M12 5-pin circular industrial connector |
| W09 | نوع الكشف & Optical Specification: W = White LED for contrast / color mark detection; 09 = Optical configuration for standard sensing range |
| PH | الإخراج & تكوين الوظيفة: P = PNP switching output; H = Integrated RS485 communication interface + output delay function |
المواصفات الفنية الرئيسية
Optical Performance
Detection Principle: White light reflective contrast (color mark) detection
Emitter: Broad-spectrum white LED (Wavelength: 400~700 nm)
Operating Distance: 12 ~ 20 مم (Tolerance: ±2 mm)
Spot Size: 3×1 mm @ 19 mm nominal sensing distance
Digital Resolution: 12 قليل (4096 grayscale levels)
وقت الاستجابة: 16 ميكروس
تبديل التردد: 30 كيلو هرتز
المواصفات الكهربائية
جهد الإمداد: 10 ~ 30 VDC
No-load Current Consumption: ≤50 mA
نوع الإخراج: PNP switching output
Maximum Load Current: ≤100 mA
Output Saturation Voltage Drop: ≤2 VDC
واجهة الاتصالات: RS485 serial interface, supporting parameter read/write and remote control
ميزات الحماية: حماية ماس كهربائى, reverse polarity protection, surge overvoltage protection
Electrical Safety Class: فصل 2
ميكانيكية & المعلمات البيئية
مواد الإسكان: ABS engineering plastic; Lens Material: Glass
حماية الدخول: IP67 (Dust-tight and protected against temporary immersion)
درجة حرارة التشغيل: -10 ~ +55 درجه مئوية
درجة حرارة التخزين: -20 ~ +70 درجه مئوية
مقاومة الاهتزاز: 0.5 السعة مم, 10~55 Hz all axes, متوافق مع EN 60068-2-6
مقاومة الصدمات: 30G acceleration, 11 ms pulse, all axes, متوافق مع EN 60068-2-27
Unit Weight: ≤60 g
Main Models in the Same Series
| Full Model No. | نوع الإخراج | تكوين الواجهة | Key Functional Differences |
| S65-PA-5-W09-PH | بنب | M12 5-pin + RS485 | White light color mark detection, with communication and delay functions |
| S65-PA-5-W09-NH | NPN | M12 5-pin + RS485 | White light color mark detection, NPN output version |
| S65-PA-5-V19-PPP | 3-channel PNP | م12 | RGB tri-color LED, for color recognition |
| S65-PA-5-Z03-PPI | بنب + 4-20 mA analog output | م14 | Linear reflective type, for width and edge positioning measurement |
التطبيقات النموذجية
- Packaging Lines: Color mark positioning for vertical/horizontal packaging machines, label detection for labellers, cutting synchronization for bag making machines
- Printing & Paper Industry: Registration mark recognition, paper slitting positioning, printed product quality inspection
- طعام & صناعة الأدوية: Film alignment for filling machines, label detection for vials, positioning for medicine plates
- Electronic Assembly: Material label presence detection, conveyor synchronization, auxiliary material remaining quantity detection
Troubleshooting Matrix
| ظاهرة الخلل | السبب الجذري | Step-by-Step Solutions |
| Indicator off, لا يوجد مخرج | Abnormal power supply or incorrect wiring | 1. Measure supply voltage to ensure it is within 10~30 VDC |
| 2. Verify M12 pin assignment and check for reverse power connection | ||
| 3. Check connector tightness and cable continuity | ||
| Missing detection / False triggering / Unstable output | Failed calibration, offset light spot or insufficient contrast | 1. Perform new teach-in calibration for background and color mark respectively |
| 2. Adjust mounting position to ensure the light spot fully covers the color mark | ||
| 3. Avoid direct strong ambient light; ensure target contrast ≥ 10% | ||
| Abnormal output delay | Incorrect parameter settings or disabled function | 1. Enter delay setting menu via panel buttons and verify delay switch & time parameters |
| 2. Read configurations via RS485 bus to check for parameter tampering | ||
| 3. Restore factory settings and reconfigure delay parameters | ||
| No response on RS485 communication | Wrong wiring sequence, mismatched parameters or address conflict | 1. Check A/B communication wiring for reverse connection |
| 2. Match baud rate, بتات البيانات, station address and other parameters with host system | ||
| 3. Troubleshoot address conflicts among devices on the bus |
ملحوظة: The S65-PA-5-W09-PH is a standard 5-pin version without RS485 interface. Models with RS485 in the same series are suffixed with Z (على سبيل المثال. S65-PA-5-W09-PHZ), equipped with 8-pin M12 connector. This sensor features adjustable output delay (1~100 ms), external synchronous trigger input and button lock function.
- M12 5-Pin Pinout Definition
This sensor adopts IEC 61076-2-101 standard A-coded M12 5-pin connector, complying with general specifications of Datalogic S65 platform.
| رقم الدبوس. | Standard Wire Color | اسم الإشارة | وصف الوظيفة |
| 1 | بني (BN) | +في العاصمة | Power positive, 10~30 VDC supply |
| 2 | أبيض (WH) | SYNC Input | External sync / remote teach input, active high (connected to +V). Supports line synchronous trigger and one-touch remote calibration |
| 3 | أزرق (BU) | 0V / أرض | Power negative and common signal ground |
| 4 | أسود (BK) | OUT PNP | PNP switching output, الأعلى. load current 100 mA with short-circuit protection |
| 5 | Grey (GY) | درع / نورث كارولاينا | Shield grounding terminal. Leave unconnected if shielding is not required; no analog output for this model |
Wiring Notice: When viewing the connector front with the notch facing down, pins are arranged clockwise as 1→2→3→4→5. Hot plugging may damage internal circuits. Always cut off power before wiring.
- مقارنة النماذج المكافئة عبر العلامات التجارية
Below are mainstream color mark sensors with equivalent positioning and applications, suitable for high-speed color mark detection in packaging and printing industries.
| ماركة & نموذج | مسافة الاستشعار | مصدر الضوء | وقت الاستجابة | تبديل التردد | نوع الإخراج | البعد الإسكان | المزايا الرئيسية & ملاحظات التطبيق |
| Datalogic S65-PA-5-W09-PH | 12~20 mm | Broad-spectrum white LED | 16 ميكروس | 30 كيلو هرتز | بنب | 50×50 mm square | 4-digit display & 3 buttons for clear parameter visualization; delay adjustable, فعالة من حيث التكلفة |
| مريض KT5W-2P1116 | ≤10 mm | RGB tri-color LED | 50 ميكروس | 10 كيلو هرتز | بنب | 30×53×80 mm rectangular | Auto-select optimal wavelength; reliable for low-contrast labels, fits narrow mounting space |
| Banner R58ECRGB1 | 12.7 مم (nominal) | RGB tri-color LED | 15 ميكروس | 33 كيلو هرتز | Universal PNP/NPN | 50×50 mm square | Die-cast zinc alloy housing with superior vibration & interference resistance; simple one-touch teach-in |
| OMRON E3S-DCP21 | 10~20 mm | White LED | 20 ميكروس | 25 كيلو هرتز | بنب | 50×50 mm square | Optimized for reflective materials such as aluminum foil and glossy film; strong ambient light resistance and excellent batch consistency |
توصيات اختيار الاستبدال
Direct replacement with compatible mounting holes: Banner R58 series is preferred, with fully compatible 50×50 mm mounting holes and better overall performance.
High-speed production lines (سرعة 200 m/min): Keep Datalogic S65 or Banner R58 for better adaptability to 30 kHz high switching frequency.
Low-contrast / multi-color label applications: Choose SICK KT5W or Banner RGB models for higher recognition tolerance with tri-color light source.
