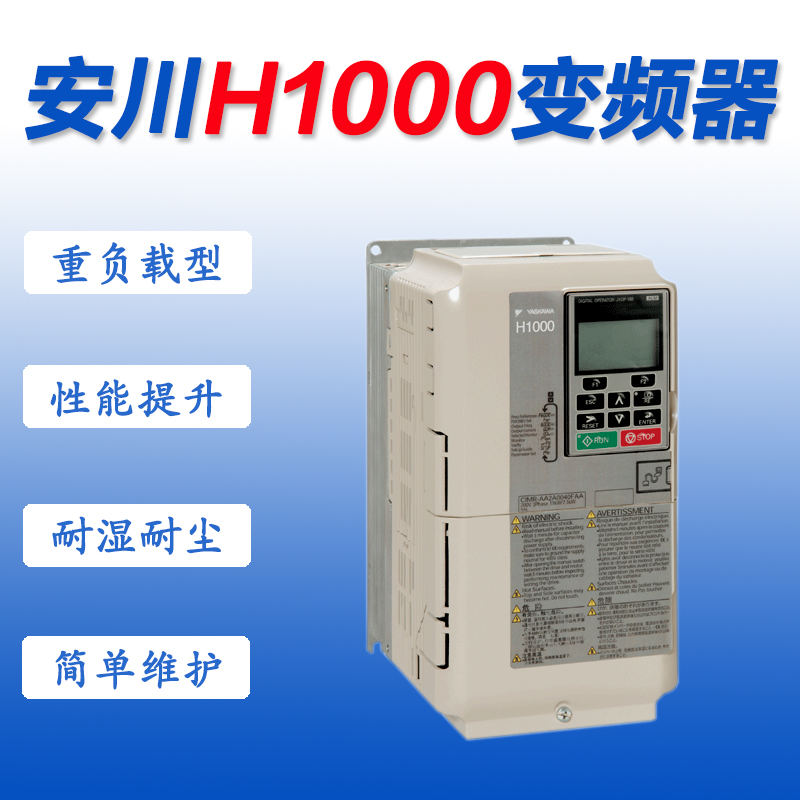

Yaskawa inverter model CIMR-HB4A0009FBC is actually a 2.2kW unit of the H1000 series for 3-phase 400V supply, not a 15kW model. The corresponding 15kW models are CIMR-HB4A0039FBC (واجب ثقيل) and CIMR-HB4A0031FBC (standard duty). Below are the core parameters, functional features and key selection points of the CIMR-HB4A0009FBC model:

المعلمات التقنية الأساسية

الميزات الوظيفية

1. Heavy Duty Adaptation: Specifically designed for heavy-duty working conditions such as cranes, crushers and belt conveyors, with high overload and impact resistance.
2. Precise Control: يدعم التحكم في ناقلات الأمراض بدون مستشعر, featuring stable high torque output at low speed, fast torque response and vibration/over-shoot suppression.
3. آمنة وموثوقة: Equipped with comprehensive protection functions including overcurrent, الجهد الزائد, انخفاض الجهد, overheating and ground fault protection, مناسبة للبيئات الصناعية القاسية.
4. التوسع المرن: Supports optional accessories such as PG cards and I/O expansion cards, and is compatible with a variety of fieldbuses to meet complex control requirements.

Corresponding 15kW Models & Selection Tips

15kW Heavy Duty: CIMR-HB4A0039FBC (suitable for continuous high-load scenarios)

15kW Standard Duty: CIMR-HB4A0031FBC (suitable for normal working conditions)

When selecting a model, verify the load type, التصنيف الحالي, power supply specifications and communication/expansion requirements to avoid mismatch between power and working conditions.

Common Application Scenarios

Applicable to heavy machinery in mining, علم المعادن, building materials and other industries, such as hoists, mixers and calenders that require high torque output and frequent start-stop operations.

The following is a complete parameter comparison between Yaskawa CIMR-HB4A0009FBC and its corresponding 15kW models, as well as recommended direct replacement models of the same power from ABB, Siemens and Schneider.

1. جدول مقارنة المعلمات الأساسية (Yaskawa H1000 Series)

1. Cross-brand Direct Replacement Models for 15kW Heavy Duty Inverters

All the following models are adapted to 3-phase 380-480V power supply, 15kW heavy duty working conditions (150% overload for 60s), and support vector control and mainstream communication protocols:

ثالثا. Key Tips for Model Selection & استبدال

1. Load Matching as Priority

Confirm the load type (constant torque/variable torque), overload requirement (120%/150%) and duty type (S1/S3), and prioritize models rated for the corresponding type.

For heavy-duty scenarios (على سبيل المثال. الرافعات, الكسارات), CIMR-HB4A0039FBC or equivalent heavy-duty models from other brands must be selected to avoid damage caused by long-term overload.

2. Key Parameter Verification

التصنيف الحالي: ≥34A required for 15kW heavy duty, ≥27A for standard duty.

Control functions: مكافحة ناقلات الأمراض, PG feedback (encoder interface) and communication protocols (Modbus/Profinet, إلخ.) must be compatible with the original system.

Safety functions: ستو (إيقاف عزم الدوران الآمن), EDM (External Device Monitoring) and other functions must match the safety grade requirements of the equipment.

3. تثبيت & Expansion

Installation dimensions: The 15kW model of Yaskawa H1000 series is about 260×550×190mm; verify the cabinet space before replacement.

توافق الملحقات: PG cards, I/O expansion cards, braking resistors and other accessories must be compatible with the new model to avoid function loss.

1. Replacement Implementation Suggestions
2. Record the parameters of the original inverter (motor nameplate, V/f curve, acceleration/deceleration time, protection thresholds, إلخ.) before replacement for quick commissioning of the new model.
3. Perform motor auto-tuning (static/dynamic) on the new model to ensure the accuracy of vector control and stability of torque output.
4. Verify the pin definitions for communication and I/O wiring to avoid equipment abnormalities caused by signal errors.
5. Monitor key indicators such as current, voltage and temperature during the test phase to verify the replacement effect and adjust parameters accordingly.
