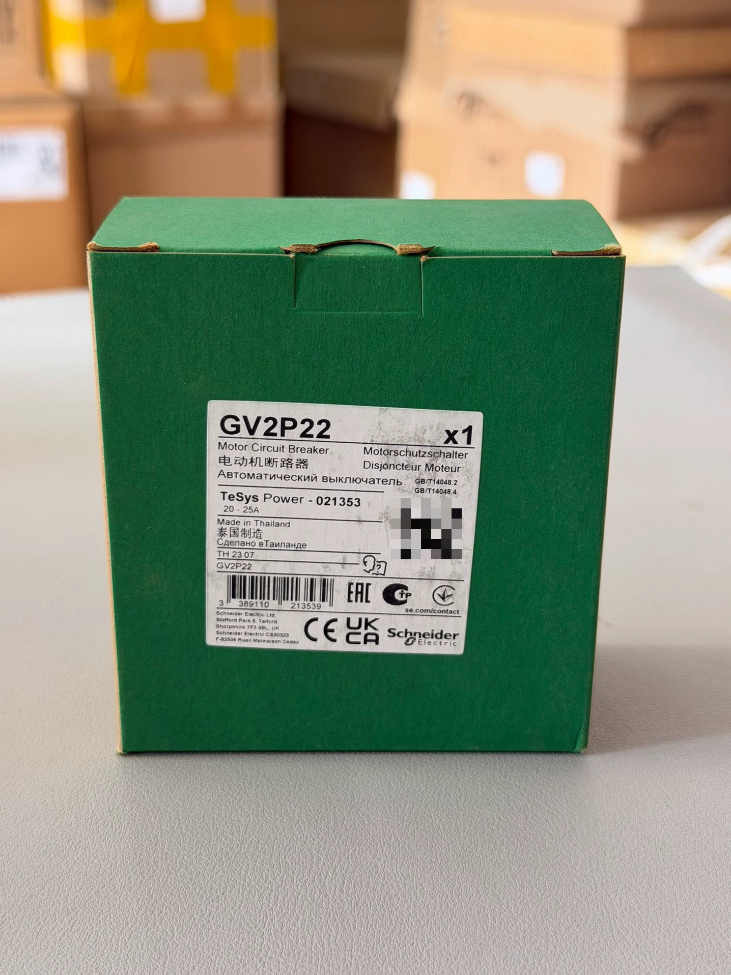

Schneider GV2-P22 Motor Circuit-Breaker

Erklärung des Modellcodes

GV2-P22

GV2: Serie, motor-protection circuit-breaker (manual motor starter)

P: Thermal-magnetic protection type, rotary-knob current adjustment

22: Current setting range 20-25A

Kernparameter

1. Strom einstellen: 20～25A
2. Auslösecharakteristik: Thermal-overload trip + instantaneous magnetic short-circuit trip
3. Hauptstromkreis: 3-Pole
4. Applicable motor: AC-3, Drehstrommotor, max. approx.11kW (380V)
5. Auxiliary functions: Compatible with add-on blocks GV2-AE, GV2-AN
6. Montage: 35 mm DIN-rail mounting; assembled with contactor for direct-on-line starting unit

Common Replacements

Schneider in-series alternative: GV2-ME22 (lever-handle version, same 20-25 A range)

Inländische Alternativen: Chint NS2-25 (20-25A), Delixi CDV2s-25 (20-25A)

Checkliste für die Gebrauchtinspektion (for used-market purchase)

1. Check housing for cracks, burn marks or burnt terminal lugs
2. Rotary knob should turn smoothly without jamming
3. Verify normal closing and opening operations
4. Cross-check nameplate: GV2-P22, 20-25 A; do not confuse with GV2-P21 (17-23 A)
5. Distinguish models: GV2-P uses rotary knob; GV2-ME uses lever handle. Different housings, nicht direkt austauschbar.

Schneider GV2-P22 Motor Circuit-Breaker Full Specification Sheet

>Serie: TeSys Deca GV2-P (imported rotary-knob manual motor starter)

1. Basic Model Information

2. Elektrische Parameter

Rated Ultimate Short-circuit Breaking Capacity Icu

3. Mechanisches Leben & Verdrahtung

4. Umfeld & Schutz

5. Zertifizierungen & Zubehör
6. Zertifizierungen: CCC, UL, CSA, EAC, DNV-GL, BV, RINA, LROS marine classification, ATEX, UKCA, RoHS / ERREICHEN
7. Standard delivery: Unit only, keine eingebauten Hilfskontakte; must order separately

Auxiliary contact blocks: GV2-AN (1NO+1NC), GV2-AE (fault-signal contact)

Rangierfahrt, Unterspannungsauslösung, door-interlock mechanism and others are optional accessories

3. Origin note: GV2-P22 is imported version. Domestic rotary-knob variant GV2PM22 shares same current range but differs in breaking-capacity and depth dimension; cannot be treated as full equivalent replacement.
4. Serienvergleich & Ersatzauswahl
5. Schneider lever-handle equivalent: GV2-ME22 (20-25 A, lever-handle type, different housing outline, accessories are interchangeable)
6. Domestic alternative references:

Chint NS2-25 20-25A

Delixi CDV2s-25 20-25A

7. Checkliste für die Gebrauchtinspektion (Used-market)
8. Nameplate verification: Model GV2-P22, 20-25 A. Do not confuse with GV2-P21 (17-23 A).
9. Rotary knob turns smoothly, ON/OFF positions clear, kein kleben.
10. Housing free of cracks; terminal lugs without burning or erosion.
11. Perform manual close-open test. If possible, verify thermal-trip and magnetic-trip functions.
12. Distinguish GV2-P (imported, depth 97 mm) vs GV2PM (inländisch, depth 91 mm). Housings are not directly interchangeable.

Application Scenarios for Schneider GV2-P22 Motor Circuit-Breaker

GV2-P22 (adjustable 20-25 A, max 11 kW three-phase motor @400 V) belongs to TeSys GV2-P rotary-knob thermal-magnetic manual motor starter. It integrates short-circuit protection, motor overload protection, phase-failure protection and main-circuit isolation. It performs local motor on-off control and is frequently paired with contactors and overload relays for motor starting circuits. Widely deployed for small-to-medium three-phase motors in industrial machinery, Förderstrecken, HVAC, light lifting and pump systems.

✅ Typical Load Matching (400 V three-phase reference)

Matched motor rating: 7.5 kW ~11 kW three-phase asynchronous motor

Notiz: Only select this model when the motor full-load current falls within the 20-25 A window. Do not over-size the setting for smaller motors, otherwise overload protection will be lost.

1. Industrial Equipment Applications
2. Machine-tool equipment

Drilling machines, small milling machines, Schleifmaschinen, light cutting equipment; machine-tool cooling pumps, hydraulic-station oil-pump motors.

Funktion: Instant tripping for motor stall, overload and winding short-circuit. Rotary knob provides local manual switching plus isolation for maintenance.

2. Förderer & material-handling lines

Bandförderer, Rollenbahnen, small elevators, sorting-equipment drive motors.

Vorteil: Compact DIN-rail installation for dense cabinet layout. GV2-AE fault-alarm block can be added to send fault signals to PLC.

3. Lüfter & HVAC-Systeme

Industrial centrifugal fans, cabinet fans, workshop exhaust fans, air-handling-unit fan motors.

Suited for fan-type high-inrush-current loads; thermal-magnetic characteristic tolerates starting surge while protecting against sustained overload.

4. Pump applications

Umwälzpumpen, sewage pumps, Druckerhöhungspumpen, small hydraulic oil pumps.

Sewage pumps are prone to rotor stalling; built-in phase-failure protection prevents motor burnout from single-phasing. Rotary knob provides local switching and maintenance isolation inside control cabinets.

2. Control-cabinet Integration
3. Direct-on-line motor starter circuits (am häufigsten)

Scheme 1: Stand-alone GV2-P22 for local manual protection & switching for small motors without remote control.

Scheme 2: GV2-P22 + LC1D contactor forming a complete DOL starter: circuit-breaker provides short-circuit & Überlastschutz; contactor executes PLC-based remote start-stop.

Classic configuration widely used inside PLC cabinets and MCC motor-control boxes.

2. Local field control boxes

Compact on-machine local control enclosures. Rotary knob switches motor and provides electrical isolation in OFF position, removing need for separate disconnector.

3. Other Industry Uses
4. Logistik & light lifting equipment

Kleine Winden, auxiliary lifting motors (not for primary hoist safety circuits).

2. Plastics-processing machinery

Auxiliary small extruder drives, hopper feeding motors, mixer motors.

3. Marine / offshore auxiliary equipment

GV2-P series carries full marine classification-society approvals for on-board auxiliary pumps and ventilation fans inside engine compartments. ⚠️ Domestic GV2PM lacks full marine certifications; imported GV2-P must be specified for marine projects.

❌ Not-Recommended Applications

1. Not intended for single-phase loads or lighting circuits: Optimized specifically for motor protection logic, not general-purpose distribution.
2. Motorleistung >11 kW @400 V: Exceeds setting-current range; upgrade to GV3-series.
3. Downstream of VFD output terminals: Cannot connect to inverter output side. Only install on VFD input supply side for upstream protection.
4. Frequent forward-reverse jog-cycle operation: Add contactor for repeated switching; avoid frequent manipulation of the GV2-P rotary knob to preserve mechanical service-life.

💡 Selection & Operation Tips

1. Adjust rotary setting dial strictly according to motor nameplate full-load current. Do not simply turn to maximum 25 A; set to 21 A for a motor rated 21 A.
2. Remote fault-signal output requires add-on GV2-AE fault-contact block; no alarm output built-into unit.
3. GV2-P22 is imported rotary-knob variant. While protection parameters match lever-handle GV2-ME22, physical depth differs; check cabinet depth for retrofit replacement.
4. For used-unit deployment: Prioritize functional trip-test rather than cosmetic inspection only.
