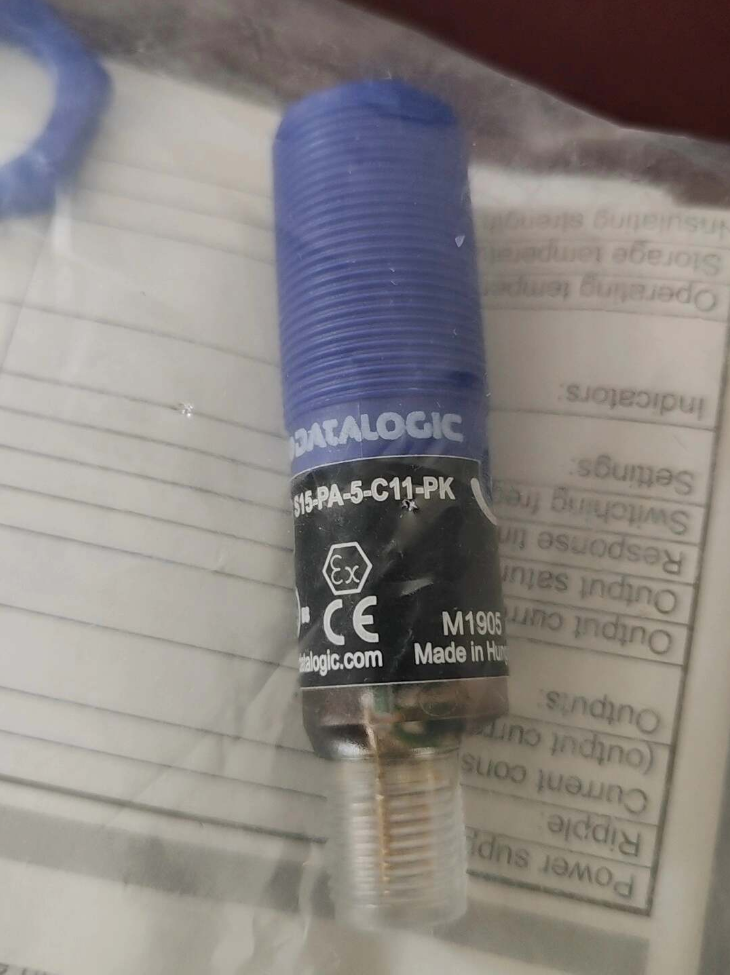

S15-PA-5-C11-PK est un capteur photoélectrique cylindrique M18 avec boîtier en plastique de la série DATALOGIC S15. Il adopte une détection par réflexion diffuse avec une distance de détection de 1 m, Sortie PNP, Connecteur M12 et degré de protection IP69K. Il est largement utilisé dans l'alimentation & boisson, pharmaceutique, emballages et autres occasions industrielles nécessitant un lavage à haute pression. Ci-dessous les données techniques complètes au format standard.
- Explication du code modèle
| Segment de modèle | Signification | Description détaillée |
| S15 | Code de série | S15 series M18 cylindrical photoelectric sensor, short housing design (only 40mm length) for space saving |
| Pennsylvanie | Matériau du boîtier | Plastic housing, cost-effective for general industrial environments (distinguished from NA stainless steel housing) |
| 5 | Optical Function | Diffuse proximity sensing, sensing distance 1m, no reflector required |
| C11 | Sortir & Connexion | C=PNP output, 11=M12 4-core male connector, NO normally open contact |
| PK | Configuration Option | P=PNP output, K=standard version without sensitivity potentiometer |
| DATALOGIC | Marque | Italian industrial automation sensor manufacturer |
| Numéro de commande. | Numéro de pièce | 952301401 (Official order number for S15-PA-5-C11-PK) |
- Principales spécifications techniques (Certified Version)
| Catégorie | Spécification | Remarques & Attestation |
| Informations de base | ||
| Fabricant | DATALOGIC Industrial Automation | Confirmation de la marque: capteur photoélectrique, not PLC or power module |
| Type de produit | M18 Cylindrical Diffuse Photoelectric Sensor | Short housing design saves installation space |
| Sensing Principle | Infrared diffuse reflection (880nm infrared LED) | Sensing distance decreases for dark-colored objects |
| Paramètres électriques | ||
| Tension d'alimentation | 12~30 V CC (Industrial standard) | Protection contre l'inversion de polarité, overvoltage protection ≤35VDC |
| Consommation actuelle | ≤10mA (No load), ≤100mA (With load) | Faible consommation d'énergie, suitable for battery-powered systems |
| Type de sortie | PNP NO (Normalement ouvert) | Court-circuit & protection contre les surcharges, max load current 100mA |
| Temps de réponse | Typical 1ms, Max 2ms | Max sensing frequency up to 500Hz |
| Distance de détection | 1m (90% reflectivity white paper) | Varies with object color and reflectivity |
| Mechanical Dimensions | ||
| Taille (Dia.×Length) | 18mm × 40mm | Ultra-short body for narrow space installation |
| Poids | Environ. 25g | Lightweight for fast mounting |
| Type de connexion | M12 4-core plug connector | Quick plug-in design with IP69K sealing performance |
| Matériau du boîtier | High-strength PA66-GF30 plastic | Chemical corrosion resistant for general industrial use |
| Paramètres environnementaux | ||
| Classe de protection | IP69K | Dust-tight and waterproof, resistant to high pressure & high temperature flushing (80℃, 100bar) |
| Température de fonctionnement | -25℃ ~ +60℃ | Wide temperature range for harsh working conditions |
| Température de stockage | -40℃ ~ +70℃ | Adaptable to extreme transportation and storage environment |
| Humidité relative | 95% RH Non-condensing | Prevent internal components from moisture damage |
| Résistance aux vibrations | 10-55HZ, 1mm double amplitude | Conforme à la CEI 60068-2-6 |
| Résistance aux chocs | 500m/s² (50G), 11MS | Conforme à la CEI 60068-2-27 |
| Certifications | ||
| CE | Compliant with EMC 2014/30/EU & LVD 2014/35/EU | Certifié. Non.: CE 0499 |
| UL | Conforme à UL 61010-1 | Certifié. Non.: E250000 |
| ASC | Compliant with CSA C22.2 No.61010-1 | Certifié. Non.: LR66168 |
| RoHS | Conforme à la norme européenne RoHS 2011/65/UE | Conception écologique sans plomb |
| Conformité du fret aérien | ||
| Batterie intégrée | Pas de batterie au lithium / super condensateur installé | Comply with IATA regulations, marchandises non dangereuses |
| Classe d'expédition | Marchandises générales | No special documents required, available for air, transport maritime et terrestre |
- Cross-Brand Compatibility List
| DATALOGIC Model | Marque alternative | Modèle de remplacement | Description de la compatibilité | Conseils de sélection |
| S15-PA-5-C11-PK | OMRON | E3Z-D61 | 1m sensing distance, Sortie PNP, M12 connector, IP67 | Lower protection level, for non high-pressure washing sites |
| SIEMENS | 3RG6013-3AB00 | 1m sensing distance, Sortie PNP, M12 connector, IP67 | Lower protection level, coût plus élevé | |
| Schneider | XUM2APCNL2 | 1m sensing distance, Sortie PNP, M12 connector, IP67 | Lower protection level, longer response time 2ms | |
| Pepperl+Fuchs | RL31-8-H-1000-RT/73c/136 | 1m sensing distance, Sortie PNP, M12 connector, IP69K | Same protection grade, prix plus élevé | |
| DATALOGIC Equivalent | S15-NA-5-C11-PK | Stainless steel housing, IP69K, identical all parameters | Best replacement choice for food & beverage industry |
Règle de sélection: Prioritize same series products; match protection grade, sensing distance and output type; choose IP69K version for food industry.
- Full S15 Series Model List
| Modèle | Optical Type | Distance de détection | Sortir | Connexion | Matériau du boîtier | Numéro de commande. |
| S15-PA-5-C11-PK | Diffuse | 1m | PNP NO | M12 4-core | Plastique | 952301401 |
| S15-PA-2-C10-NK | Diffuse | 0.2m | NPN NO | 2m Cable | Plastique | 952301402 |
| S15-PA-3-C00-PK | Rétro-réfléchissant | 5m | PNP NO | M12 4-core | Plastique | 952301403 |
| S15-PA-3-F01-PK | Barrage (Receiver) | 10m | PNP NO | M12 4-core | Plastique | 952301404 |
| S15-PA-3-G00-PK | Barrage (Émetteur) | 10m | – | M12 4-core | Plastique | 952301405 |
| S15-PA-4-D50-PK | Suppression de l'arrière-plan | 0.12m | PNP NO | M12 4-core | Plastique | 952301406 |
| S15-NA-5-C11-PK | Diffuse | 1m | PNP NO | M12 4-core | Acier inoxydable | 952301400 |
| S15-NA-3-C00-PK | Rétro-réfléchissant | 5m | PNP NO | M12 4-core | Acier inoxydable | 952301407 |
- Dépannage courant & Guide d'entretien
| Phénomène de défaut | Causes possibles | Solutions | Maintenance Time | Des pièces de rechange |
| No output signal | 1. Power disconnected or abnormal voltage | 1. Check 12-30VDC power supply | 0.5h | M12 connector, câble d'alimentation |
| 2. Over-range sensing distance | 2. Adjust installation position to shorten distance | |||
| 3. Low reflectivity dark object | 3. Use light-colored object or paste reflector | |||
| 4. Loose M12 connector | 4. Reconnect and fasten M12 connector | |||
| 5. Output short circuit | 5. Inspect load circuit and eliminate short circuit | |||
| False triggering | 1. Ambient light interference | 1. Install light shield or adjust angle | 0.5h | Light shield, cleaning supplies |
| 2. Improper installation angle | 2. Avoid direct strong light irradiation | |||
| 3. Adjacent sensor mutual interference | 3. Keep distance ≥50mm between sensors | |||
| 4. Poussière & oil covered sensing window | 4. Clean lens with alcohol | |||
| Unstable output signal | 1. Severe power voltage fluctuation | 1. Add power filter or voltage stabilizer | 1h | Power filter, support de montage |
| 2. Uneven object surface | 2. Optimize sensing angle for stable reflection | |||
| 3. Sensor displacement caused by vibration | 3. Fasten mounting bracket | |||
| 4. Panne du circuit interne | 4. Replace sensor | |||
| Indicator light off | 1. No power input | 1. Check power wiring | 0.5h | New sensor, power wire |
| 2. Reverse power polarity | 2. Correct positive and negative polarity | |||
| 3. Damaged built-in LED | 3. Replace sensor | |||
| 4. Internal circuit damage | 4. Replace sensor | |||
| Failed protection performance | 1. Damaged sealing ring of M12 connector | 1. Replace M12 sealing ring | 1h | M12 seal ring, sensor housing |
| 2. Physical damage on housing | 2. Replace sensor if housing broken | |||
| 3. Aging seal after long-term high-pressure washing | 3. Regular inspection and timely replacement |
Conseils d'entretien: Check power supply first, then sensing distance and object condition; fasten connectors regularly, keep lens clean; replace sensor directly if frequent faults occur.
- Champs d'application & Cas industriels
6.1 Scénarios d'application recommandés
Nourriture & Boisson: Product detection on packaging and filling lines, resistant to daily CIP/SIP high-pressure washing
Industrie pharmaceutique: Material inspection for pharmaceutical production equipment, meet GMP clean room standards
Industrie de l'emballage: Presence detection of cartons and plastic packages, short body fits narrow installation space
Logistique & Entreposage: Parcel detection on conveyor lines, excellent vibration resistance
Fabrication automobile: Position detection for assembly parts, 1ms fast response suitable for high-speed production lines
Electronic Processing: Detection of PCB and electronic components, low power consumption for automatic equipment
6.2 Scénarios d'application non recommandés
Strong infrared radiation environment: Easy to cause false trigger under direct sunlight or infrared heating equipment
Heavy dust environment: Dust covers lens easily and affects detection accuracy (regular cleaning required)
Long-term underwater immersion: IP69K is only for high-pressure washing, not submersible use
Ultra-high temperature environment: Ambient temperature over 60℃ will damage internal components and shorten service life
Severe electromagnetic interference area: Shielding measures must be added to avoid unstable signals
6.3 Cas d'application typiques
Cas 1: Nourriture & Beverage Filling Production Line
Application: PET bottle presence detection to ensure normal filling operation
Configuration: 24 pcs S15-PA-5-C11-PK for whole line filling stations
Operation effect: Fonctionnement stable pour 3 years with failure rate lower than 0.2%, adapt to daily 80℃ 100bar CIP flushing, 100% detection accuracy
Cas 2: Pharmaceutical Blister Packaging Line
Application: Integrity inspection of pharmaceutical blister packs
Configuration: Combined use of S15-PA-5-C11-PK diffuse sensor + S15-PA-3-C00-PK retro-reflective sensor
Operation effect: High precision to identify 0.1mm packaging defects, comply with GMP standards, support 24-hour continuous production
- Résumé de base (Achat & Guide d'entretien)
- Confirmation de la marque: S15-PA-5-C11-PK is professional DATALOGIC photoelectric sensor, not PLC or power supply module
- Core Performance: Diffuse type, 1m sensing range, Sortie PNP, M12 connection, IP69K high washing resistance
- Attestation & Shipment: Complete CE/UL/CSA/RoHS certificates, pas de piles intégrées, fully compliant for global air freight
- Replacement Solution: Replace with S15-NA-5-C11-PK stainless steel version for longer service life in harsh sites
- Suggestion de sélection: Confirm sensing distance and working environment; select stainless steel IP69K model preferentially for food industry
- Entretien quotidien: Clean sensing lens 1~2 times per week, inspect connector sealing, avoid direct high-pressure water impact on sensor front face
