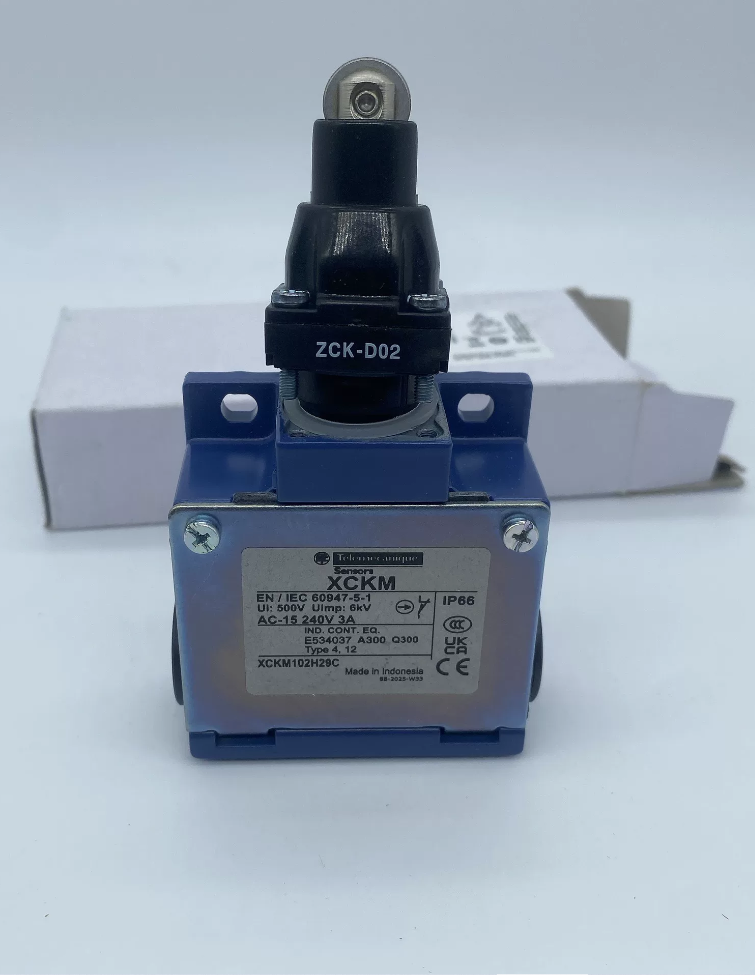

Schneider XCKM102 Limit Switch

Complete order-part numbers: XCKM102C (Pg11 cable entry)、XCKM102H29 (M20×1.5 cable entry, commonly used in China)

Série: Telemecanique XC-Standard metal-housing interrupteur de fin de course, actuator ZCK-D02 steel-roller plunger, retour à ressort

Explication du code modèle

XCKM: M = Zamak zinc-alloy metal housing, modular limit-switch body

102: Bloc de contacts: 1NO+1NC snap-action contacts with forced-opening safety NC contact; supplied with ZCK-D02 roller-plunger actuator

Suffix C: Pg11 threaded cable entry; Suffix H29: M20×1.5 metric threaded cable entry (mainstream for domestic projects)

Spécifications techniques de base

Définition du terminal

13-14: NO Normally-Open

21-22: NC Normally-Closed

⚠️ The NC contact features forced-opening function, designed for safety circuits; do not treat it as an ordinary micro-switch contact.

Applications typiques

Machine-tool hard overtravel limit, équipement de convoyeur, lifting machinery, position detection for automation equipment. Suitable for dusty and splashing-water environments; metal housing provides impact resistance. Conception modulaire: ZCK-D02 actuator can be replaced separately without changing the whole switch.

Remplacement & Sélection

1. Original OEM replacement: XCKM102H29 (M20) / XCKM102C (Pg11)
2. Domestic compatible alternatives: Metal-housing roller-plunger limit switches; verify: 1NO+1NC snap-action, IP66, mounting hole pitch 64 mm
3. Same-series actuator exchange: Retain switch body, fit various ZCK-XX lever-type actuators.

Défauts courants & Dépannage

1. Aucun signal: Check roller-plunger jamming / fatigue printanière; inspect contact burning; verify screw-terminal tightening torque.
2. Unstable signal: Reserve sufficient mechanical over-travel; avoid over-compressing plunger; actuating speed ≤0.5 m/s.
3. Water ingress damage: Match cable gland to entry thread; do not force Pg11 gland onto M20 port.

Note: XCKM102 consists of body plus actuator. Confirm cable-entry thread when ordering; XCKM102H29 is preferred for most Chinese field installations.

Application Scenarios of Schneider XCKM102 Steel-Roller-Plunger Limit Switch

Key features: Top steel-roller plunger, bidirectional side actuation, automatic spring return, 1NO+1NC snap-action contacts, forced-opening safety NC contact, IP66 metal housing. Designed for lateral cam-dog actuation, for position confirmation, hard overtravel limiting and safety interlocking.

1. Machine-Tool Equipment
2. Machines-outils à commande numérique, fraiseuses, tours, broyeurs: Positive/negative hard overtravel protection for slides / work-tables to prevent collision; tool-change position feedback, tailstock position check, pallet clamping confirmation.
3. Injection-molding machines, machines de moulage sous pression: Mold open-close position detection, mechanical safety-gate interlock; ejector-stroke limit.
4. Matériel de presse: Slide travel limit, guard-door interlock; NC contact wired into safety circuit.

✅ Selection hint: Plunger requires lateral cam actuation. Cam-dog surface shall be smooth to prevent heavy impact damage to roller.

2. Material-Handling & Équipement de transport
3. Ceinture, roller, convoyeurs à chaîne: Pallet/bin stop-position signal, limite de fin de voyage, stop-dog position feedback; sorting-mechanism position signal.
4. Plateformes élévatrices, palans, stacker cranes: Upper/lower travel limits, fork extend/retract confirmation; over-travel prevention; NC contact for safety cut-off circuit.
5. Entrepôts automatisés: Rail hard limit for shuttle cars, position confirmation.
6. Conditionnement & Printing Production Lines
7. Machines d'emballage, soudeuses de caisses, étiqueteuses: Cylindre / slide position detection, mechanism status feedback; roll-holder limit.
8. Machines d'impression: Paper-pile lifting limit, pusher-mechanism position signal.
9. Levage & Light Machinery
10. Small overhead cranes, electric chain hoists: Trolley travel limit, lifting-tool position sensing (not for main hoist ultimate height limit — heavy-duty lever-head type is recommended for main hoist).
11. Robots, gantry axes: Mechanical hard limit (physical backup beyond PLC soft-limit).
12. Industrial Doors, Gates & Access Interlocks
13. High-speed industrial doors, lifting gates: Full-open / full-closed position feedback; safety interlock.
14. Machine-guard access doors, maintenance hatches: Door-closed confirmation interlock; stop equipment when door opens.
15. Other Industrial Machinery

Machines textiles: Slider limit for looms & machines à carder

Water-treatment & environmental equipment: Grille / baffle position detection

Lignes d'assemblage: Fixture-clamping position confirmation

Operating-Condition Compatibility

✅ Suitable for XCKM102

Lateral cam-dog pushes roller-plunger, linear reciprocating motion

Poussiéreux / splashing-water ambient conditions requiring IP66

Safety circuits requiring forced-opening NC contact

Medium actuating force (≥12 N), immune to minor vibration false-triggering

❌ Not Suitable

1. Direct vertical impact onto plunger (risk of internal-mechanism damage)
2. Large-stroke pivoting actuation (use lever-head models e.g. XCK-M115)
3. Repeated high-speed impact; maximum actuating speed ≤0.5 m/s.

Typical Wiring Practices

1. Position-reached signal: Utiliser 13-14 (NON). Contact closes when cam compresses plunger; status read by PLC.
2. Hard safety-limit: Fil 21-22 (Caroline du Nord, forced-opening) in series within motor-control circuit. On over-travel impact, hardware directly cuts power, independent of PLC logic.

Complete Technical Specifications for Schneider XCKM102 Limit Switch

Série: XC-Standard (Télémécanique); Actionneur: ZCK-D02 steel-roller plunger, retour à ressort, bidirectional side actuation

Order-part variants:

XCKM102C: Pg11 cable entry

XCKM102H29: M20×1.5 metric cable entry (widely used in China)

1. Spécifications mécaniques

2. Spécifications électriques

3. Conditions environnementales

Température de fonctionnement: -25℃ ~ +70℃

Température de stockage: -40℃ ~ +70℃

Certifications: CCC, UL508, ASC; complies with IEC 60947-5-1, IEC 60204-1

4. Définition du terminal

13-14: NO Normally-Open (position-reached signal)

21-22: NC Normally-Closed (forced-opening, for hard-safety-limit circuits)

5. Notes d'application clés
6. Designed for lateral cam-dog compression of roller-plunger. Vertical direct impact is not recommended; 30°-angled cam profile is preferred.
7. Modular construction: ZCK-D02 actuator can be replaced separately without replacing complete switch unit.
8. Confirm cable-entry thread at ordering: Prefer XCKM102H29 (M20 × 1,5) for new-build Chinese projects; XCKM102C for legacy Pg11 installations.

Operating Principle of Schneider XCKM102 Limit Switch

XCKM102 is a modular metal-housing mechanical limit switch, fitted with ZCK-D02 roller-plunger actuator. Principe de base: Mechanical force → plunger displacement → internal snap-action contact toggle → automatic spring return; NC contact implements mechanical forced-opening safety feature, compliant with IEC 60947-5-1.

1. Mechanical Operating Sequence
2. Free state (non-actuated)

Cam-dog does not contact roller-plunger; return spring holds plunger outward at home position.

Statut: 21-22 NC closed; 13-14 NO open.

2. Actuated state (cam-dog compresses roller)

Moving-machine cam-dog laterally pushes steel roller and compresses plunger inward.

Once plunger travels past operating point, internal snap-action rocker mechanism triggers instantaneous contact state change; transition is abrupt, not gradual.

Snap-action benefit: Reliable make-break independent of cam-dog speed; eliminates contact chatter / bounce.

Actuated status: 21-22 NC open; 13-14 NO closed.

3. Reset process

Cam-dog moves away, external force removed; return spring pushes plunger back to home position, contacts restore original state.

⚠️ Attention: Designed for lateral compression. Direct vertical pounding on plunger may destroy internal components.

2. Forced-Opening Principle for Safety NC Contact 21-22 [Critique]

Le 21-22 NC contact is not a standard micro-switch contact; it implements mechanical forced-opening construction:

When plunger is fully depressed, rigid mechanical linkage physically pries the NC contacts apart, not relying only on contact-spring force.

Even in case of contact welding / collage, mechanical linkage can forcibly separate contacts to break the circuit.

Donc 21-22 NC is dedicated to hard-safety-limit and safety-interlock circuits, achieving hardware-level power cut-off independent of PLC software logic.

Never use NO contacts for safety circuits; NO contacts have no forced-opening capability.

3. Electrical Logic Table

Two Typical Wiring Modes

1. Position-feedback signal (Entrée numérique API): Utiliser 13-14 NON; closure indicates target position reached.
2. Hardware hard-overtravel protection: Series-connect 21-22 NC into contactor-control circuit. Overtravel impact opens switch and directly de-energizes control circuit to avoid machine damage.
3. Modular Construction Breakdown

XCKM102 consists of three assemblies:

1. Actionneur: ZCK-D02 (roller-plunger, ressort de retour) receives external mechanical input.
2. Bloc de contacts: Snap-action rocker-contact assembly performs circuit switching.
3. Boîtier métallique: Provides mechanical mounting, environmental protection and wiring terminals.

Damaged actuator can be replaced separately with ZCK-D02; full-switch replacement is unnecessary.

5. Fault-Mechanism Analysis
6. Signal chatter / flickering: Cam-dog travel insufficient; plunger stays near transition threshold without full over-travel.
7. Contacts fail to reset: Plunger jamming; return-spring fatigue or fracture.
8. Safety-circuit loss: Mis-application of NO contact for safety function; or contact welding (only NC provides forced-opening anti-weld protection).
