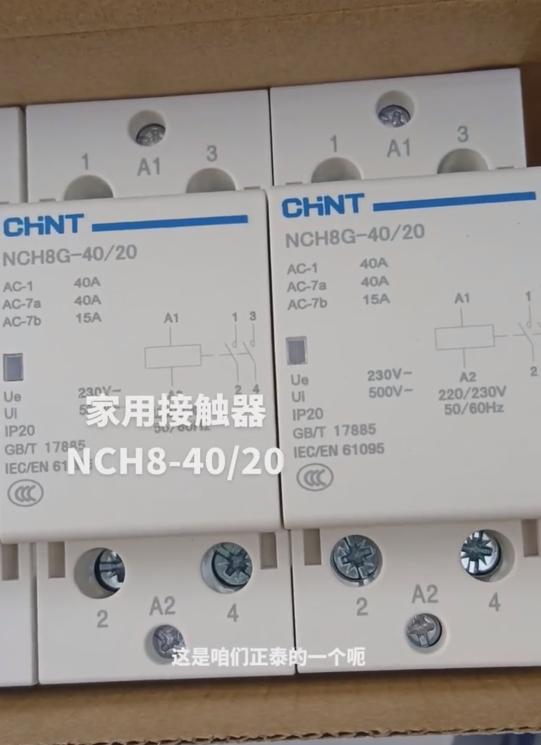

Contattore Chint NCH8G-40/20

The NCH8G-40/20 contattore by Chint is a modular contactor specifically designed for residential and small commercial applications. It is suitable for controlling low-inductance or micro-inductance loads (such as household appliances, lighting equipment, ecc.). Below is a detailed breakdown of its core information:

Parametri e funzioni principali

1. Corrente nominale e poli

,Corrente nominale dei contatti principali,,: 40UN (suitable for AC-7A/AC-7B load types), which can meet the power requirements of most household and small commercial equipment.

,Configurazione dei contatti ausiliari,,: IL “20” in the model indicates ,,2 normalmente aperto (NO) contatti principali,,. It features a no-auxiliary-contact design, resulting in a simple structure and optimized cost.

2. Voltage and Frequency Range

,Tensione della bobina,,: Supports 220-230V AC (common residential voltage); a 24V AC version is also available to adapt to specific control systems.

,Operating Voltage Range,,: Applicable to circuits with AC 50/60Hz and rated operating voltage up to 400V.

3. Vita meccanica ed elettrica

,Vita meccanica,,: Fino a 1,000,000 operazioni, garantendo un funzionamento stabile a lungo termine.

,Vita elettrica,,: 100,000 operazioni, meeting the needs of frequent switching (per esempio., in smart home scenarios).

4. Mute and Safety Design

,Operating Noise,,: Below 15 decibels (equivalent to the sound of quiet breathing), making it suitable for noise-sensitive environments (such as bedrooms and offices).

,Flame-Retardant Material,,: Adopts thermosetting materials, which are high-temperature resistant and only carbonize (without burning) when exposed to open flames, rispettando le norme di sicurezza.

1. Installazione e utilizzo
2. Montaggio su guida DIN

– Supports quick installation on standard 35mm DIN rails. It can be installed in distribution boxes in combination with miniature circuit breakers, risparmiando spazio e facilitando la manutenzione.

,Requisiti di cablaggio,,: Per il circuito principale, it is recommended to use 2.5-16mm² copper wires to ensure stable current transmission.

2. Scenari applicativi

,Residential Sector,,: Controls air conditioners, scaldabagni, riscaldatori elettrici, smart home devices (such as electric curtains, smart sockets), ecc.

,Small Commercial Sector,,: Suitable for lighting control in hotels and apartments, as well as the start-stop control of small motors (such as exhaust fans and water pumps).

III. Prezzo e posizionamento di mercato

1. Prezzo di riferimento

– IL 2025 market price is approximately ,,35-50 RMB per unità,, (prices may vary across different channels and promotional activities). It belongs to the mid-to-low-end residential contactor category with outstanding cost-effectiveness.

,Competitors,,: Compared with similar products (per esempio., Delixi CDCH8S series), it has a similar price but enjoys higher brand recognition.

2. Modelli alternativi

– For more contacts, consider the ,,NCH8-40/40,, (4 contatti normalmente aperti) O ,,NCH8-40/22,, (2 normalmente aperto + 2 normally closed contacts).

– For industrial scenarios, you can upgrade to the ,,NCH8-M series,, (supports AC-1/AC-7A loads, con grado di protezione IP20).

1. Technical Advantages and Certifications
2. Conformità agli standard

– Complies with international standards IEC/EN 61095 and national standard GB/T 17885. It has obtained CE certification, garantendo una qualità affidabile.

2. Design Optimization

,Direct-Acting Inverted Structure,,: Reduces mechanical wear and improves reliability.

,Capacità anti-interferenza,,: Suitable for environments with large voltage fluctuations (-5℃ a +40 ℃).

1. Precauzioni
2. Carica corrispondenza

– Avoid using it for high-inductance loads (such as large motors and welding machines). Se necessario, derate the load or use it with a surge suppressor.

2. Protezione da cortocircuito

– It must be used in conjunction with an appropriate miniature circuit breaker (per esempio., Chint DZ47 series) to interrupt short-circuit currents.

Riepilogo

With its mute operation, lunga durata, facile installazione, ed efficienza in termini di costi, the Chint NCH8G-40/20 is an ideal choice for residential and small commercial scenarios. For controlling multi-circuit or complex loads, you can expand to other models in the same series. Al momento dell'acquisto, it is recommended to use official channels or authorized distributors to ensure product quality and after-sales support
