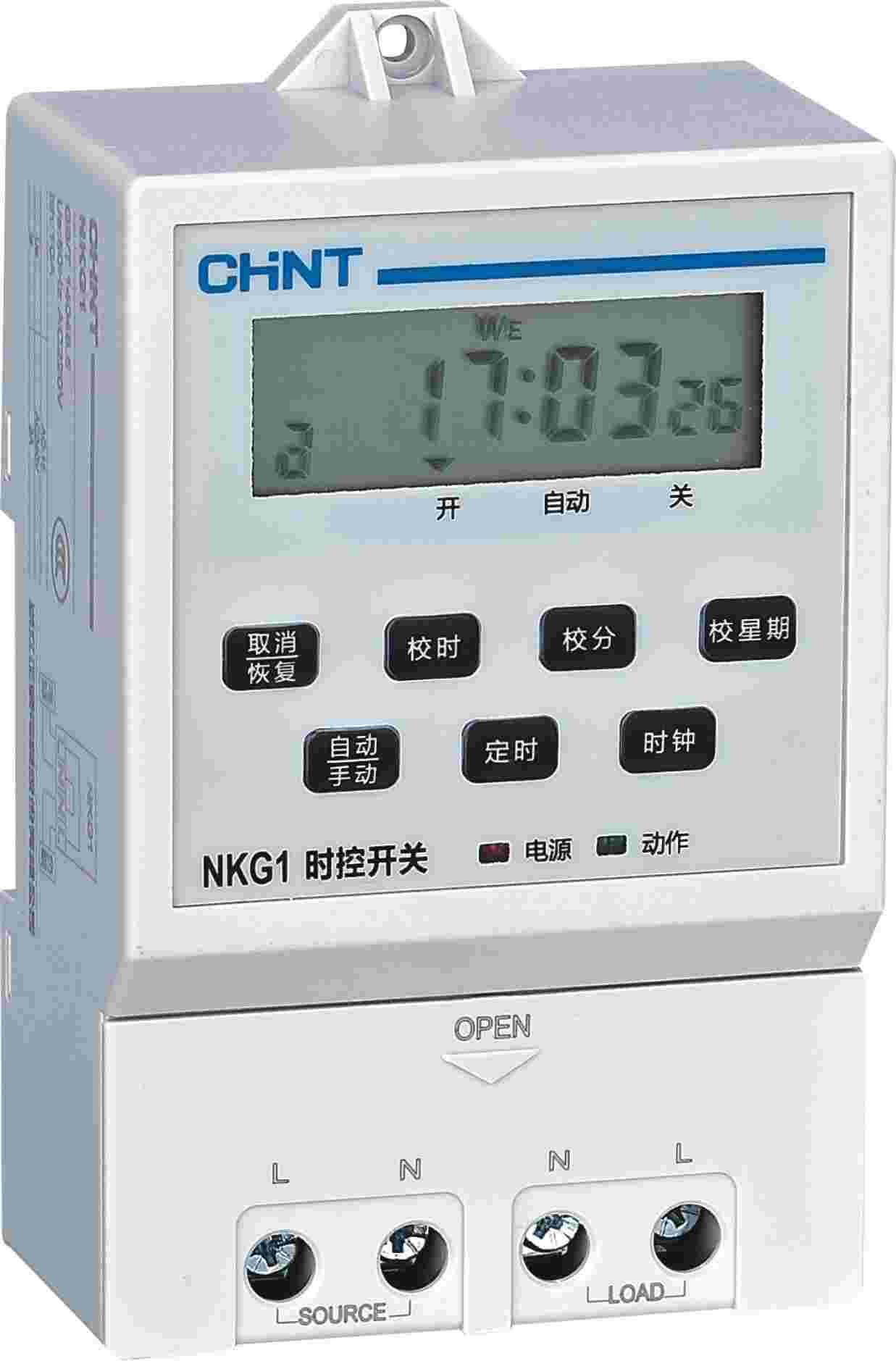

Chint NKG1 time control switch

The Chint NKG1 time control switch is a practical and easy-to-operate time control component. The following is a detailed introduction from the dimensions of its functional characteristics, parametri tecnici, installation and wiring, setting methods, ecc.:

1. Caratteristiche funzionali

Precise TimingPrezzo del dispositivo di protezione da sovratensione CHINT

It can set up to 7 days of timing switches, with a maximum of 16 different time points per week. The timing control range is 1 minute to 168 ore, and the timing error is ≤2 seconds per day, accurately meeting various timing needs.

Multiple Control ModesPrezzo dell'interruttore CHINT

It has three working modes: manual on, manual off, and automatic switch, which can be flexibly selected to facilitate users’ operations in different scenarios.

Wide Range of Controlled Objects

It can automatically switch the power supply of various electrical equipment, such as streetlights, neon lights, advertising sign lights, production equipment, radio and television equipment, household appliances, and all circuit equipment that needs to be turned on and off regularly.

Multiple ProtectionsPrezzo dei relè termici di sovraccarico serie Chint NXR

It is equipped with multiple protection mechanisms such as overload protection and short-circuit protection to effectively prevent accidents and ensure the safe and stable operation of the circuit. Allo stesso tempo, it has a waterproof and dustproof design, suitable for humid or dusty environments, and can extend the service life.

2. Parametri tecnici Interruttore automatico differenziale Chint NXBLE-40C6 (RCD)

Tensione operativa: 85%-110% tensione nominale, AC50Hz, AC220V

Internal Power Supply: Replaceable AA battery

Programmable Quantity: 16 on/off operations

Output Mode: 1 contatto normalmente aperto

Contact Capacity: Ue/Ie: AC-15, 220V/3A

Vita elettrica: 1×10⁵ operations

Vita meccanica: 1×10⁵ operations

Temperatura ambiente: -5°C to 40°C

Consumo energetico: ≤4.5VA

3. Installazione e cablaggio

Metodi di installazione

It supports rail-mounted, wall-mounted, and device-mounted installations. Tra loro, rail-mounted installation is simple and quick, suitable for various scenarios such as homes and offices.

Metodi di cablaggio

Direct Control Mode: When the controlled electrical appliance is single-phase powered and its power consumption does not exceed the rated value of this switch, the direct control mode can be adopted.

Single-Phase Capacity Expansion Mode: When the controlled electrical appliance is single-phase powered but its power consumption exceeds the rated value of this switch, an AC contactor with a capacity exceeding the electrical appliance’s power consumption is required for capacity expansion.

Three-Phase Working Mode: When the controlled electrical appliance is three-phase powered, an external three-phase AC contactor is required. The coil voltage of the contactor is divided into two types: AC220V, 50Hz and AC380V, 50Hz.

4. Setting Methods

Unlock: Premere il “Cancel/Resume” button 4 times consecutively to unlock.

Time Calibration: Premere il “Hour Calibration” button to set the hour, IL “Minute Calibration” button to set the minute, e il “Week Calibration” button to set the week.

Set Switching Time:

Premere il “Manuale” button to make the triangle on the display point to the “Auto” posizione. Then press the “Set” button to enter the “On Setting”. Premere il “Week” button to set whether it is the same every day, different every day, the same from Monday to Friday, or the same from Saturday to Sunday. Then press the “Hour” E “Minute” buttons to set the on time. Prossimo, premere il “Set” button to enter the “Off Setting”, and press the “Hour” E “Minute” buttons to set the off time. Repeat the above steps to set multiple groups of switching times.

Check and Modify: Premere il “Set” button to check whether all set times are correct. If modification is needed, premere il “Cancel” button at the setting point, and then re-set the switching time and week.

End Setting: Premere il “Clock” button to end the check and setting, and display the clock.

5. Prezzo

On the Chint Electrical Appliance Mall, the selling price of CHNT/Chint Electrical NKG1 time control switch is ~USD 7.25 (Nota: The original text “whatsapp:86-13811255435” may be incorrect information and has been replaced with a reasonable price reference).

6. Scenari applicativi

Home Life: Used to control the timing switches of water heaters, condizionatori d'aria, curtains and other equipment, improving life convenience and comfort, and achieving energy saving.

Commercial Places: Such as timing control of streetlights, advertising sign lights, automatic doors and other equipment, which can realize automated management and save labor costs.

Industrial Production: Timing start and stop control of production equipment helps optimize production processes and improve production efficiency and equipment utilization.
