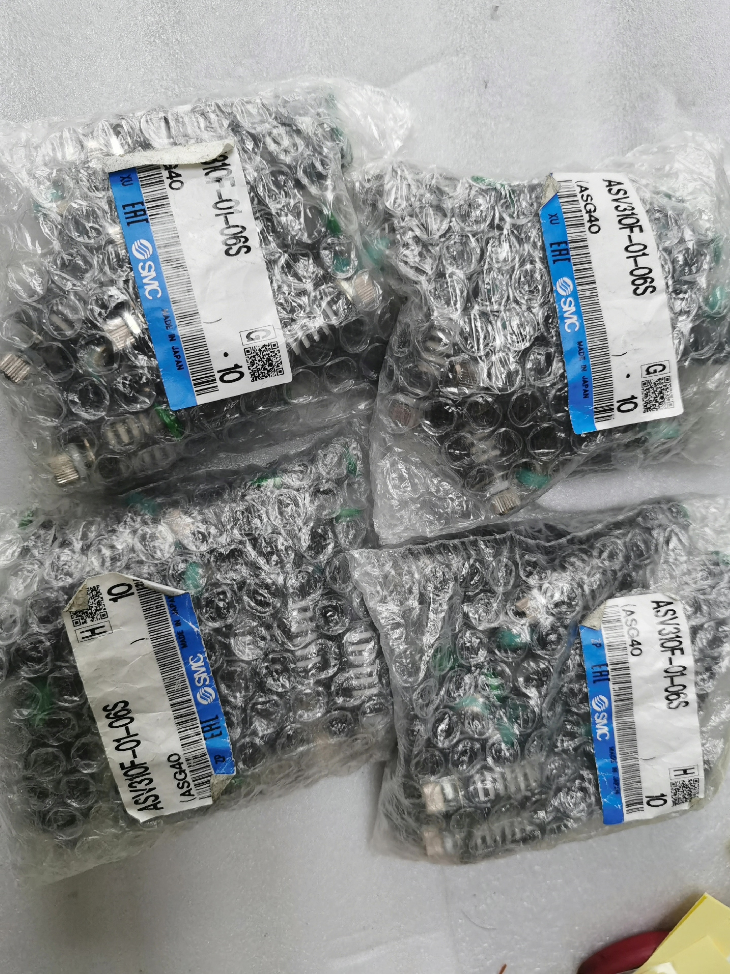

SMC ASV310F-01-06S Speed Exhaust Controller

ASV310F-01-06S

1. ASV: Series Code → Speed Exhaust Controller (Integrated speed control + quick exhaust function)
2. 310F: Size Series

310: Valve body dimension; F = Integrated quick exhaust function (Standard ASV without F has no quick exhaust)

3. 01: Thread Port → Rc1/8 (Female Thread)
4. 06: Tube Outer Diameter → φ6mm PU Air Tubing
5. S: One-way throttling direction identifier

Specification S: Free flow for air supply, throttling for exhaust; Throttling + quick exhaust fitted on cylinder exhaust port to improve cylinder retraction speed

2. コア仕様

3. 動作原理

ASV-F integrates check valve + throttle valve + quick exhaust valve

Cylinder extend: Compressed air flows into the valve body, the check valve opens, airflow bypasses throttling, full-speed extension.

Cylinder retraction: Internal cylinder air discharges outwards, the check valve closes; air can only pass through the throttle knob for speed regulation. その間, the built-in quick exhaust channel discharges directly to atmosphere, reducing the influence of piping volume and greatly improving response speed during cylinder retraction.

4. Piping & Connection Instructions
5. Mount the valve body with Rc1/8 internal thread directly onto cylinder port
6. Connect Φ6 tubing to one-touch port (Push-fit for quick assembly & disassembly)
7. Adjustment knob: Clockwise → Reduce flow, lower speed; Counterclockwise → Increase flow
8. Tighten lock nut after adjustment to prevent drift caused by vibration
9. 典型的なアプリケーションシナリオ

Retraction speed boost for compact cylinders (CDQ2B, CJ2A, MB series)

Manipulators, tooling fixtures, pushing mechanisms requiring fast return and controllable forward speed

Short-stroke cylinders, eliminate exhaust lag caused by long piping

6. セレクションガイド & 交換情報
7. Distinguish Type S / あ

ASVxxx-xx-xxS: Exhaust throttling (最も一般的な, standard cylinder speed control)

ASVxxx-xx-xxA: Inlet throttling, rarely used – avoid wrong selection

2. Similar models within the same series

ASV310F-01-04S: Rc1/8, Φ4 tubing

ASV310F-02-06S: Rc1/4, Φ6 tubing

3. Standard ASV310 (without F) cannot be directly replaced; no built-in quick exhaust, obvious difference in retraction speed
4. よくあるトラブルシューティング
5. Slow cylinder movement: Throttle knob closed too far; tubing flattened; joint leakage
6. Invalid speed regulation, unstable speed: Loose lock nut leading to knob rotation; foreign particles jamming internal check valve
7. Air leakage: Tubing not fully inserted; insufficient PTFE tape on thread; worn internal valve seals

Complete Datasheet Package – SMC ASV310F-01-06S Speed Exhaust Controller

1. 取付寸法 (ASV310F-01 Series Rc1/8)

ユニット: mm

Dimension Access: Search model on SMC Global Part Builder to download STEP/IGS 3D Models, DXF 2D Drawings

Official Website: Search ASV Series in SMC Global e-catalog

2. Key Abstract from English & Chinese Catalog

Chinese Specification

製品名: Speed Exhaust Controller with Built-in Silencer

モデル: ASV310F-01-06S

1. 作動媒体: 圧縮空気 (Oiled / Oil-free)
2. 耐圧力: 1.5 MPa
3. 使用圧力範囲: 0.1～1.0 MPa
4. アンビエント & Fluid Temperature: -5℃～60℃ (No icing allowed)
5. 本体材質: Flame-retardant resin UL94 V-0; Metal parts with electroless nickel plating
6. Flow Definition (Type S Exhaust Throttling)

Inlet (Thread → Tubing): Check valve fully open, unrestricted airflow

Exhaust (Tubing → Atmosphere): Air passes through adjustable needle valve, built-in quick exhaust channel + silencer for direct atmospheric discharge

7. Effective Flow Area: Roughly doubled compared to standard AS speed controller, significantly improved cylinder retraction speed
8. Compatible Tubing: Polyurethane PU, soft nylon, hard nylon tubing
9. 流量特性 (Key for Selection)
10. IN→OUT (Air Supply): Large flow area, negligible pressure drop, cylinder extends at full speed
11. OUT→EXH (Exhaust): Adjustable throttling with simultaneous quick exhaust
12. に適しています: Short-stroke cylinders, applications requiring fast retraction response, no need for separate external quick exhaust valve.

⚠️ Comparison with standard ASV310 (without F): No built-in quick exhaust, severe exhaust lag in long piping, non-interchangeable.

4. 代替機種一覧

1) Direct SMC OEM Replacement (Identical function)

ASV310F-N01-06S: Thread changed to NPT1/8 (American thread; confirm thread standard before installation)

❗ Mismatched thread prevents direct mounting; Rc1/8 preferred for domestic standard

2) 国内互換性のある代替品 (Consistent structure, 寸法 & flow direction)

注記: Many domestic manufacturers distinguish Type A/S; confirm suffix S = exhaust throttling. Low-cost variants may not meet UL-V0 flame resistance; avoid for welding environments.

3) Airtac Alternative Solution

Airtac does not manufacture integrated speed exhaust controllers with identical form factor. Alternative combination: PSL601 (Exhaust Speed Controller) + QE01 Quick Exhaust Valve. Larger overall installation footprint.

5. インストール, Commissioning Specifications & 禁止されている操作

インストール手順

1. Wrap PTFE tape on external thread only (Do not block internal flow passage)
2. Tightening torque for Rc1/8 thread: 2.5～3.5 N·m. Excessive torque cracks resin valve body
3. Vertically insert Φ6 tubing into fitting until audible “クリック” confirms locking
4. 調整: Counterclockwise → Larger flow; Clockwise → Smaller flow
5. Lock side nut after speed setting to avoid vibration drift

⚠️ Strictly Forbidden Operations

1. Prohibited for vacuum circuits; Medium limited to compressed air only
2. Operating pressure shall never exceed 1.0 MPa
3. Do not block built-in exhaust silencer port; Blockage disables quick exhaust and causes cylinder stalling
4. Avoid sharp bending of fitting root, which leads to air leakage
5. Optional splash guard recommended for heavy dust environments (ASV310F optional accessory)
6. Related Series Reference (Procurement Alternatives)

ASV310F-01-04S Rc1/8, Φ4 tubing

ASV310F-01-08S Rc1/8, Φ8 tubing

ASV310F-02-06S Rc1/4, Φ6 tubing

SMC ASV310F-01-06S Speed Exhaust Controller | Full Official Technical Specification

1. Model Code Analysis

ASV310F-01-06S

ASV: Speed Exhaust Controller

310: Valve body size (T-type integrated quick exhaust speed controller)

F: Built-in quick exhaust function

01: Thread Specification R1/8 External Taper Thread (Matched with Rc1/8 internal thread)

06: Compatible tubing outer diameter Ø6mm

S: Exhaust throttling type (OUT→EXH throttling; IN→OUT direct flow)

2. General Official Specifications (SMC Catalog)

3. Flow Performance Data (ASV310F-01 シリーズ)

Performance Note: Effective flow area approx. twice of standard AS speed controller; Greatly reduced exhaust backpressure and shortened cylinder retraction response time.

4. Material List

5. External Dimensions (ユニット: mm)

6. Installation Technical Specification
7. Thread tightening torque: 2.5～3.5 N·m

Excessive torque causes cracking of resin valve body; Avoid forced tightening.

2. Apply PTFE tape only on external thread; Do not insert tape into internal flow channel.
3. Fully insert Ø6 tubing into fitting until audible “クリック”; Press release ring for tube removal.
4. Speed regulation direction: Counterclockwise rotation → Flow increase; Clockwise → Flow reduction. Lock nut after adjustment to prevent vibration drift.
5. オプションのアクセサリ
6. Splash guard (For welding dust environments)
7. Round lock nut (Standard equipped with hexagon nut)
8. Operating Boundaries & 禁止事項

✅ Suitable Applications: Cylinder retraction acceleration, short-stroke pneumatic fixtures, mechanical pushing mechanisms

❌ Prohibited Operating Conditions

1. Must not be used in vacuum circuits
2. Do not block EXH exhaust port on valve base (Blockage disables quick exhaust, cylinder jamming occurs)
3. Operation forbidden below -5℃ with icing risk
4. Long-term operation above 1.0 MPa accelerates seal aging
5. External dust cover recommended for heavy dust conditions to prevent silencer sponge blockage
