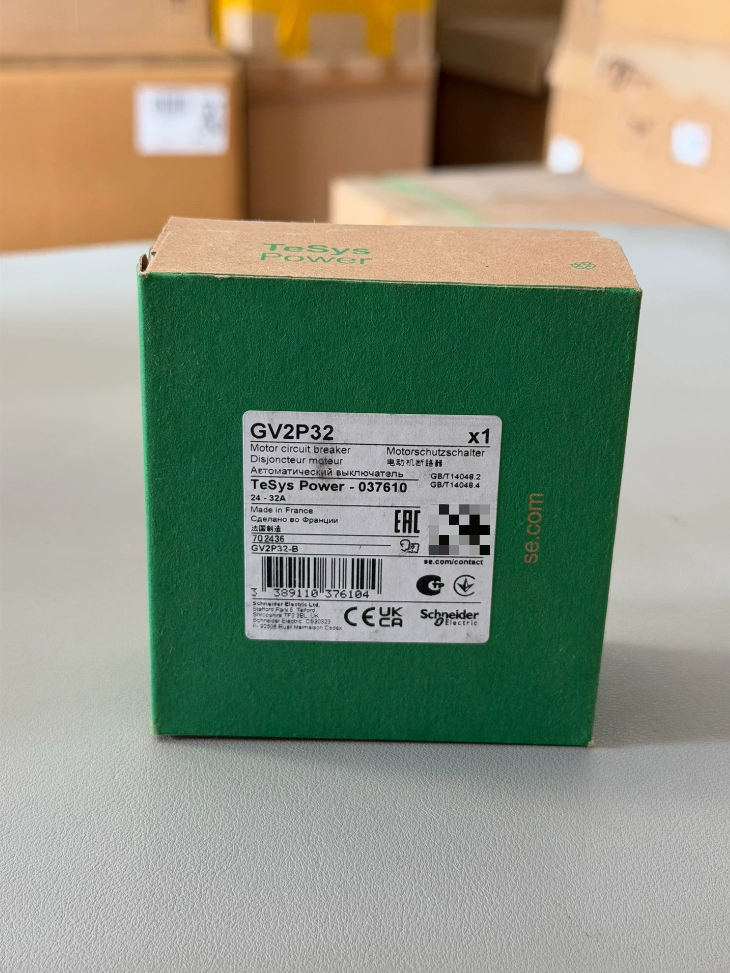

The GV2P32 is a 3-pole thermal-magnetic motor circuit breaker (MPCB) from Schneider TeSys GV2 series. It features an adjustable current setting of 24-32A, compatible with 15kW @ 400V three-phase motors. Providing dual protection against overload and short circuit, with IP20 protection degree, it is widely applied in industrial motor control circuits.
- 모델 코드 설명
| 코드 세그먼트 | 의미 | 설명 |
| GV2 | 제품 시리즈 | TeSys GV2 series motor circuit breakers for motor overload and short-circuit protection |
| 피 | 작업 유형 | Rotary knob manual control, imported version (국내 상당: GV2PM series) |
| 32 | 현재 등급 | Adjustable setting range: 24-32에이, for motor circuits with rated current up to 32A |
전체 모델 정의: GV2P32 = Schneider GV2 series, rotary knob type, 32A rated motor circuit breaker
- 핵심 기술 사양
| 범주 | 명세서 | 비고 |
| 일반적인 특성 | ||
| 제품 유형 | 3-pole thermal-magnetic motor circuit breaker (MPCB) | IEC를 준수 60947-4-1 |
| Adjustable Current Range | 24-32에이 (조절할 수 있는) | Thermal trip with ambient temperature compensation |
| 폴란드 | 3피 (삼상) | Designed for three-phase motor protection |
| 작동 모드 | Rotary knob manual control | With ON/OFF indicator and lockable function |
| 전기적 매개변수 | ||
| 정격 작동 전압 | 230-690뷔와, 50/60헤르츠 | Suitable for global industrial power grids |
| 호환 가능한 모터 전력 | 15kW @ 400/415V, 50/60헤르츠 | Maximum applicable power under standard operating conditions |
| Magnetic Trip Threshold | 12×In = 384A (Instant short-circuit protection) | Fast disconnection upon short-circuit faults |
| 단락 차단 용량 | 10kA @ 400V, 50헤르츠 | Meets industrial standard requirements |
| 터미널 유형 | 나사 터미널 | Applicable copper wire cross-section: 1.5-25mm² |
| 물리적 & 환경 매개변수 | ||
| 보호 등급 | IP20 | Prevents finger access to live parts |
| 장착 유형 | 표준 35mm DIN 레일 | Modular installation, 공간 절약 |
| 치수 (폭×높이×깊이) | 45×85×95mm | Compact design for distribution cabinets |
| 작동 온도 | -25℃ ~ +60℃ | 산업 환경을 위한 넓은 온도 범위 |
| 인증 | CCC, UL, CSA, EAC, Marine Classification (DNV, GL, BV), ATEX | Multiple certifications for global application |
| 주문 정보 | ||
| Manufacturer Part No. | GV2P32 | Official Schneider model |
| 표준 주문 코드 | GV2P32 | Original imported version |
- Full GV2P Series Model List
| 모델 | Adjustable Current Range | 호환 가능한 모터 전력 (400다섯) | 자기 트립 전류 |
| GV2P01 | 0.16-0.25에이 | 0.06kW | 3.0에이 |
| GV2P02 | 0.25-0.4에이 | 0.12kW | 4.8에이 |
| GV2P03 | 0.4-0.63에이 | 0.25kW | 7.6에이 |
| GV2P04 | 0.63-1에이 | 0.37kW | 12에이 |
| GV2P05 | 1-1.6에이 | 0.75kW | 19에이 |
| GV2P06 | 1.6-2.5에이 | 1.1kW | 30에이 |
| GV2P07 | 2.5-4에이 | 1.5kW | 48에이 |
| GV2P08 | 4-6.3에이 | 3kW | 76에이 |
| GV2P09 | 6.3-10에이 | 4kW | 120에이 |
| GV2P10 | 10-16에이 | 7.5kW | 190에이 |
| GV2P14 | 13-18에이 | 11kW | 216에이 |
| GV2P16 | 16-24에이 | 11kW | 288에이 |
| GV2P20 | 20-32에이 | 15kW | 384에이 |
| GV2P32 | 24-32에이 | 15kW | 384에이 |
| GV2P40 | 32-40에이 | 18.5kW | 480에이 |
- 교체 모델 & 경쟁사 비교
4.1 Internal Schneider Replacements
| 원래 모델 | 교체 모델 | 차이점 | 응용 시나리오 |
| GV2P32 (수입됨) | GV2PM32C (국내의) | Different origin, minor certification differences; 깊이: 91mm (GV2P: 95mm) | Domestic projects, cost-sensitive applications, CCC certification required |
| GV2P32 | GV2ME32 (Domestic push-button type) | Push-button operation, 동일한 전기 매개변수 | Applications requiring push-button control, 제한된 예산 |
| GV2P32 | GV3P32 (Upgraded series) | Higher breaking capacity and enhanced functions | Environments with high short-circuit risk, advanced protection required |
4.2 Cross-brand Competitor Comparison
| 상표 | 모델 | 현재 범위 | 폴란드 | Magnetic Trip Ratio | 주요 차이점 |
| 슈나이더 | GV2P32 | 24-32에이 | 3피 | 12×에서 | Multiple certifications including marine approval, IP20 |
| 씨줄 | MS325-32 | 24-32에이 | 3피 | 12×에서 | 차단 용량: 15그만큼, larger dimensions |
| 지멘스 | 3RV2031-4KA10 | 24-32에이 | 3피 | 13×에서 | Optional electronic trip, 더 높은 가격 |
| 이튼 | PKZM0-32 | 24-32에이 | 3피 | 12×에서 | Spring terminals for easy installation |
| 친트 | NM1-63S/3300 | 25-32에이 | 3피 | 10×에서 | 비용 우위, 국내 대안 |
- 애플리케이션 환경 & 일반적인 경우
5.1 권장 애플리케이션
산업용 모터 제어: Main circuit protection for three-phase motors such as pumps, 팬, 압축기 및 컨베이어
OEM Equipment: Supporting machine tools, 포장 기계, printing machines and textile machinery
전기 시스템 구축: Protection for critical motors including air conditioning units, fire water pumps and drainage pumps
선박 & 해양 엔지니어링: Compliant with marine classification standards for ship power systems
위험 지역: ATEX certified for motor protection in non-explosion-proof zones
5.2 권장되지 않는 애플리케이션
Single-phase Motors: 3-pole design not suitable for single-phase circuit protection
Frequent Start-Stop Operations: 이상 10 cycles per hour will shorten service life
High Altitude (>2000중): Derating required (10% reduction per 1000m rise)
Severe Vibration Environments: Extra reinforcement needed to avoid false tripping
Corrosive Environments: IP20 protection is insufficient; additional enclosure is required
5.3 일반적인 적용 사례
사례 1: Water Treatment Plant Pump Protection
장비: 3 sets of 15kW submersible three-phase pumps (400다섯)
구성: GV2P32 + LC1D32 Contactor + LRD3322 Thermal Overload Relay (redundant protection)
결과: Prevented 3 motor overload faults and 1 short-circuit fault, extending equipment service life by 2 연령
사례 2: Conveyor System in Automobile Manufacturing Plant
장비: 12 conveyor lines each equipped with 15kW motor
구성: GV2P32 linked with Schneider PLC
특징: Rotary knob enables quick on-site reset and reduces downtime
- 문제 해결 & Maintenance Manual
6.1 일반적인 결함 & 솔루션
| 결함 현상 | 가능한 원인 | 솔루션 |
| Frequent thermal tripping | 1. 모터 과부하 | 1. Check motor load and eliminate mechanical jamming |
| 2. Improper low current setting | 2. Set current to 1.1 times motor Full Load Current (FLA) | |
| 3. 지나치게 높은 주변 온도 | 3. 환기를 개선하고 주변 온도를 낮추세요 | |
| 4. Loose terminals causing overheating | 4. Inspect and tighten terminals | |
| Instant magnetic tripping | 1. 회로 단락 | 1. Power off and test circuit insulation |
| 2. Damaged motor winding insulation | 2. Measure winding resistance and replace faulty motor | |
| 3. Arc short circuit inside contactor | 3. Inspect contactor contacts and replace if necessary | |
| 폐쇄 실패 | 1. Tripping mechanism not reset | 1. Turn knob to OFF position then re-close |
| 2. Damaged rotary knob | 2. Check knob linkage and replace damaged parts | |
| 3. Internal mechanical failure | 3. Arrange professional maintenance or replace the breaker | |
| No output after closing | 1. Burned internal contacts | 1. Power off, inspect main contacts and replace defective unit |
| 2. 잘못된 배선 | 2. Verify wiring to ensure correct three-phase connection | |
| 3. Faulty tripping mechanism | 3. Check tripping mechanism and replace if needed |
6.2 Maintenance Procedures
- 일일점검 (주간)
Check knob position and status indication
Look for abnormal heat, odor or noise
Confirm all terminals are tightly connected
- 정기 유지 관리 (모든 6 개월)
Power off and remove dust with dry compressed air
Inspect main contacts for burning and oxidation
Test tripping function by simulating overload and short circuit conditions
- 연간 유지보수
Check lubrication of internal mechanical components
Verify accuracy of current setting
Retighten all electrical connections
6.3 Quick Diagnosis Tips
온천 여행? Check load and current setting.
자기 여행? Locate short circuit and test insulation.
Fail to close? Reset first; replace for mechanical faults.
No output? Inspect contacts and wiring.
- 선택 & 설치 지침
7.1 선택 규칙
현재 매칭: Motor FLA must fall within 24-32A; recommended setting: FLA × 1.1
파워 매칭: Standard solution for 15kW @ 400V three-phase motors
보호 조정: Use with contactors and fuses to ensure selective protection
Ambient Derating: 경감 1% per ℃ above 40℃
7.2 설치 참고 사항
Mounting Direction: 수직 설치 (allowable deviation: ±15°) for normal tripping operation
정리: Reserve 10mm space on left & right sides, 20mm on top & bottom for heat dissipation
배선 표준: Copper wire with cross-section 1.5-25mm²; 조임 토크: 6-8Nm
잠금 기능: Padlock can be fitted to prevent accidental operation, complying with safety regulations
- 생산현황 & 업그레이드 솔루션
Current Status of GV2P32: 생산 중, no discontinuation plan (as of June 2026)
치받이 & 교체 옵션:
- Functional Upgrade: GV3P32 (higher breaking capacity and extra protection functions)
- 국내 대안: GV2PM32C (lower cost with equivalent performance)
- 지능형 업그레이드: TeSys T series (with communication for remote monitoring)
