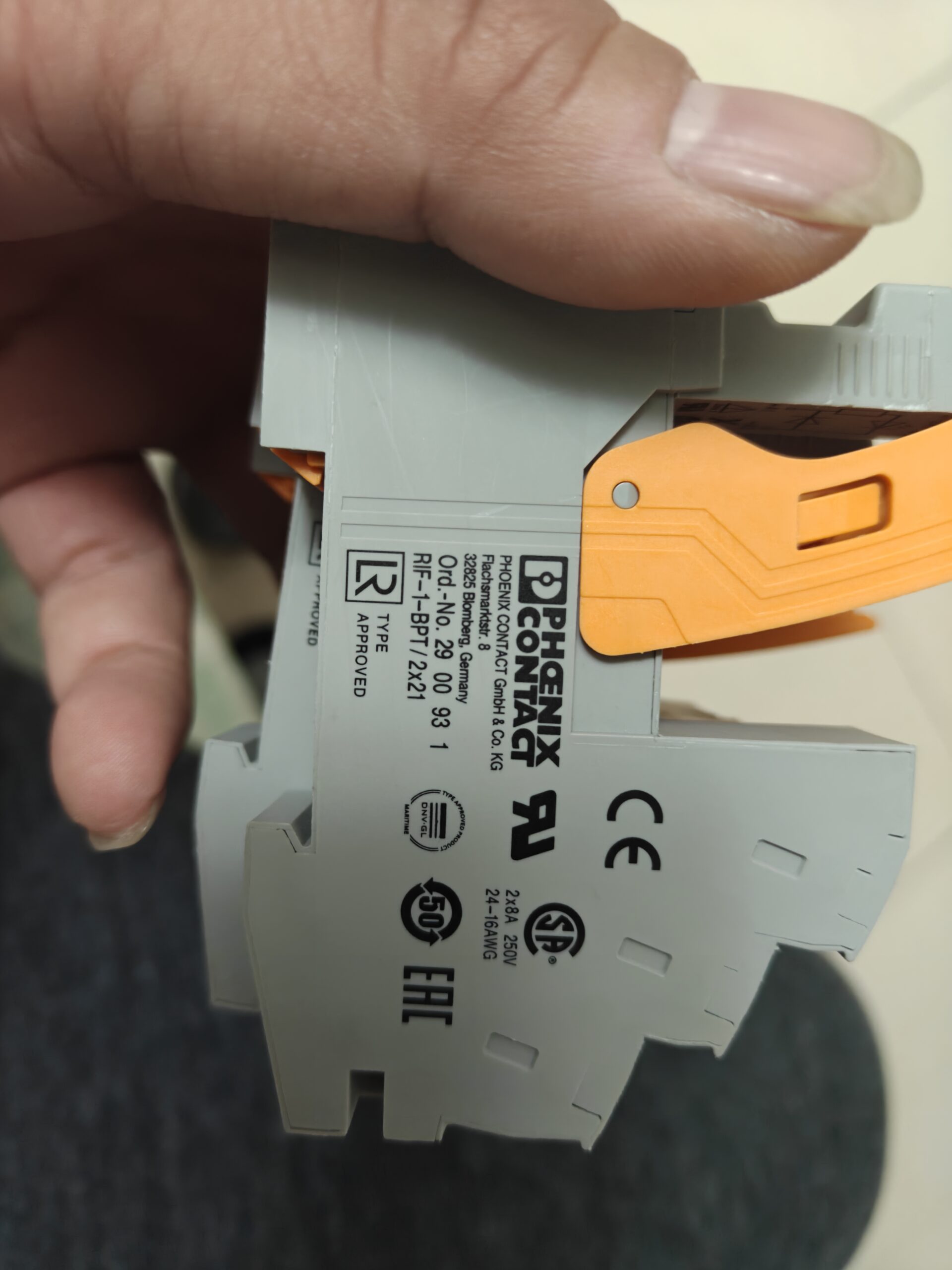

Phoenix Contact Relay Socket RIF-1-BPT/2X21

Model Segment Definition

2. Core Specification Table

Basic Parameters

Electrical Performance

Mechanical & Environmental Characteristics

3. Accessory List

Standard Accessories

1. RIF-1-BPT/2X21 relay socket main body
2. DIN rail mounting clips (pre-installed)
3. Operating manual (paper / electronic version)

Optional Accessories

4. Competitor & Cross-Brand Comparison

Same Series Comparison (Phoenix Contact RIFLINE COMPLETE)

Cross-Brand Competitor Comparison

5. Selection Guidelines & Alternative Solutions

Key Selection Considerations

1. Contact Quantity: Choose 1-set (1X21) or 2-set (2X21) PDT according to control loops.
2. Connection Type: Push-in for mass installation; screw connection for vibration environments.
3. Wire Gauge: Confirm compatibility with 24-16AWG (0.14-1.5mm²); derate to 1.0mm² for twin-wire connection.
4. Expansion Requirements: Select models supporting plug-in modules if indicator or surge suppression is needed.
5. Brand Compatibility: Prefer same-brand sockets when using relays from Schneider, Omron and other brands.

Recommended Alternatives

Technical Advantages Summary

Push-in Connection: Tool-free wiring, 50% faster installation, less human error.

Modular Design: Freely add indicator lamps, surge suppressors and other functional modules.

Compact Dimension: 16mm width saves cabinet space and supports high-density mounting.

Wide Temperature Range: Operating temperature -25~+70℃, suitable for harsh industrial environments.

High Reliability: Contact resistance ≤1mΩ, insulation resistance ≥10⁹Ω, ensures long-term stable operation.

Recommended Alternative Products for Phoenix Contact RIF-1-BPT/2X21 Relay Socket

All recommended products below are highly matched with the original model in core performance:

2 sets PDT changeover contacts, 8-pin, DIN rail mounting, 16mm width, Push-in/spring connection, compatible with 24-16AWG wires.

Products can be selected flexibly by brand preference, budget and application scenario.

1. Detailed Comparison of Core Replacements

2. In-Depth Introduction of Key Recommended Models
3. Weidmüller DRM570220 (Best All-Round Replacement)

Core Specifications

Contact: 2 sets PDT, 8-pin layout

Connection: Spring clamp (tool-free, similar to Phoenix Push-in)

Mounting: 16mm width, standard NS 35/7.5 DIN rail

Electrical: Rated current 13A, rated voltage 250V AC/DC, 24-16AWG compatible

Mechanical: IP20, operating temperature -25~+70℃, weight approx. 48g

Certifications: CE, UL, CSA, TUV, RoHS compliant

Advantages

Reliable spring connection, fast wiring and stable contact resistance (≤1mΩ)

Supports twin-wire connection (0.14-1.0mm²), 8mm stripping length fully consistent with original

Compatible with Weidmüller DRM series and other mainstream miniature power relays

Complete optional indicator and surge suppression modules for easy expansion

2. Schneider RXZE1M2C (Best Fit for Schneider Systems)

Core Specifications

Contact: 2 sets PDT, 8-pin layout, matches Schneider RXM relays

Connection: Screw connection, ideal for vibration environments

Mounting: 17.5mm width (slightly wider), NS 35/7.5 DIN rail

Electrical: Rated current 10A, 250V AC/DC, 24-16AWG compatible

Mechanical: IP20, -25~+70℃, weight approx. 52g

Certifications: CE, UL, CSA, complies with IEC 61810-1

Advantages

Perfect matching with Schneider RXM relays, minimal compatibility risks

Screw connection more reliable than Push-in under strong vibration

Clear terminal marking for easy maintenance and troubleshooting

Widely used in Schneider automation systems with global service support

3. ABB CR-M2SS (High Reliability First Choice)

Core Specifications

Contact: 2 sets PDT, 8-pin layout, compatible with ABB CR-M series

Connection: Spring clamp, tool-free fast wiring

Mounting: 16mm width, NS 35/7.5 DIN rail

Electrical: Rated current 12A, 250V AC/DC, 24-16AWG compatible

Mechanical: IP20, wider temperature range -40~+70℃, weight approx. 47g

Certifications: CE, UL, CSA, GL, complies with IEC 60947-5-1

Advantages

Extended temperature design suitable for extreme cold/heat outdoor applications

Excellent vibration resistance (10-55Hz, 0.5mm amplitude), ideal for heavy industry and rail transit

Precious metal contact material extends service life and reduces maintenance cost

Modular design supports plug-in function expansion modules

4. Omron P7SA-14F-ND (Cost-Effective Replacement)

Core Specifications

Contact: 2 sets PDT, 8-pin layout, compatible with Omron MY series

Connection: Screw connection, stable contact pressure for long-term operation

Mounting: 15mm width (more compact), NS 35/7.5 DIN rail

Electrical: Rated current 10A, 250V AC/DC, 24-16AWG compatible

Mechanical: IP20, -25~+70℃, weight approx. 45g

Certifications: CE, UL, CSA, complies with JIS standard

Advantages

Compact size saves cabinet space and enables high-density installation

Cost-friendly with high cost performance for bulk purchasing

Seamless integration with Omron PLC and relay systems, less commissioning time

Complete accessories including retaining brackets and marker strips for easy on-site maintenance

3. Selection Decision Guide

By Connection Type

By Brand Compatibility

By Application Scenario

4. Key Notes for Replacement Solution
5. Contact Rated Current: Original official rating 13A; most alternatives are 10–12A. Derate for high-current loads or choose larger sockets such as RIF-2 series.
6. Wire Compatibility: Ensure the alternative supports 24-16AWG (0.14-1.5mm²); confirm maximum gauge for twin-wire connection.
7. Expansion Module Compatibility: Select models supporting plug-in modules if indicator lamps or surge suppressors are required.
8. Mounting Space: Width varies 15–17.5mm among brands; reserve enough cabinet installation space.
9. Certification Compliance: Select products with CE, UL, CSA and other certifications according to project regional standards.
