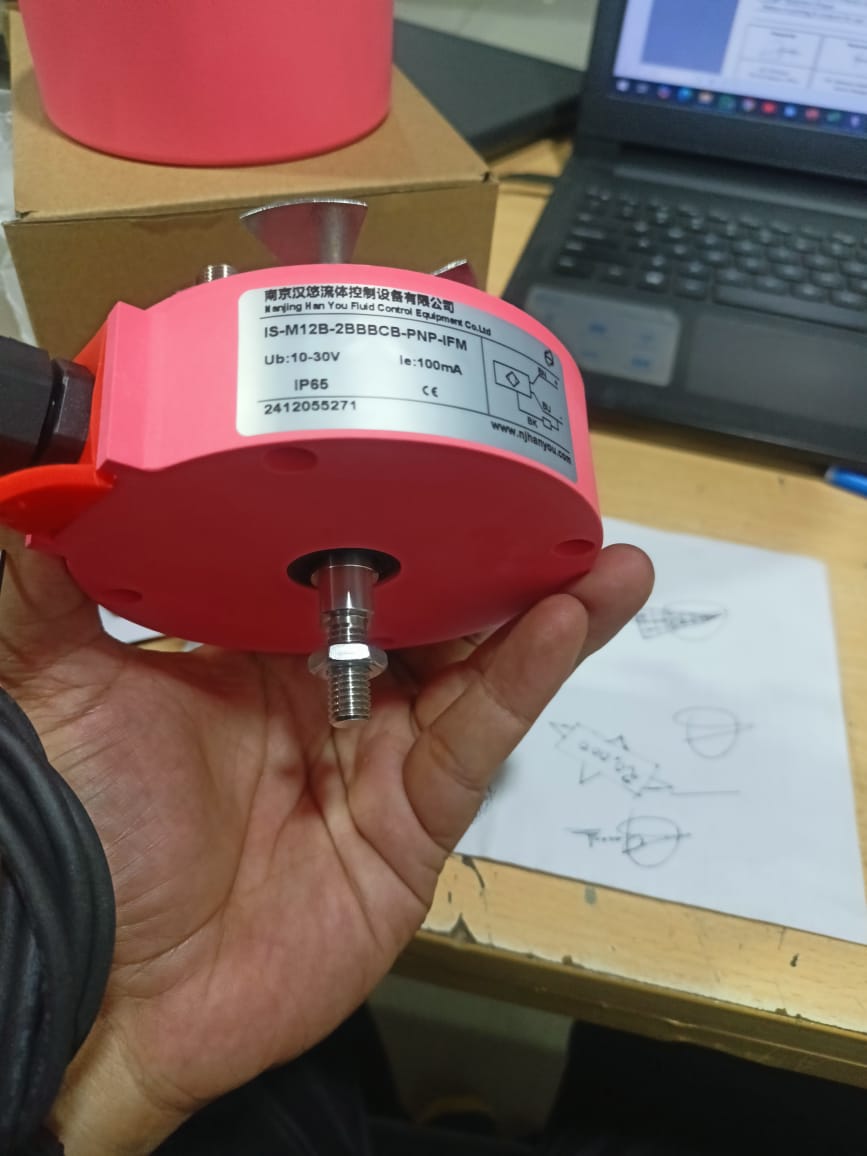

IFM IS-M12B-2BBBCB-PNP Inductive Proximity Sensor

IS-M12B-2BBBCB-PNP-IFM

1. IS: Series code for IFM standard inductive proximity sensors, distinguished from IF (photoelectric), IG (capacitive), IE (full-metal) and other series.
2. M12B: Structural specification. M12 means cylindrical housing with standard M12×1 thread; B stands for M12 B-coded connector interface.
3. 2: Sensing distance code, representing 2mm flush mounting sensing distance (standard steel target).
4. BBBCB: Combined functional code

1st B: Shielded design, flush mountable without blind detection zone

2nd B: PNP Normally Open (NO) output, high-level active

3rd B: Standard response frequency 700Hz, suitable for general industrial applications

4th C: Nickel-plated brass housing, balancing durability and cost efficiency

5th B: Standard cable length & connector type, M12 4-pin B-coded connector

5. PNP: Confirmed electrical output type, consistent with function code, PNP transistor output
6. IFM: Original German IFM electronic brand logo, specialized in industrial automation sensors for 50 years.
7. Core Technical Parameters (Official Standard)

III. Application Guidelines

Recommended Applications (✅ Applicable)

1. Automatic Production Lines: Metal workpiece positioning, counting, in-place detection, conveyor position control
2. Machine Tool Industry: CNC machine tool tool position detection, workpiece clamping confirmation, spindle positioning
3. Automotive Manufacturing: Stamping part detection, welding station positioning, component assembly confirmation
4. Packaging Machinery: Metal packaging material positioning, cutting tool position detection, coil tension control
5. Electronic Manufacturing: PCB metal fixture positioning, semiconductor wafer transmission detection, battery tab detection
6. Logistics & Warehousing: Metal pallet detection on conveyor lines, stacker positioning, automatic sorting systems

Not Recommended Scenarios (❌ Avoid)

1. Non-conductive material detection (plastic, wood, glass): Inductive sensors only respond to metals
2. Severe electromagnetic interference areas (near high-frequency welders, large inverters): Prone to signal fluctuation
3. Working temperature over 80℃: Affect internal circuit stability and shorten service life
4. Strong acid & alkali corrosive environments: Choose stainless steel full-metal series such as IE series
5. Heavy metal dust environments: Easy to cause sensing face short circuit; install protective cover and clean regularly
6. Application with actual distance over twice rated value: Unstable signal and false triggering easily occur
7. Cross-Brand Equivalent Replacement List

1. Complete IS-M12B Series Order Codes (Latest Official)

1. Common Troubleshooting & Maintenance Solutions (Official Recommended)

VII. Typical Application Cases

1. Automotive Parts Production Line: Engine Cylinder Block Position Detection

Customer Profile

An automotive engine manufacturer with annual output of 500,000 engines requires precise in-place detection for cylinder block machining lines to guarantee machining accuracy.

Core Challenges

1. Cast iron cylinder block with rough surface easily causes misjudgment of ordinary sensors
2. Line speed up to 60 pieces per minute, response time required below 2ms
3. Working environment filled with cutting fluid and metal dust, high protection requirement
4. Positioning accuracy ±0.1mm needed to ensure consistent machining dimension

Solutions

Equip 8 sets of IS-M12B-2BBBCB-PNP at feeding stations of machining centers

Adopt flush mounting to avoid collision damage

Match with IFM AL1900 signal amplifier to enhance anti-interference performance

Application Effects

1. Positioning accuracy reaches ±0.08mm, product yield rises from 98.5% to 99.8%
2. Trouble-free continuous operation for 180 days, maintenance frequency reduced by 80%
3. Excellent resistance against cutting fluid and dust, stable operation ensured by IP67 rating
4. Annual production cost saved about 3 million RMB
5. Electronic Industry: PCB Metal Fixture Positioning

Customer Profile

A large-scale PCB manufacturer producing 1,000,000 square meters multi-layer circuit boards annually needs to monitor PCB positioning status on metal fixtures.

Core Challenges

1. Stainless steel fixtures require precise 2mm sensing distance control
2. 24-hour non-stop production demands high sensor reliability
3. Slight chemical cleaner corrosion exists in working environment
4. Seamless signal connection with PLC system for automatic control

Solutions

Adopt standard IS-M12B-2BBBCB-PNP suitable for stainless steel detection

Install one sensor per fixture station to monitor PCB position in real time

Use shielded cables to reduce electromagnetic interference

Application Effects

1. PCB positioning error rate drops from 2.5% to 0.3%, annual cost saved 1.5 million RMB
2. Service life extended to 2 years, 50% longer than similar products
3. Stable signal with 100% successful connection to PLC system
4. Easy maintenance, only weekly surface cleaning required

VIII. Certification & Shipping Information

1. Certifications

CE: Compliant with EU industrial electrical safety standard EN 60947-5-2

UL: Meet North American industrial equipment safety requirements

RoHS: Lead-free eco-friendly design complying with EU environmental directives

EMC: Conform to EN 55011 Class B electromagnetic compatibility standard with strong anti-interference capability

2. Air Freight Compliance

No built-in lithium batteries, supercapacitors or hazardous substances

Classified as ordinary industrial electrical components, no special documents needed for air & sea transportation

Package meets ISTA 2A standard for direct international delivery

3. Origin: Made in Germany, original imported with reliable quality

In-depth Application Cases of IFM IS-M12B-2BBBCB-PNP Inductive Proximity Sensor

1. Automotive Industry: Gear Assembly Position Detection for Gearboxes

Customer Profile

A multinational automotive gearbox manufacturer with annual output of 800,000 automatic gearboxes needs accurate in-place detection of gear assemblies to ensure assembly precision and consistency.

Core Challenges

1. High-strength alloy steel gears with surface lubricant film lead to unstable detection
2. Assembly cycle 45 seconds per unit, sensor response time required below 1.5ms
3. Oil contamination, metal chips and vibration exist on site with high protection demand
4. Positioning accuracy ±0.05mm required to standardize gear meshing clearance

Solutions

Deploy 16 sets of sensors at 4 key assembly stations

Apply flush mounting to avoid collision with high-speed moving parts

Equip IFM EVC145 signal conditioner to strengthen oil and EMI resistance

Real-time communication between sensors and PLC via Profinet for closed-loop control

Application Effects

1. Gear assembly error rate falls from 1.8% to 0.15%, annual rework cost saved 4.5 million RMB
2. 240-day uninterrupted stable operation, maintenance frequency cut by 85%
3. Stable 0.8ms response time fully meets high-speed assembly demands
4. IP67 effectively resists oil and chips, service life extended to 3 years
5. Packaging Machinery: High-speed Food Can Capping Positioning System

Customer Profile

A large food group producing 3 million cans daily needs accurate can in-place detection for capping machines to ensure sealing quality.

Core Challenges

1. Tinplate cans with φ85mm diameter and 50mm height require edge positioning
2. Line speed up to 600 cans per minute, switching frequency ≥700Hz required
3. Steam, condensed water and food residues exist, sensors need corrosion resistance
4. Position deviation less than 0.2mm to avoid poor sealing and product damage

Solutions

Install 4 sensors in annular layout at machine inlet

Non-contact detection with 1.5mm distance from can edge

Connect sensor signals to IFM AL2892 counter module for precise counting and positioning

Regularly clean sensing face with food-grade detergent

Application Effects

1. Capping defect rate reduced from 2.2% to 0.3%, annual waste loss saved 2.8 million RMB
2. Stable 750Hz switching frequency satisfies high-speed production
3. Nickel-plated brass housing works stably for 18 months in humid environment
4. Higher automation level reduces labor cost by 30%
5. Machine Tool Industry: Tool Magazine Position Detection for CNC Centers

Customer Profile

A precision machinery factory with 50 sets of CNC machines needs accurate tool position detection to prevent tool changing errors.

Core Challenges

1. Stainless steel tool holders covered with cutting fluid and oil stains
2. Tool changing speed 1.2 seconds per time, response time below 1ms required
3. Severe electromagnetic interference from inverters and servo motors inside machines
4. Accurate identification of 24 tool positions needed

Solutions

Install one sensor for each tool position, total 24 sets

Shielded sensor design for strong anti-interference performance

Connect output signals to machine control system via IFM IO-Link module for real-time tool status monitoring

Paste transparent protective film on sensing face against direct cutting fluid contact

Application Effects

1. Tool changing error rate drops from 0.8% to 0.02%, annual loss saved 3.2 million RMB
2. 0.6ms fast response meets rapid tool changing requirements
3. Stable operation beside inverters without signal fluctuation
4. Maintenance cycle extended from 1 month to 6 months, maintenance cost reduced by 70%
5. Logistics Warehousing: Stacker Positioning in Automated Stereo Warehouse

Customer Profile

An e-commerce logistics center with 100,000 storage slots needs accurate stacker layer positioning for accurate goods access.

Core Challenges

1. Q235 steel shelf beams with anti-rust coating
2. Stacker running speed 120m/min, positioning accuracy ±1mm required
3. Dusty warehouse with humidity range 40%~80%RH
4. 24-hour continuous operation requires ultra-high sensor reliability

Solutions

Install 8 sets of sensors on stacker columns as layer detection points

Keep 1.8mm stable sensing distance from shelf beams

Transmit signals to Warehouse Management System (WMS) via Profibus-DP

Regularly clean sensing face to maintain detection sensitivity

Application Effects

1. Goods access error rate reduced from 1.5% to 0.08%, annual logistics loss saved 2 million RMB
2. Stacker positioning accuracy reaches ±0.5mm, warehousing efficiency increased by 25%
3. One-year trouble-free operation in dusty and humid environment
4. System availability up to 99.9% to support peak logistics demand
5. Electronic Manufacturing: Lithium Battery Tab Cutting Position Detection

Customer Profile

A new energy battery manufacturer with annual output of 5GWh lithium batteries needs precise tab positioning for consistent cutting size.

Core Challenges

1. Ultra-thin copper/aluminum tabs only 0.1mm thick bring high detection difficulty
2. Cutting speed 300 pieces per minute, response time below 1ms required
3. On-site dust and static electricity easily affect sensor performance
4. Tab positioning deviation less than 0.05mm to avoid declined battery performance

Solutions

Install 2 symmetrically arranged sensors at cutter feeding station

Adopt high-precision mounting bracket to fix 1.2mm stable sensing distance

Connect sensor signals to motion controller for tab closed-loop positioning control

Equip ion fan to eliminate static interference around installation area

Application Effects

1. Tab cutting defect rate drops from 3.5% to 0.4%, annual material waste saved 3.5 million RMB
2. 0.5ms quick response meets high-speed cutting production
3. Excellent anti-static and dust-proof performance ensures 150-day stable operation
4. Improved battery consistency raises finished product rate from 97.5% to 99.2%
5. Woodworking Machinery: Board Positioning System for CNC Cutting Machines

Customer Profile

A customized furniture factory uses CNC cutting machines to process fiberboard and particleboard with accurate board position detection for precise cutting.

Core Challenges

1. Metal connectors on board surface need to be distinguished from board materials
2. Cutting speed 20m/min, response time below 2ms required
3. Wood dust and cutting fluid exist in working environment
4. Board positioning accuracy ±0.1mm required for precise cutting dimension

Solutions

Arrange 6 sensors on machine worktable to form positioning matrix

Set 1.5mm sensing distance to only detect metal fittings instead of boards

Process signals via PLC to realize automatic board positioning and correction

Install dust cover and regularly clear wood chips

Application Effects

1. Board cutting error rate reduced from 2.8% to 0.2%, annual material loss saved 1.8 million RMB
2. 1.2ms response time satisfies high-speed cutting demands
3. Dust cover effectively protects sensors, maintenance cycle extended to 4 months
4. Production efficiency increased by 30%, single-shift output raised from 80 pieces to 104 pieces
5. Application Expansion Guidelines
6. Industry Matching Chart

2. Optimal Application Tips
3. Sensing Distance Setting: Set 70%~80% of rated distance (1.4~1.6mm) for standard steel targets for stable detection
4. Mounting Method: Flush mounting avoids collision; non-flush mounting extends effective sensing distance
5. Signal Processing: Match signal amplifier for high-frequency scenarios; adopt IO-Link module for complex environments
6. Maintenance Cycle: Monthly cleaning for general industrial sites; weekly cleaning for harsh working conditions
7. Model Selection Suggestions

For non-ferrous metal detection (aluminum, copper): Choose IE-M12B full-metal series with 30% longer sensing distance

For explosive hazardous areas: Select EX-proof models such as IS-M12B-2BBBCB-PNP-EX complying with ATEX/IECEx standards

For food and pharmaceutical industries: Choose stainless steel housing models such as IS-M12B-2BBBCB-PNP-SS conforming to FDA standards
