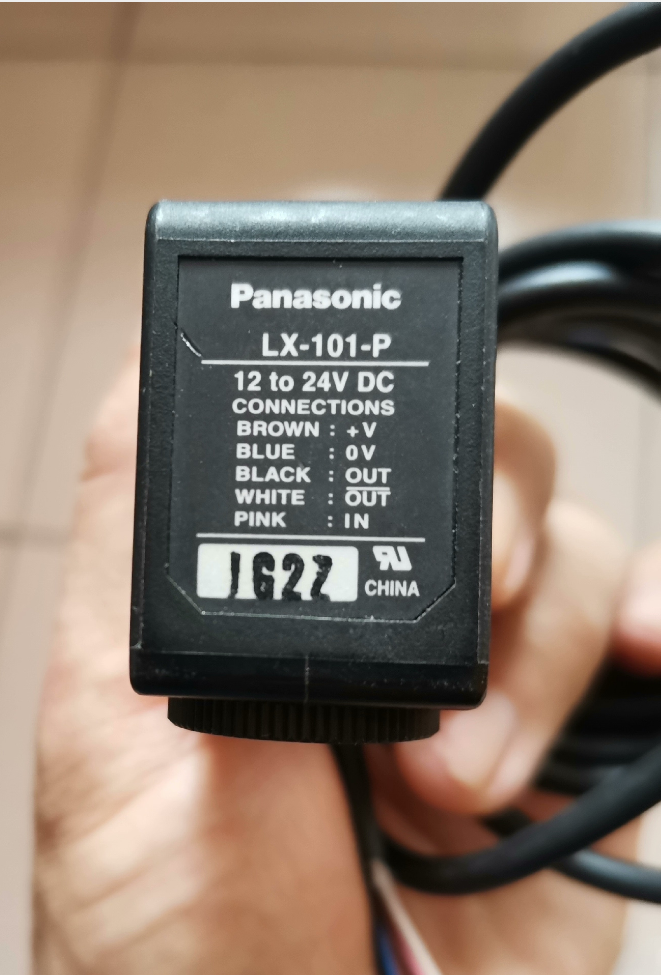

Panasonic LX-101-P Digital Color Mark Sensor

Panasonic LX-100 series built-in amplifier digital RGB color mark sensor, PNP output, cable connection type, suitable for high-precision color mark detection applications.

1. Model Segment Definition (LX-101-P)

Additional Model: LX-101-P-Z (connector type, all other parameters identical to LX-101-P)

2. Main Specifications

3. Standard Accessories List
4. LX-101-P Sensor Main Unit ×1
5. 2m 4-core Cable (Power / Output included) ×1
6. Mounting Bracket (Optional, sold separately)
7. Manual / Datasheet (Electronic version available for download on Panasonic official website)
8. Full LX-100 Series Model List

5. Competitor Cross-Brand Replacement Table

6. Selection Guidelines & Replacement Solutions

Selection Mnemonic

Choose LX for color mark detection;

101 standard, 102 long range;

P suffix for PNP, Z for connector;

RGB high precision, IP67 waterproof grade.

Selection Decision Tree

1. Sensing Distance: 10mm → LX-100 series; 20mm → LX-102 series
2. Output Type: PNP → model with P suffix; NPN → no P suffix
3. Connection: Fixed installation → cable type; frequent replacement → connector type (with Z)
4. Environment: Humid / dusty site → IP67 (all series compliant)
5. Precision: High-precision color distinction → RGB light source (all series compliant)

Replacement Recommendations

Budget limited: Omron E3Z-D61 (single-color source, basic performance)

Long-distance detection: LX-102 series or Sick CLV620 (max up to 50mm)

High-speed line: Keyence CV-3000 (faster response)

Harsh environment: All LX-100 series IP67 qualified; protective housing recommended

7. Typical Application Fields
8. Packaging Industry: Label positioning, color mark detection, print quality inspection
9. Electronics Industry: PCB mark detection, component positioning
10. Food Industry: Packaging film color discrimination, production date mark detection
11. Pharmaceutical Industry: Drug package label recognition, capsule color sorting
12. Automotive Industry: Component mark detection, assembly positioning
13. Key Operation Instructions
14. Setting Method: 4-digit digital display and operation buttons, support auto setup and manual fine adjustment
15. Mode Selection: Color Mode (RGB ratio) for color distinction; Mark Mode (auto color selection) for color mark detection
16. Installation Note: Keep sensor perpendicular to moving direction of target object to avoid angular deviation affecting accuracy
17. Maintenance: Regularly clean glass lens to prevent oil stain and dust from affecting detection performance

Complete Model List of Panasonic Digital Color Mark Sensors (Full LX-100 Series)

Summary: Panasonic digital color mark sensors are centered on the LX-100 series, divided into four categories: Standard Distance (10mm), Long Distance (20mm), Micro Type (5mm), Ultra High Speed.

Covers full combinations of NPN/PNP output and Cable/Connector connection, total 12 standard models, meeting diverse requirements for precision, sensing distance and installation.

1. Full Model List with Key Parameters

2. Model Naming Rule Analysis (LX-101-P-Z Example)

3. Common Specifications for Full LX-100 Series

4. Universal Optional Accessories

5. Selection Mnemonic

Four key points for LX selection: distance, size, response speed;

101 standard, 102 long, 111 micro, H high speed;

P for PNP, no P for NPN; Z for connector, no Z for cable;

RGB high precision, IP67 reliable protection.

6. Application Selection Guide
