Phoenix Contact 2736372 Module

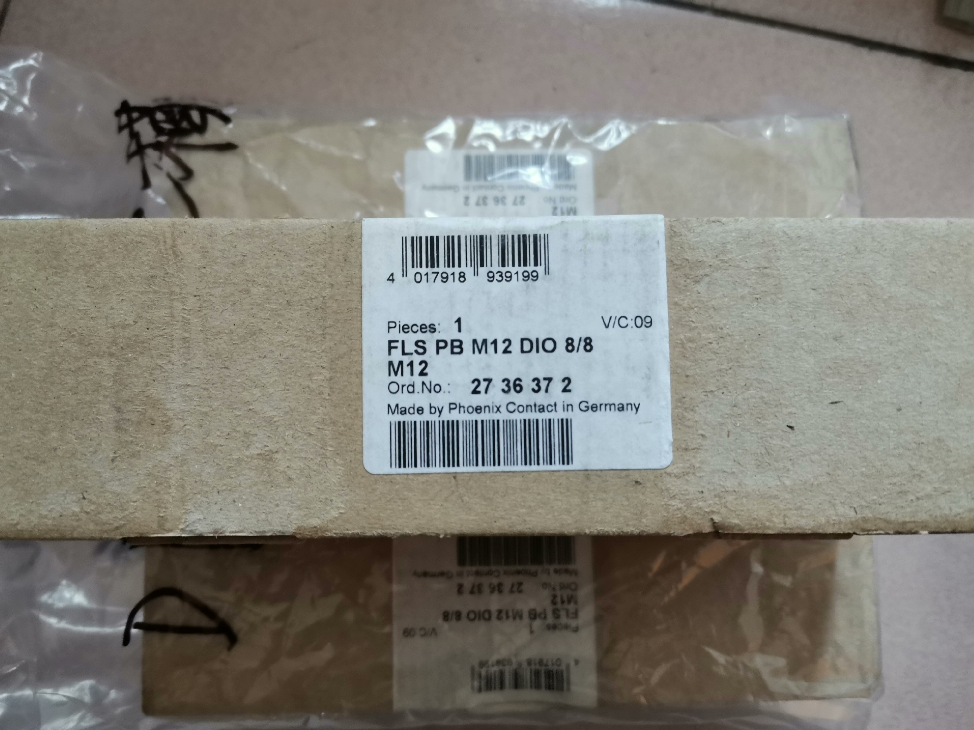

Phoenix Contact 2736372 (FLS PB M12 DIO 8/8 M12) Field Distributed I/O Module

Order No. 2736372 corresponds to the PROFIBUS DP distributed I/O module of Phoenix Contact Fieldline series. The official full model is FLS PB M12 DIO 8/8 M12.

It features 8 digital inputs + 8 digital outputs, full M12 interface design, IP67 protection rating, and 500mA per channel output.

Suitable for signal acquisition and control in harsh industrial field environments, it supports PROFIBUS DP bus communication and can be installed directly near equipment without a control cabinet.

1. Model Segment Definition (Revised)

2. Core Specification Parameters (Official Authoritative Data)

3. Accessory List (Officially Recommended)

4. Alternative & Cross-Brand Compatibility List

5. Selection Guidelines & Alternative Solutions

Selection Formula

> PB bus 8-in 8-out, M12 interface IP67, 500mA per channel, 24V three independent power supplies

Key Selection Considerations

1. Load Capacity Matching

Standard load (<500mA): Choose 2736372 (500mA/channel)

Heavy load (500mA~2A): Upgrade to 2736108 (2A/channel)

Ultra-heavy load (>2A): Adopt FLS PB M12 DO8 M12-4A or external relay

2. Communication Protocol Adaptation

PROFIBUS DP: 2736372 (standard)

PROFINET: Choose FLM series (e.g. 2736848)

DeviceNet: Choose FLS DN series (e.g. 2736482)

3. Channel Configuration Selection

Input only: FLS PB M12 DI8 M12 (2736123)

Output only: FLS PB M12 DO8 M12 (2736109)

4-in 4-out: FLS PB M12 DIO4/4 M12 (2736371)

4. Power Supply Design

Shared power for sensors & actuators: Share U_S and U_A11/U_A12

Isolated power: Independent supply for U_S (sensor) and U_A11/U_A12 (actuator) to improve anti-interference performance

5. Installation Environment Evaluation

IP67: 2736372 (standard) for outdoor, humid and dusty sites

Extreme temperature: Select wide-temperature model for -40°C~+70°C

Strong electromagnetic interference: Use shielded cables and enhanced grounding

Recommended Alternative Solutions

6. Air Freight Compliance & CE Certification
7. Air Freight Compliance Judgment

No built-in lithium battery / super capacitor: Ordinary industrial electronic device, no special air freight restrictions

Transport Class: Class 9 miscellaneous dangerous goods (non-dangerous in practice)

HS Code: 85389099 (Other electrical control equipment)

Packaging Standard: Compliant with ISTA 3A to prevent transport damage

2. CE Certification Information

Compliant Directives: 2014/30/EU (EMC), 2011/65/EU (RoHS)

Test Standards: EN 50170 (PROFIBUS), EN 61131-2 (I/O performance)

Certification No.: Available on Phoenix official website by entering Order No. 2736372

7. Application Cases & Industry Adaptation

Typical Application Cases

1. Automotive Manufacturing: I/O expansion for welding robot stations; connects proximity switches and cylinder solenoid valves; IP67 resists welding spatter and oil contamination
2. Logistics & Warehousing: AGV signal acquisition and control; M12 vibration-resistant interface; distributed structure reduces wiring
3. Food & Beverage: Filling production lines; IP67 suitable for flushing & disinfection; independent power avoids interference
4. Water Treatment: Pump station on-site control; connects liquid level switches and water pump contactors; outdoor installation without control cabinet

Industry Adaptation Guide

Phoenix Contact 2736372 (FLS PB M12 DIO 8/8 M12) is a high-reliability, high-flexibility field distributed I/O module.

With IP67 protection and full M12 interface design, it perfectly adapts to harsh industrial environments.

Via PROFIBUS DP bus, it can be seamlessly integrated into mainstream PLC systems to realize efficient distributed signal acquisition and control.

Its independent power design and 500mA per-channel output capability meet most industrial automation application requirements.

Complete Model List of Phoenix Contact Fieldline Series Field Distributed I/O Modules

Phoenix Contact Fieldline series (FLS/FLM/FLC) are IP67-rated field distributed I/O products designed for harsh industrial environments.

Supports multiple industrial communication protocols with full M12/M8 interface design; can be installed directly on equipment without control cabinets.

Below is the complete model list classified by communication protocol, including order numbers, core parameters and application scenarios.

1. PROFIBUS DP Series (FLS PB)

Key Features: Compliant with EN 50170; automatic baud rate 9.6 kbps~12 Mbps; 5-bit DIP switch for station address 1~99; IP67 protection, M12 interface.

2. PROFINET Series (FLM)

Key Features: Supports PROFINET RT/IRT; 500kbaud/2Mbaud optional; channel diagnosis; local bus expandable up to 16 devices.

3. CANopen Series (FLS CO)

Key Features: Compliant with CANopen DS 301/302; supports CiA 401 I/O profile; M12 interface, IP67 protection.

4. DeviceNet Series (FLS DN)

Key Features: Compliant with DeviceNet standard; supports CIP protocol; M12 interface, IP67; suitable for North American market and automotive industry.

5. Basic Series (Non-protocol, Local Bus)

Key Features: Connectable to main module via Fieldline local bus; M8/M12 interface, IP67; for distributed expansion.

6. Model Naming Rule

FLS/FLM/FLC [Protocol] [Interface] [ChannelType][Quantity] [OutputCurrent] [Interface]

7. Quick Selection Guide
8. Protocol Selection

Siemens PLC system: Prefer FLS PB series

Ethernet architecture: Prefer FLM PROFINET series

Automotive industry: FLS CO (CANopen) or FLS DN (DeviceNet)

2. Channel Configuration

Only signal input: Choose DI series

Only actuator control: Choose DO series; heavy load select -2A model

Mixed I/O demand: Choose DIO series (4/4 or 8/8)

3. Interface Selection

Standard industrial environment: M12 (vibration/dust-proof)

Space limited: M8 compact interface

4. Special Requirements

Analog signal: Choose AI/AO series

Diagnostic function: Choose FLM series (marked DIAG)

8. Accessory & Spare Parts List
