1. SICK DGS65-ZZA0-S01 Incremental Encoder (Part No.: 1033135)

1.1 Product Overview

SICK DGS65-ZZA0-S01 (1033135) is a heavy-duty solid-shaft incremental rotary encoder of SICK DGS65 series. Equipped with metal code disc and IP67 protection rating, it is designed for harsh working conditions and features excellent vibration resistance and stability. It is widely used for speed and position feedback of motors and spindles, as well as drive control for cranes, logistics equipment and machine tools.

Core Keywords: SICK DGS65-ZZA0-S01, 1033135, SICK DGS65 incremental encoder, heavy-duty solid-shaft encoder, motor speed feedback encoder

1.2 Model Code Explanation

1.3 Main Technical Parameters

Type: Incremental encoder, 3-channel differential output (A/B/Z, TTL/RS-422)

Resolution: 1024 pulses per revolution (ppr)

Shaft diameter: Solid shaft, φ10mm

Power supply: 5VDC ±10%, no-load current ≤40mA

Protection class: IP67 (housing), IP65 (shaft end)

Rated speed: ≤6,000rpm; Operating temperature: -20℃ ~ +70℃

Max. output frequency: ≤600kHz

1.4 Wiring Definition (M12 8-pin)

1.5 Replacement Models & Applications

Equivalent replacement in the same series: DGS65-GZA0-S01 (Part No.: 1035141, same specifications, cable outlet type)

Typical applications: Spindle of frequency converters, travelling mechanism of cranes, closed-loop speed control for conveyor belts

2. SICK DFS60B-BDCA00S30 Programmable Incremental Encoder

2.1 Product Overview

SICK DFS60B-BDCA00S30 is a programmable hollow-shaft incremental encoder of SICK DFS60B series. It supports parameter modification via software, including resolution, rotation direction and zero position. With metal code disc and high vibration resistance, it delivers high-precision position feedback for machine tools, servo motors and packaging machinery.

Core Keywords: SICK DFS60B-BDCA00S30, DFS60B programmable encoder, hollow-shaft incremental encoder, servo motor feedback encoder

2.2 Model Code Explanation

2.3 Main Technical Parameters

Type: Incremental encoder with A/B/Z channels (programmable for PPR, rotation direction and zero position)

Resolution: 30ppr (factory default), reprogrammable via PGT-10-Pro software

Shaft diameter: φ10mm blind hollow shaft

Power supply: 10–30VDC, HTL push-pull output

Protection class: IP67 (housing), IP65 (shaft end)

Rated speed: ≤6,000rpm; Operating temperature: -40℃ ~ +100℃

2.4 Wiring Definition (M12 8-pin)

Same as DGS65 series (A/B/Z differential signal, HTL level)

2.5 Replacement Models & Applications

Equivalent replacement in the same series: DFS60B-BDAK01024 (1024ppr, Part No.: 1059218)

Typical applications: Servo motors, packaging & textile machinery, speed and position closed-loop control for general automation equipment

3. BAUMER BHT 16.24Axxx/403622 Hollow-shaft Incremental Encoder (Discontinued)

3.1 Product Overview

BAUMER BHT 16.24A1500/1000/5000/403622 is a single-sided split hollow-shaft incremental encoder of Baumer BHT series. It features φ10mm bore, integrated flexible coupling and IP65 protection. This model has been discontinued and is designed for compact installation on motors and gearboxes.

Core Keywords: BAUMER BHT 16.24A, BHT 16.24A5000, Baumer hollow-shaft encoder, replacement for discontinued BHT series

3.2 Model Code Explanation

3.3 Main Technical Parameters

Shaft type: Single-sided split hollow shaft, φ10mm (compatible with φ9.52mm shaft)

Output: A/B/Z + /A/B/Z, push-pull / differential signal, max. frequency ≤750kHz

Power supply: 5VDC ±10% or 10–30VDC

Protection class: IP65; Rated speed ≤6,000rpm; Operating temperature: -20℃ ~ +85℃

Connection: M23 12-pin connector

3.4 Replacement for Discontinued Products (Important)

Original model discontinued. Direct replacement: BAUMER EIL580-T series (identical dimensions, interface and shaft diameter, fully compatible for installation).

3.5 Applications

Rear-end feedback for motors and gear reducers, textile, printing and packaging machinery, installation in narrow spaces.

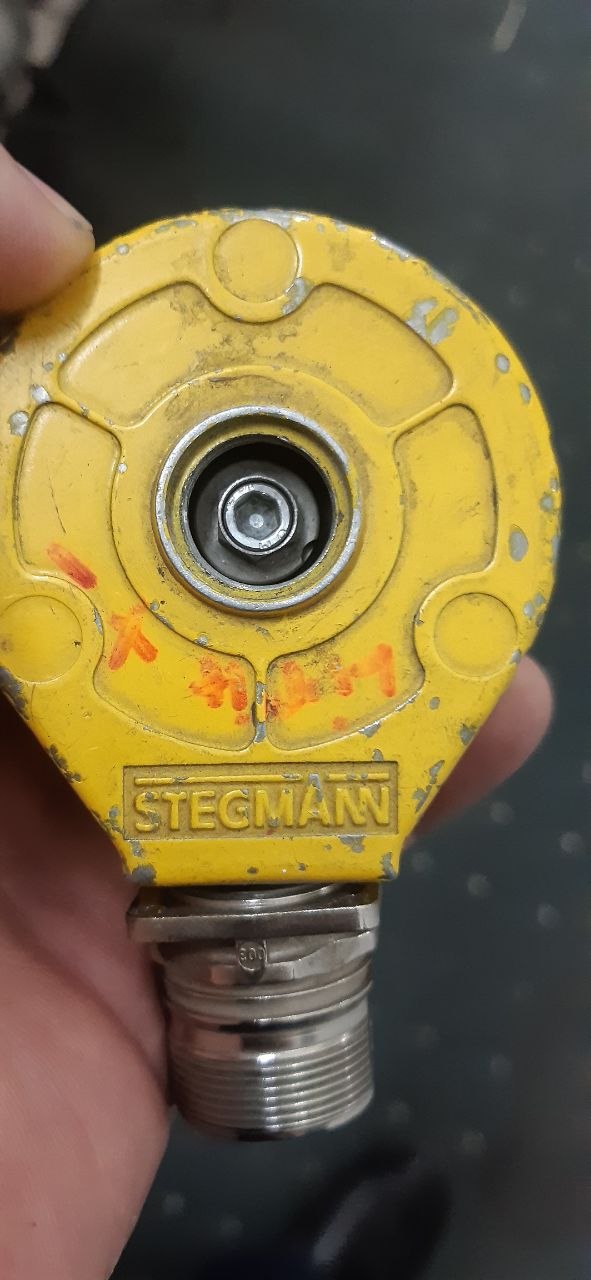

4. STEGMANN HG 650 C4 5000 PULS / 5VS100200004-004151 Encoder (Brand under SICK)

4.1 Product Overview

STEGMANN HG 650 C4 5000 PULS (5VS100200004) is a heavy-duty hollow-shaft encoder of Stegmann HG650 series (SICK subsidiary). With 5000ppr resolution and 10–30VDC power supply, it provides highly reliable position feedback for metallurgy, cranes, port equipment and elevators.

Core Keywords: STEGMANN HG650 C4, 5VS100200004, SICK Stegmann heavy-duty encoder, 5000ppr hollow-shaft encoder

4.2 Model Code Explanation

4.3 Main Technical Parameters

Type: Incremental encoder with 3 A/B/Z channels

Resolution: 5000ppr

Shaft type: Hollow shaft

Power supply: 10–30VDC

Protection class: IP67; Heavy-duty design with high vibration resistance, suitable for harsh working conditions

4.4 Replacement Model

SICK DFS60B-BDxx5000 (same resolution, compatible installation and signal output)

5. Quick Selection Comparison Table

6. General Troubleshooting Guide

1. SICK Encoders (Incremental / Absolute)

1.1 DFS60 Series (Programmable Incremental, Outer Diameter 60mm)

1.2 DGS65 Series (Heavy-duty Solid Shaft, Outer Diameter 65mm)

1.3 SRS50 / ATM60 Series (Absolute / Servo Feedback)

2. BAUMER Encoders (Including Discontinued BHT Series & EIL580 Replacements)

2.1 BHT 16.24A Series (Discontinued, Split Hollow Shaft φ10mm)

2.2 EIL580 Series (Direct Replacement for BHT, φ58mm Standard Flange)

2.3 HOG Heavy-duty Series

3. STEGMANN (SICK Subsidiary) HG650 Heavy-duty Hollow-shaft Encoders

4. Comprehensive Selection Index (Quick Search)
