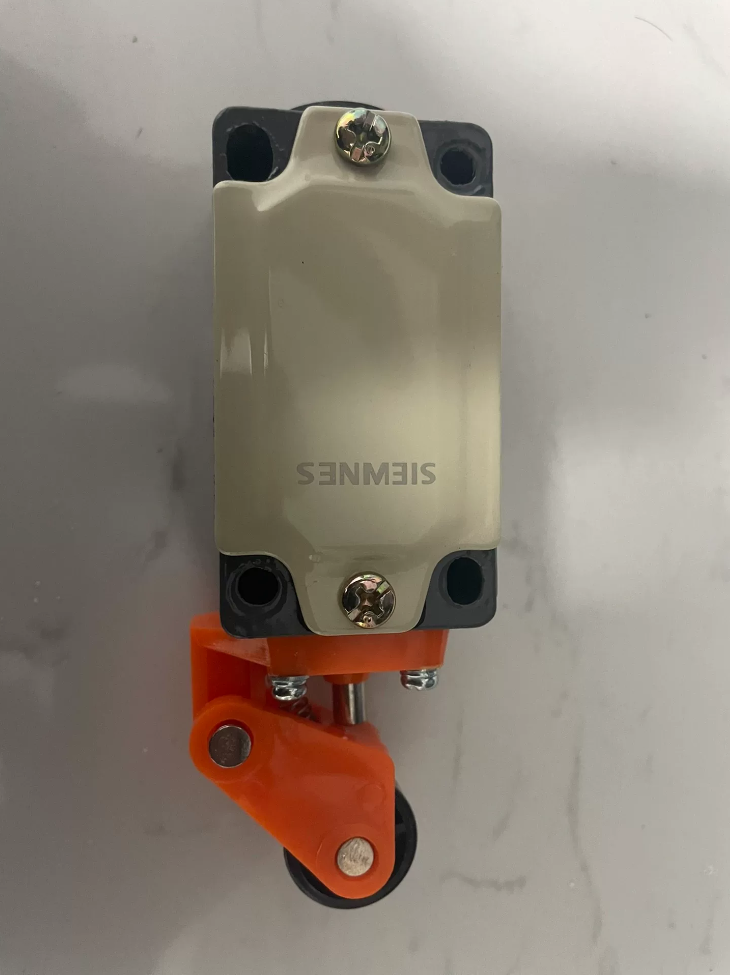

Siemens 3SE3120-1E Limit Switch

Siemens 3SE3120-1E Heavy-Duty Metal Enclosure Limit Switch (Travel Switch)

SIRIUS 3SE3 series heavy-duty limit switch with metal enclosure, equipped with 1NO+1NC snap-action contacts and roller lever actuator. Rated IP67, it is suitable for harsh industrial environments.

Model Code Explanation

Code Segment	Description
3SE3	Siemens SIRIUS series heavy-duty limit switch with metal enclosure
120	Basic model: 40mm wide housing, Pg13.5 cable gland, double-break snap-action contacts
-1E	Actuator: Standard single roller lever, 1NO+1NC contact configuration

Important Notice: This model has been discontinued. The official replacement is 3SE5112-0CE01.

Technical Specifications

Item	Parameter	Remarks
Contact Configuration	1 Normally Open (NO) + 1 Normally Closed (NC)	Double-break snap-action design
Rated Current / Voltage	10A / 500V AC	AC-15: 2.5A / 400V
Rated Current / Voltage	10A / 600V DC	DC-13: 0.4A / 24V
Operating Mechanism	Single roller lever	Mechanical life ≥ 10,000,000 operations
Housing Material	Die-cast aluminium	Robust and impact-resistant
Ingress Protection	IP67	Dust-tight and water-resistant; temporary immersion permitted
Cable Entry	Pg13.5 cable gland	Suitable for cables with outer diameter 9-14mm
Mounting Type	Surface mounting / DIN rail mounting	Compatible with various mounting brackets
Ambient Temperature	-25°C ~ +80°C	Adaptable to harsh working conditions
Compliance Standards	IEC 60947-5-1, EN 50041, VDE 0660	Compliant with international industrial safety standards
Mechanical Life	≥ 10,000,000 operations	Electrical life ≥ 100,000 operations under rated load

Cross-Brand Replacement List (Direct Replacement)

Brand	Model	Compatibility	Reference Price (CNY)	Advantages
Siemens (Replacement)	3SE5112-0CE01	100%	450-550	Official replacement, fully compatible
Schneider Electric	XCKN2118P16	95%	380-480	Identical contact configuration, IP67 rated
ABB	LS31P11	90%	350-420	Cost-effective with global warranty
Chint (Domestic)	YBLX-ME/8108	90%	120-180	Competitive price, fast local delivery
Delixi (Domestic)	LXK3-20S/T	85%	100-150	Economical choice for bulk replacement

Common Models of 3SE3 Series

Standard Roller Lever (1NO+1NC)

Model	Actuator Description	Replacement Model
3SE3120-1E	Single roller lever	3SE5112-0CE01
3SE3120-1G	Dual roller lever	3SE5112-0CE11
3SE3120-1H	Adjustable roller lever	3SE5112-0CE21

Other Actuator Types

Model	Actuator Description	Contact Configuration
3SE3122-1E	Straight plunger	1NO+1NC
3SE3124-1E	Fork lever	1NO+1NC
3SE3126-1E	Adjustable fork lever	1NO+1NC
3SE3130-1E	Rotary lever	1NO+1NC

Dual Contact Configuration (2NO+2NC)

Model	Actuator Description	Contact Configuration
3SE3120-2E	Single roller lever	2NO+2NC
3SE3120-2G	Dual roller lever	2NO+2NC

Troubleshooting & Maintenance Guide

Common Faults & Solutions

Fault Phenomenon	Possible Causes	Inspection Steps	Solutions
Contacts fail to operate	1. Jammed lever	1. Check smooth mechanical movement	1. Remove foreign matters and lubricate the shaft
	2. Damaged return spring	2. Test spring reset force	2. Replace the spring
	3. Worn contacts	3. Measure contact resistance	3. Replace contact assembly
Contact sticking	1. Overload operation	1. Verify load against rated value	1. Reduce load or select higher-capacity model
	2. Arc erosion	2. Check contact surface for burn marks	2. Replace contacts
	3. Excessive dust accumulation	3. Inspect sealing integrity	3. Renew seals for better protection
Unstable signal	1. Loose wiring	1. Tighten terminal connections	1. Retighten cables
	2. Oxidized contacts	2. Measure contact resistance	2. Clean contact surfaces
	3. Excessive vibration	3. Check mounting tightness	3. Add vibration damping measures

Periodic Maintenance Schedule

Maintenance Item	Interval	Operation
Visual Inspection	Monthly	Check housing damage and sealing condition
Mechanical Operation Test	Quarterly	Manually actuate the lever to ensure smooth movement
Contact Performance Test	Semi-annually	Measure contact resistance, ensure value ≤ 50mΩ
Cleaning & Lubrication	Annually	Remove internal dust; lubricate shafts with silicone grease
Seal Replacement	Every 2 years	Replace cable glands and O-rings

Application & Industry Cases

Applicable Scenarios

Machine Tools: Travel limit for worktables and position detection for cutting tools

Automated Production Lines: Conveyor positioning and workpiece detection

Lifting Equipment: Travel limit protection and anti-collision detection

Packaging Machinery: Position control for cutting & sealing and roll tension detection

Metallurgical Industry: Position detection under high temperature (heat shield required)

Non-Recommended Scenarios

Severely Corrosive Environments: Direct exposure to acid or alkaline solutions (stainless steel enclosure model recommended)

Explosive Hazardous Areas: Adopt explosion-proof limit switches of 3SE5 series

High-Precision Positioning: For accuracy within ±0.1mm, proximity switches or encoders are preferred

Application Cases

Case 1: Automotive Stamping Production Line

Application: Travel limit protection for stamping press slides

Solution: Install 3SE3120-1E at upper and lower limit positions to cut off power when the slide reaches the limit

Result: Prevent equipment overload damage, improve operational safety; annual failure rate < 0.5%

Case 2: Automated AS/RS Warehouse

Application: Rail limit and cargo location detection for stackers

Solution: Mount 3SE3120-1E at rail ends and cargo positions to realize precise positioning and safety protection

Result: Improve automation level, reduce manual intervention; positioning accuracy up to ±5mm

3SE3 series features metal housing and IP67 protection; 1E stands for single roller lever with 1NO+1NC contacts.
Choose metal enclosure for heavy-duty use, and plastic enclosure (3SE5) for light-duty applications.
For the discontinued model, use 3SE5112-0CE01 as direct replacement.
Domestic alternatives from Chint and Delixi cut costs by half while retaining around 90% performance.
