Siemens 3SE3120-1UW Limit Switch

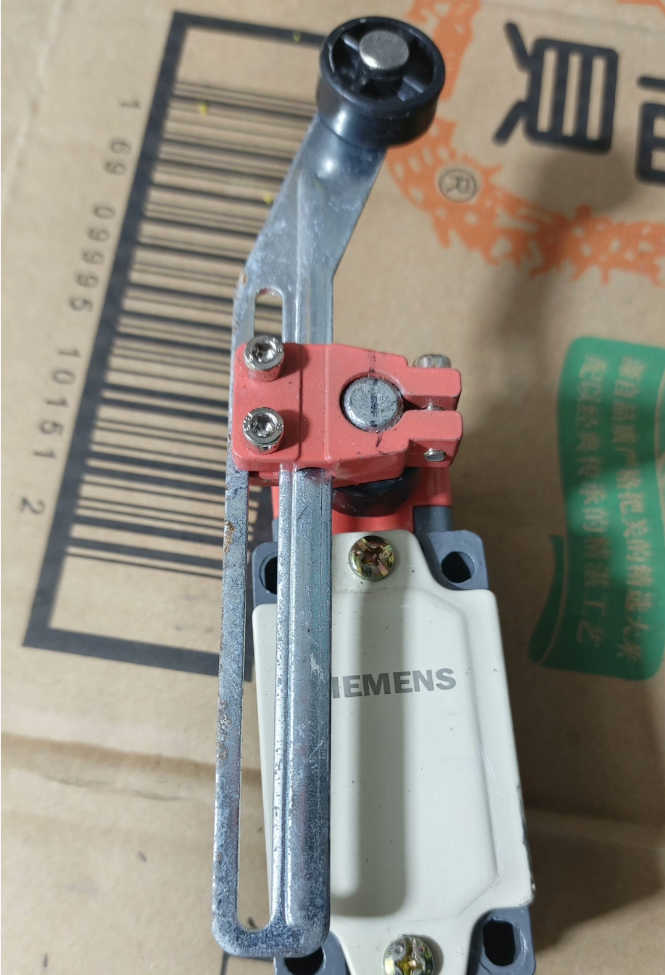

Siemens 3SE3120-1UW is a discontinued limit switch with metal housing. It is fitted with an adjustable length roller crank actuator and snap-action contacts, featuring an IP67 protection rating for a wide range of industrial automation applications. The official replacement sequence is 3SE3120-1UW → 3SE2120-1UW → 3SE5112-0BH50. When replacing, note the change of connection thread from Pg 13.5 to M20 as well as the difference in mounting depth. Select the appropriate actuator type and contact configuration according to actual application scenarios. For new projects, it is recommended to adopt the latest 3SE5 series for superior performance and longer service life.

1. Model Code Explanation

2. Main Technical Specifications

3. Full Model List (3SE3120 Series)

4. Cross-reference for Obsolete & Alternative Models

4.1 Official Siemens Replacement Sequence

4.2 Cross-brand Alternative Models

5. Application Environments & Industry Cases

Applicable Scenarios

1. Machine Tool Industry: Detect positions of worktables and cutting tools for automatic tool change and travel limit protection.
2. Automated Production Lines: Conveyor positioning, workpiece presence detection and baffle limit for sorting systems.
3. Robotics: Monitor moving tracks of robotic arms and collect position feedback from end effectors.
4. Logistics & Warehousing: Travel limit for stackers and direction change detection for conveyors.
5. Packaging Machinery: Carton presence detection and sealing position control.
6. Printing, Textile & Plastic Machinery: Web tension control and equipment safety protection.

Not Recommended Scenarios

1. High-risk Areas: Hot mold zones of injection molding machines (high temperature may damage the housing) and areas with strong electromagnetic interference.
2. Equipment with Severe Vibration: Such as stamping and forging machines, which may cause poor contact of internal contacts.
3. Explosion-proof Zones: Special explosion-proof limit switches (e.g. explosion-proof models of 3SE5 series) are mandatory.
4. High-speed Motion Detection: Proximity sensors or photoelectric sensors are recommended instead.

Typical Application Cases

Case 1: Automotive Component Production Line

Application: Welding robot workstation, for workpiece fixture positioning detection and robot travel limit monitoring.

Mounting Position: Fixture locating points and robot travel endpoints.

Outcome: Realizes automatic loading and unloading, prevents collision, and boosts production efficiency by 30%.

Case 2: Automated Warehouse Stacker

Application: Detect horizontal and vertical travel limits of stackers.

Mounting Position: Both ends of rails, top and bottom of storage racks.

Outcome: Prevents stacker derailment and rack damage, and improves warehouse operation safety.

6. Selection Tips & Quick Reference Rules

Selection Mnemonic

Choose 3SE series for metal housing,

Model 120 means 40mm narrow size,

Digit 1 stands for snap-action design,

UW refers to roller crank device,

Replace old 3SE3 with 3SE2,

New upgraded 3SE5 is the best choice,

Do check thread specification,

Pg13.5 changes to M20 indeed.

Quick Reference Rules

1. The 3SE3 series is discontinued. Prioritize 3SE5 for new projects, and use 3SE2 for renovation projects.
2. Suffix UW represents adjustable length roller crank, suitable for scenarios requiring flexible detection distance.
3. Model starting with 1 = snap-action contact (fast response for frequent detection); starting with 0 = slow-action contact (for heavy-duty applications).
4. With IP67 protection, the switch can be used outdoors or in humid environments without extra protection measures.
5. Pay attention to thread difference (Pg 13.5 vs M20) during replacement; cable glands may need to be changed.
6. Common Faults & Troubleshooting
