Chint travel switch YBLX-ME/8111

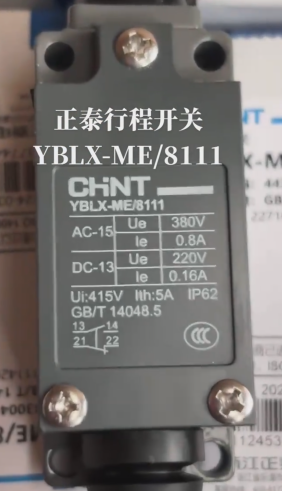

O Chint travel switch YBLX-ME/8111 is a direct-acting limit switch suitable for industrial automation control. It adopts a direct-pressure plunger operation mode and has the following core features:

The specific parameters of the Chint travel switch YBLX-ME/8111 are as follows:

1. Electrical Parameters

Tensão nominal: 380V e (AC-15 load) or 220V DC (DC-13 load)

Corrente nominal: 10A under AC-15 load, 0.16A under DC-13 load

Contact Type: 1 normalmente aberto + 1 normalmente fechado (1NÃO + 1NC)

Vida Elétrica: No less than 10,000 cycles under normal load

Tensão nominal de isolamento: 415V

Impulse Withstand Voltage 2.5kV

Operation Frequency: Mechanical operation frequency 120 times/min, electrical operation frequency 30 times/min

2. Mechanical Performance

Modo de operação: Direct-pressure plunger type

Actuating Force: 15N

Actuating Stroke: 5milímetros, over-travel 2mm, total stroke 7mm

Nível de proteção: IP62 (dust-proof and splash-proof)

Temperatura operacional: -5°C ~ +40°C

Installation Category: Category II

Pollution Degree: Level 3

3. Certificações e Padrões

Certificação Doméstica: China CCC Certification

Padrões Internacionais: Compliant with GB/T 14048.5 e CEI 60947-5-1

4. Características Físicas

Housing Material: Aluminum alloy

Operating Head Material: Silver contacts

Peso: Approximately 200g (estimated based on similar series products)

Dimensões Gerais: Approximately 73mm×40mm×28.5mm (length×width×height, reference drawings of similar series products)

Mounting Hole Size: 2×φ12mm, spacing 50mm

5. Adaptabilidade Ambiental

Altitude: ≤2000 meters

Humidity Conditions: Relative humidity ≤50% at maximum temperature +40°C; higher humidity allowed at lower temperatures (por exemplo, humidity ≤90% at 20°C)

Vibration Requirements: Installation location should be free from significant vibration

6. Precauções

Over-travel Limitation: Total stroke shall not exceed 7mm to avoid internal structure damage

Operation Speed: Extremely slow or fast operation may cause contact instability or mechanism damage; use at rated frequency is recommended

Load Limitation: Not recommended for micro-loads (por exemplo, voltage ≤100V), which may reduce contact reliability

2. Cenários de aplicação

This switch is mainly used for stroke control of moving mechanisms, como:

– Limit protection for machine tools and elevators

– Position detection in motor control circuits

– Program control in automated production lines

3. Installation and Usage Notes
4. Requisitos de instalação

– Must be installed vertically to avoid internal structure damage caused by excessive over-travel (total stroke ≤7mm)

– Refer to the product manual for fixing hole dimensions; use of standard wires for connection is recommended

2. Condições Ambientais

– Avoid use in flammable, explosive, or corrosive environments

– Installation location should be free from significant vibration and at an altitude not exceeding 2000 metros

4. Purchase and Market Information

Mercado internacional

– Current search results do not clarify whether this model has passed UL certification or is sold in the U.S. market

– Chint Power has photovoltaic projects in the U.S., but local supply information for travel switches needs further confirmation

5. Technical Documentation and Support

– Chint’s official website provides the 2025 product catalog, 3D models, and user manuals for download and reference

– Customer Hotline (WhatsApp): +86 13811255435 (Manual service hours: 08:00-19:00)

6. Modelos Alternativos

For other operation modes, refer to products in the same series:

YBLX-ME/8108: Adjustable roller rotation type, actuating force 12N

YBLX-ME/8112: Direct-pressure plunger with roller, actuating force 20N

It is recommended to select appropriate models based on specific application requirements and purchase through formal channels to ensure genuine products and after-sales support. For compliance in the U.S. market, directly contact Chint’s official team or local distributors to confirm certifications and supply status.
