Soquete de relé Omron PF083A

Parâmetros principais & Guia de seleção

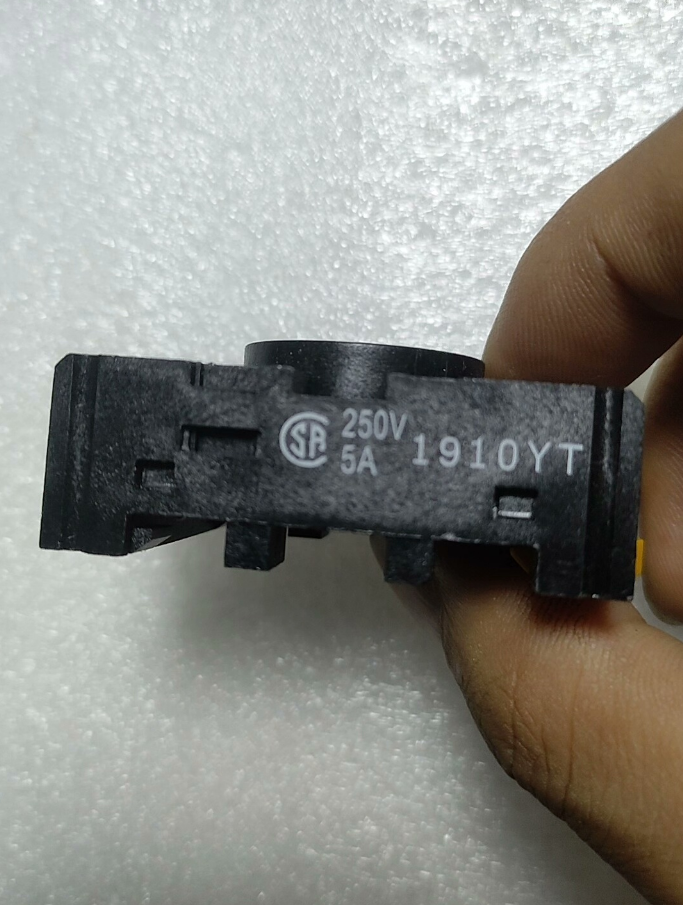

PF083A is an 8-pin round relay socket, originalmente projetado pela OMRON. É amplamente compatível com vários relés industriais, suporta montagem em trilho DIN, e está equipado com conexões de terminal de parafuso.

1. Especificações principais

2. Main Models & Diferenças

3. Compatible Relay Models

The PF083A socket features high compatibility and fits the following mainstream brands and series:

1. OMRON: MK2/MKS2 Series, 61F Series, G3B Series, MKS Series
2. Domestic General Models: DH48S Series, ST3PA/ST3PC/ST3PF Series
3. Panasonic: AH3 Series
4. Schneider Elétrica: ST3P Series
5. Others: MK2PD-I, MK2PD-S, MK2P-I, MK2PND-I, etc..
6. Instalação & Diretrizes de Operação
7. Etapas de instalação

Snap-on design for direct mounting on 35mm standard DIN rail

Ensure full and firm engagement between socket and rail without looseness

Cut off power supply before wiring; connect wires according to terminal markings

2. Especificações de fiação

Control wire stripping length within 6-7mm to avoid excessive exposed conductors

Screw torque shall not exceed 0.8Nm to prevent terminal damage

Do not use wires over 2.5mm² under rated current for optimal heat dissipation

3. Recomendações de manutenção

Regularly check terminals for loose connections

Avoid long-term operation in humid and dusty environments

Disconnect power before replacing relays; pull out vertically to prevent pin bending

5. Marca & Informações sobre aquisições

Original Manufacturer: OMRON, Número da peça. PF 2004D, Pacote: 50 pcs/box

Marcas Alternativas: Hammerhead Industrial, Meba Electric, TENSE and more with cost-effective pricing

Faixa de preço: Doméstico: CNY 10–15/pc; Original OMRON: CNY 25–30/pc

6. Sugestões de seleção
7. For original OMRON relays, prioritize PF083A-E or PF083A-D for optimal compatibility and safety.
8. For domestic general relays, standard PF083A meets requirements with higher cost performance.
9. For vibration-intensive environments, select PF083A-D with captive clamp terminals for more stable wiring.

With strong versatility, easy installation and reliable performance, the PF083A socket is a standard matching base for 8-pin relays in industrial automation, widely used in machine tool control, armários elétricos, automated production lines and other fields.

OMRON Relay Model List & Accessory Specification (PF083A Compatible Included)

1. Core Relay Series List

1.1 8-Pin Round Plug-in Power Relays (PF083A Compatible)

1.2 Miniature Power Relays (MY Series)

1.3 Heavy-Duty Power Relays (LY Series)

1.4 Signal Relays (G Series)

1.5 General-Purpose Relays (G2R Series)

2. PF083A Socket Series & Accessory Details

2.1 PF083A Core Models & Diferenças

2.2 Supplementary Technical Parameters of PF083A

2.3 PF083A Matching Accessories

3. Socket & Accessory Correspondence for Other Series

4. Seleção & Procurement Guide

4.1 PF083A Selection Key Points

Compatibilidade: Priority for MK2/MKS2, 61F liquid level controllers and G3B solid state relays.

Segurança: Choose PF083A-E with finger touch protection for high-safety scenarios.

Environmental Resistance: Adopt PF083A-D captive clamp terminals for vibration working conditions.

Cost Efficiency: Domestic alternatives at CNY 10–15/pc for budget projects.

4.2 Procurement Notes

OMRON Original Packaging: PF083A series, 50 pcs per box, Número do pedido. PF 2004D.

Certificação: Select CE & UL certified products for industrial applications.

Inventory Suggestion: Reserve 10% spare parts according to project scale.

5. Quick Reference Chart (PF083A Compatible Models)
