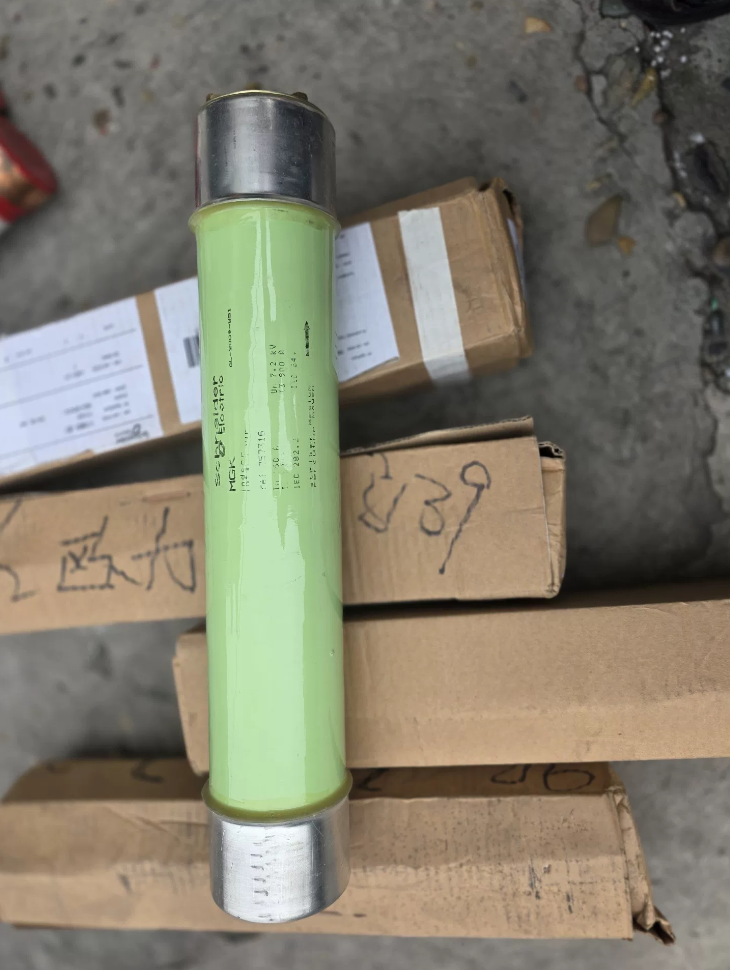

Fusível Schneider-MGK 757316

A série Schneider MGK 757316 Medium-Voltage Fuse is a current-limiting fuse specially designed for motor protection in compliance with UTE standards. Suas especificações principais são 7.2 kV / 160 UM / 438 milímetros, aplicado para proteção contra curto-circuito de circuitos internos de motores de média tensão.

2. Recursos do produto & Aplicativos
3. Dedicated Motor Protection: Optimized for short-circuit protection of 7.2 kV medium-voltage motors, effectively preventing motor damage caused by dynamic and thermal effects of short-circuit current.
4. Current-Limiting Technology: Cuts off the circuit rapidly before short-circuit current reaches its peak, reducing fault energy release and protecting motor windings and insulation systems.
5. Indoor Installation: Adopts fiberglass housing, designed for installation in indoor power distribution cabinets or fuse compartments with reliable protection performance.
6. Alta confiabilidade: Built on Schneider medium-voltage fuse technology platform, meeting long-term stable operation requirements for industrial environments and compatible with various medium-voltage motor control solutions.
7. Operação & Installation Guidelines
8. Matching Devices: Must be used with dedicated MGK series fuse bases/brackets to ensure secure electrical connection.
9. Ambiente de instalação: Restricted to dry indoor locations; avoid exposure to humidity, poeira e gases corrosivos.
10. Operação Segura: Power disconnection is mandatory during installation and replacement; insulated tools must be used to prevent electric shock hazards.
11. Maintenance Recommendation: Regularly inspect fuse appearance and connection points. Replace immediately if overheating marks or damage are found.
12. Related Series Models

Complete 7.2 kV motor protection fuse lineup of MGK series:

757314: 100 UM

757315: 125 UM

757316: 160 UM (Current model)

757317: 200 UM

757318: 250 UM

5. Referência de seleção

Key considerations for MGK fuse selection:

1. Motor rated voltage and power
2. System short-circuit current level
3. Installation space dimensions (438 mm length requirement)
4. Protection coordination: time-current characteristic matching with medium-voltage circuit breakers, contactors and other equipment

Complete List of Schneider Medium-Voltage Fuse Models (3.6 kV–36 kV)

Schneider medium-voltage fuses are mainly divided into four core series, covering motor protection, transformer protection, voltage transformer protection and general power distribution protection. They comply with UTE/DIN standards and meet indoor/outdoor installation demands. Below is the full model list and key parameters.

1. MGK Series (Proteção do Motor, UTE Standard, Indoor)

Posicionamento central: Customized for short-circuit protection of 7.2 kV medium-voltage motors with optimized current-limiting performance, fiberglass housing and overall length of 438 milímetros.

2. Soléfuse Series (Proteção do Transformador, UTE Standard, Indoor)

Posicionamento central: Applied for 3.6–36 kV power transformer and distribution network protection, with or without strikers, fiberglass housing and approx. 2 kg weight.

2.1 7.2 kV Specification (Model Prefix: 757328)

2.2 12/24 kV Specification (Model Prefix: 757328 / 757331)

2.3 36 kV Specification (Model Prefix: 757328)

3. Tépéfuse Series (VT Protection, UTE Standard)

Posicionamento central: Developed for 3.6–36 kV voltage transformer (TV) proteção; striker-free design, fiberglass housing for indoor use and ceramic housing for outdoor use.

4. Fusarc CF Series (General Protection, DIN Standard, Indoor & Outdoor)

Posicionamento central: Suitable for protection of 3.6–36 kV transformers, motors and capacitor banks. DIN standard, ceramic housing, universal for indoor and outdoor installation, with short-circuit breaking capacity up to 50 o.

4.1 Model Coding Rule

Pedido nº.: 510065XXM0 (XX = specification code)

Specification Format: CF-Voltage/Rated Current (por exemplo. CF-12/63 = 12 kV 63 UM)

4.2 Full Model List by Voltage Class

3.6 kV (Comprimento: 292 milímetros)

7.2 kV (Comprimento: 342 milímetros)

12 kV (Comprimento: 442 milímetros)

24 kV (Comprimento: 442 milímetros)

36 kV (Comprimento: 537 milímetros)

5. Selection Quick Reference Table

6. Aplicativo & Pontos-chave da seleção
7. Standard Compatibility: UTE standards apply to France and parts of Africa; DIN standards are widely adopted in Europe and global markets.
8. Ambiente de instalação: MGK / Soléfuse / Tépéfuse indoor models adopt fiberglass housing; Fusarc CF with ceramic housing supports outdoor installation.
9. Protection Coordination: Time-current characteristics shall be coordinated with medium-voltage circuit breakers, contactors and other equipment to ensure selective protection.
10. Spare Parts Procurement: Products can be queried by model or order number. Fusarc CF order numbers start with 510065, while MGK / Soléfuse / Tépéfuse start with 7573.

Schneider Four Core Medium-Voltage Fuse Series (MGK / Soléfuse / Tépéfuse / Fusarc CF)

Contents sorted: OEM matching base & contact accessories + original equivalent models + international brand alternatives + domestic replacement models + on-site replacement rules, for direct use in spare parts replacement, renovation design and purchasing.

1. OEM Matching Bases & Installation Accessories

1.1 MGK Series (7.2 kV Motor Protection, 7573xx, 438 milímetros, UTE)

Universal for the full range including 757316

1.2 Soléfuse Transformer Series (757328 / 757331)

1.3 Tépéfuse VT Protection (757334 / 757335)

1.4 Fusarc CF Series (DIN/IEC General, 510065xxM0)

2. Schneider Original Equivalent Replacement

> Core Rule: Same overall length + same rated voltage = direct cabinet replacement

2.1 7.2 kV Motor Circuit (Chave)

2.2 Transformer & General Circuit

Soléfuse (UTE standard) ⇋ Fusarc CF (DIN standard) with identical voltage and current rating for mutual replacement

Striker-equipped models can only be replaced with striker-equipped products; striker-free for striker-free

2.3 Voltage Transformer

Todos 757334 / 757335 models can be fully replaced by Schneider CF-PT dedicated miniature high-voltage fuses.

3. International Brand Equivalent Alternatives

3.1 ABB

MGK Motor Series: ABB CMF 7.2 kV Series

Proteção do Transformador: ABB VMF Medium-Voltage Current-Limiting Fuse

VT Protection: ABB IMF Miniature High-Voltage Fuse

3.2 Siemens

Full-range equivalent: Siemens 3GA Series Medium-Voltage Fuses, cobertura 7.2 kV / 12 kV / 24 kV / 36 kV

3.3 Cooper Bussmann

Equivalent: MV Series High-Voltage Current-Limiting Fuses, direct replacement for Schneider Fusarc CF

4. Domestic Replacement Models

For localization renovation, cost reduction and standard spare parts stocking

4.1 Mainstream Domestic Manufacturers

Cooper Xi’an Fuse, Shanghai Electric Porcelain Factory, Chint High-Voltage, Delixi High-Voltage, Huaguang High-Voltage

4.2 Precise Replacement Table

MGK 7.2 kV Motor Series (757314~757318)

Fusarc CF Full Range

3.6 / 7.2 kV: XRNT1 Series

12 kV: XRNT2 Series

24 / 36 kV: XRNT3 / XRNT4 Series

Soléfuse Transformer Replacement

Doméstico: XRNM Series Transformer-Specific High-Voltage Fuse

VT Dedicated Replacement

Doméstico: XRNP1 Series High-Voltage VT Fuse (0.5 UM / 1 A universal)

5. Mandatory Selection & Replacement Rules
6. Strict Dimension Matching: 292 milímetros / 342 milímetros / 438 milímetros / 442 milímetros / 520 milímetros / 537 milímetros. Forced installation of different lengths is prohibited.
7. No Voltage Downgrade: 7.2 kV equipment must not use 3.6 kV fuses to avoid breakdown and explosion risks.
8. Striker Matching: Switchgear with trip interlock must adopt striker-equipped fuses.
9. Protection Curve Matching:

Motor circuit: slow-speed curve for motor duty

Transformer circuit: transformer characteristic curve

TV & capacitor: high-speed current-limiting type
