Información básica & Desglose del modelo

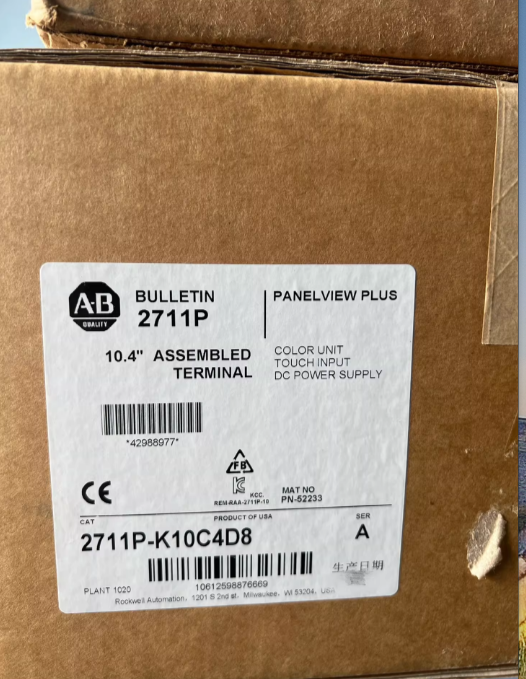

2711P-K10C4D8 is a 10.4-inch keypad-only Human-Machine Interface (HMI) terminal from Allen-Bradley (Automatización Rockwell) Vista de panel Plus 6 serie, belonging to the 1000 model range.
It was discontinued on September 30, 2022.
The officially recommended replacement is 2711P-B10C22D9P.
| Parte del modelo | Significado |
| 2711PAG | PanelView Plus 6 series prefix |
| k | Keypad input (K = Keypad, T = Touchscreen, B = Both) |
| 10 | 10.4‑inch display size |
| C4 | Configuración estándar, no extended functions |
| D8 | 24VDC power, standard network ports |
- Parámetros técnicos básicos
- Display System
| Parámetro | Especificación |
| Tamaño de pantalla | 10.4‑inch color TFT active matrix display |
| Resolución | 640×480 píxeles |
| Display Area | 211×158 mm |
| Brillo | 300 cd/m² (Nits) |
| Iluminar desde el fondo | CCFL, mín.. 50,000 horas a 25°C, field‑replaceable |
| Bandera | 256 bandera |
- Input System
Operación: Stainless steel membrane keypad, including numeric, navigation, and function keys
Teclas de función: 32 programmable function keys (F1…F16 and K1…K16)
No touch functionality
- Procesador & Memoria
| Parámetro | Especificación |
| Procesador | 200 MHz RISC processor |
| Memoria | 512 MB RAM, 512 MB non‑volatile memory (aprox. 79 MB user‑available) |
| Almacenamiento externo | Supports SD card (1784‑SDx series) and USB 2.0 flash drive (intercambio en caliente) |
| OS | WindowsCE 6.0 (no extended features or Microsoft Office viewer) |
- Interfaces de comunicación
| Interfaz | Cantidad | Especificación |
| Ethernet industrial | 1 | 10/100 mbps, Auto‑MDI/MDI‑X, Ethernet/IP |
| RS-232 | 1 | Programming and data transfer |
| USB Host | 2 | USB 2.0 alta velocidad, intercambio en caliente |
| Ranura de expansión | 1 | Optional Ethernet, DH+/DH‑485, or ControlNet module |
- Especificaciones eléctricas
| Parámetro | Especificación |
| Voltaje de entrada | 18–32 VDC (nominal 24 VCC) |
| Max Power | 70 W. (2.9 A @ 24 VCC) |
| Typical Power | 39 W. (1.6 A @ 24 VCC) |
| Recommended Power Supply | 1606‑XLE120E (SELV/PELV) |
| Real‑Time Clock | Battery‑backed, mín.. 4 years at 25°C, ±2 minutes/month accuracy |
- Físico & Environmental Characteristics
| Parámetro | Especificación |
| Front Panel Dimensions | 399×248 mm |
| Dimensiones de recorte | 224×375 mm (8.8×14.75 in) |
| Profundidad | 42 milímetros |
| Peso | Aprox.. 3.9 kilos (8.6 libra) |
| Clasificación de protección | Frente: NEMA 4X/IP65; Unidad: NEMA 12/13/IP54 |
| Temperatura de funcionamiento | 0–55°C |
| Temperatura de almacenamiento | -25–70°C |
| Humedad | 5–95% non‑condensing |
| Choque | Operante: 15GRAMO, 11 EM |
| Vibración | 10–57 Hz: 0.012 in displacement; 57–500Hz: 2G acceleration |
| Altitud | máx.. 2000 metro |
- Compatibilidad de software & Características
- Software Requirements
Software de programación: FactoryTalk View Machine Edition 6.0 or later
Acceso remoto: FactoryTalk ViewPoint 1.2 or later
- Funciones principales
Soportes 79 online display languages
2-level password protection
Messaging system (buffer and acknowledge)
Recipe management
Printer output support
Loadable additional software components
Supports TCP/IP and EtherNet/IP
Does not support safety functions or Modbus (standard config)
- Ciclo vital & Reemplazo
- Estado del ciclo de vida
Fecha de discontinuación: September 30, 2022
Repair Service: Still available
Tipo de reemplazo: Engineering Replacement
- Reemplazo oficial
2711P-B10C22D9P – PanelView Plus 7 series 10.4-inch keypad + touch dual-input terminal.
Main upgrades:
Procesador de mayor rendimiento
Memoria más grande
Longer backlight life
Enhanced communication
Supports more protocols and safety functions
- Aplicaciones
Suitable for industrial automation environments as an operator interface, especially:
- Entornos industriales hostiles (polvo, humedad)
- Glove-operated applications (keypads more reliable than touchscreens)
- High-reliability critical equipment monitoring
- Seamless integration with Allen-Bradley PLCs (ControlLogix, CompactLogix)
2711P Series 10.4-inch HMI Detailed Comparison & Guía de selección
- Core Model Comparison Table
| Categoría | 2711P‑K10C4D8 | 2711P‑T10C4D8 | 2711P‑B10C4D8 |
| (Keypad) | (Tocar) | (Ambos) | |
| Información básica | |||
| Tipo de entrada | Keypad‑only | Touch‑only | Keypad + Tocar |
| Pantalla | 10.4‑inch color TFT | 10.4‑inch color TFT | 10.4‑inch color TFT |
| Resolución | 640×480 | 640×480 | 640×480 |
| Brillo | 300 cd/m² | 300 cd/m² | 300 cd/m² |
| Iluminar desde el fondo | CCFL (50k hrs) | CCFL (50k hrs) | CCFL (50k hrs) |
| Aporte | |||
| Keypad | 32 programmable keys | Ninguno | 32 llaves + tocar |
| Tocar | No | Finger/glove/stylus | Same as T + teclado |
| Fiabilidad | Alto | Medio | más alto |
| Físico | |||
| Front Size | 399×248 mm | 399×248 mm | 399×248 mm |
| Separar | 224×375 mm | 224×375 mm | 224×375 mm |
| Profundidad | 42 milímetros | 42 milímetros | 55 milímetros |
| Peso | ~3.9 kg | ~2.72 kg | ~4.2 kg |
| Clasificación | Front NEMA 4X/IP65 | Same as K | Same as K |
| Actuación | |||
| Procesador | 200 MHz RISC | 200 MHz RISC | 200 MHz RISC |
| RAM | 512 MEGABYTE | 512 MEGABYTE | 512 MEGABYTE |
| Almacenamiento | 512 MEGABYTE | 512 MEGABYTE | 512 MEGABYTE |
| OS | WindowsCE 6.0 | WindowsCE 6.0 | WindowsCE 6.0 |
| Communications | |||
| Ethernet | 1 (10/100, Ethernet/IP) | 1 | 1 |
| RS-232 | 1 | 1 | 1 |
| USB Host | 2 | 2 | 2 |
| Expansión | 1 ranura | 1 ranura | 1 ranura |
| Eléctrico | |||
| Voltaje | 18–32 VDC | 18–32 VDC | 18–32 VDC |
| Max Power | 70 W. | 70 W. | 70 W. |
| Typical Power | 39 W. | 39 W. | 42 W. |
| Ciclo vital | |||
| Interrumpido | 2022‑09‑30 | 2021‑12‑30 | 2022‑09‑30 |
| Reemplazo | 2711P‑B10C22D9P | 2711P‑T10C22D9P | 2711P‑B10C22D9P |
| Gama de precios | Medio | Medio | Alto |
- Diferencias clave
- Input Type Comparison
| Tipo | Ventajas | Desventajas | Aplicaciones |
| Keypad (k) | Confiable, dust/moisture‑resistant, glove‑friendly, larga vida | Slower, limited layout | Industria pesada, alimento & bebida, minería |
| Tocar (t) | Intuitive, rápido, flexible | Sensitive to oil/moisture | Salas limpias, control rooms, industria ligera |
| Ambos (B) | Redundant input, maximum flexibility | Highest cost, larger | Critical machines, mixed environments |
- Actuación & Características
All models share nearly identical performance; differences are input-related.
All support:
79 idiomas
2-level password
Recipe management
Printer output
None support safety or Modbus (estándar).
- Ciclo vital & Reemplazos
| Modelo | Interrumpido | Reemplazo | Actualizaciones |
| K10C4D8 | 2022‑09‑30 | B10C22D9P | Entrada doble, faster CPU, retroiluminación LED |
| T10C4D8 | 2021‑12‑30 | T10C22D9P | Tocar, CONDUJO, safety support |
| B10C4D8 | 2022‑09‑30 | B10C22D9P | Actualización completa |
- Guía de selección
- Selection Flow
Start → Evaluate environment →
Harsh (dust/moisture/oil) → K or B
Limpio (control room) → T or B
Gloves required → K or B
Speed required → T or B
Safety-critical → K or B
Budget-limited → K or T
Maximum flexibility → B
- Industry Recommendations
| Industria | Recomendado | Razón |
| Aceite & Gas | k / B | Harsh, gloves required |
| Automotor | B | Mixed conditions |
| Alimento & Bebida | k / B | Lavado, humedad |
| Electrónica | t / B | sala limpia |
| Tratamiento de agua | k | Moist, exterior |
| Farmacéutico | B | Limpio + strict operation |
| Minería / Rieles | k | Polvo, vibración |
- Consejos de reemplazo
All discontinued. Nuevos proyectos:
- 2711P-B10C22D9P (recomendado)
Compatible with existing projects
Entrada doble
Mejor rendimiento, retroiluminación LED, safety support
- Sólo táctil: 2711P-T10C22D9P
- Presupuesto: Used/refurbished with caution (check backlight, apoyo, spare parts).
- Resumen & Recomendaciones
Key Conclusions
- 2711P-K10C4D8: Keypad-only, best for harsh, glove-use environments
- 2711P-T10C4D8: Sólo táctil, intuitive for clean environments
- 2711P-B10C4D8: Entrada doble, highest reliability for critical applications
Recommended Actions
- Nuevos proyectos: Use PanelView Plus 7 replacements
- Actualizaciones: Match input type to environment
- Spares: Stock keypads, backlights before supply ends
- Mantenimiento: Monitor CCFL brightness and replace aged units
