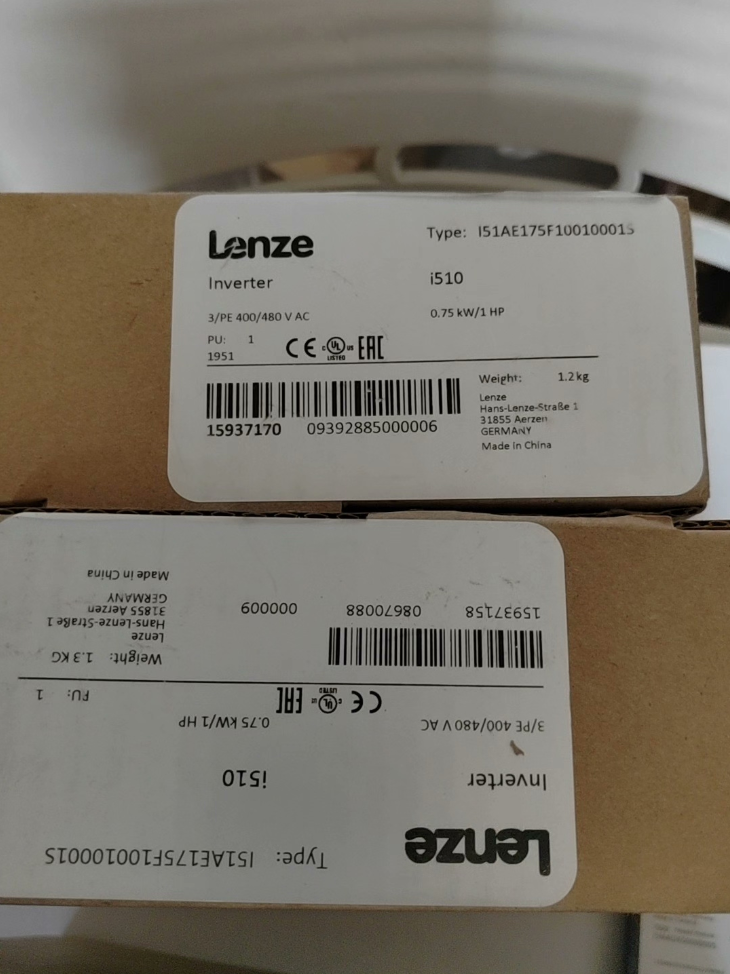

Lenze i510 Compact Inverter

The i510 is the entry-level integrated inverter of the i500 series with non-expandable communication modules. It is positioned against the higher-end modular i550 within the same product family.

Designed for general simple drive applications: trasportatori, tifosi, pompe, mixers and light-duty travelling mechanisms.

> Gamma di potenza: 0.25kW～15kW

2. Core Electrical Specifications

2.1 Supply Voltage Options

Single-phase AC230V: 0.25～2.2kW

Three-phase AC230V: 0.25～5.5kW

Three-phase AC400/480V: 0.37～15kW

2.2 Capacità di sovraccarico

Sovraccarico continuo: 150% for 60s

Peak short-term overload: 200% for 3s

2.3 Standard I/O (Terminal Block X3)

5 Ingressi digitali (DI3/DI4 can be multiplexed for 100kHz frequency / HTL encoder input)

1 Uscita digitale (FARE)

2 Ingressi analogici (AI: 0–10 V / 4–20mA)

1 Uscita analogica (AL: 0–10 V / 4–20mA)

1 Uscita relè (Change-over contact NO/NC)

Built-in 24VDC control power supply output

2.4 Communication Variants (Order Code Differentiation)

1. 000S: Basic I/O version, no on-board communication
2. 001S: On-board Modbus RTU + CANopen (most widely used in China)

> ❗No expansion modules for EtherCAT or PROFIBUS are available for the i510. Select the i550 if industrial Ethernet is required.

3. Scomposizione del codice d'ordine (Esempio: I51AE1004F001S)

I51 A E 1004 F 0 0 0 0 1S

I51 = i510 series

A = 1st generation hardware; B = 2nd generation hardware

E = Cabinet-mounted version (IP20)

1004 = Power code → 0004 = 4.0kW

F = 3AC 400/480V power supply

0 = Conformal coating absent; V = Conformal coated PCB

0 = No built-in RFI filter; 1 = Built-in RFI filter

0 = 50Hz EU default parameters; 1 = 60Hz North American parameters

001S = I/O variant (001S equipped with Modbus/CANopen)

4. Commissioning Methods
5. Keypad Operator: Detachable operating panel
6. Mobile WLAN Commissioning: Optional WLAN module + Lenz App
7. PC Commissioning: USB adapter + EASY Starter (official configuration software)
8. Confronto chiave: i510 VS i550 (Riferimento alla selezione)

6. Scenari applicativi tipici

Trasportatori a nastro, packaging machine transfer lines, small fans & pompe, apparecchiature di miscelazione, light lifting mechanisms, general spindles for woodworking machinery.

7. Selection Pitfall Guidelines
8. Applications requiring fast braking and frequent regenerative loads → Prioritize i550 (integrated brake chopper)
9. EtherCAT / Profinet industrial Ethernet required → i510 is not applicable
10. For 400V 11kW/15kW heavy-duty operation, proper thermal management and line reactor configuration are mandatory
11. No built-in brake transistor on i510; external brake resistor + external brake unit is mandatory for high-inertia stopping
12. Common Accessory List

Pannello operatore: EZAEBK1001

USB Commissioning Module: EZAEUSB001

WLAN Wireless Commissioning Module: EZAEWLAN001

External RFI filter, brake resistor, line reactor

Upon request, I can provide further materials:

✅ Full power rating order code table

✅ Terminal wiring diagram

✅ Standard parameter template for conveyor applications

✅ Fault code list

✅ Alternative model solutions for existing unit replacement

Practical Application Cases of Lenze i510 (Directly usable for tender documents & selection reference)

> Core positioning: The i510 is a general-purpose basic drive supporting V/F and sensorless vector SLVC control. The 001S variant features on-board Modbus RTU/CANopen.

No built-in brake chopper, STO unsupported, no industrial Ethernet expansion available. It is preferred for light-duty loads with smooth start/stop and no high-precision positioning requirements.

Caso 1: Segmented Roller / Belt Conveyors for Logistics Warehousing (Most Popular Application)

Condizioni operative

Independent roller conveyors in e-commerce warehouses and food production lines. Automatic speed regulation to prevent material blockage triggered by accumulated goods; each conveyor driven by a separate motor.

Gamma di potenza: 0.37kW～4.0kW, 3AC400V

Control scheme: PLC multi-drop network control via Modbus RTU. Photoelectric sensors detect downstream material presence to trigger upstream speed reduction or stop. Digital inputs handle fault reset and run enable; relay output for fault alarm.

i510 Advantages

1. Slim frame width (≤4kW models only 60mm) allows dense zero-clearance cabinet mounting
2. S-curve ramp prevents carton tipping and reduces mechanical impact on rollers
3. Built-in DC braking enables stable short-distance stopping
4. WLAN module + Lenze App enables on-site commissioning without cabinet disassembly

Selection Reminder

For frequent emergency stops and high-inertia loads: External brake resistor + external brake unit are mandatory (i510 lacks integrated brake chopper). Upgrade to i550 for heavy-duty continuous conveying.

Caso 2: Auxiliary Drives for Packaging Machinery (Material Feeding Lines, Wrapping Conveyors, Discharge Belts)

Condizioni operative

Infeed belts, separating conveyors matched with horizontal flow wrappers and case packers; multi-speed switching to synchronize with main machine cycle.

Gamma di potenza: 0.25～2.2kW, monofase 230V / three-phase 400V optional

Control Option 1 (Basic machines): Multi-speed control via digital inputs with 3~5 preset speeds

Control Option 2 (Automated machines): CANopen bus linkage to follow main machine speed

Matching Benefits

I/O resources perfectly meet auxiliary machine requirements: 5DI / 1FARE / 2AI / 1 relè. 0–10V analog input accepts speed reference from main equipment. Simplified parameter structure enables standardized templates for machinery manufacturers.

Caveat

If electronic cam, master-follower synchronization or high-precision spindle positioning is required, the i510 cannot be used; select i550 or servo drives instead.

Caso 3: Tifosi, Circulation Exhaust & Oven Circulation Fans (Energy-saving Constant Pressure Control)

Condizioni operative

Constant temperature / constant air volume PID regulation for food drying tunnels, workshop ventilation and simple waste gas treatment systems.

Gamma di potenza: 0.75～11kW

Metodo di controllo: Built-in PID regulator; temperature/pressure transmitters connected to analog inputs for automatic speed adjustment; sleep energy-saving function available.

Value Highlights

VFC-Eco energy-saving mode optimizes operation for quadratic fan loads and reduces no-load power loss, delivering notable energy savings compared with direct-on-line contactor control.

> Nota: For explosion-proof fan applications, explosion-proof motors and external certification are required. The i510 itself is not explosion-proof.

Caso 4: Miscelatori & Blenders for Light Materials

Condizioni operative

Small powder blenders, water treatment chemical mixing tanks; continuous low-speed stirring and intermittent operation.

Gamma di potenza: 0.55～5.5kW

Controllare: Analog speed reference or bus command. Boost torque configured at startup to avoid stalling from settled materials; overload protection prevents jamming caused by blocked material.

Limitazioni

Select i550 for high-viscosity media and heavy loads with sustained shock loads (per esempio. asphalt, high solid-content slurries). The i510 suits light, homogeneous materials only.

Caso 5: Auxiliary Feed & Convey Mechanisms for Woodworking Machinery

Condizioni operative

Feed belts for sliding tables, board infeed conveyors, discharge belts for sanders; smooth transportation to avoid surface scratches on panels.

Gamma di potenza: 0.37～3kW

Process Requirements

Low-speed startup and gentle ramp control with continuously adjustable speed. Multiplexed DI can acquire HTL frequency signal for basic line speed following.

> Important Note: The i510 only supports simple frequency acquisition via digital inputs. No dedicated encoder card for precision synchronization. Choose i550 for synchronized cutting of precision wood panels.

Caso 6: Process Water Supply Centrifugal Pumps (Simple Constant Flow Control)

Condizioni operative

Constant pressure control for cleaning equipment water supply and workshop process circulation water; single pump setup without complex pump rotation or redundancy logic.

Gamma di potenza: 1.5～7.5kW

Controllare: Built-in PID with pressure transmitter connected to analog input; dry-run protection and low-flow sleep function.

Scenari non adatti

Building secondary water supply and multi-pump cascading systems require higher-performance drives.

Caso 7: Light-duty Travelling Carts & Pallet Transfer Trolleys

Condizioni operative

Workshop material transfer trolleys, simple pallet cross-shift mechanisms; forward/reverse two-speed operation with limit switch stop.

Gamma di potenza: 0.75～4kW

Controllare: Direction commands + multi-speed via digital inputs; limit switches trigger rapid stop. Suitable for short-distance, low-frequency movement.

Divieto severo

Do not use i510 for hoisting and lifting equipment. Without STO Safe Torque Off and safety functions, i550 STO variant is mandatory.

Quick Selection Checklist (i510 Applicability)

✅ Recommended for i510

General conveyors, tifosi, pompe, light mixers, packaging auxiliary conveyors

Communication demand limited to Modbus RTU / CANopen; no EtherCAT / Profinet required

Cost-sensitive projects with compact cabinet layout requirements

No functional safety STO or closed-loop encoder positioning needed

❌ Do not select i510; switch to i550

1. EtherCAT, Profinet or other industrial Ethernet communication required
2. Frequent braking and high-inertia loads requiring built-in brake chopper
3. Mandrini di macchine utensili, synchronous motion control, encoder-based positioning
4. Hoisting/lifting machinery with safety requirements
5. Projects requiring STO Safe Torque Off function

Upon request, I can provide further deliverables:

1) Standard I/O wiring diagram for selected applications

2) EASY Starter parameter template for conveyor drives

3) Modbus RTU register mapping between PLC and i510
