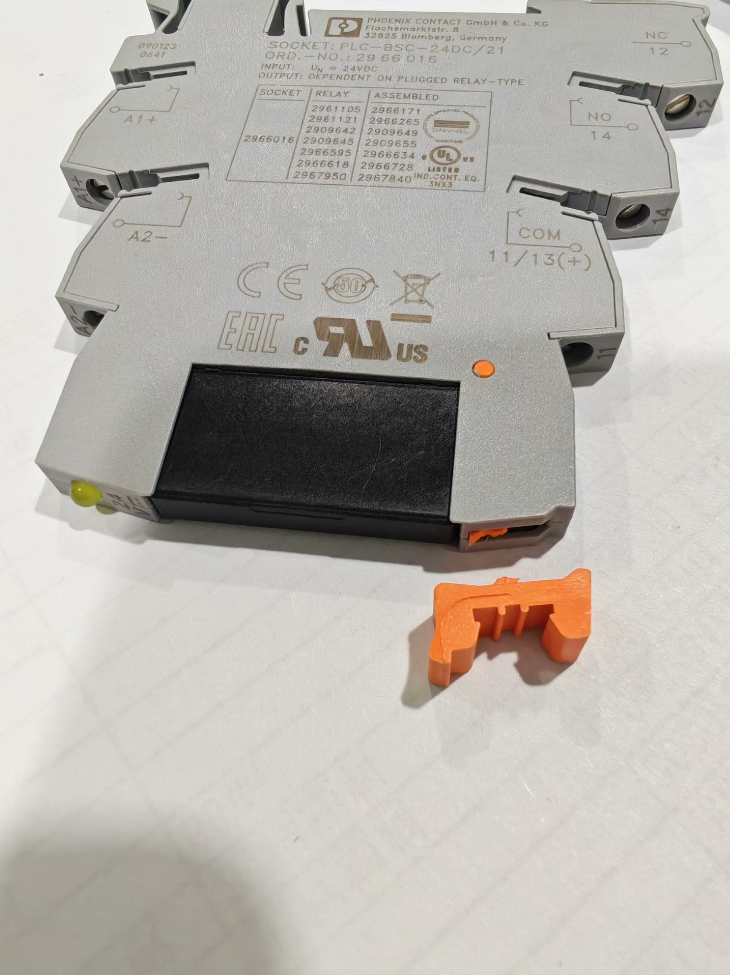

PHOENIX CONTACT PLC-BSC-24DC/21

Model Definition

1. 完成モデル: PLC-BSC-24DC/21
2. 注文番号: 2966016
3. ブランドシリーズ: フエニックス・コンタクト PLC-INTERFACE ultra-slim relay base
4. モデルの内訳

PLC: Base for PLC interface relay module

BSC: Basic economical base with screw connection

24直流: Rated control coil voltage DC24V

21: 1 切替接点 (1いいえ + 1ノースカロライナ州, 1PDT single-pole double-throw)

5. 製品説明: Base only, relay insert not included. Must be used with matching pluggable relays (2961105 / 2961118).
6. Electrical Specifications of Control Side Input (A1+/A2-)
7. 定格制御電圧: 24 ワシントンDCで
8. 動作電圧範囲: 19.2 V DC ~ 30 ワシントンDCで
9. Built-in Protection Circuit: Freewheeling damping diode + reverse polarity protection diode to prevent PLC output burnout from reverse connection
10. ステータスインジケーター: Integrated yellow LED on base, lights steadily when coil is energized
11. Input Power Consumption: 約. 1.1 W
12. Minimum Driving Current: 5 ミリアンペア, directly compatible with PLC NPN/PNP transistor outputs (S7-1200/1500, 三菱, 革新, 等)
13. Rated Parameters of Load-side Contacts (12/11 一般, 14 通常開, 12 通常閉)

3.1 General Load Ratings

最大スイッチング電圧: 250 Vと / 30 ワシントンDCで

Rated Continuous Thermal Current Ith: 6 あ

AC-15 Inductive Load (Contactor Coils): 6 あ / 250 Vと

DC-13 Inductive Load (電磁弁): 3 あ / 24 ワシントンDCで

3.2 絶縁 & 耐電圧

Isolation Withstand Voltage (Coil to Contacts): 4 kV AC for 1 分

Withstand Voltage across Open Contacts: 2 kV AC

絶縁抵抗 (直流 500 V Test): ≥10⁹ Ω

3.3 電気的耐久性 (with Original Phoenix Relay Insert)

6 あ / 250 Vと: 100,000 オペレーション

3 あ / 24 ワシントンDCで: 200,000 オペレーション

3.4 お問い合わせフォーム: 1PDT Single-Pole Double-Throw (11 一般, 14 いいえ, 12 ノースカロライナ州)

4. 機械的寸法 & 取り付け
5. 幅: 6.2 mm (ultra-slim design saves DIN rail space, zero-gap side-by-side mounting supported)
6. 全体の寸法: W6.2 mm × H94 mm × D80 mm
7. 取り付けレール: Standard DIN NS35/7.5 rail
8. Housing Flame Retardancy: UL94 V0
9. 色: Base body grey-green, relay latch orange
10. 重さ: 約. 45 g
11. Terminal Specifications (All M3 Screw Terminals)
12. 適用電線:

Solid single-core wire: 0.14~2.5 mm²

Stranded multi-core wire: 0.14~2.5 mm²; 最大. 2.5 mm² with ferrule terminals

AWG Range: 26 AWG ~ 14 AWG

2. Screw Torque: 0.6~0.8 N·m
3. Wire Stripping Length: 8 mm
4. Terminal Partition

左側: Control circuit A1+, A2(connect to PLC outputs)

Right Side: Load circuit 12(ノースカロライナ州), 11(COM), 14(いいえ)

6. 周囲条件 & 承認
7. 動作温度: -25 ℃ ~ +60 ℃
8. ストレージ & Transport Temperature: -40 ℃ ~ +85 ℃
9. 汚染度: 3, for indoor industrial control cabinet installation
10. 認証: CE, cULus, VDE, GL Marine Approval, RoHS Compliant
11. EMC Class: Class A industrial equipment
12. Matching Relay Inserts (Must Be Ordered Separately)

8. 典型的なアプリケーションシナリオ
9. PLC digital output isolation to drive small contactors, solenoid valves and indicator lights
10. IO signal transfer and separation of strong/weak current on automated production lines
11. On-off control of small loads for machine tools, packaging equipment and assembly lines
12. Ultra-slim modular signal expansion for high-density IO cabinets
13. Series Model Selection Comparison

10. Brief Wiring Logic
11. Connect 24 V DC PLC output to base terminals A1(+) そしてA2(-); LED illuminates and relay pulls in.
12. Pull-in State: 11(COM) ↔ 14(いいえ) 閉まっている; 11 disconnected from 12(ノースカロライナ州).
13. De-energized State: 11(COM) ↔ 12(ノースカロライナ州) 閉まっている; 11 disconnected from 14(いいえ).
14. Load Circuit: Connect AC220 V / DC24 V loads to COM+NO or COM+NC for switching control.
15. Troubleshooting Guidelines
16. LED off: No PLC output, reversed A1/A2 wiring, loose terminals
17. LED on but load inactive: Damaged relay insert, loose contact wiring, open-circuit load
18. Frequent contact ablation: 負荷電流が超過 6 あ; external auxiliary contactor required for capacity expansion
19. Unintended operation: No absorption component for inductive PLC loads; freewheeling diode can be paralleled on the base side

Application Scenarios of PHOENIX CONTACT PLC-BSC-24DC/21 (2966016)

これ 6.2 mm ultra-slim PLC interface relay base mainly realizes PLC transistor output isolation & transfer, strong/weak current separation and small load switching for compact control cabinet wiring. It fits all 24 V DC PLC digital output applications, categorized into industry segments, equipment types and cabinet internal functions as below:

1. General Automation OEM Equipment Applications

1.1 工作機械 & Metal Processing Equipment

CNC lathes, マシニングセンター, グラインダー, punch presses: PLC outputs drive cooling solenoid valves, lubrication pumps, tool magazine cylinders, indicator lights and small contactor coils

Bending machines, 切断機: Control pneumatic clamps, safety door warning lights and alarm buzzers

利点: Ultra-slim to save cabinet space; pluggable relay allows fast replacement without wire disconnection during machine breakdowns

1.2 包装, 充填 & Food Processing Machinery

Beverage filling machines, ラベラー, flow wrapping machines, 並べ替え & rejection equipment

Control material distributing cylinders, photoelectric rejection valves, conveyor start/stop, fault warning lights and hot air blowers

Suitable for clean-room control cabinets; screw terminals resist vibration and maintain stable service life under frequent switching cycles

1.3 3Cエレクトロニクス, リチウム電池 & PV Equipment

SMT placement machines, ディスペンサー, lithium battery filling/sealing equipment, PV module production lines

Drive micro solenoid valves, vacuum generators, sensor indicator lights and small signal contactors

High-density PLC output points fit the 6.2 mm narrow design for compact arrangement to solve space shortage in IO cabinets

1.4 運ぶ & 物流機器

ベルトコンベア, roller lines, automated warehouses, sorting lines, control cabinets matched with AGVs

Control track switch cylinders, stopper cylinders, position indicator lights, audio-visual fault alarms and guard lock prompts

2. Discrete Manufacturing Production Line Applications
3. Automotive Assembly Lines

Welding, coating and final assembly stations: Solenoid valves for robot clamps, station indicator lights, safety bypass prompts and pneumatic clamping mechanisms. Isolates heavy interference from welding machines to protect PLC output points from breakdown induced by inductive loads.

2. Rubber & Plastic Molding Equipment

射出成形機, 押出機: Barrel cooling fans, material suction solenoid valves, mold temperature controller signal switching and safety door status indicator lights

3. 印刷 & 繊維機械

Printing presses, warp knitting machines, 印刷 & 染色装置: Tension cylinders, ink valves, shutdown alarms and fabric deviation correction actuators

3. Municipal, 水処理 & HVAC Integrated Control Cabinets
4. 下水処理場, water supply pump station control cabinets: Bar screen alarms, electric valve signals, liquid level indicator lights and auxiliary control of submersible pumps
5. Central air conditioning & air purification units: Air damper actuators, humidifier solenoid valves and differential pressure alarm lights
6. Building intelligent control: Lighting zoning control, exhaust fans, access status feedback and fire linkage signal transfer

特徴: Designed for 24/7 連続運転; built-in freewheeling diode suppresses solenoid valve surge voltage to protect PLC I/O cards

4. 新エネルギー, Energy Storage & Test Equipment
5. Control cabinets matched with PCS energy storage converters, lithium battery testing equipment and auxiliary cabinets of PV inverters
6. High/low voltage electrical test benches and aging test equipment: Signal switching for test points, indicator lights and micro solenoid valves

広い使用温度範囲 (-25 ℃ ~ +60 ℃) fits indoor machine rooms and constant-temperature outdoor control cabinets

5. 鉄道交通 & Small Construction Machinery Matching

Metro platform screen door control cabinets, electrical boxes for small construction machinery (loaders, 切断機)

Drive warning lights, electromagnetic directional valves and operation panel indicator lights; vibration-resistant screw terminals prevent loose wiring

6. Typical Internal Cabinet Functional Applications (General Retrofit & Project Matching)
7. PLC Output Isolation Protection (コア機能)

24 V transistor PLCs including Siemens S7-1200/1500, アレン・ブラッドリー, 三菱, Inovance and Xinje only supply 0.5 出力電流, insufficient to directly drive solenoid valves or contactors. This relay expands the switching capacity to 6 A and isolates back EMF from inductive loads to avoid I/O point burnout.

2. Physical Separation of Strong & Weak Current Signals

4 kV insulation isolation between 24 V weak-current PLC control circuits and 220 V AC load circuits prevents high voltage back-feed to controllers and improves equipment safety rating.

3. High-Density IO Cabinet Wiring

6.2 mm ultra-slim width supports zero-gap side-by-side installation, doubling the number of relays on the same DIN rail length, ideal for centralized cabinets with massive I/O points.

4. Signal Distribution & Contact Conversion

1 set of changeover contacts (1NO+1NC) enables one PLC signal to control two different loads simultaneously; NC contact can be used for fault alarm circuits.

5. Equipment Retrofit & Old Cabinet Capacity Expansion

Replaces standard 14 mm wide relay bases to save rail space when existing cabinet space is limited. Pluggable relay design allows on-site maintenance without wire disconnection and reduces downtime.

7. Not Recommended Application Scenarios (Application Limitations)
8. 安全回路, emergency stop and safety door interlocks (440R series safety relays are required; this product has no force-guided contacts and fails to meet PL e safety certification)
9. High-power loads (single channel exceeding 6 A AC-15 / 3 A DC-13; external high-capacity contactors required for capacity expansion)
10. Outdoor unenclosed enclosures (IP20保護等級; must be installed inside standard sealed control cabinets)
11. Unshielded cabinets with heavy interference from high-frequency high-voltage large inverters (surge suppressors must be added for matching use)

Complete Mounting Instructions for PHOENIX CONTACT PLC-BSC-24DC/21 (2966016)

1. Basic Mounting Type: Standard DIN Rail Snap-in Installation (Only Official Mounting Method)
2. Applicable Rail Specification

Only compatible with national/European standard NS 35/7.5 DIN mounting rail (35 幅mm, 7.5 mm height). Direct panel mounting via drilled holes or wall screw mounting is not supported.

2. Arrangement Characteristics

Zero-gap dense side-by-side mounting available; の 6.2 mm slim design requires no reserved heat dissipation gap for high-density IO cabinet layout. Install PLC-ATP insulating partitions between adjacent modules with mixed high/low voltage circuits for reinforced electrical isolation.

3. Unrestricted Mounting Orientation

Can be mounted horizontally, laterally or vertically with no mandatory angle; only ensure adequate ventilation inside the control cabinet.

2. Step-by-Step Rail Assembly & Disassembly

2.1 Base Installation Steps

1. Remove oil stains and metal debris from the DIN rail surface and fix the rail firmly to the cabinet mounting plate.
2. Hook the upper rear latch of the base onto the top edge of the DIN rail slot.
3. Press down the lower half of the base until an audible click confirms the spring latch locks the base fully against the rail.
4. Install multiple modules side by side seamlessly in sequence.
5. Fit end stoppers at both rail ends if positioning is required to prevent sliding caused by vibration.

2.2 Base Removal Steps

1. Cut off power and disconnect all wiring.
2. Insert a flathead screwdriver into the spring latch slot at the bottom of the base.
3. Pry downwards to release the lower locking mechanism.
4. Tilt the bottom edge outward and lift the base up to disengage from the upper rail edge for removal.
5. Relay Insert Plug-in Installation (Base Matching Operation)

This product is base-only and must be paired with 2961105 / 2961118 relay inserts:

1. Align the relay with the upper slot of the base and press straight down for insertion.
2. The orange latch automatically locks to prevent loosening under vibration.
3. 除去: Pinch the orange latch to flip outward, then pull the relay insert upward for quick replacement without disconnecting wires.
4. Terminal Wiring Installation (M3 Screw Connection)
5. Standard wire stripping length: Fixed at 8 mm; excessive length risks short circuits, insufficient length causes poor contact.
6. Applicable Cables: 0.14~2.5 mm² solid/stranded wires, AWG26~14; ferrule terminals are recommended for stranded wires.
7. 締付トルク: 0.6~0.8 N·m; excessive torque strips screws, insufficient torque leads to heat and poor contact.
8. Terminal Partition: Left side A1/A2 (PLC制御回路); Right side 11/12/14 (load contact circuit). Clear zoning facilitates wiring.
9. Optional Matching Mounting Accessories
10. PLC-ATP Insulating Partition: Install between adjacent modules where one side carries 220 V high voltage and the other carries 24 V low voltage to strengthen electrical isolation.
11. FBST Plug-in Bridge Connectors: 共有 24 V power supply for multiple modules to parallel A1/A2 terminals in batches and reduce redundant wiring.
12. DIN Rail End Stoppers: Secure both ends of a full row of modules to prevent sliding and dropping during equipment transportation and vibration.
13. Mounting Environment & Restrictions
14. IP20保護等級; only for installation inside sealed control cabinets. Outdoor and unenclosed box installation prohibited.
15. Operating ambient temperature: -25 ℃ ~ +60 ℃; reserve ≥10 mm clearance above modules for heat dissipation.
16. Keep away from heat-intensive and high-interference devices such as inverters and contactors; avoid tight fitting with high-power heat sources.
17. Do not install in areas with direct exposure to water mist, heavy dust or corrosive gas.
18. Mounting Prohibitions
19. Violent knocking of base or relay insert is forbidden to avoid rear latch fracture.
20. Do not pull the base diagonally with force to prevent rail deformation and latch damage.
21. High/low voltage modules cannot be placed closely without insulating partitions, which carries risk of dielectric breakdown and electric leakage.
22. Exposed loose copper strands from multi-core wires at terminals are prohibited to avoid phase-to-phase short circuits.
