- 製品の基本的な位置付け
注文番号: シーメンス 6AV2124-0MC01-0AX0

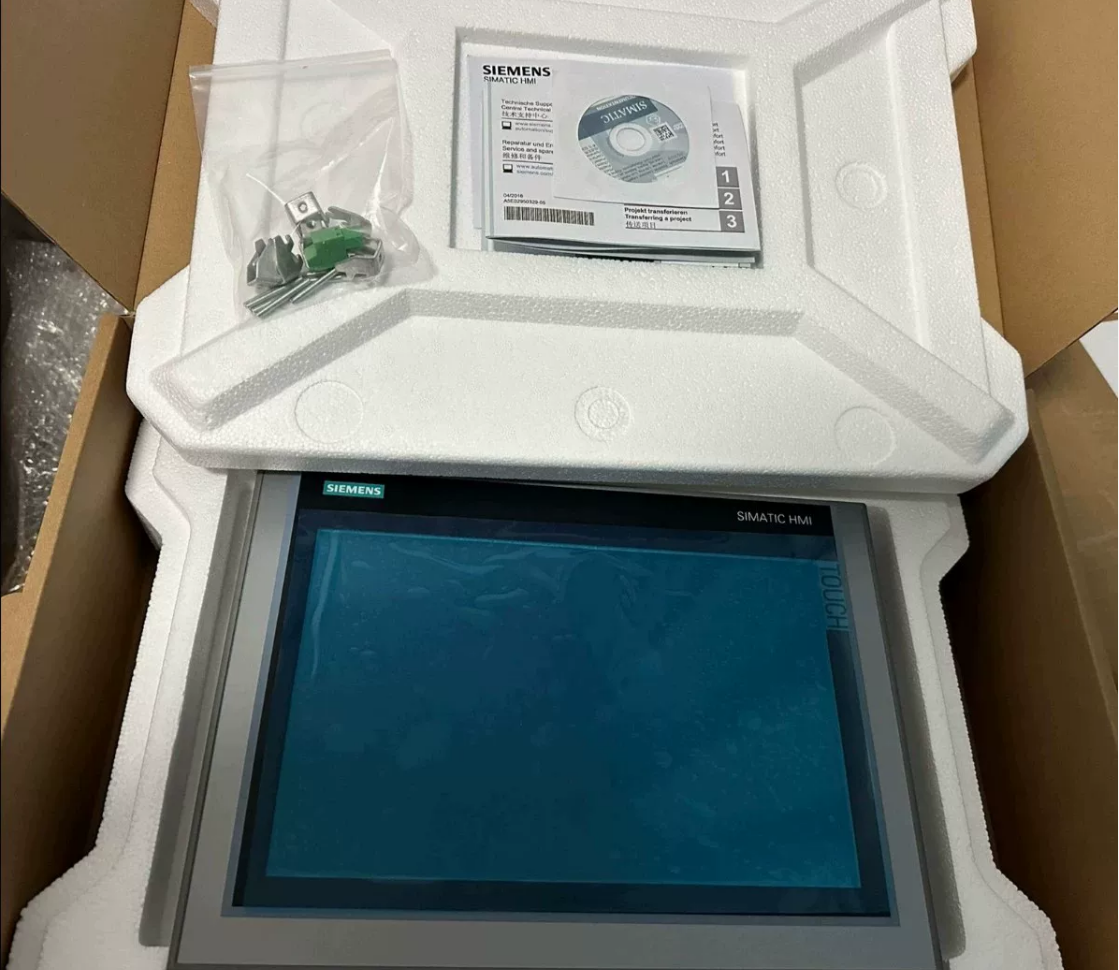

正式なモデル名: SIMATIC HMI TP1200 Comfort Panel
タイプ: 12.1-inch fully touch industrial human-machine interface (without physical keys)
Operating System: Windows CE 6.0, configured via TIA Portal WinCC Comfort
- Order Number Segment Breakdown (6AV2124-0MC01-0AX0)
| セグメント | 意味 |
| 6AV2 | SIMATIC HMI human-machine interface category |
| 124 | Comfort Panel series |
| 0M | 12-inch fully touch TP type |
| C01 | Standard hardware, dual communication: DP + PN |
| 0AX0 | No optional accessories, standard German original unit |
Ⅲ. Core Hardware Specifications
- 画面 & Touch
画面: 12.1-インチ 16:9 TFT wide screen
解決: 1280 × 800 WXGA
Color Depth: 16.77 million colors (24-bit true color)
Backlight: 導かれた, adjustable brightness 0~100%, MTBF 80,000 hours at 25°C
Touch Technology: Resistive touch, supports glove/stylus operation
取り付け: Embedded installation in landscape or portrait orientation
- ストレージ & パフォーマンス
User Project Memory: 12 MB
External Storage: 1 × SD/MMC card slot (for archiving, recipes, firmware upgrade)
ラム: 128 MB DDR3
プロセッサー: ARM Cortex-A9 400 MHz
- Electrical Power Supply
供給電圧: 直流 24 V, allowable range 19.2~28.8 V
定格電流: 0.85 あ, 標準的な消費電力 20 W
Built-in reverse polarity protection, mandatory PE grounding
重さ: 約. 2.8 kg
- Full Interfaces (Rear of Unit)
- 2 × PROFINET RJ45 Ports (switch cascading, 10/100 Mbps, IRT support)
- MPI / PROFIBUS DP Universal Serial Port (for legacy S7-300/400 PLCs)
- 2 × USB Host (タイプA): USB flash drive, mouse, printer
- 1 × Mini USB Device Port: Program download and debugging from PC
- SD memory card slot
- 保護 & 環境条件
フロントパネル: IP65 (防水, oil-proof, 防塵; direct mounting outside control cabinet)
Rear Housing: IP20 (for cabinet interior installation only)
動作温度: 0℃～+50℃ (no forced cooling for vertical mounting)
ストレージ / Transport Temperature: -20℃～+60℃
湿度: 10%~90%, 結露しないこと
Maximum Installation Altitude: 2000 メートル
- 切り取る & 全体の寸法
Overall Outer Size: 330 mm (W) × 241 mm (H)
Control Cabinet Cutout Size: 310 mm× 221 mm
取付深さ: 約. 56 mm
- Software Compatibility
- Minimum Configuration Software: TIA Portal V11 WinCC Comfort
- Fully compatible with TIA Portal V12 ~ V19; firmware upgrade required for V17/V19
- Supported Functions:
Trend curves, multi-language switching, user access rights management
Batch recipe read/write, data archiving, alarm logging
Built-in Web server, PDF/Excel viewer, media player
Automatic backlight off via PROFIenergy energy saving
VB scripting, direct S7 variable connection to S7-1200/1500/300/400/ET200SP
- 典型的なアプリケーションシナリオ
工作機械, packaging production lines, lithium battery production lines, 水処理システム
HVAC システム, 印刷機械, injection molding/die-casting equipment
Retrofit projects requiring compatibility with both new PN PLCs and legacy DP/MPI PLCs
Central control stations requiring large high-definition displays and long-term data archiving
- 同じシリーズの比較 & 交換オプション
Same-Size Same-Series Comparison
| モデル | Communication Difference | Distinction |
| 6AV2124-0MC01-0AX0 | 2 × PN + MPI/DP | Standard full-communication model, mainstream in market |
| 6AV2124-0QC02-0AX1 | PROFINET only, no DP | Economical version, not a direct replacement for legacy PLC retrofits |
アップグレード / Downgrade Alternatives
- Larger screen: TP1500 Comfort (6AV2124-0UC02-0AX1), 15-インチ
- Smaller screen: TP900 Comfort (6AV2124-0JC01-0AX0), 9-インチ
- With physical keys: KP1200 Comfort (6AV2124-1MC01-0AX0)
Ⅶ. 一般的なトラブルシューティング マトリックス
| 故障現象 | 根本的な原因 | Solution Steps |
| Black screen on power-up, power indicator off | Insufficient 24V supply / reversed wiring | Measure DC voltage, check positive/negative polarity, inspect fuse |
| Screen lit but touch offset / unresponsive | Failed touch calibration, surface oil contamination | Perform touch calibration in system; clean panel; reinsert touch cable |
| Frequent PROFINET disconnections | IP conflict, poor shielded cable, faulty switch | Assign static IP, use shielded Ethernet cable, replace switch port |
| Program download error, device unrecognized | Outdated TIA Portal version, obsolete firmware | Upgrade panel firmware, match corresponding TIA version |
| Slow operation, frequent restarts | Damaged SD card, project memory overflow | Replace SD card, simplify screens/archiving data |
VIII. Summary of Selection Advantages
- Dual Ethernet ports with PN+DP dual protocols: Compatible with both new and legacy Siemens PLCs, preferred choice for retrofit projects;
- 12-inch high-definition wide screen with 16.7 million colors, display performance far superior to Basic Panels;
- Industrial IP65 front panel, suitable for oily and dusty workshops;
- Complete advanced HMI functions including archiving, Web access and scripting to satisfy complex production line monitoring;
- Original German hardware with outstanding stability, 80,000-hour backlight lifespan for 24/7 連続生産.
Cross-Brand Comparison Table for Siemens 6AV2124-0MC01-0AX0 (TP1200 Comfort)
Core Positioning of Reference Model
Siemens TP1200 Comfort 6AV2124-0MC01-0AX0
位置決め: High-end 12-inch industrial HMI, dual-bus support for PROFINET + MPI/DP, 1280×800 wide screen resistive touch, deep TIA integration, advanced archiving/scripting/multi-protocol capability
Cutout Size: 310×221 mm, IP65 front panel, 直流 24 V power supply
- Benchmark International Premium Brands (Original Imported, Same High-End Grade)
- シュナイダーエレクトリック
| Benchmark Model | HMIGTU65 |
| 画面 | 12.1-インチ 16:9, 1280×800, resistive touch |
| コミュニケーション | Dual Ethernet, RS485/232; supports Modbus TCP, プロフィネット, イーサネット/IP |
| 設定ソフトウェア | Vijeo Design’Air, built-in scripting, data archiving, Web server |
| Matching Score | ★★★★☆; No native MPI/DP; communication module required for legacy S7-300/400; nearly identical cutout for direct replacement |
| 該当するシナリオ | Mixed-brand production lines, projects without PROFIBUS DP reliance |
- Mitsubishi Electric GT27 Series
| Benchmark Model | GT2712-STBA |
| 画面 | 12.1-インチ, 1280×800, resistive touch |
| コミュニケーション | イーサネット, RS485; supports MC Protocol, Modbus, プロフィネット (オプション) |
| 設定ソフトウェア | GT Works3, large-capacity recipe, trend and alarm archiving |
| Matching Score | ★★★☆☆; Natively optimized for Mitsubishi PLCs; PROFINET/Modbus required for Siemens connection; no native MPI |
| 該当するシナリオ | Japanese equipment retrofits, injection molding/machine tool production lines |
- Rockwell Automation AB PanelView Plus 7
| Benchmark Model | 2711P-T12W21D8S |
| 画面 | 12.1-inch 1280×800, 静電容量式マルチタッチ |
| コミュニケーション | イーサネット/IP, デュアルイーサネットポート, PROFINET/Modbus compatible |
| 設定ソフトウェア | FactoryTalk View ME, robust data traceability, production line MES integration |
| Matching Score | ★★★☆; Powerful industrial control performance but isolated from TIA ecosystem; high retrofit cost for PROFIBUS DP systems |
| 該当するシナリオ | Automotive welding workshops, full lithium battery production lines, all-AB automation projects |
- Omron NS12 / NA Series
| Benchmark Model | NA12W-T01 |
| 画面 | 12-inch wide screen 1280×800, resistive touch |
| コミュニケーション | EtherCAT, イーサネット, RS485, PROFINET gateway support |
| Matching Score | ★★★; Matches Japanese equipment; Modbus gateway required to connect Siemens PLCs |
- Mid-to-High-End Taiwanese Brands (Cost-Effective Retrofit Alternatives, Market Preferred)
Weintek cMT3120X (Top-tier model, direct Comfort equivalent)
画面: 12.1-inch 1280×800 wide screen, resistive touch
コミュニケーション: Dual Ethernet, RS485/232, USB; native S7 MPI/DP, プロフィネット, Modbusのサポート
設定ソフトウェア: EBPro; supports VBS scripting, mass data archiving, remote upload/download, Web viewer
Matching Score: ★★★★★; The only Taiwanese HMI with native Siemens DP bus compatibility; nearly identical cutout size for direct replacement of legacy Siemens units
短所: No native TIA integration; full project reconfiguration required; WinCC project migration unsupported
Weintek MT8121iE (Economical downgrade alternative)
Resolution 1024×768, single Ethernet port, no native MPI; for simple retrofits with tight budgets, not a full equivalent of TP1200 Comfort
Ⅲ. Mainstream Domestic Industrial HMIs (Low-Cost Localized Replacement)
- Kunlun MCGS TPC1231Ni
画面: 12.1-インチ, 1024×768 (4:3 aspect ratio, non-16:9 wide screen)
コミュニケーション: イーサネット, RS485; supports S7 Protocol, Modbus; no native DP/MPI
設定ソフトウェア: McgsPro; mature domestic configuration ecosystem with complete recipe/trend/alarm functions
Matching Score: ★★★☆; Aspect ratio mismatch requires full screen UI rework; suitable for new projects with PROFINET-only communication
- Samkoon AK-121AW
12.1-inch 1280×800 wide screen, Android OS, dual Ethernet + RS485; supports S7 and PROFINET
利点: 低コスト, built-in WiFi remote access; 短所: Inferior industrial stability and archiving capacity vs imported/top-tier Weintek models
- Cross-Brand Core Specification Comparison Table
| 比較項目 | Siemens TP1200 Comfort 6AV2124-0MC01 | Weintek cMT3120X | Schneider HMIGTU65 | Kunlun TPC1231Ni | Mitsubishi GT2712 |
| 画面サイズ | 12.1″ 16:9 | 12.1″ 16:9 | 12.1″ 16:9 | 12.1″ 4:3 | 12.1″ 16:9 |
| 解決 | 1280×800 | 1280×800 | 1280×800 | 1024×768 | 1280×800 |
| Native MPI/DP | ✅ Built-in | ✅ Built-in | ❌ Module required | ❌ | ❌ Optional add-on |
| Dual Ethernet Ports | ✅ | ✅ | ✅ | ❌ Single port | ✅ |
| Touch Type | 抵抗性 (glove-supported) | 抵抗性 (glove-supported) | 抵抗性 | 抵抗性 | 抵抗性 |
| Front Panel Protection | IP65 | IP65 | IP65 | IP65 | IP67 |
| Native Siemens PLC Compatibility | ★★★★★ Seamless TIA integration | ★★★★ Full protocol compatibility | ★★★ | ★★★ | ★★★ |
| Project Migration | Direct WinCC project upgrade | No direct migration, full screen redraw | No migration | No migration | No migration |
| Archiving & Script Performance | Top industrial grade | 素晴らしい | 素晴らしい | 中くらい | 素晴らしい |
| Price Tier | High-end original (Most expensive) | Top-tier Taiwanese (中高) | Imported Mid-range | Domestic Economical | Japanese Mid-High |
- 選択 & 交換決定ガイド
- Optimal Direct Replacement (Mixed new & legacy Siemens PLCs with DP devices)
Weintek cMT3120X
理由: The sole model compatible with both MPI/DP and PROFINET; matching cutout and screen aspect ratio, no cabinet modification required, lowest retrofit cost.
- Equivalent Imported Replacement (Overseas production lines, standardized projects)
Schneider HMIGTU65
Recommended only for lines without legacy S7-300/400 DP PLCs; additional communication card mandatory if PROFIBUS DP is used.
- New Projects with Tight Budget, S7-1200/1500 Only (プロフィネット)
Kunlun TPC1231Ni / Samkoon AK-121AW
Pure Ethernet communication scenario; drastically reduced hardware cost with convenient domestic after-sales support.
- Production Lines Matched with Japanese Equipment
Mitsubishi GT2712-STBA
Optimized for Mitsubishi FX/Q/L series PLCs; connect to Siemens PLCs via PROFINET.
- Replacement Risk Warnings (Universal Cross-Brand Limitations)
- No direct project migration: All third-party HMIs cannot open TIA WinCC projects; all screens, scripts and alarms require full reconfiguration;
- PROFIBUS DP limitation: Except Weintek cMT3120X, all other brands lack native MPI/DP ports; DP gateway hardware must be added for legacy S7-300/400 retrofits, increasing total cost;
- Aspect ratio discrepancy: Kunlun 1024×768 is 4:3; original 16:9 screen content will stretch and distort, requiring full UI redesign;
- Missing ecosystem linkage: Siemens native functions including PROFIenergy, IRT real-time communication and unified TIA diagnostics are unsupported on third-party HMIs, which only provide basic data read/write capability without advanced features.
