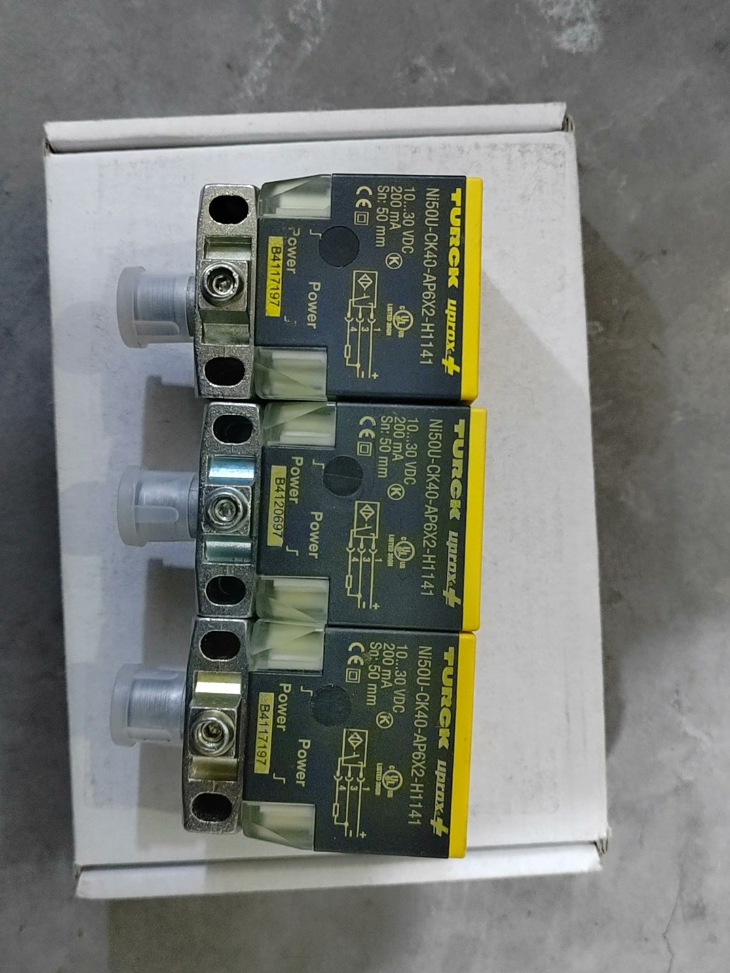

TURCK uprox+ Square Inductive 近接センサー, 部品番号: 1625837
型式コードの説明
| コードセグメント | 説明 |
| NI50U | uprox+ series, rated sensing distance 50 mm, Factor‑1 (nearly identical sensing distance for iron, aluminum and copper) |
| CK40 | Square housing, dimension 65×40×40 mm, sensing face adjustable in 5 directions |
| AP6X2 | 3‑wire DC, PNP Normally‑Open (いいえ), enhanced output, short‑circuit protection |
| H1141 | M12‑4‑pin male connector |
W/BS4 version: with BS4 mounting bracket, 部品番号. 1625868
コアの電気パラメータ
供給電圧: 1030 VDC
出力: 3wire PNP NormallyOpen (いいえ)
Rated Sensing Distance Sn: 50 mm (nonflush mounting)
Safe Operating Distance: ≤0.81×Sn
マックス. 負荷電流: 200 ミリアンペア
Noload Current: ≤15 mA
スイッチング周波数: 250 Hz
保護: Cyclic shortcircuit protection, reversepolarity protection, wirebreak protection
電圧降下: ≤1.8 V
機械式 & 環境仕様
寸法: 65 × 40 × 40 mm
ハウジング材質: PBTGF20V0; Sensing Face: PA12GF30
保護クラス: IP68
動作温度: 30 ℃ ~ +85 ℃
Magnetic Field Resistance: 300 mT, resistant to strong magnetic interference
特徴: Factor1, consistent sensing distance for all metal types; sensing face with 5 adjustable mounting orientations
耐振動性: 55 Hz /1 mm; 耐衝撃性: 30 g /11 ms
M124pin Pin Assignment (Male Connector)
- 茶色: DC24V+
- 青: 0V/GND
- 黒: PNP信号出力
- Not assigned
主な特長
- Patented multicoil uprox+ technology, Factor1, constant sensing distance for aluminum, copper and iron, independent of target metal material
- Sensing face rotatable in 5 directions for flexible installation
- High resistance to strong magnetic fields, suitable for weldingmachinesurrounding applications
- IP68 rated, 湿気や埃に強い; ideal for logistics, 自動車, construction machinery and conveyorline metaldetection applications
代替選択のリファレンス
OEM TURCK Replacements
NPN NormallyOpen Version: NI50UCK40AN6X2H1141
PNP+NPN Dual Output: NI50UCK40VP4X2H1141
With mounting bracket: 1625868 (NI50UCK40AP6X2H1141 W/BS4)
国内互換性のある代替品 (パラメータのマッチング)
Square 40×40 housing, 50 mm Factor1, PNPNO, M12コネクタ. 主要な選択基準: 50 mm sensing distance, Factor1 characteristic, 30~85 ℃ operating temperature, IP68 rating.
Customs Classification Reference
Inductive proximity switch, HScode: 85365000 (Electrical switches), Country of origin: ドイツ, 重量約. 120 g.
よくあるトラブルシューティング
- Sensor LED off: Check pins 12 power supply and polarity. Reverse polarity will not destroy the sensor but causes no output.
- Power supplied but no output when metal approaches: Verify target metal material; keep actual working distance ≤40 mm. Keep largesize metal objects away from sensor side faces. Although uprox+ resists predamping, adjacent bulk metal will still attenuate sensing performance.
- Output chattering: Do not exceed 200 mA load current; check powersupply ripple; reduce operating switching speed.
Application Cases for TURCK uprox+ CK40Series Square Sensors (NI50UCK40AP6X2H1141)
主な利点: Factor1 uniform metal sensing, 5direction adjustable sensing face, 50 mm long sensing distance, weldingfield magneticfield resistance, IP68, 30~+85 ℃ wide temperature range, M12 quickdisconnect connector. 40×40 square housing, optimized for longrange detection, high installation tolerance, mixedmetaltarget detection and heavyEMIinterference environments.
- Automotive Weldingshop / BIW Production Lines (Typical Highfrequency Working Condition)
Scenario 1: Skidconveyor Position Detection
目的: Position confirmation of transport skids, to inform PLC for skid release / locking. Skids are made of mixed carbon steel, aluminum alloy and stainlesssteel materials.
Pain Points: Conventional proximity sensors suffer heavy sensingdistance attenuation for aluminum targets; strong magneticfield interference in welding stations causes false triggering; variable onsite installation space requires multidirection detection capability.
CK40 Advantages: Constant 50 mm sensing distance for iron / アルミニウム / stainlesssteel via Factor1; weldingmagneticfield immunity; 5way rotatable sensing face without mechanicalbracket modification; long sensing distance absorbs assembly tolerances.
インストール: Mounted on side / bottom of machine frame, nonflush mounting; safe working distance controlled ≤40 mm.
Scenario 2: Toolingfixture & locatingpin Position Feedback
目的: Position feedback for robot grippers and locatingpins (retracted / extended status), to prevent collision caused by incomplete fixture positioning.
注記: For heavyweldspatter stations, select variants with WeldGuard antispatter coating. Install protective baffles for standard PBThousing sensors.
- Logistics Warehousing, Stacker Cranes & AGV
Scenario 1: Stackercrane Fork Limit & Strokeend Detection
目的: Zeropoint and upper/lowerlimit detection for fork extension / retraction; forkinposition signal for anticollision protection against racking.
Working Conditions: Lowtemperature warehouse down to 20 ℃; heavy vibration & ショック; mixed steelaluminumalloy target profiles.
CK40 Benefits: Operating down to 30 ℃; 30 g shock resistance; 50 mm long sensing distance maintains stable signal despite fork mechanical oscillation; M12 quickconnector simplifies field replacement & メンテナンス.
Scenario 2: AGV Liftingmechanism Limit & Palletpresence Detection
目的: Upperlimit & lowerlimit detection for AGV lifting platforms; palletpresence confirmation on conveyor lines.
Pain Points: Mixed steelpallet / aluminumpallet handling, conventional sensors lose range on aluminum targets; heavy vehiclebody vibration for AGVs.
選択メモ: NI50UCK40AP6X2H1141 (PNPNO), directly compatible with PLC digital input modules.
- コンベアライン, 包装 & General Assembly Automation
シナリオ: Heavyduty Rollerconveyor Workpiece Arrival & Stoppercylinder Position Feedback
目的: Workpiece / totebin arrival detection; 延長された / retractedposition feedback for stopper cylinders; highspeed counting, workpiece overtravel prevention.
Working Conditions: Coolant splash and heavy dust, IP68 resistance required; mixed iron / アルミニウム / copper workpieces flowing through line.
Comparison vs Conventional Sensors: Standard inductive sensors show only 3040 % nominal range for aluminum targets; uprox+ CK40 maintains full performance and reduces sparepart SKUs.
- 工作機械, Stamping Lines & 建設機械
Scenario 1: Machinetool Slidetable & Heavyduty Tooling Limit Detection
目的: Hardlimit signal for largemachinetool slides; predetection of sheetmetal arrival in stamping lines for moldcrash prevention.
Pain Points: Strong EMI interference from motors & 周波数変換器; heavy equipment vibration; constrained installationcommissioning space.
利点: Builtin shortcircuit, reversepolarity and wirebreak protection; magneticfield immunity; 5direction sensingface adjustment without custommade brackets.
Scenario 2: External Position Feedback for Constructionmachinery Hydraulic Cylinders
目的: External limit detection for large hydraulicactuated movingmechanisms, detecting position of cylinder metal stops.
Working Conditions: アウトドア / semioutdoor service, wide temperature swing, raindust exposure. IP68 and widetemperaturerange performance wellsuited.
- Windpower Equipment (Harsh Outdoor Conditions)
シナリオ: Pitchmechanism Position Detection & Compartmentdoor Limit in Windturbine Nacelles
目的: Camposition signal for pitchcontrol; nacelle safetydoor openclosed detection; position feedback for internal nacelle metal structures.
Working Conditions: Extreme low temperature down to 30 ℃; generatororiginated strong magneticfield interference; high vibration; humid condensingatmosphere.
CK40 Compatibility: Factor1 performance; 30 ℃ lowtemperature capability; EMC / magneticfield immunity; IP68 prevents condensationwater ingress.
- Specialpurpose Equipment: Largescale Amusementride Machinery
シナリオ: Locklatch & Mechanicalstop Position Confirmation for Rollercoasters & Largescale Rides
目的: Closedlock confirmation for safetybars; mechanical zeropoint detection for rotating mechanisms.
Pain Points: Large installation tolerances, mechanism oscillation during operation requiring ample sensing margin; mixed steelaluminum target components.
価値: 50 mm long sensingdistance provides stable detection even with mechanicalwear and minor bracket deformation.
選択 & Onsite Application Notes for CK40 NI50UCK40AP6X2H1141
- Nonflush mounting is mandatory, do not embed into metal. Safe practical operating distance ≤40 mm (0.81×Sn), avoid operating at full 50 mm nominal distance.
- Adjacent bulk metal causes predamping effect; keep sufficient metalfree clearance alongside sensor side faces.
- Weldspatterexposed environments: StandardCK40 housing does not resist weldspatter accumulation. Install protective baffles or select WeldGuardcoated variants.
- Wiring for M124pin male connector: Pin1 24V brown, Pin2 0V blue, Pin3 PNPoutput black, Pin4 unused.
- Alternative variants:
NPN Version: NI50UCK40AN6X2H1141
PNP/NPNcomplementary Output: NI50UCK40VP4X2H1141
With BS4 mountingbracket: 部品番号. 1625868
Complete Technical Data of TURCK NI50UCK40AP6X2H1141 (uprox+ CK40 Square Inductive Proximity Sensor)
部品番号: 1625837
Patented uprox+ Factor1: Nearidentical sensing range for iron, アルミニウム, copper and stainlesssteel; 5direction rotatable sensing face; weldingmagneticfield resistance; IP68 highprotection rating.
- Sensingperformance Parameters
| アイテム | 価値 |
| Rated Sensing Distance Sn | 50 mm (non‑flush mounting) |
| Safe Operating Distance | ≤ 0.81×Sn ≈ 40.5 mm (engineering recommendation ≤40 mm) |
| 取付タイプ | Non‑flush mounting, partial metal embedding permitted; full embedding forbidden |
| 繰り返し精度 | ≤ 2 % of full scale |
| ヒステリシス | 3 ~ 15 % Sn |
| Temperature Drift | ±10 % (‑25℃~+70℃); ±20 % (‑30~‑25℃ / +70～+85℃) |
| スイッチング周波数 | 250 Hz (0.25 kHz) |
| 特性 | Factor‑1 uniform‑metal sensing; withstand DC / AC magnetic‑field up to 300 mT |
- 電気的パラメータ
| アイテム | 価値 |
| Supply Voltage UB | 10 ~ 30 VDC |
| Permissible Ripple | ≤ 10 % UBmax |
| 出力タイプ | 3‑wire DC, PNP Normally‑Open (いいえ) |
| マックス. Load Current Ie | 200 ミリアンペア |
| No‑load Current | ≤ 15 mA |
| Residual Leakage Current | ≤ 0.1 mA |
| 出力電圧降下 (full‑load Ie) | ≤ 1.8 V |
| Insulation Test Voltage | 0.5 kV |
| 保護機能 | Cyclic short‑circuit protection, reverse‑polarity protection, wire‑break protection |
| 電気接続 | M12×1‑4‑pin male connector (H1141) |
M124pin Assignment
Pin1 Brown: DC24V+
Pin2 Blue: 0V/GND
Pin3 Black: PNP信号出力
Pin4 Not assigned
- 機械的パラメータ
| アイテム | 仕様 |
| 全体の寸法 | 65 × 40 × 40 mm (CK40 square housing) |
| ハウジング材質 | PBT‑GF20‑V0 (本体); Sensing‑face PA12‑GF30 (黄色) |
| Sensing‑face Orientation | 5‑direction adjustable (上 / 下 / 左 / 右 / フロント), no bracket modification required |
| LED Indicator | Multi‑view high‑visibility bicolor LED; power‑on & ステータス表示 |
| 重さ | 約. 120 g |
| 原産国 | DE (ドイツ) |
- 環境 & 機械的耐久性
| アイテム | 仕様 |
| 侵入保護 | IP68 |
| 動作周囲温度 | ‑30 ℃ ~ +85 ℃ |
| 耐振動性 | 55 Hz, 1 mm amplitude |
| 耐衝撃性 | 30 g, 11 ms half‑sine wave |
| EMCイミュニティ | Resistant to welding‑machine‑generated strong magnetic‑fields; compliant with industrial EMC standards |
- Minimum Installation Clearance (Critical for CK40 Series)
Adjacent bulk metal triggers predamping effect, maintain safety gaps:
Sensor sideface to metal wall: ≥ 105 mm
Sidebyside sensortosensor spacing: ≥ 60 mm
Metal object behind sensor: ≥ 240 mm
Version with BS4 mountingbracket: 部品番号. 1625868 (NI50UCK40AP6X2H1141 W/BS4)
- Main CK40housing Variant Overview
| モデル | 出力 | 部品番号. | 備考 |
| NI50U‑CK40‑AN6X2‑H1141 | 3‑wire NPN‑NO | 1625840 | NPN output variant |
| NI50U‑CK40‑VP4X2‑H1141 | 4‑wire complementary PNP/NPN | 1538302 | NO+NC dual‑output, supply 10‑65VDC |
| NI50U‑CK40‑IOL6X2‑H1141 | IO‑Link output | 1625871 | IO‑Link v1.1, パラメータ化可能 |
| NI40U‑CK40‑AP6X2‑H1141 | PNP‑NO Sn=40 mm | 1623641 | Same housing, 40 mm rated sensing distance |
- Customsclassification Information
製品カテゴリー: Inductive proximity switch
Reference HScode: 85365000 (Electrical switches)
- Critical Application Limitations
- Flush metalembedding installation is prohibited. Do not operate at full 50 mm nominal distance; keep practical working distance ≤40 mm.
- For weldspatterexposed locations, standard housing cannot resist weldspatter accumulation. Install protective baffles or select WeldGuardcoated variants.
- Never exceed 200 mA loadcurrent; otherwise cyclic shortcircuit protection will trigger and cause output chattering.
