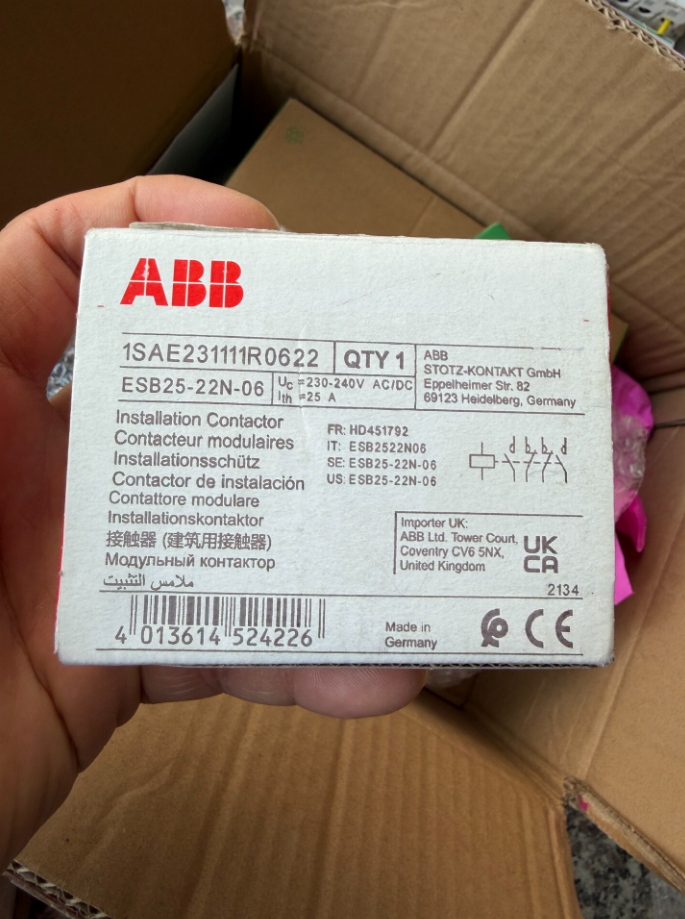

ABB ESB25-22N-06 Building Contactor

ESB25-22N-06

ESB: ABB modular building installation contactor series
25: Rated operational current AC-1/AC-7a of main contacts = 25A
22: Contact configuration: 2 Normally Open (NO) + 2 Normally Closed (NC) (4-pole)
N: Silent AC/DC universal coil (no buzzing sound, built-in overvoltage absorption circuit)
06: Coil control voltage: AC/DC 230～240V

Original manufacturer part number: 1SAE231111R0622

Domestic order number: 10228794

Core Electrical Specifications

2.1 Main Circuit Load Ratings (400VAC/230VAC)

Utilization Category	Rated Current Ie	Single-phase 230V Load Power
AC-1/AC-7a (Resistive: Lighting, Heating)	25A	5.8kW
AC-3/AC-7b (Inductive loads: Motors, Pumps)	NO contacts: 9A / NC contacts: 6A	1.3kW

Rated insulation voltage Ui: 500V

Rated impulse withstand voltage Uimp: 6kV

Maximum main circuit voltage: 400V AC / 220V DC

2.2 Control Coil

Control voltage: AC/DC 230～240V (universal for AC & DC)

Applicable frequency: 50/60/400Hz

Features: Silent operation, low power consumption, built-in surge suppression, no additional varistor required

2.3Mechanical & Electrical Endurance

Mechanical endurance: 1,000,000 operations

Electrical endurance for AC-1 resistive loads: 130,000 operations

Electrical endurance for AC-3 motor loads: 500,000 operations

Mechanical Dimensions & Installation

Mounting method: Snap-on mounting on standard 35mm DIN rail

Module width: 2 modules (36mm)

Overall dimensions: W36mm × H85mm × D65mm

Net weight: 0.245kg

Protection class: IP20 (for indoor cabinet use only)

Termination: Screw terminals, tool-free auxiliary contact expansion interface

Product Features
Silent Coil: Universal for AC and DC, suitable for noise-sensitive areas such as machine rooms, dormitories and hotels
Integrated Overvoltage Protection: Built-in absorption circuit on coil to suppress switching surges
Wide Load Compatibility: Supports lighting, floor heating, fans, water pumps and small single-phase motors simultaneously
Compact Modular Design: 2-module width to save cabinet space
Equipped with 2NO and 2NC contacts, enabling synchronous control of two switch-on circuits and two switch-off circuits for flexible circuit design
Typical Application Scenarios

Commercial buildings: Public lighting, central air conditioning fans, floor heating modules

Hotels & apartments: Automatic control of room lighting, fresh air systems and water pumps

Machine & electrical rooms: Thermostatic equipment, load switching in power distribution cabinets

Light industrial applications: Switching of resistive loads ≤25A and single-phase motors ≤1.3kW

Optional Matching Accessories
Auxiliary contact modules: EH04-11N (1NO+1NC), EH04-20N (2NO)
Spacing heat dissipation baffles: ESB-DIS (for multiple units installed side-by-side in high-temperature environments)
End cover plates: ESB-PLK24, ESB-SPK24
Reference Alternative Models in the Same Series

24V AC/DC coil: ESB25-22N-01

4NO with 230V coil: ESB25-40N-06

4NC with 230V coil: ESB25-04N-06

Complete Model List of ABB ESB Silent Building Contactors

Model Coding Rule (ESBXX-XXN-XX)
ESB: Silent AC/DC universal building contactor (built-in surge suppression, buzz-free)
First two XX digits: Rated AC-1 current rating: 16/20/25/40/63/100A
Middle two XX digits: Main contact configuration (first = NO, second = NC)

11=1NO+1NC, 20=2NO, 02=2NC, 22=2NO+2NC, 40=4NO, 04=4NC

N: Silent coil identifier
Last two digits: Coil voltage code (2 commonly used versions in domestic market)

01: AC/DC 24V

06: AC/DC 230~240V (mainstream for civil use; your model ESB25-22N-06 adopts this voltage)

07: AC/DC 400~415V (for industrial three-phase control)

Basic Specifications by Current Rating

Model Prefix	Rated AC-1 Current	Module Width	Applicable Loads
ESB16	16A	1 module (18mm)	Small lighting, small electrical appliances
ESB20	20A	1 module (18mm)	General lighting, fans
ESB25	25A	2 modules (36mm)	Floor heating, water pumps, single-phase motors
ESB40	40A	3 modules (54mm)	High-power heating, three-phase lighting
ESB63	63A	3 modules (54mm)	Commercial central air conditioning, high-power loads
ESB100	100A	6 modules (108mm)	Main control for large buildings, heavy three-phase loads

Full Model List by Current Rating (Domestic common 01/06 voltage, including industrial 07 version)

3.1 ESB16 (16A, 1 module)

Contact configurations: 11, 20, 02

ESB16-11N-01 / ESB16-11N-06 / ESB16-11N-07

ESB16-20N-01 / ESB16-20N-06 / ESB16-20N-07

ESB16-02N-01 / ESB16-02N-06 / ESB16-02N-07

3.2 ESB20 (20A, 1 module)

Contact configurations: 11, 20, 02

ESB20-11N-01 / ESB20-11N-06 / ESB20-11N-07

ESB20-20N-01 / ESB20-20N-06 / ESB20-20N-07

ESB20-02N-01 / ESB20-02N-06 / ESB20-02N-07

3.3 ESB25 (25A, 2 modules, your model belongs to this series)

Contact configurations: 20, 02, 22, 40, 04

ESB25-20N-01 / ESB25-20N-06 / ESB25-20N-07

ESB25-02N-01 / ESB25-02N-06 / ESB25-02N-07

ESB25-22N-01 / ESB25-22N-06 / ESB25-22N-07 (your model ESB25-22N-06)

ESB25-40N-01 / ESB25-40N-06 / ESB25-40N-07

ESB25-04N-01 / ESB25-04N-06 / ESB25-04N-07

3.4 ESB40 (40A, 3 modules)

Contact configurations: 40, 04, 22

ESB40-40N-01 / ESB40-40N-06 / ESB40-40N-07

ESB40-04N-01 / ESB40-04N-06 / ESB40-04N-07

ESB40-22N-01 / ESB40-22N-06 / ESB40-22N-07

3.5 ESB63 (63A, 3 modules)

Contact configurations: 40, 04

ESB63-40N-01 / ESB63-40N-06 / ESB63-40N-07

ESB63-04N-01 / ESB63-04N-06 / ESB63-04N-07

3.6 ESB100 (100A, 6 modules)

Contact configuration: 40

ESB100-40N-01 / ESB100-40N-06 / ESB100-40N-07

Manual Operation Version EN Series (Optional, with manual toggle lever)

Same coding rule as ESB, prefixed with EN, e.g. EN20-22N-06, EN25-40N-06, for on-site manual switching and commissioning.

Matching Accessory Part Numbers
Auxiliary contact modules: EH04-11N (1NO+1NC), EH04-20N (2NO)
Side-by-side heat dissipation baffles: ESB-DIS
End cover plates: ESB-PLK24 (for 1/2-module models), ESB-PLK40/63 (for 3/6-module models)
Side sealing plates: ESB-SPK24, ESB-SPK40/63
Cross Reference of Common Domestic Order Numbers (06 version with 230V coil)

ESB16-22N-06: 1SBE111111R0622

ESB20-22N-06: 1SBE121111R0622

ESB25-22N-06: 1SAE231111R0622 (Order No.: 10228794)

ESB25-40N-06: 1SAE231111R0640 (Order No.: 10228796)

ESB40-40N-06: 1SAE341111R0640

ESB63-40N-06: 1SAE351111R0640

Official Mechanical Endurance Parameters of ABB ESB25-22N-06

Mechanical Durability: 1,000,000 operations

Reference Supporting Electrical Endurance (Original Manufacturer Data for Same Model)

Resistive loads AC-1 / AC-7a (Lighting, Heating)

Normally Open (NO) contacts: 130,000 operations

Normally Closed (NC) contacts: 50,000 operations

Motor loads AC-3 / AC-7b (Fans, Water Pumps)

Normally Open (NO) contacts: 500,000 operations

Normally Closed (NC) contacts: 340,000 operations

Supplementary Notes

All models in ESB25 series (ESB25-20/02/22/40/04N-01/06/07) share a unified mechanical endurance of 1,000,000 operations, unaffected by contact configuration or coil voltage.
Mechanical endurance refers to pure mechanical actuation cycles with no load, only coil pull-in and drop-out; electrical endurance means the effective service life of contacts under rated load switching.
Ambient operating temperature range: -25℃ ~ +55℃. Temperatures exceeding 55℃ will shorten electrical endurance, while mechanical endurance is barely affected by minor temperature fluctuations.
