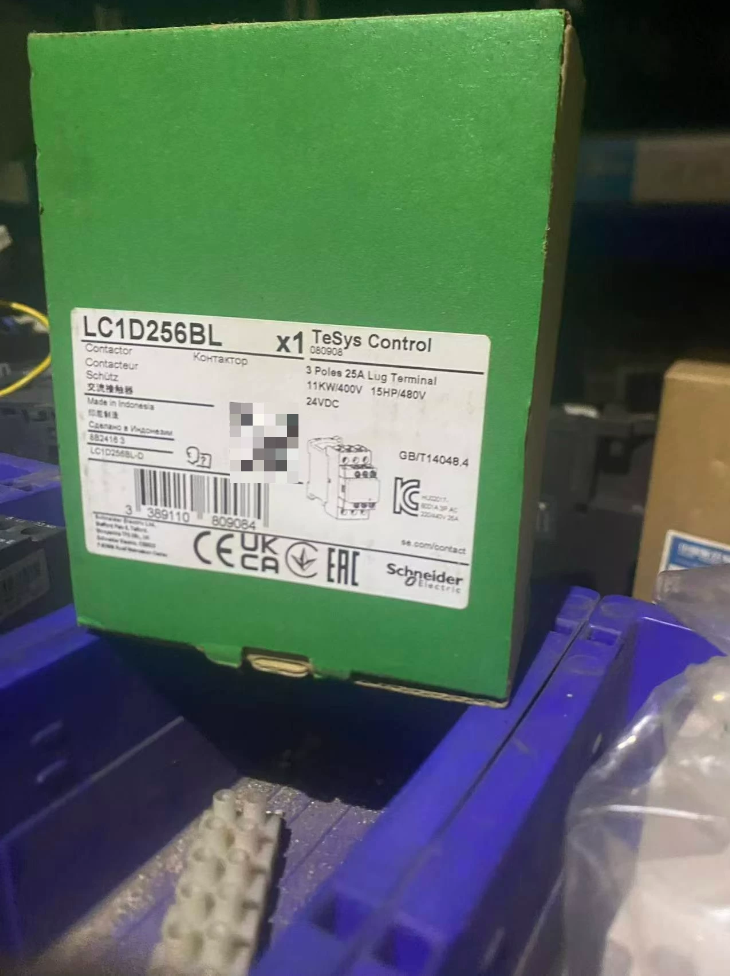

Schneider LC1D256BL Contactor

Model Code Explanation

2. Main Technical Specifications

3. Full Model List (LC1D Series, 25A Range)

4. Cross-brand & Old/New Model Replacement List

4.1 In-brand Replacement (Schneider)

4.2 Cross-brand Replacement

5. Application Environment & Industry Cases

5.1 Recommended Applications

Industrial Automation: Control of three-phase asynchronous motors (fans, water pumps, compressors, conveyors)

HVAC Systems: Air conditioning compressors and ventilation systems

Building Electrical: Building automation, lighting systems and fire-fighting equipment

Energy Industry: Power generation equipment, power distribution systems and renewable energy facilities

Water Treatment: Water pump control and wastewater treatment equipment

Marine & Railway: Transportation industry requiring special certifications (LC1D series advantages)

5.2 Not Recommended Applications

High-frequency switching: Over 1200 operations per hour (Select LC1Q / LC1R series instead)

High altitude: Elevation over 2000m (Derate load or use special models)

Corrosive environments: Direct exposure to acid, alkali and salt mist (Additional protection required)

Explosion-proof areas: Special explosion-proof certified models are mandatory

5.3 Typical Application Cases

1. Automobile Manufacturing Plant

Used for motor control of stamping production lines. After replacement, breaking time is reduced by 30%, failure rate drops by 50%, maintenance time is shortened from 2 hours to 30 minutes, and annual maintenance cost is cut by about 200,000 RMB.

2. Food & Beverage Industry

Applied to three-phase motors of filling lines. Thanks to 2.4W low power consumption, each contactor saves approximately 18 kWh per year under 24-hour continuous operation. A factory with 100 units saves 1,800 kWh annually.

3. Data Center

Controls air conditioning compressors and ventilation fans. The 24VDC low-power coil ensures stable operation under UPS power supply, reduces battery load and extends backup duration.

6. Selection Guidelines & Quick Reference Rules

Quick Selection Tips

This is a 3-pole 25A contactor with 24VDC low-power coil and ring terminals. Equipped with 1NO+1NC auxiliary contacts, it features energy efficiency, high reliability and long service life, ideal for motors, water pumps and compressors.

Quick Reference Rules

1. Current Matching: 25A under AC-3 for 11kW three-phase motors; 40A capacity for resistive loads under AC-1.
2. Coil Identification: Suffix BL = 24VDC low power; B7 = 24VAC low power; BD = 24VDC standard power.
3. Auxiliary Contacts: Standard 1NO+1NC. Models with suffix 01 or 10 for alternative contact configurations.
4. Installation: Standard 35mm DIN rail mounting; ring terminals ensure reliable connection.
5. Energy Saving: Low-power coil (≤2.4W) saves 70% energy compared with standard coil (approx. 8W), perfect for long-term operation.
6. Common Faults & Troubleshooting

8. Key Ordering Information

Standard Model: LC1D256BL

Alternative Models: LC1D25BD (standard power version), LC1D256B7 (24VAC low-power version)

Compatible Accessories:

Auxiliary contact blocks: LADN series (e.g. LADN20C: 2NO; LADN02C: 2NC)

Overload relays: LRD series (e.g. LRD08C: 6-10A, matches 25A contactor)

Mounting base: Optional separate base

Application Scenarios for LC1D256BL

Core features: 3-pole 25A, 24VDC low-power coil, long service life, standard DIN rail mounting, 1NO+1NC auxiliary contacts, strong anti-interference performance.

1. Recommended Application Scenarios (Main Applications)

Featured with 24VDC low-power DC coil, this model perfectly matches standard industrial DC control circuits. Its 25A rating is suitable for three-phase motors up to 11kW and resistive loads up to 40A, serving as a mainstream component for automatic control cabinets.

1.1 Industrial Automation Equipment (Core Application)

Applicable Equipment

PLC/DCS control cabinets, small machine tools, manipulator auxiliary mechanisms, inverter-driven fans, small drive motors, test and inspection equipment.

Advantages

24VDC is the mainstream control voltage for industrial control systems, no extra power converter required.

DC coil provides strong EMC performance, avoiding misoperation caused by inverters and servos.

Low power (≤2.4W) generates little heat during continuous power-on, suitable for 24/7 standby equipment.

1.2 HVAC & Air Ventilation Systems

Applicable Equipment

Indoor & outdoor unit fans of central air conditioners, condensate pumps, cooling tower fans, fresh air handling units, damper drive motors, machine room exhaust fans.

Advantages

HVAC rooms widely adopt 24VDC automatic control circuits for high compatibility.

Low power design reduces energy consumption and cabinet temperature for year-round continuous operation.

Operating temperature range: -25°C ~ +70°C, adapts to drastic temperature changes in machine rooms.

1.3 Building Electrical & Fire Emergency Systems

Applicable Equipment

Domestic water pumps, basement exhaust fans, fire smoke exhaust fans, fire roller shutter motors, centralized emergency lighting circuits (resistive loads).

Advantages

Standard 24VDC for fire emergency circuits, directly powered by UPS/emergency batteries for normal operation during power failure.

Built-in 1NO+1NC auxiliary contacts transmit operation/fault signals to fire alarm hosts and building monitoring systems.

40A load capacity under AC-1 for multi-circuit lighting control.

1.4 Water Treatment Industry (Sewage / Purified Water / Circulating Water)

Applicable Equipment

Circulating water pumps, dosing metering pumps, aeration fans, small agitator motors, ventilation equipment for water treatment workshops.

Advantages

Almost all automatic control systems for water treatment use 24VDC.

IP20 protection rating adapts to slightly humid indoor machine rooms.

Satisfactory electrical endurance for frequent start-stop operation with low failure rate.

1.5 New Energy, PV & Energy Storage Cabinets

Applicable Equipment

Cooling fans for PV boxes, temperature control pumps for battery compartments, ventilation motors of energy storage cabinets, small auxiliary inverter loads.

Advantages

PV and energy storage systems are DC-powered inherently; no inverter needed for 24VDC coil.

Ultra-low coil power avoids extra consumption of backup battery power and extends backup time.

No AC humming for DC coil, ideal for quiet energy storage rooms.

1.6 Logistics, Warehousing & Conveyor Lines

Applicable Equipment

Belt conveyors, roller sorting lines, small elevators, warehouse ventilation fans.

Advantages

Mechanical and electrical endurance meets frequent regular start-stop for long-running production lines.

Auxiliary contacts realize interlock, chain control and sequence start to ensure safety logic of production lines.

1.7 Food, Packaging & Light Industrial Equipment

Applicable Equipment

Conveyors of packaging machines, auxiliary motors of filling lines, dehumidifiers and ventilation fans for workshops.

Advantages

Suitable for clean indoor workshops without heavy corrosion; standard rail mounting facilitates standardized cabinet wiring.

Compact structure saves cabinet space, a standard OEM component for complete machines.

2. Not Recommended / Prohibited Scenarios (Risks & Alternatives)

2.1 High-frequency Start-Stop (Over 1200 cycles per hour)

Risk: Excessive switching frequency causes rapid contact ablation, welding and shortened service life.

Alternative: Schneider LC1R / LC1R series high-frequency contactors.

2.2 Altitude above 2000m

Risk: Thin air degrades arc extinction capability, leading to arcing and reduced insulation performance.

Recommendation: Use special high-altitude contactors or derate the load by over 30%.

2.3 Severe Corrosion, Salt Spray & Heavy Dust (Chemical Plants, Coastal Open Areas, Mines)

Risk: IP20 rating cannot protect coil, terminals and contacts from acid, alkali, salt mist and dust erosion.

Requirement: Bare installation is forbidden. Use sealed enclosures of IP54 or higher; select anti-corrosion models for chemical environments.

2.4 Direct Outdoor Installation without Protection

Risk: Rain, sunlight and condensation lead to coil short circuit and contact oxidation.

Mandatory Requirement: Install inside distribution cabinets or control enclosures with IP54 or higher protection.

2.5 High-power Pure DC Main Circuit Loads

Risk: Designed mainly for AC loads with poor DC breaking capacity; high DC loads easily cause contact welding.

Alternative: Schneider LP1D dedicated DC contactors.

2.6 AC220V / AC380V Control Circuits

Risk: 24VDC coil will burn out instantly if connected to AC power.

Alternative AC coil models:

24VAC: LC1D256B7

220VAC: LC1D25M7

380VAC: LC1D25Q7

2.7 Control Three-phase 380V Motors over 11kW (AC-3)

Risk: Rated 25A under AC-3 corresponds to 11kW motor; overload results in overheating and burnt contacts.

Alternative: Upgrade to higher current models such as LC1D32 series.

3. Notes for Marginal Operating Conditions (Usable with Protection Measures)
4. Basements & Humid Machine Rooms

The product is applicable. Install dehumidifiers inside control cabinets to prevent condensation inside the contactor.

2. Ambient Temperature near Limits (-25°C / +70°C)

Derate the load by 10% and avoid long-term full-load operation.

3. Coil Wiring Length over 10m

Voltage drop occurs on 24VDC lines. Ensure terminal voltage of the contactor coil is no lower than 19.2V (minimum pull-in voltage).

4. Control Inductive Loads such as Motors

Equip with surge suppressors (Schneider LADRC series) to absorb back EMF and protect the coil.

4. Scenario Summary

✅ Preferred Applications: Indoor control cabinets, 24VDC control systems, three-phase motors up to 11kW, 24/7 continuous-operation equipment (Automation, HVAC, Fire Protection, Water Treatment, Energy Storage).

❌ Avoid: High-frequency switching, high altitude, unprotected outdoor areas, heavily corrosive environments, high-power DC main circuits, AC control power supply.
