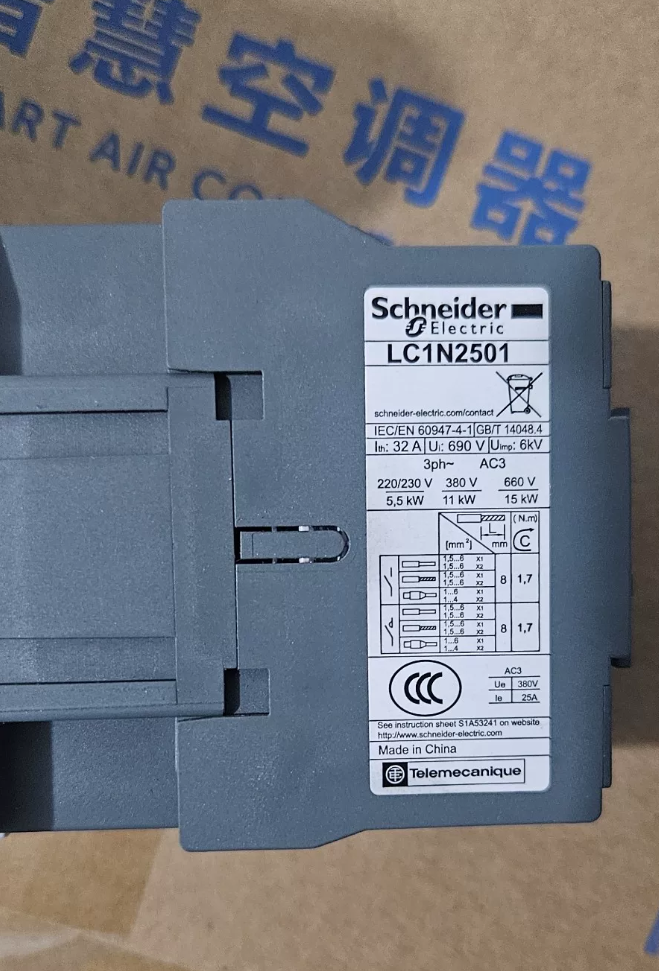

Schneider LC1N2501 AC Contactor

LC1N2501 is a 3-pole 25A AC Contactor of Schneider Electric EasyPact D3N Series. It is standard configured with 3 normally open main contacts + 1 normally closed auxiliary contact. It is suitable for 11kW / 380V motor control under AC-3 duty, widely used in industrial automation and motor control circuits, featuring high reliability and flexible installation.

Model Segment Definition

Segment	Meaning	Detailed Description
LC1	Product series code	LC = TeSys series contactor; 1 = Standard AC contactor
N	Sub-series identifier	N = EasyPact D3N Series (replaces the original LC1E Series); economy design for general industrial applications
25	Rated operational current	Main contact rated current 25A (AC-3 / 440V, 60°C)
1	Auxiliary contact configuration	0 = 0 Normally Open; 1 = 1 Normally Closed, i.e. 1 NC auxiliary contact
[Suffix]	Coil voltage code	e.g. M5=220V AC 50Hz, B5=24V DC, C5=36V AC, F5=110V AC, Q5=380V AC

Complete Model Examples:

LC1N2501M5N (220V AC coil, 50Hz)、LC1N2501B5N (24V DC coil)

Core Specification Parameters

Parameter Category	Technical Index	Remarks
Basic Characteristics
Product Type	3-Pole AC Contactor	EasyPact D3N Series, replacement for LC1E2501
Brand	Schneider Electric	Benchmark brand in industrial control
Main Contact Configuration	3NO (3 Normally Open)	Standard AC-3 motor control configuration
Auxiliary Contact Configuration	1NC (1 Normally Closed)	Expandable up to maximum 4 auxiliary contacts (2NO+2NC)
Rated Operational Current	25A (AC-3, 440V, 60°C)	Corresponding motor power: 11kW@380V, 15kW@220V
Rated Operational Voltage	≤690V AC (50/60Hz)	Maximum working voltage of main circuit
Electrical Performance
Rated Insulation Voltage Ui	690V	Compliant with IEC 60947-4-1
Rated Impulse Withstand Voltage Uimp	6kV	Strong surge withstand capability
Rated Operating Frequency	1200 cycles/hour (AC-3)	Suitable for frequent start-stop operation
Mechanical Life	≥10 million cycles	High durability design
Electrical Life	≥1 million cycles (AC-3, rated current)	Meets long-term service requirements
Coil Control Voltage	24V~380V AC/DC optional	Standard: 220V AC (M5)
Coil Power Consumption	Pick-up: approx. 100VA; Holding: approx. 10VA	Low power consumption, energy-saving & high efficiency
Physical Dimensions
Mounting Method	35mm DIN rail or screw mounting	Two mounting options for different cabinet layouts
Overall Dimension	W45mm × H80mm × D85mm	Compact design, saves cabinet space
Weight	Approx. 170g	Lightweight for easy installation & handling
Terminal Type	Main circuit: Screw type; Control circuit: Spring type	Main circuit compatible with 1.5-10mm² wire, tightening torque 1.85N·m
Environmental Conditions
Operating Temperature	-25°C ~ +60°C	Wide temperature range, adapts to harsh industrial environments
Storage Temperature	-40°C ~ +85°C	Withstands extreme temperature storage
Ingress Protection	IP20	Protects against finger access and solid foreign objects, suitable for cabinet installation
Humidity Resistance	5%~95% RH (non-condensing)	Adapts to humid environments
Certifications & Standards
Main Standards	IEC 60947-4-1, GB14048.4	Compliant with international and national standards
Certification Marks	CCC, CE, UL, CSA	Global market access qualifications

Accessory List & Mounting Parts

Part Model	Name	Function	Application Scenario
LRN07N-LRN35N	Thermal Overload Relay	Direct plug-in with contactor, provides motor overload protection	Motor control circuit requiring overload protection
LANN01N-LANN22N	Auxiliary Contact Block	Expand auxiliary contact quantity (max. 2NO+2NC)	Complex control circuits requiring more auxiliary contacts
LA9D09978C	Mechanical Interlock Accessory	Interlocks two contactors to prevent phase-to-phase short circuit	Reversible motor control (Forward/Reverse)
LA9D0902	Mechanical + Electrical Interlock	Dual protection of mechanical and electrical interlock	Reversible control circuits with high safety requirements
Overvoltage Suppression Module	RC / Varistor Surge Suppressor	Absorbs back EMF generated during coil de-energization	Protects electronic components in control circuit
Mounting Rail	35mm Standard DIN Rail	Fixes contactor in position	Standardized installation inside control cabinet
Terminal Protection Cover	Insulating Protective Shield	Prevents accidental electric shock and improves safety	Protection for exposed terminals, complies with safety regulations
Installation Manual	Operation Guideline	Provides detailed installation procedures and wiring diagrams	On-site installation guidance to ensure correct wiring

Competitor & Cross-Brand Equivalent

Brand	Replacement Model	Similar Features	Differences
Schneider Internal Replacement	LC1D2501	3-pole 25A, 1NC auxiliary, AC-3 11kW	TeSys D series, better performance, higher price
ABB	A16-30-01	3-pole 25A, 1NC auxiliary, 11kW@400V	Similar dimension, slightly higher coil power consumption, comparable price
Siemens	3RT2026-1BB40	3-pole 25A, 1NC auxiliary, 11kW@400V	Mechanical life 10 million cycles, electrical life 2 million cycles, slightly higher price
Mitsubishi	S-N25	3-pole 25A, 1NC auxiliary, 11kW@400V	Smaller size, compact mounting, moderate price
Chint	CJX2-2501	3-pole 25A, 1NC auxiliary, 11kW@380V	Domestic alternative, high cost performance, similar performance
Delixi	CJX2S-2501	3-pole 25A, 1NC auxiliary, 11kW@380V	Domestic alternative, lower price, suitable for budget-limited projects

Selection Guidelines & Replacement Solutions

5.1 Key Selection Parameters

Parameter	Selection Key Points	Recommended Specification
Rated Current Matching	Contactor rated current ≥ motor rated current (AC-3 duty)	25A contactor suitable for ≤11kW/380V motors
Auxiliary Contact Configuration	Select NO/NC quantity according to control circuit demand	Standard 01(1NC); Normally Open select 10(1NO); More contacts select 22
Coil Voltage Selection	Consistent with control circuit voltage	Industrial common: 220V AC(M5); Safety voltage: 24V DC(B5)
Mounting Method	Determined by control cabinet layout	DIN rail mounting (standard); Screw mounting for limited space
Protection Requirement	Need for overload protection and interlock function	Motor control must match LRN thermal relay; Reversible control requires interlock accessory
Operating Frequency	High-frequency start-stop occasion requires high-cycle model	Standard 1200 cycles/hour; Ultra-high frequency choose LC1D series

5.2 Replacement Recommendations

Current rating mismatch:

Motor power ≤7.5kW: Select LC1N1801 (18A)

Motor power 15kW: Select LC1N3201 (32A)

Insufficient auxiliary contacts:

Add LANN series auxiliary contact block, expandable up to 2NO+2NC maximum

Different control voltage:

24V DC control: LC1N2501B5N

380V AC control: LC1N2501Q5N

Higher performance required:

Choose LC1D2501 (TeSys D series), mechanical life 10 million cycles, electrical life 2 million cycles, stronger vibration resistance

Budget limited:

Adopt domestic alternatives such as Chint CJX2-2501, Delixi CJX2S-2501; similar performance with price reduced by about 30-50%

5.3 Application Precautions

Confirm coil voltage matches control circuit before installation to avoid coil burnout.
Fasten main circuit wiring with recommended torque 1.85N·m to prevent overheating and poor contact.
When directly plugging with LRN series thermal relay, ensure complete latch locking to prevent loosening by vibration.
Reversible control circuit must be equipped with LA9D09978C mechanical interlock to prevent phase-to-phase short circuit.
It is recommended to parallel surge suppressor at both ends of the coil to protect PLC/relay contacts in control circuit.
When ambient temperature exceeds 40°C, derate rated current (10% reduction per additional 10°C rise).
Regularly check contact ablation; replace contactor when main contact wear exceeds 1mm.
Typical Application Scenarios

Direct starting control of three-phase asynchronous motor (≤11kW/380V)

Start-stop control for fans, water pumps and general machinery

Electrical control for compressors, conveyors and industrial equipment

Compressor control for air conditioning and refrigeration systems

Lighting and ventilation system control in building electrical systems

Motor control circuits for automated production lines

Auxiliary motor control for machine tool equipment

Output switching control for photovoltaic inverters and UPS power supplies

Complete Model List of Schneider LC1N Series (EasyPact D3N) Contactors

LC1N Series is Schneider Electric EasyPact D3N 3-pole AC contactor, replacing the original LC1E Series. It is designed for AC-3 motor control, covering current ratings from 6A to 95A, with multiple auxiliary contact configurations and coil voltage options. Supports DIN rail or screw mounting with IP20 ingress protection.

Model Coding Rules

Segment	Meaning	Optional Value	Description
LC1	Product Series	LC1	Schneider TeSys contactor series
N	Sub-series	N	EasyPact D3N Series (economy type)
XX	Rated Current	06/09/12/18/25/ 32/38/40/50/65 /80/95	Unit: A (AC-3/440V, 60°C)
YY	Auxiliary Contact	00/01/10/22/11	00=No auxiliary; 01=1NC; 10=1NO; 22=2NO+2NC; 11=1NO+1NC
Z	Coil Voltage Code	B/E/F/M/Q/…	B=24V; E=48V; F=110V; M=220V; Q=380V
5月7日	Frequency	5月7日	5=50Hz; 7=50/60Hz universal
N/C	Origin	N/C	N=Standard; C=Made in China

Complete Model Example:

LC1N2501M5N (25A, 1NC, 220V AC 50Hz)

Full Current Rating & Basic Model Matrix

2.1 Standard Auxiliary Configuration (01/10)

Rated Current	Matched Motor Power(380V)	1NC(01)	1NO(10)	Remarks
6A	2.2kW	LC1N0601	LC1N0610	Minimum current size
9A	3kW	LC1N0901	LC1N0910	—
12A	4kW	LC1N1201	LC1N1210	—
18A	7.5kW	LC1N1801	LC1N1810	—
25A	11kW	LC1N2501	LC1N2510	Most commonly used
32A	15kW	LC1N3201	LC1N3210	—
38A	18.5kW	LC1N3801	LC1N3810	—
40A	22kW	LC1N4001	LC1N4010	—
50A	25kW	LC1N5001	LC1N5010	—
65A	30kW	LC1N6501	LC1N6510	—
80A	37kW	LC1N8001	LC1N8010	—
95A	45kW	LC1N9501	LC1N9510	Maximum current size

2.2 Special Auxiliary Configuration (11/22/00)

Rated Current	1NO+1NC(11)	2NO+2NC(22)	No Auxiliary(00)	Application Scenario
6A~38A	LC1NXX11	LC1NXX22	LC1NXX00	Complex control circuit requiring multi-contacts
40A~95A	LC1NXX11	LC1NXX22	LC1NXX00	High-power motor control requiring contact expansion

Complete Coil Voltage Options

3.1 AC Coil Voltage Code

Voltage Code	Coil Voltage	Frequency Code	Complete Model Example	Application Scenario
B	24V AC	5(50Hz)/7(50/60Hz)	LC1N2501B5N / LC1N2501B7N	Safety voltage control, PLC output
C	36V AC	5-7	LC1N2501C5N / LC1N2501C7N	Safety circuit, machine tool control
E	48V AC	5-7	LC1N2501E5N / LC1N2501E7N	Industrial control, special equipment
F	110V AC	5-7	LC1N2501F5N / LC1N2501F7N	North American standard, partial equipment
M	220V AC	5-7	LC1N2501M5N / LC1N2501M7N	Chinese industrial standard, most widely used
P	230V AC	5-7	LC1N2501P5N / LC1N2501P7N	European standard, compatible with 220V
Q	380V AC	5-7	LC1N2501Q5N / LC1N2501Q7N	High-voltage control circuit, direct 380V supply
R	400V AC	5-7	LC1N2501R5N / LC1N2501R7N	European industrial standard
S	415V AC	5-7	LC1N2501S5N / LC1N2501S7N	Southeast Asian standard

3.2 DC Coil Voltage Code

Voltage Code	Coil Voltage	Complete Model Example	Application Scenario
B	24V DC	LC1N2501B5N	Safety control, PLC digital output
L	48V DC	LC1N2501L5N	Industrial DC system
K	110V DC	LC1N2501K5N	Special DC equipment
N	220V DC	LC1N2501N5N	High-voltage DC control

Common Complete Model Combinations

Complete Model	Current	Auxiliary Contact	Coil Voltage	Matched Motor Power	Typical Application
LC1N2501M5N	25A	1NC	220V AC 50Hz	11kW	Water pump & fan control
LC1N3210B7N	32A	1NO	24V AC 50/60Hz	15kW	PLC control circuit
LC1N1801F5N	18A	1NC	110V AC 50Hz	7.5kW	Export equipment
LC1N5011M7N	50A	1NO+1NC	220V AC 50/60Hz	25kW	Compressor control
LC1N6522Q5N	65A	2NO+2NC	380V AC 50Hz	30kW	Large fan
LC1N0900B5N	9A	No auxiliary	24V AC 50Hz	3kW	Simple control circuit
LC1N9511M7N	95A	1NO+1NC	220V AC 50/60Hz	45kW	High-power motor

Selection Reference Table

5.1 Current Rating vs Motor Power (AC-3/380V)

Rated Current	Motor Power(kW)	Wire Size(mm)	Matching Thermal Relay
6A	2.2	1.5	LRN06N
9A	3	1.5	LRN06N
12A	4	1.5	LRN07N
18A	7.5	2.5	LRN10N
25A	11	4	LRN14N
32A	15	6	LRN21N
38A	18.5	6	LRN21N
40A	22	10	LRN25N
50A	25	10	LRN32N
65A	30	16	LRN35N
80A	37	25	LRN35N
95A	45	35	LRN40N

5.2 Auxiliary Contact Expansion Options

Base Model	Expandable Accessory	Expanded Contact Configuration	Application Scenario
LC1NXX01/10	LANN01N(1NO)	2NO / 2NC	Add more control circuit contacts
LC1NXX01/10	LANN22N(2NO+2NC)	3NO+2NC / 2NO+3NC	Complex control logic
LC1NXX00	LANN01N+LANN02N	1NO+1NC	Expand from no auxiliary to standard configuration

Quick Model Selection Guide
Confirm current rating: Select according to motor power (Under AC-3 duty, contactor rated current ≥ motor rated current).
Select auxiliary contacts: 01(1NC) for stop control; 10(1NO) for self-locking; 11(1NO+1NC) for reversible control.
Match coil voltage: Consistent with control circuit voltage (220V AC common; 24V DC for safety occasions).
Frequency selection: Domestic standard 50Hz(Code 5); Export equipment use universal 50/60Hz(Code 7).
Accessory configuration: Motor control must match LRN thermal relay; Reversible control requires LA9D mechanical interlock.
Common Model Replacement Table

Original Model	Replacement Model	Replacement Reason
LC1E2501	LC1N2501	EasyPact D3N replaces original EasyPact E Series
LC1D2501	LC1N2501	Economy model replaces high-performance model, cost reduced by approx. 20%
CJX2-2501	LC1N2501	Import replaced by domestic, performance improved with similar price
