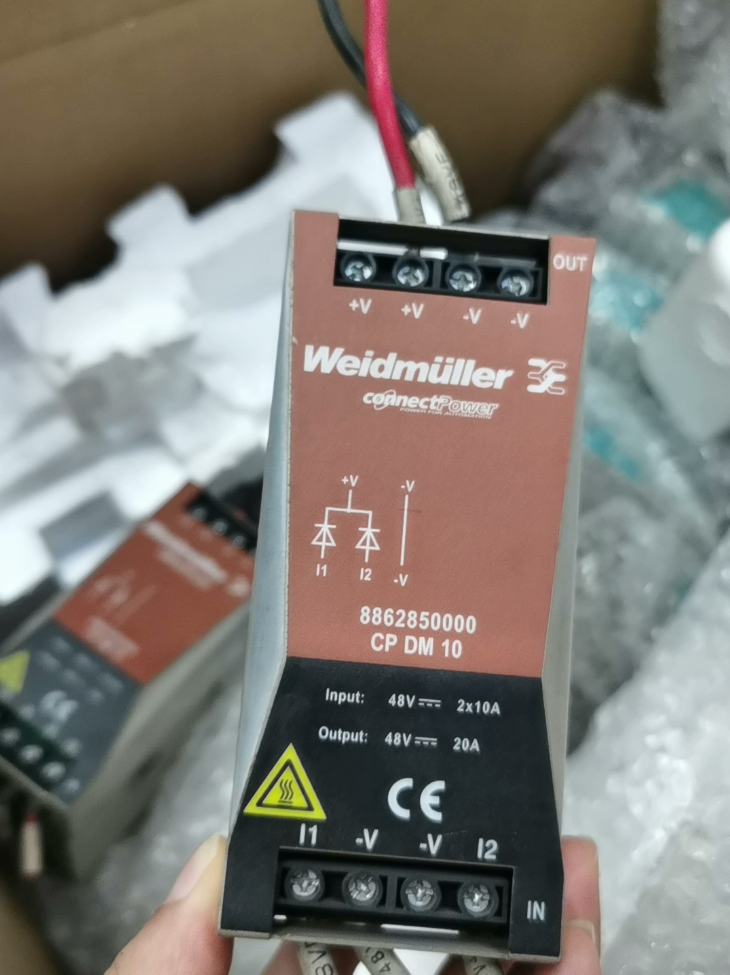

Weidmüller 8862850000 CP DM10

8862850000 is the replacement order number for CP DM10, essentially a 10A redundant diode module used for parallel redundancy and output decoupling of switching power supplies. It has been discontinued; the official replacement is PRO DM 10 (2486070000), offering full functional compatibility and upgraded performance.

1. Precise Model Segment Definition

2. Core Specification Table

3. Core Functions & Application Scenarios

3.1 Core Functions

Power Redundancy: Parallel connection of two 24V switching power supplies to achieve 1+1 redundancy, with seamless switching if one power supply fails.

Output Decoupling: Isolates outputs of multiple switching power supplies to avoid reverse current impact and protect both power supplies and loads.

Reverse Polarity Protection: Built-in high-power diodes block reverse current and prevent power supply damage.

3.2 Typical Applications

4. Discontinuation Status & Official Replacement

4.1 Discontinuation Information

Discontinued Date: March 30, 2022

Order Number Migration: 8862850000 (Transitional) → Final replacement: 2486070000 (PRO DM 10)

4.2 Replacement Model Comparison (PRO DM 10 vs CP DM 10)

5. Selection & Replacement Guidelines

5.1 Selection Decision Tree

1. Is power redundancy required?

Yes: Choose DM series diode module (10A/20A according to power demand)

No: Redundant module not required; use single power supply directly

2. Is the system voltage 24V DC?

Yes: CP DM 10 / PRO DM 10 are applicable

No: Select DM module with corresponding voltage rating (12V/48V etc.)

3. Is long-term supply guarantee needed?

Yes: Prioritize PRO DM 10 (active model)

No: Stock CP DM 10 can be used as discontinued spare parts

5.2 Replacement Procedure

1. Power off the system and remove the original CP DM 10 module.
2. Mount PRO DM 10 directly on the existing DIN rail (dimensionally compatible).
3. Wire power input (++/–) and load output (++/–) following the same terminal definition.
4. Check wiring tightness (torque: 0.5~0.6Nm).
5. Power on and test redundancy switching: disconnect one power supply and confirm normal load operation.

5.3 Replacement Mnemonic

CP DM 10 discontinued, PRO DM 10 takes its place;

Same function, upgraded performance, no change in mounting and wiring;

Redundancy and decoupling ensure stable power, ideal for 24V systems.

6. FAQ

Q1: What is the difference between 8862850000 and 8710620000?

A: Both are order numbers for CP DM 10. 8710620000 is the original part number, while 8862850000 is the transitional replacement number; the product itself is identical.

Q2: Can PRO DM 10 directly replace CP DM 10?

A: Fully compatible in physical dimensions, electrical parameters and wiring; additionally equipped with over-temperature protection.

Q3: How to select power supply capacity in redundant mode?

A: Each power supply should be sized no less than the total load power, ensuring single power supply can carry full load independently. The diode module only performs switching and does not amplify power.

Complete List of Weidmüller Redundant Diode Modules (Including Discontinued & Replacements)

Core Classification: Weidmüller redundant diode modules are divided into CP DM Series (Discontinued, entry-level) and PRO DM Series (Active, upgraded). Both are designed for 24V DC power parallel redundancy and output decoupling, available in 10A and 20A current ratings.

1. Active PRO DM Series (Officially Recommended)

2. Discontinued CP DM Series (With Replacements)

3. Key Parameter Comparison (PRO DM vs CP DM)

4. Supplementary Redundant Module Series (PRO RM Series)

Weidmüller also provides the PRO RM Series redundant modules (different principle from DM series), adopting MOSFET technology with ultra-low forward voltage drop (0.1V typ.) and automatic current sharing, ideal for high-efficiency redundant systems:

5. Selection & Replacement Mnemonic

PRO DM replaces CP DM, same function with upgraded performance;

Choose 10A/20A by power, over-temperature protection brings more safety;

Physically compatible for direct swap, no changes to terminals and wiring;

General redundancy pick DM, high-efficiency current sharing pick RM.

6. Replacement Implementation Key Points
7. Direct Interchange: PRO DM series is fully compatible with corresponding CP DM models in dimensions and terminal layout for direct replacement.
8. Wiring Note: No need to modify power input (++/–) and load output (++/–) wiring; tightening torque 0.5~0.6Nm.
9. Function Setting: Over-temperature protection is enabled by default on PRO DM, no extra configuration required.
10. Inventory Suggestion: CP DM series is fully discontinued; gradual migration to PRO DM series is recommended for long-term supply stability.
