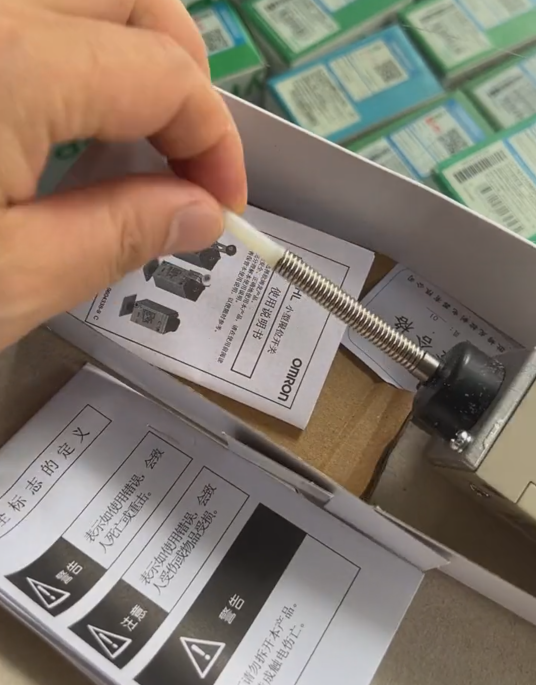

The Omron HL-5300 is a spring-type limit switch belonging to the HL-5000 series. It is mainly used for detecting the position or stroke of objects in industrial automation equipment.
1. Product Positioning and Core Functions
Type: A small-sized limit switch that achieves mechanical triggering through a spring mechanism. It is suitable for scenarios requiring precise position detection.
Application Scenarios: General industrial environments such as printing machinery, molding machinery, and light-duty machinery. However, it is not suitable for harsh conditions with rainwater or oil-water splashes (for such cases, it is recommended to select high-sealing models like the WL or D4C series).
Core Advantages:
Compact Structure: The head and the box body adopt a concave-convex combination design to ensure firmness.
IP65 Protection: Dust-proof and splash-proof, suitable for conventional industrial environments.
Long Service Life: The mechanical service life reaches over 10 million cycles, featuring strong durability.
2. Technical Parameters and Performance
Electrical Characteristics:
Voltage Range: AC 125V/250V or DC 12V/24V/125V/250V.
Load Capacity:
AC Load: Maximum 5A for resistive load, maximum 3A for inductive load, and maximum 2A for motor load (at AC 125V).
DC Load: Maximum 5A for resistive load, maximum 4A for inductive load, and maximum 3A for motor load (at DC 24V).
Contact Configuration: 1a1b (Single-Pole Double-Throw, SPDT), supporting switching between normally open (NO) and normally closed (NC) states.
Mechanical Characteristics:
Operating Force: Maximum 1.47N, with sensitive triggering.
Operating Stroke: Maximum 30mm, enabling rapid response.
Operating Frequency: 120 operations per minute for mechanical operation, and 30 operations per minute for electrical operation.
Environmental Adaptability:
Temperature Range: -5℃ to +65℃ (no icing).
Humidity Range: 35%~95% RH (no condensation).
3. Structural Design and Installation
Appearance and Material:
Housing: Made of plastic material, featuring light weight and impact resistance.
Spring Mechanism: Adopts a coil spring to ensure smooth and stable operation.
Installation Method:
Front Installation: Fixed through 2 φ5.2mm mounting holes on the diagonal, compatible with M5 bolts.
Head Direction Adjustment: Can be installed with a 90° or 180° rotation, flexibly adapting to different spatial requirements.
Wiring Design:
Open Conduit Port: Facilitates cable access and supports 0.75mm² wires.
Terminal Type: It is recommended to use crimp terminals with insulation clamps to prevent loosening.
4. Supply and Support
Stock and Procurement:
Current Status: Still in production and sales in 2025.
Model Expansion: Available in two variants: the standard type (HL-5300) and the type with a grounding terminal (HL-5300G), meeting different grounding requirements.
Technical Documents:
CAD Drawings: 2D/3D models can be downloaded from the Omron official website, facilitating design integration.
User Manual: Contains installation steps, wiring diagrams, and precautions, and can be obtained from the official website or authorized distributors.
Maintenance Services:
Warranty Period: 1.5 years from the date of production; for repaired products, the same fault point is covered by a 1-year warranty extension.
5. Precautions
Environmental Restrictions: Avoid using it in environments containing silicon-based gases (such as silicone oil and silica gel) to prevent contact oxidation.
Installation Torque: The cover screws should be tightened to 0.49~0.59N·m to prevent malfunctions caused by loosening.
Alternative Options: For higher protection levels, the D4C series can be considered; for impact resistance requirements, the WL series can be selected.
