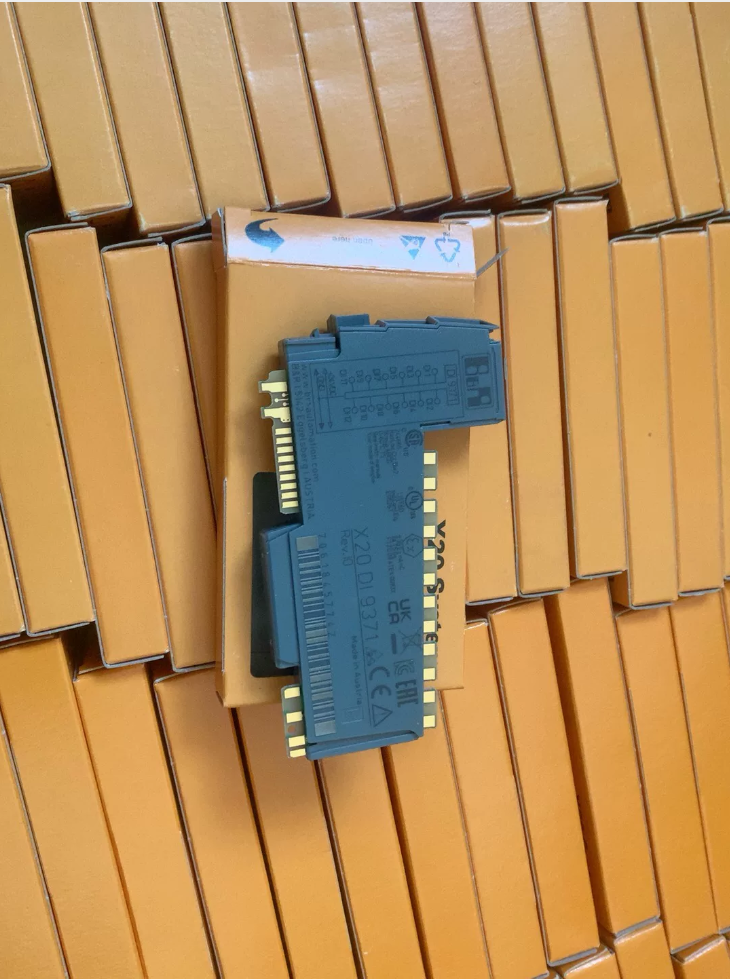

IFM X20DI9371 デジタル入力モジュール

X20DI9371 Model Code Breakdown

X20: B&R X20-series I/O system (shared platform after IFM acquired B&R’s automation business)

から: デジタル入力

9371: Module specification code

16-channel 24VDC digital input module compatible with sourcing/sinking types, designed for mounting on industrial standard X20 bus baseplates

Brand Lineup: IFM efector / B&R X20 I/O Series

パラメータ	仕様
Number of Input Channels	16 デジタル入力
定格入力電圧	直流 24 V (動作範囲: 18–30 VDC)
入力タイプ	Universal NPN/PNP (compatible with sinking/sourcing sensors)
Input ON Threshold (High Level)	≥11 VDC
Input OFF Threshold (Low Level)	≤5 VDC
Typical Single-Channel Input Current	2.5 ミリアンペア
Fixed Debounce Filter Time	1 MS (extendable via software configuration)
Bus Interface	Internal high-speed X20 backplane bus
電源	Module logic powered by backplane; field sensors powered by external 24V DC supply
電気的絶縁	Galvanic isolation per group of 8 チャンネル
保護クラス	IP20 (for cabinet installation only)
動作温度範囲	-20 ℃ to +60 ℃
取付方法	DIN rail daisy-chain mounting on standard X20 baseplates

Ⅲ. Hardware Structure

Channel Grouping: 16 digital inputs split into two isolated groups: CH0~CH7 and CH8~CH15
Terminal Design: Spring-cage terminals for tool-free fast wiring
Status Indicators: Individual green LED per channel (lit = active signal); dedicated RUN and ERR LEDs for bus fault diagnosis
寸法: Standard narrow X20 module with 12.5 幅mm
ソフトウェア構成 & 互換性
Supported Controllers: IFM X20 / B&R X20 PLCs (X20CP, X20XC CPU series)
プログラミングソフトウェア: All versions of Automation Studio (AS3.0 to AS4.9)
機能的な特徴

Channel short-circuit and wire break diagnostics (supports 2-wire sensors with line monitoring)

Event timestamping for high-speed signal capture

Configurable channel signal inversion logic

典型的なアプリケーションシナリオ
Digital signal acquisition for machine limit switches, photoelectric sensors and proximity switches
Feedback signal collection for production line position sensors, safety gates and emergency stop circuits
Centralized digital signal acquisition for packaging machinery, machine tools and material handling conveyors
I/O expansion for complete IFM automated production lines
Cross-Series & 代替リファレンス

Direct Drop-In Replacements (Fully Functionally Identical)

X20DI9371 (16-channel universal 24V digital input)

No revised suffix variants; identical model is fully interchangeable.

Distinction of Similar Models

X20DI9372: 16-channel DI with enhanced diagnostic functions, pin-compatible hardware
X20DI2371: 8-channel DI with half the channel count
X20DO9321: 16-channel digital output module; cannot replace input modules

Ⅶ. 包装内容明細書

Standard Included Items

Optional Separately Purchased Accessories

X20TB standard terminal baseplates (for daisy-chain expansion)

X20AC0100 bus termination cover

X20CA0100 expansion connecting cable

VIII. 一般的な障害のトラブルシューティングマトリックス

故障の症状	根本的な原因	Resolution Steps
Steady red ERR LED on module	Faulty backplane bus communication / poor baseplate contact	1. Re-seat the module; 2. Verify termination covers at both ends of X20 bus; 3. Restart CPU
Channel LED remains off despite sensor output	1. 配線の緩み; 2. Reversed input polarity; 3. Missing sensor power supply	Check 24V power supply, NPN/PNP wiring logic, and fasten spring terminals
Frequent false signal triggering	Insufficient debounce filter time, cable electromagnetic interference	Increase input filter duration to 5–10 ms in Automation Studio; apply shielding and grounding to signal cables
Complete signal loss for a full group of 8 チャンネル	Broken isolated power supply for the group, disconnected common COM terminal wiring	Inspect 24V wiring for each group’s common COM terminal

Sourcing & Classification Supplementary Information
Customs HS Code (Industrial Control I/O Module): 8537109000
認証: CE, UL, GL marine classification certification; compliant for equipment export to Europe and North America
