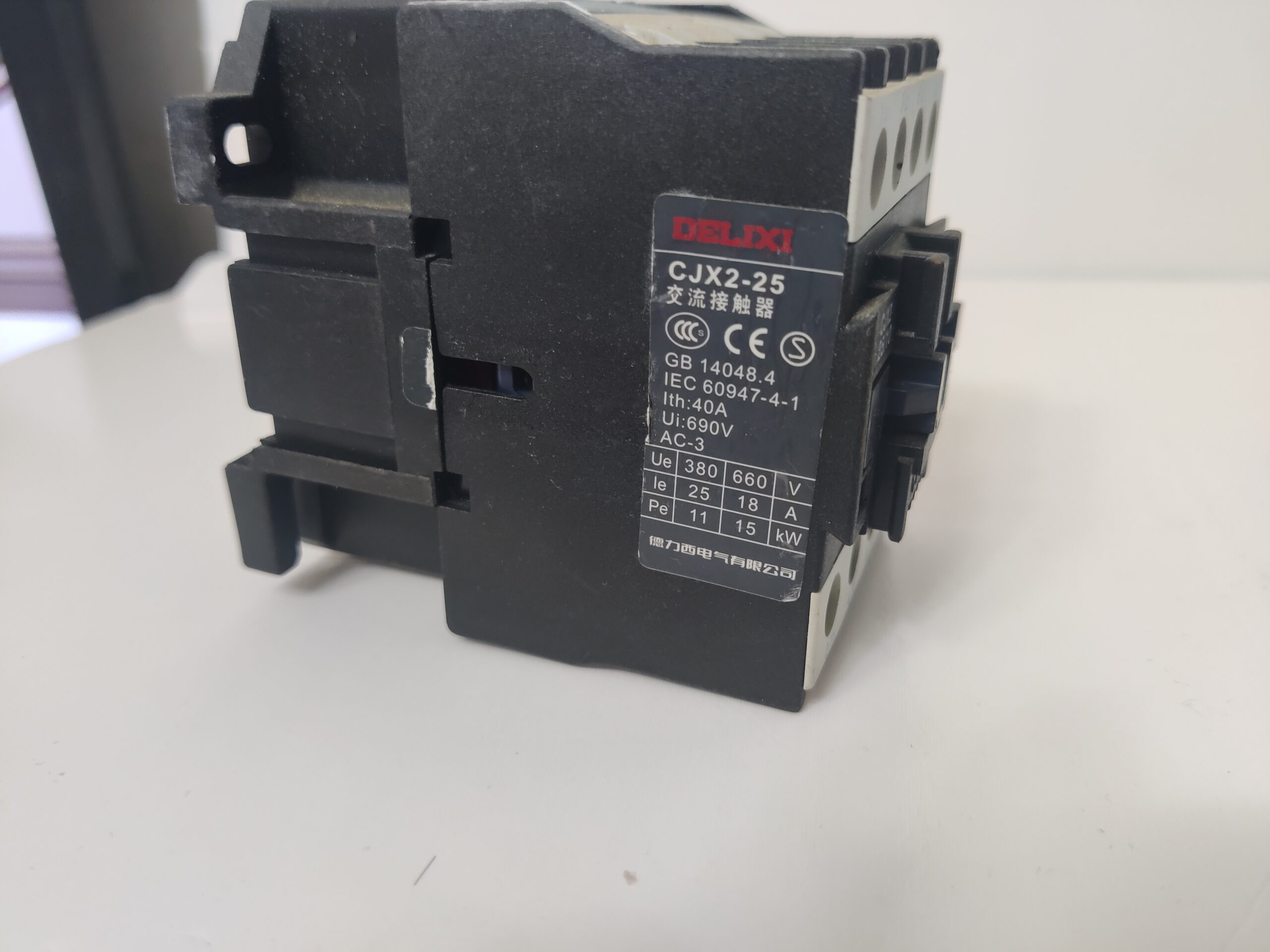

DELIXI CJX2-25 AC Contactor

DELIXI CJX2-25 is a general-purpose AC contactor with a rated current of 25A. It complies with IEC 60947-4-1 and GB/T14048.4 standards. It is mainly used for remote making and breaking of circuits, as well as frequent starting and control of AC motors.

1. Model Code Explanation

Complete model example: CJX2-2510M (25A, 1 NO + 0 NC, AC220V coil)

1. Key Technical Parameters

III. Operating Environment

1. Ambient temperature: -5℃ ~ +40℃, average temperature over 24 hours ≤ +35℃
2. Altitude: ≤ 2000m; derating required above this altitude
3. Relative humidity: ≤ 90% (at +25℃), no condensation
4. Mounting condition: Vertical mounting (inclination ≤ 5°), no significant vibration or shock
5. Pollution degree: 3, suitable for industrial environments
6. Cross-Reference / Replacement Models (Other Brands)

1. Official Order Codes & Complete Model List

Complete models of DELIXI CJX2-25 series (based on official data):

1. Engineering Application Recommendations
2. Selection Guidelines

Select the appropriate model based on load type (resistive/inductive), rated current, control voltage, and operating frequency.

2. Installation Notes

Inspect product appearance before installation to ensure no damage

Tighten terminal screws securely to avoid overheating from loose connections

When used with thermal relays, maintain a gap ≥ 5mm for heat dissipation

3. Maintenance Suggestions

Regularly check contact wear; replace contacts if wear exceeds 1mm

Clean the coil core surface to remove dust and oil for reliable attraction

Inspect and retighten loose wiring terminals

VII. Key Tips

1. CJX2-25 is a standard contactor for general industrial control. For high-frequency operation (>600 operations/hour), the CJX2S series (Pioneer series) is recommended.
2. Coil voltage must match the control circuit voltage to prevent coil burnout.
3. When replacing contactors of other brands, verify mounting dimensions and wiring methods to ensure compatibility.

DELIXI Contactors-Full Series Model List (Official 2026 Edition)

DELIXI contactors are classified into General AC Contactors, DC Contactors, and Special-Purpose Contactors by technical platform and application scenario. They cover a full current range from 0.9A to 1000A, meeting demands in industry, construction, new energy, and other fields.

1. General AC Contactors (Mainstream Series)
2. CJX2s Series (Pioneer Series, Ideal for High-Frequency Operation)

Positioning: Upgraded version of classic CJX2, suitable for high-frequency start/stop equipment such as fans and pumps

Key parameters: Rated current 6A~95A, AC-3 380V, rated insulation voltage 690V, operating frequency ≤ 1800 operations/hour

Complete model list:

Features: Upgraded silver contact technology, 70%–120% wide voltage pull-in, mechanical endurance ≥ 10 million operations, electrical endurance ≥ 1 million operations

2. CJX2 Series (Classic General-Purpose Type)

Positioning: Traditional general contactor, cost-effective choice

Key parameters: Rated current 9A~95A, AC-3 380V, rated insulation voltage 690V, operating frequency ≤ 1200 operations/hour

Complete model list:

3. CJX1 Series (Traditional High-Power Type)

Positioning: Economical high-power motor control, replaces part of CJ20 series

Key parameters: Rated current 9A~475A, AC-3 380V, rated insulation voltage 690V

Complete model list:

4. CJ20 Series (Traditional Classic High-Power)

Positioning: Heavy-duty motor control, suitable for heavy-load scenarios such as metallurgy and mining

Key parameters: Rated current 10A~630A, AC-3 380V, rated insulation voltage 1140V

Complete model list:

5. CJ40 Series (New-Generation High-Power Contactors)

Positioning: Replaces CJ20, preferred for industrial power distribution, energy-saving and efficient

Key parameters: Rated current 63A~630A, AC-3 380V, rated insulation voltage 1140V, power consumption reduced by 30%

Complete model list:

6. CDC6 Series (For Automation, High Cost-Performance)

Positioning: Dedicated for automated production lines and test equipment, matches CDR6 thermal relays

Key parameters: Rated current 9A~630A, AC-3 380V, rated insulation voltage 690V

Complete model list:

7. CDC6i Series (New 6 Series, Intelligent Control)

Positioning: For automated production and testing equipment, compatible with intelligent control modules

Key parameters: Rated current 9A~95A, AC-3 380V, IP20 protection, compatible with smart modules

Complete model list:

8. CDC10 Series (Traditional Economical Type)

Positioning: Building power distribution and general motor control, large market inventory

Key parameters: Rated current 10A~150A, AC-3 380V

Complete model list:

9. CDC1 Series (Mini Contactors)

Positioning: Precision control and small equipment, replaces intermediate relays

Key parameters: Rated current 3A~12A, AC220V/380V

Complete model list:

1. DC Contactor Series
2. CZ0 Series (For Industrial DC Motor Control)

Positioning: Remote frequent making/breaking of DC circuits, control of DC motors

Key parameters: Rated current 10A~600A, rated voltage up to 440V DC

Complete model list:

2. CDZJ Series (Solenoid-Type DC Contactors)

Positioning: Start, reverse, brake of DC motors; control of lifting electromagnets

Key parameters: Rated current 50A~400A, single/dual coil optional, intermittent duty

Complete model list:

3. CDEV6i Series (New Energy High-Voltage DC Contactors)

Positioning: EV charging piles, battery power distribution systems, solar power equipment

Key parameters: Rated voltage DC1000V, rated current 50A~400A, IP67 protection

Complete model list:

III. Special-Purpose Contactors

1. CDZ7 Series (Contactor-Type Relays)

Positioning: Signal amplification and transmission in control circuits, replaces intermediate relays

Key parameters: Rated current 5A~10A, AC/DC universal control voltage

Complete model list: CDZ7-52P, CDZ7-101P, CDZ7-102P, CDZ7-104P

2. CDC7 Series (Interlocked Contactors)

Positioning: Reversible control circuits, prevents reverse power connection

Key parameters: Rated current 9A~95A, AC-3 380V, reliable mechanical interlock

Complete model list: CDC7-09, CDC7-12, CDC7-18, CDC7-25, CDC7-32, CDC7-40, CDC7-50, CDC7-65, CDC7-80, CDC7-95

3. CDCH8s Series (Household / Small Commercial Contactors)

Positioning: Light loads such as lighting and air conditioning, residential and small commercial buildings

Key parameters: Rated current 6A~63A, AC220V/400V, 2P/4P optional

Complete model list: CDCH8s-6, CDCH8s-10, CDCH8s-16, CDCH8s-20, CDCH8s-25, CDCH8s-32, CDCH8s-40, CDCH8s-50, CDCH8s-63

1. Selection & Replacement Guide

1. Model Naming Rules

DELIXI contactor models follow these rules:

1. Basic code: CJ = AC Contactor, CZ = DC Contactor, CDC = General Contactor
2. Design number: X2 = 2nd generation, X1 = 1st generation, 40 = 40th generation
3. Rated current: Directly marked in amps (A), e.g., 25 = 25A
4. Auxiliary contacts: 10 = 1NO 0NC, 01 = 0NO 1NC, 11 = 1NO 1NC, 22 = 2NO 2NC
5. Coil voltage: M = AC220V, Q = AC380V, A = AC110V, D = DC24V; special voltages marked numerically
