Model Code Breakdown

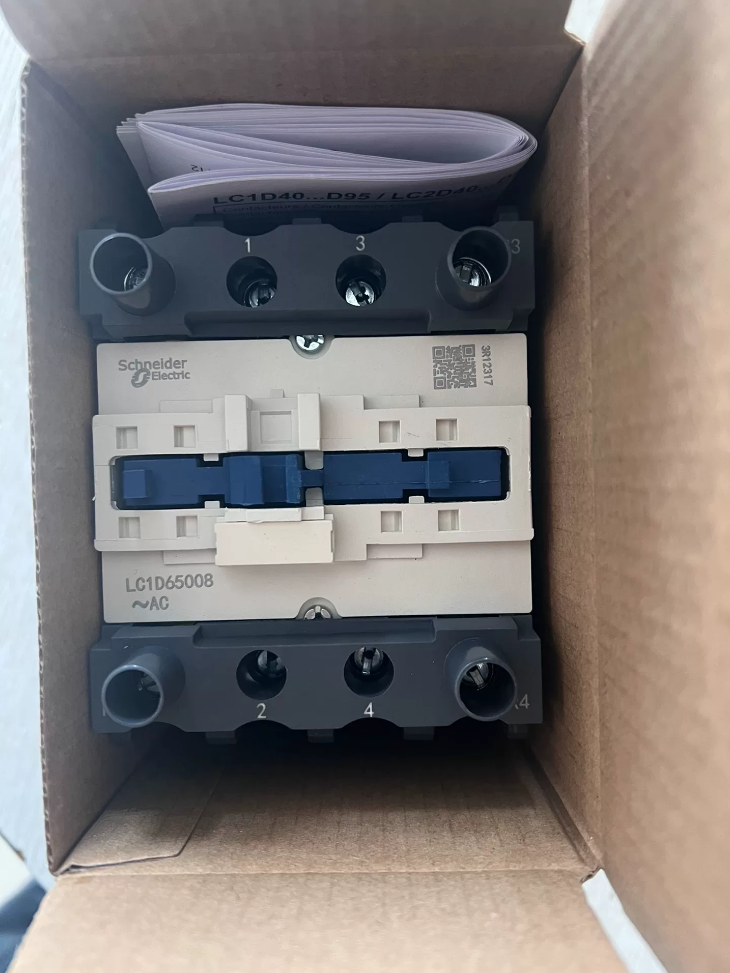

LC1D65008M7 is an AC contactor from Schneider Electric’s TeSys D series, with each segment defined as follows:
- LC1D: 3pole AC contactor, Schneider TeSys D series
- 65: Rated operational current 65A under AC3 duty
- 008: Auxiliary contact configuration → 2 NO + 2 NC
- M7: Coil control voltage → 220V AC, 50/60Hz
- Key Technical Specifications
Brand: Schneider Electric
Series: TeSys D
Main poles: 3 poles
Rated current: 65A (AC3, 380V)
Auxiliary contacts: 2 NO + 2 NC
Coil voltage: 220V AC 50/60Hz
Mounting: DIN rail mounting / screw mounting
Degree of protection: IP20 (front)
III. Applications
Direct starting and reversing control of threephase asynchronous motors
Industrial loads such as distribution circuits, fans, pumps, and compressors
General AC load switching control in control cabinets
- Replacement Models
SameBrand Replacements
LC1D65008 is the same specification and can be replaced as needed with different coil voltages only. Standard version: LC1D65AM7 (1 NO + 1 NC)
Chinese Domestic Brand Replacements
CHINT: NXC65 220V 2NO2NC
DELIXI: CDC6i65 220V 2NO2NC
Complete List of Schneider TeSys D Series (LC1D) AC Contactors
- Model Naming Convention
LC1D[Rated Current][Auxiliary Contacts][Coil Voltage][Suffix]
| Field | Meaning | Examples |
| LC1D | 3-pole AC contactor, TeSys D series | LC1D |
| Rated Current | Rated operational current under AC-3 duty | 09(9A), 12(12A), 18(18A), 25(25A), 32(32A), 38(38A), 40(40A), 50(50A), 65(65A), 80(80A), 95(95A), 115(115A), 150(150A), 170(170A) |
| Auxiliary Contacts | Built-in auxiliary contact configuration | 00(none), 10(1 NO), 01(1 NC), 20(2 NO), 02(2 NC), 22(2 NO+2 NC), 008(2 NO+2 NC, special models) |
| Coil Voltage | Control coil voltage code | B(24VAC), CC(36VAC), E(48VAC), F(110VAC), FE(115VAC), L(208VAC), M(220VAC), P(230VAC), Q(380VAC), V(400VAC), U(240VAC), CD(36VDC), ED(48VDC), ND(60VDC), SD(72VDC) |
| Frequency/Origin | 7(50/60Hz), C(Made in China) | 7C(50/60Hz, Made in China) |
- Complete Model List
- Standard Rated Current Series (9A~170A)
| Rated Current | Base Model | Common Complete Model Examples |
| 9A | LC1D09 | LC1D09B7C, LC1D09F7C, LC1D09M7C, LC1D09Q7C, LC1D09CD(36VDC) |
| 12A | LC1D12 | LC1D12B7C, LC1D12M7C, LC1D12Q7C, LC1D12ED(48VDC) |
| 15A | LC1D15 | LC1D15F7C, LC1D15M7C, LC1D15V7C(400VAC) |
| 18A | LC1D18 | LC1D18B7C, LC1D18M7C, LC1D18ND(60VDC), LC1D18SD(72VDC) |
| 25A | LC1D25 | LC1D25B7C, LC1D25F7C, LC1D25M7C, LC1D25CC7C(36VAC) |
| 32A | LC1D32 | LC1D32B7C, LC1D32M7C, LC1D32Q7C, LC1D32FE7C(115VAC) |
| 38A | LC1D38 | LC1D38B7C, LC1D38M7C, LC1D38V7C(400VAC) |
| 40A | LC1D40 | LC1D40B7C, LC1D40M7C, LC1D40ED(48VDC) |
| 50A | LC1D50 | LC1D50B7C, LC1D50F7C, LC1D50M7C, LC1D50ND(60VDC) |
| 65A | LC1D65 | LC1D65008M7(2NO+2NC), LC1D65A(1NO+1NC)M7C, LC1D65Q7C |
| 80A | LC1D80 | LC1D80B7C, LC1D80M7C, LC1D80V7C(400VAC) |
| 95A | LC1D95 | LC1D95B7C, LC1D95M7C, LC1D95FE7C(115VAC) |
| 115A | LC1D115 | LC1D115F7C, LC1D115M7C, LC1D115Q7C |
| 150A | LC1D150 | LC1D150FE7C(115VAC), LC1D150M7C, LC1D150V7C(400VAC) |
| 170A | LC1D170 | LC1D170M7C, LC1D170Q7C, LC1D170V7C(400VAC) |
- Auxiliary Contact Configuration Options
| Aux. Contact Code | Contact Configuration | Application Range |
| 0 | No built-in auxiliary contacts | Full series |
| 10 | 1 NO | Full series |
| 1 | 1 NC | Full series |
| 20 | 2 NO | Full series |
| 2 | 2 NC | Full series |
| 22 | 2 NO + 2 NC | Full series |
| 8 | 2 NO + 2 NC | Mainly for LC1D65, LC1D80, LC1D95, etc. |
| 10 | 1 NO | Specific models |
| 20 | 2 NO | Specific models |
- Complete Coil Voltage Reference Table
| Coil Type | Voltage Code | Corresponding Voltage | Complete Model Example |
| AC Coil | B7 | 24V AC 50/60Hz | LC1D09B7C |
| AC Coil | CC7 | 36V AC 50/60Hz | LC1D25CC7C |
| AC Coil | E7 | 48V AC 50/60Hz | LC1D38E7C |
| AC Coil | F7 | 110V AC 50/60Hz | LC1D09F7C |
| AC Coil | FE7 | 115V AC 50/60Hz | LC1D150FE7C |
| AC Coil | L7 | 208V AC 50/60Hz | LC1D09L7C |
| AC Coil | M7 | 220V AC 50/60Hz | LC1D65008M7, LC1D09M7C |
| AC Coil | P7 | 230V AC 50/60Hz | LC1D09P7C |
| AC Coil | Q7 | 380V AC 50/60Hz | LC1D12Q7C |
| AC Coil | V7 | 400V AC 50/60Hz | LC1D15V7C |
| AC Coil | U7 | 240V AC 50/60Hz | LC1D09U7C |
| DC Coil | CD | 36V DC | LC1D09CD |
| DC Coil | ED | 48V DC | LC1D12ED |
| DC Coil | ND | 60V DC | LC1D18ND |
| DC Coil | SD | 72V DC | LC1D18SD |
- Special Model Series
| Model Type | Features | Example Models |
| Reversing Contactors | For motor forward/reverse control | LC2D09M7C, LC2D32Q7C |
| 4-Pole Contactors | 2 NO + 2 NC main poles | LC1D188M7C(4P 2NO+2NC) |
| Capacitor Contactors | Dedicated for capacitor switching | LC1DFKP7(12.5kVAR) |
| Special Aux. Contacts | Built-in 4 contacts (2NO+2NC) | LC1D65008M7, LC1D80008M7 |
III. General Technical Specifications
| Item | Specification |
| Number of Poles | Standard 3 poles (3 NO), optional 4 poles (2 NO+2 NC) |
| Rated insulation voltage | 690V AC |
| Rated operational voltage | Up to 440V AC (AC-3 duty) |
| Mounting | DIN rail mounting / screw mounting |
| Degree of protection | IP20 (front, finger-safe) |
| Auxiliary contact rated current | 5A AC-1 240V |
| Mechanical endurance | Approx. 10 million operations |
| Electrical endurance | Approx. 1 million operations under AC-3 duty |
- Selection Recommendations
- Select by load current: Choose a contactor with rated current ≥ load current under AC3 duty according to the rated current of the motor or load.
- Auxiliary contact configuration: Select the appropriate NO/NC combination based on control circuit requirements; expandable via LADN series auxiliary contact modules if needed.
- Coil voltage matching: Ensure coil voltage matches the control circuit supply voltage to avoid coil burnout.
- Special applications: Use dedicated models for special applications such as capacitor switching and motor reversing control.
