Répartition complète du modèle
| Code | Signification | Description détaillée |

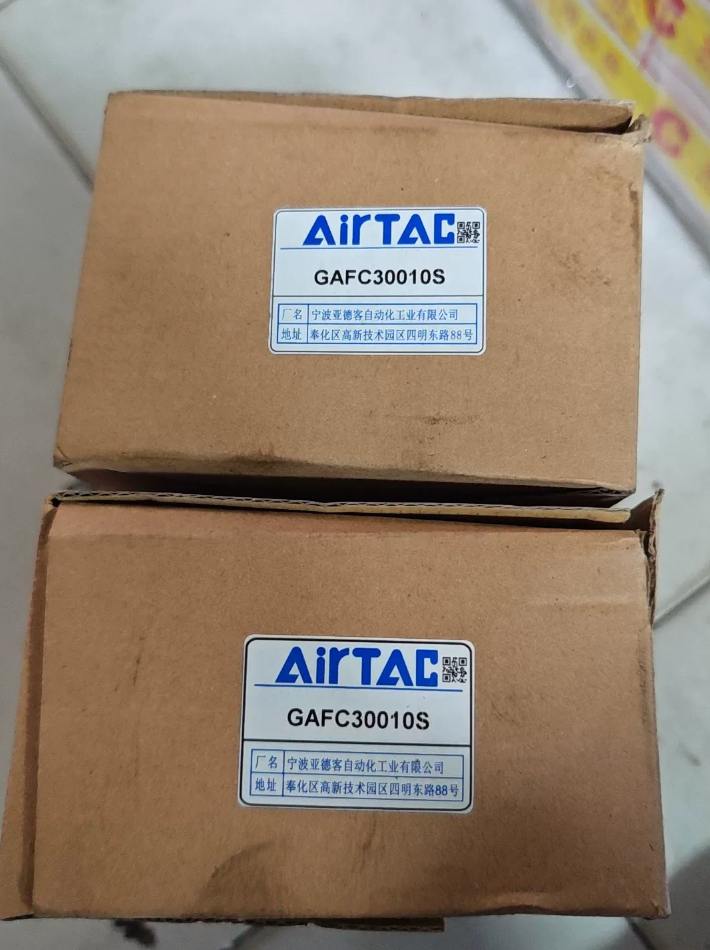

| CHÈVRE | Série de produits | AIRTAC GA Series Filter-Regulator, integrating filtering and pressure regulation functions |
| 300 | Taille | Série GA300, suitable for medium-flow pneumatic systems |
| 10 | Taille du port | 3/8″ (PT/NPT thread), standard industrial interface |
| S | Regulation Type | Modèle standard, pressure range 0.15–0.9 MPa (20–130 PSI) |
| ARCTIQUE | Marque | AIRTAC International Group, a well-known global manufacturer of pneumatic components |
- Paramètres techniques clés
| Article | Valeur | Remarques |
| Milieu de fonctionnement | Compressed air filtered at 40 µm | Prevents oil, poussière, and other contaminants from affecting performance |
| Filtration Accuracy | 40 µm (standard) / 5 µm (facultatif) | Efficiently removes solid particles and supersaturated moisture |
| Plage de pression | 0.15–0.9 MPa (20–130 PSI) | Standard type S; low-pressure type L (0.05–0.4 MPa) disponible |
| Pression de preuve | 1.0 MPa (145 PSI) | Short-term maximum pressure |
| Max Operating Pressure | 0.9 MPa (130 PSI) | Long-term stable working pressure |
| Température ambiante | -5 ~ 60 °C | Avoid freezing or high-temperature deformation |
| Bowl Capacity | 60 cc | Standard PC material |
| Drainage Type | Pression différentielle + manuel (semi-automatic) | Can be upgraded to auto-drain (suffix A) |
| Filetage du port | TP (métrique) / TNP (impérial) | Thread type must be specified when ordering |
| Gauge Type | Snap-on round pressure gauge | Magnifying lens, clear scale, gain de place |
- Caractéristiques du produit
- Conception intégrée: Combines filter and regulator, saves space and simplifies the system.
- Self-Locking Adjustment: Push-lock structure prevents pressure drift from vibration or impact.
- Balanced Regulator Mechanism: Stable pressure adjustment, high output accuracy, réponse rapide.
- Cyclonic Flow Structure: High-speed rotation effectively separates liquid and gas, high filtration efficiency.
- Multiple Configurations Available:
Bowl material: PC (standard), Nylon (N), Métal (C)
Drainage: Semi-automatic (standard), Automatique (UN)
Montage: Avec support (standard), Sans support (J.)
Filtration: 40 µm (standard), 5 µm (haute précision)
- Guide de sélection
| Application | Points de sélection | Configuration recommandée |
| Automatisation industrielle générale | Débit standard, normal environment | GAFR30010S (Bol PC + semi-automatic drain) |
| Nourriture / Pharmaceutique | High cleanliness | GAFR30010S + 5 μm element |
| Environnement vibratoire | Leak-proof | GAFR30010SC (bol en métal) |
| Unmanned System | Sans entretien | GAFR30010SA (auto drain) |
| Low-Pressure Control | Pneumatic instruments, small actuators | GAFR30010SL (low-pressure type) |
- Installation & Notes d'entretien
Installation
- Sens d'écoulement: Install strictly according to the arrow on the valve body.
- Emplacement:
Install between air source and pneumatic components, near equipment.
Évitez les températures élevées, humidité, ou environnements corrosifs.
Reserve space for gauge reading and adjustment.
- Scellage: Use proper sealing material to prevent leakage.
- Protection: PC bowls should use a metal guard to avoid impact damage.
Calendrier d'entretien
| Article | Intervalle | Opération |
| Drainage | Tous les jours / Per shift | Manually press drain valve to empty water |
| Element Inspection | Chaque 3 mois | Check contamination; remplacer si nécessaire |
| Full Overhaul | Annuellement | Inspect seals, regulator mechanism; replace worn parts |
- Modèles alternatifs
| Exigence | Modèle recommandé | Différence |
| Mise à niveau de même marque | GAFR30010SA | Auto drain, less maintenance |
| Higher filtration | GAFR30010S + 5 μm element | Higher precision for precision equipment |
| Larger flow | GAFR40015S | Série GA400, 1/2″ port, débit plus élevé |
| Economy alternative | GAFR20008S | Série GA200, 1/4″ port, small-flow systems |
| Other brand | SMC AW30-03BG | Même spécification, performances similaires, slight mounting difference |
- Informations de commande
Full order model: GAFR30010S□□WTK (□□ = optional)
Bol: blank = PC, N = Nylon, C = Metal
Vidange: blank = semi-automatic, A = automatic
Check valve: W = no check valve; specify if required
Complete Report: Alternative Brands for AIRTAC GAFR30010S
- Paramètres de correspondance de base
| Article | GAFR30010S Standard | Alternative Requirements |
| Taille du port | 3/8″ (PT/NPT) | Must match to avoid piping changes |
| Filtration | 40 µm (std) / 5 µm (opt) | Identique ou supérieur |
| Plage de pression | 0.15–0.9 MPa (20–130 PSI) | Must cover or be compatible |
| Drainage | Semi-automatic | Same or better (auto drain) |
| Bol | PC (std), nylon, métal | Match environment |
| Flow Class | GA300 (débit moyen) | Flow ≥ original |
- Recommended Alternatives by Major Brands
- SMC (Japon)
| Modèle | Spécifications clés | Différence | Application |
| AW30-03BG-A | Port: RC3/8 | Slightly lower max pressure (0.85 MPa vs 0.9 MPa), une plus grande précision, compact | Precision pneumatics, lignes d'automatisation |
| Filtre: 40 µm | |||
| Reg: 0.05–0.85 MPa | |||
| Vidange: semi-auto | |||
| Bol: PC | |||
| Proof: 1.6 MPa | |||
| AW30-03BG-N-A | Port: NPT3/8; others same | NPT thread for North America | Équipement d'exportation |
| AW30-03BDG-A | Auto drain; others same | Auto drain, peu d'entretien | Unattended systems |
- FAIRE LA FÊTE (Allemagne)
| Modèle | Spécifications clés | Différence | Application |
| LFR-3/8-D-MINI | Port: G3/8 | Wider pressure range, haute protection, lockable knob | Machinerie lourde, environnements difficiles |
| Filtre: 40 µm | |||
| Reg: 0.1–1.6 MPa | |||
| Vidange: manuel | |||
| Bol: PC + guard | |||
| Couler: 2400 l/min | |||
| LFR-3/8-D-MIDI | Couler: 3100 l/min; others same | Higher flow | Large pneumatic systems |
| LFR-3/8-D-MINI-A | Auto drain; others same | Entretien facile | Continuous production |
- Norgren (ROYAUME-UNI)
| Modèle | Spécifications clés | Différence | Application |
| B72G-3GK-AD3-RMN | Port: G3/8 | All-metal, résistant aux vibrations | Severe conditions |
| Filtre: 40 µm | |||
| Reg: 0.3–10 bars | |||
| Vidange: semi-auto | |||
| Bol: métal + lock | |||
| B73G-3AG-MB | Port: NPT3/8, auto drain | Auto drain, TNP | Chimique, en mer |
| R68G-NNK-RLN | 5 μm filter | Filtration de haute précision | Nourriture, pharmaceutique, instruments |
- MRC (Japon)
| Modèle | Spécifications clés | Différence | Application |
| W3000-10-W | Port: RC3/8 | Compact, montage flexible, rentable | General automation |
| Filtre: 40 µm | |||
| Reg: 0.15–0.85 MPa | |||
| Vidange: semi-auto | |||
| Bol: PC | |||
| Couler: 2500 l/min | |||
| WE300C-9 | 5 μm filter | High cleanliness | Électronique, clean rooms |
- Pisco (Japon)
| Modèle | Spécifications clés | Différence | Application |
| FRF300-03MD | Port: RC3/8 | Petit, économique, haute précision | Small pneumatic systems |
| Filtre: 5 µm | |||
| Reg: 0.15–0.85 MPa | |||
| Vidange: manuel | |||
| Bol: PC | |||
| Couler: 300 l/min | |||
| FRF300-03AD | Auto drain; others same | Low maintenance | Small unmanned equipment |
- Autres marques
| Marque | Modèle | Principales fonctionnalités |
| Parker | 100P-3 | All-metal, industriel robuste |
| Aventiques | R412006230 | Modulaire, largement compatible |
| RS PRO | 808-8647 | Rentable, Norme européenne |
- Important Selection Notes
- Compatibilité des fils: Confirm PT/NPT/G/Rc to avoid installation issues.
- Plage de pression: Ensure the alternative covers your working pressure.
- Débit: Alternative flow ≥ system demand.
- Environnement:
Vibration: metal bowl models
Basse température: low-temp seal versions
Food/pharma: 5 μm high-precision versions
- Entretien: Auto-drain (D/A) for less labor; semi-auto for cost saving.
- Guide de sélection rapide
| Priorité | Modèle recommandé | Raison |
| Haute précision | SMC AW30-03BG-A | Haute précision, réponse rapide |
| Environnement difficile | FESTO LFR-3/8-D-MINI | Metal guard, choc & résistant aux vibrations |
| Auto maintenance | SMC AW30-03BDG-A | Auto drain, minimal labor |
| FESTO LFR-3/8-D-MINI-A | ||
| Best value | Pisco FRF300-03MD | Reliable and economical |
| RS PRO 808-8647 | ||
| Amérique du Nord | SMC AW30-03BG-N-A | NPT thread, NA standard |
| Norgren B73G-3AG-MB |
