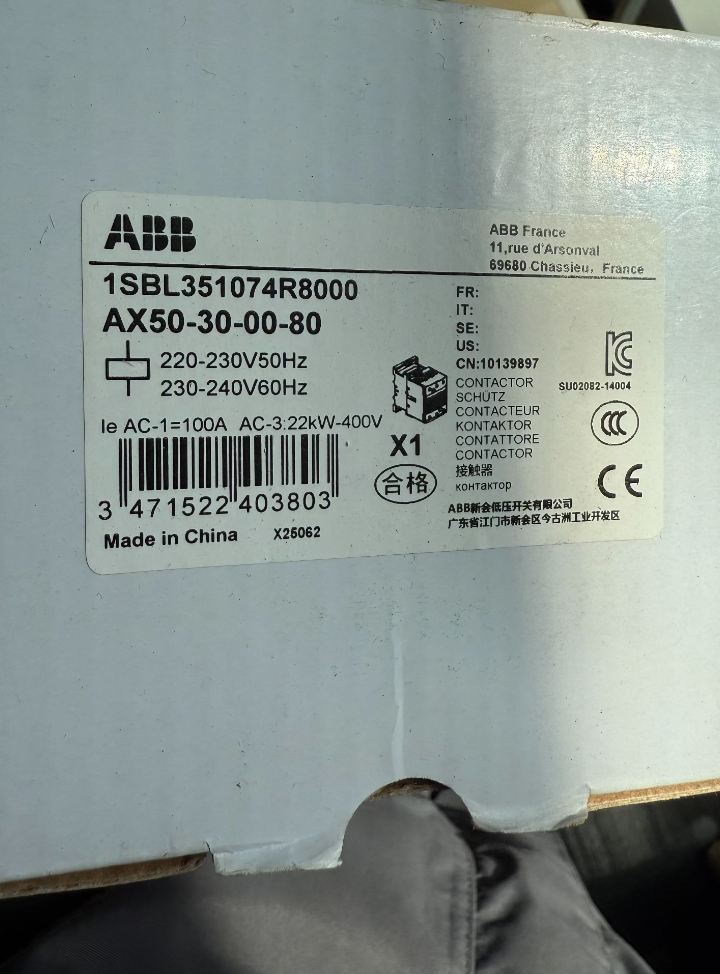

ABB AX50-30-00-80 AC Contactor

Model Code Breakdown

AX50-30-00-80

1. AX50: AX series general-purpose AC contactor, Frame Size 50
2. 30: 3-pole, 3 main Normally Open contacts (3NO), no main Normally Closed contacts
3. 00: No built-in auxiliary contacts (0NO+0NC). Auxiliary contacts must be fitted externally with CAL5X auxiliary contact blocks.
4. 80: Coil Code

✅ Coil Voltage: AC 220~230V 50Hz / 230~240V 60Hz (AC Coil)

Complete Order Model: AX50-30-00-80220-230V50Hz/230-240V60Hz

ABB Order Code: 10139897

2. Core Electrical Parameters

3. Outline & Dimensions

Width × Depth × Height: 82 mm × 110 mm × 108 mm

Net Weight: Approx. 1.05 kg

Terminal Markings:

Main Circuit: 1L1, 3L2, 5L3 (Line Side); 2T1, 4T2, 6T3 (Load Side)

Coil Terminals: A1, A2 (AC coil, non-polarized)

4. Key Features
5. No built-in auxiliary contacts. External auxiliary contact modules CAL5X-11 (1NO+1NC), CAL5X-20, CAL5X-02 must be installed separately.
6. Direct pluggable with ABB TA series thermal overload relays to form a complete motor starter.
7. Compatible accessories: Surge suppressors (RC networks, varistors), mechanical interlocks, side-mounted auxiliary contacts.
8. Drop-in replacement for legacy A50-30-00; AX series accessories are NOT interchangeable with older A series.
9. Same Series Selection Reference

AX50-30-00-80: No built-in auxiliary contacts (Subject Model)

AX50-30-11-80: Built-in 1NO+1NC auxiliary contacts (Order Code:10139700)

6. Compatible Replacement Options

Direct OEM Replacement

No newer superseding model; AX50 remains in mass production.

Cross-brand Equivalent Alternatives

Schneider LC1D50M7C (50A, AC220V coil)

Siemens 3RT2036-1AK60

⚠️ Replacement Checkpoints: Mounting dimensions, coil voltage, auxiliary contact configuration, plug compatibility with thermal relays.

7. Typical Applications

Start/stop control of 3-phase motors for air compressors, water pumps, fans, conveyors, injection molding machines, HVAC equipment; switching of resistive loads such as heaters and lighting circuits.

Complete Technical Document for ABB AX50-30-00-80 AC Contactor

Basic Product Information

Full Model: AX50-30-00-80

Full Description: AX50-30-00-80 220–230V 50Hz / 230–240V 60Hz

ABB Order Code: 10139897

ABB Product Code: 1SBL351074R8000

Customs HS Code: 85364900

Series: AX series 3-pole AC operated contactor (Replaces legacy A50-30-00)

Origin: Tianjin, China

Certifications: CCC, CE, RoHS, Compliant with IEC 60947

1. Model Code Breakdown

⚠️ Distinction: AX50-30-11-80 is equipped with integrated 1NO+1NC auxiliary contacts. AX50-30-00-80 has no on-board auxiliary contacts.

2. Rated Electrical Parameters (IEC 60947-4-1)

2.1 Main Circuit Parameters

2.2 Control Coil Parameters

Coil Voltage: AC 220~230V(50Hz) / 230~240V(60Hz)

Pick-up Voltage: ≤85% Ue

Drop-out Voltage: 10% ~ 60% Ue

Coil Power Consumption: Pick-up ≈70 VA; Holding ≈8 VA

Coil Terminals: A1, A2 (Non-polarized for AC)

2.3 Lifespan & Operation Specifications

Mechanical Endurance: ≥10,000,000 operations

Electrical Endurance (AC-3, 400V, 50A): ≥1,000,000 operations

Max Operating Frequency: 600 operations/hour (AC-3 load)

3. Environmental & Mounting Specifications

4. Outline Dimensions & Weight

Width × Depth × Height: 82 mm × 110 mm × 108 mm

Net Weight: 1.05 kg

Terminal Definition

Main Circuit Line Side: 1L1, 3L2, 5L3

Main Circuit Load Side: 2T1, 4T2, 6T3

Control Circuit: A1, A2

5. Optional Accessories (Separate Order Required)

No built-in auxiliary contacts on unit; external accessories required for status feedback

1. CAL5X-11: Side-mounted auxiliary contact block, 1NO+1NC (Most commonly used)
2. CAL5X-20: 2 Normally Open; CAL5X-02: 2 Normally Closed
3. TA Series Thermal Overload Relays: TA42DU…TA75DU, direct plug-in to build motor starters
4. RC Surge Suppressor / Varistor: Connect across A1/A2 to suppress coil overvoltage
5. Mechanical Interlock Module: For forward/reversing contactor interlocking
6. Terminal Protection Cover

⚠️ Important Notice: AX series accessories cannot be interchanged with legacy A series (A50).

6. Standard Wiring Description
7. Basic Motor Start-Stop Circuit

3-phase Power → 1L1/3L2/5L3; 2T1/4T2/6T3 → 3-phase Motor

Control Circuit: Power → Start/Stop Pushbuttons → A1, A2

2. For running status feedback: Install CAL5X-11, use 13/14 NO contact for signal feedback
3. Surge suppression components for coil must be wired in parallel across A1 and A2, never in series.
4. Official Document Download Sources
5. ABB Global Product Page (Download Datasheet, 2D Drawing, 3D CAD)

https://new.abb.com/products/1SBL351074R8000/ax50-30-00-80

2. ABB Library library.abb.com

Search Document ID: 9AKK107492A7059 (AX Series General Manual)

3. ABB China Online Store: Search Order Code 10139897 at mall.abb.com.cn
4. Selection & Replacement Guide

OEM Upgrade

No superseding model; AX50 is currently in continuous production. Discontinued legacy A50-30-00 can be directly replaced by this model.

Cross-brand Equivalent Alternatives

Schneider LC1D50M7C

Siemens 3RT2036-1AK60

Replacement Verification Points: Coil voltage, mounting dimensions, plug compatibility with thermal overload relays, auxiliary contact configuration.

9. Application Precautions & Pitfall Avoidance
10. 00 designation means no built-in auxiliary contacts. Do not assume integrated 1NO+1NC contacts.
11. Derate load current if ambient temperature >55℃ or installation altitude >2000m.
12. For inductive loads (motors), coil surge suppression is recommended to avoid PLC electromagnetic interference.
13. Not designed for direct switching of high-voltage DC; operate only within specified AC load categories.
14. CAL5X auxiliary blocks can only be fitted on the left and right sides of contactors; top mounting is prohibited.
